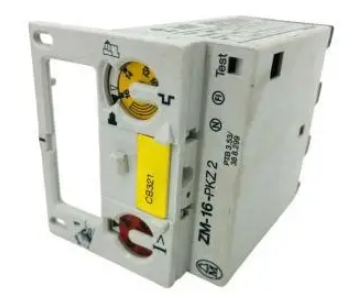

ABB ZM-16-PKZ2 contactor

ABB ZM-16-PKZ2 contactor

Product Overview

ZM-16-PKZ2 belongs to the subdivision model of ABB PKZ2 series contactors. The core design concept of this series of products is "miniaturization, high reliability, and easy integration". It is mainly used in AC circuits to achieve frequent on-off control of loads. It can be combined with thermal overload relays, circuit breakers, and other components to form a complete motor starting and protection circuit, effectively ensuring the safe and stable operation of electrical equipment. Its core function is to control the on/off state of the main circuit or control circuit by driving the closure and disconnection of the contacts through the on/off of the electromagnetic coil.

Core technical parameters

Technical parameters are the core basis for the selection and application of contactors. The key parameters of ZM-16-PKZ2 are as follows, which are subject to the product manual:

1. Main circuit parameters: The rated operating voltage (Ue) is usually AC 380V/400V (three-phase), AC 220V (single-phase), suitable for conventional low-voltage distribution systems; The rated working current (Ie) is 16A, which can meet the control requirements of small and medium-sized motors and loads; The rated breaking capacity (Icu) complies with IEC standards and can safely break fault currents at specified voltages, avoiding risks such as arc burns.

2. Control circuit parameters: The rated voltage (Uc) of the coil can be selected from commonly used specifications such as AC 220V, AC 380V, etc., to adapt to different control circuit power supplies; The coil power is divided into suction power and holding power. The suction power is larger (usually tens of VA) and the holding power is smaller (several VA), which can reduce long-term operating energy consumption.

3. Mechanical and electrical lifespan: The mechanical lifespan can reach millions of times, and the electrical lifespan (under rated load) can reach hundreds of thousands of times. It has durability for frequent operation and is suitable for scenarios such as production lines and conveying equipment that require high-frequency switching.

4. Protection level and environmental conditions: The protection level of the shell is generally IP20, which can prevent solid foreign objects such as fingers from entering; The working environment temperature range is usually -25 ℃~+55 ℃, with a relative humidity not exceeding 95% (no condensation), suitable for most industrial and civilian environments.

Structural characteristics and core advantages

1. Compact structural design

ZM-16-PKZ2 adopts a modular structure, with a compact size and small installation space. It can achieve seamless mechanical interlocking and electrical coordination with ABB PKZ2 series thermal overload relays (such as TA25DU series) without the need for additional brackets, simplifying the layout design of the distribution box and improving space utilization.

2. Reliable electromagnetic system

The contactor is equipped with a high-efficiency electromagnetic coil and is wound with high-quality enameled wire, which has excellent insulation performance and is not easily burned out due to overheating; The iron core is made of low loss silicon steel sheets by stamping, and with optimized magnetic circuit design, it has stable suction, low noise, and good anti-interference ability to avoid misoperation caused by voltage fluctuations.

3. High performance contact system

The main contact is made of silver alloy material, which has good conductivity and wear resistance, and can effectively reduce contact resistance and heat generation; The auxiliary contacts (usually including normally open and normally closed contacts) are made of silver nickel alloy, with precise action to ensure reliable transmission of control signals. At the same time, the contact system is equipped with a complete arc extinguishing device (such as a grid type arc extinguishing cover), which can quickly extinguish the arc generated during disconnection and extend the contact life.

4. Convenient installation and wiring

Adopting standard 35mm DIN rail installation method, easy installation and disassembly; The terminal block adopts a crimping design, supporting the connection of hard wires and soft wires (matched with wire ears). The wiring is firm and not easy to loosen, reducing the risk of faults caused by poor contact.

Applicable scenarios and typical applications

Based on its 16A rated current and stability performance, the ZM-16-PKZ2 contactor is mainly suitable for controlling small and medium-sized AC motors, resistive loads (such as heaters, lighting equipment), and inductive loads. Typical application scenarios include:

-Industrial automation: Start and stop control of small production line conveyor motors, water pump motors, and fan motors, combined with PLC to achieve automatic interlocking control.

-Building electrical: Control of central air conditioning terminal fans, water supply and drainage pumps, and emergency lighting circuits to meet the frequent start stop requirements of equipment in the building.

-Mechanical equipment: Main circuit control for small machine tools, packaging machinery, printing equipment, etc., providing reliable power switching for equipment operation.

-Civil and commercial scenarios: ventilation systems and refrigeration equipment control for large supermarkets and hotels, as well as power control for outdoor units of household central air conditioning.

Key points for installation and maintenance

1. Installation precautions

-Before installation, it is necessary to confirm that the contactor model and coil voltage are consistent with the actual requirements, and check that the appearance is not damaged and the contacts are not oxidized or deformed.

-The installation location should be away from heat sources, water sources, and corrosive gases, avoid direct sunlight, ensure good ventilation, and prevent high temperatures from affecting performance.

-When installing with DIN rails, it is necessary to ensure that the installation is firm and avoid vibration causing the contactor to loosen; When multiple contactors are installed side by side, sufficient heat dissipation clearance (usually not less than 5mm) should be reserved.

-When wiring, it is necessary to distinguish between the main contacts and auxiliary contacts. The specifications of the main circuit wires should match the rated current of 16A (it is recommended to use copper wires of 4mm ² or above), and the control circuit wires should use 1.5mm ² copper wires. After wiring, the terminal screws should be tightened to prevent false connection and heat generation.

2. Daily maintenance and troubleshooting

-Regular inspection: Regularly inspect the appearance of the contactor every month and clean the surface dust; Check whether the contacts are burned or oxidized. If there are slight burn marks on the contacts, they can be repaired by polishing with fine sandpaper. If there is severe burn, the contacts or contactors need to be replaced.

-Coil inspection: Measure the insulation resistance of the coil (power-off is required), ensure that the insulation resistance is greater than 1M Ω, and avoid coil short circuits or grounding faults; If severe heating and excessive noise are found in the coil, it is necessary to promptly check whether the voltage is stable or whether the coil is aging.

-Common troubleshooting: If the contactor cannot be closed, check whether the coil power supply is normal, whether the coil is burnt, and whether the contacts are stuck; If it cannot be disconnected after being pulled in, it is necessary to check whether the contacts are welded and whether the spring is faulty, and replace the faulty components in a timely manner.
