Eaton LZM Circuit Breaker Selection and Engineering Guide

Eaton LZM Circuit Breaker Selection and Engineering Guide: From Basic Configuration to Advanced Integration

Reliability and safety are the cornerstones of design in the power distribution systems of modern high-density residential, commercial complexes, and industrial buildings. Faced with increasingly complex loads and stringent environmental requirements, engineers need a solution that not only provides protection in the event of a failure, but also excels in flexibility, modularity, and long-term reliability. The LZM series circuit breakers are designed to address these challenges. This guide aims to provide electrical engineers, system integrators, and maintenance personnel with a comprehensive technical reference on the LZM series circuit breakers (15A to 1000A), systematically elaborating on core selection, protection settings, accessory integration, and engineering considerations.

Systematic selection: logic of the four major framework sizes

The core advantage of the LZM series lies in its streamlined design, covering the complete rated current range from 15A to 1000A with only four compact frame sizes: LZM1, LZM2, LZM3, and LZM4. This design greatly reduces the complexity of engineering design, inventory management, and post maintenance.

LZM1 (maximum 160A): Suitable for terminal distribution boxes, small equipment power supply, and branch circuit protection. Its compact size and flexible installation method (such as 35mm DIN rail installation) make it an ideal choice for distribution cabinet space.

LZM2 (maximum 300A): commonly found in building main distribution cabinets, medium-sized motor control centers, and industrial control cabinets. It balances the breaking ability and volume, and is the most widely used framework level.

LZM3 (maximum 630A): As the incoming main circuit breaker for large commercial facilities, industrial workshops, and critical power distribution units (PDAs), it provides higher short-time withstand current and electronic release options.

LZM4 (maximum 1000A): Designed for the overall incoming line protection of large industrial plants, data centers, and infrastructure projects, it has the highest breaking capacity and comprehensive protection functions.

Selection criteria: When selecting the frame size, the primary criterion is the rated uninterrupted current (Iu), which must be greater than or equal to the maximum continuous load current in the system. Secondly, it is necessary to calculate the expected short-circuit current (Isc) based on the transformer capacity and system short-circuit impedance, and ensure that the rated ultimate short-circuit breaking capacity (Icu) of the selected circuit breaker meets or exceeds this value. The LZM series offers multiple breaking capacity levels such as 25kA (Class B, Basic), 36kA (Class C, Comfort), and 50kA (Class N, Standard) at 400/415V voltage, providing precise matching for systems with different short-circuit capacities.

Protection Core: In depth Analysis of Thermomagnetic and Electronic Release Devices

The LZM series offers two types of release devices: thermal magnetic (type A) and electronic (type AE), to meet diverse requirements ranging from standard cable protection to complex generator protection.

1. Thermal Magnetic Release (Type A) - Fast and Reliable Basic Protection

This type of release is an ideal choice for standard distribution applications and has the following adjustable features:

Overload protection (L function): achieved through thermal bimetallic elements, the overload trip current (Ir) can be continuously adjusted between 0.8 × In and 1 × In. This provides great flexibility for on-site fine-tuning of rated current based on actual load.

Short circuit protection (I function): achieved through electromagnetic coils, the instantaneous tripping current (Ii) can be adjusted between 6 × In and 10 × In. A lower setting value (such as 6 × In) can achieve stricter protection for sensitive loads (such as electronic devices) and prevent surge impact; A higher setting value (such as 10 × In) is used for motor circuits that need to avoid peak starting currents.

2. Electronic release (AE type) - precise, programmable advanced protection

For systems that require higher precision and more complex protection logic, such as generator protection or area selective interlocking, electronic release devices have become an inevitable choice. Its core advantages include:

Wide adjustment range: Ir can be adjusted between 0.5 × In and 1 × In, while Ii has a wider range. The LZM3 framework can reach 2-8 × In, and the LZM4 framework can be extended to 2-12 × In. This makes it easy to adapt to the protection curve coordination of different components from long-distance cables to transformers.

True RMS measurement: Accurately measure the distortion current generated by nonlinear loads to avoid false tripping.

Thermal memory function: Simulate the cooling process of the device after continuous overload tripping to prevent overheating damage.

I ² t constant function: When the short-circuit current far exceeds the setting value of the circuit breaker, this function can force the circuit breaker to operate in a very short time (millisecond level), achieve energy limitation, and protect downstream cables and components. This function can be turned on or off by engineers according to system requirements.

LED status indicator: Two LED indicator lights provide real-time load status:

Load<70% Ir: LED off

Load ≥ 70% Ir: LED constantly on (warning)

Load ≥ 100% Ir: LED strobe (overload alarm)

Special considerations for neutral line protection

In a three-phase four wire system, the protection of the neutral wire (N-pole) has always been a design difficulty, especially in situations where nonlinear loads (such as LED lighting, frequency converters) cause severe third harmonic currents. The LZM series provides flexible solutions:

For the LZM1-3 framework: thermal magnetic protection is adopted, and the neutral wire trip threshold (Irn) can be set to 100% or 60% of the phase wire Ir value. This design allows engineers to match protection based on the cross-sectional area of the neutral line (which may be half or equal to the phase line), both safely and economically.

For the LZM4 framework and the selection of specific electronic release devices: when the rated current is high (such as ≤ 160A), if the neutral wire allows the use of cables with smaller cross-sections (according to relevant electrical specifications), a threshold of 60% can be selected. This provides the possibility of reducing the material cost of long-distance laying of lines.

Attachment integration: Building a complete functional system

The value of circuit breakers is often expanded through their accessories. The LZM series provides a complete set of accessories with unified installation methods.

Auxiliary and alarm contacts (HIN and HIA)

Standard auxiliary contact (HIN): It operates synchronously with the main contact and is used to provide feedback on the "ON/OFF" status of the circuit breaker to the PLC, indicator lights, or remote monitoring system. It is the foundation of electrical interlocking and status indication.

Release indication auxiliary contact (HIA): independent of HIN, it only changes state when the circuit breaker trips due to overload, short circuit, or voltage release action. This is crucial for distinguishing between "manual shutdown" and "fault tripping", which can significantly shorten the troubleshooting time.

Voltage release: remote control trip

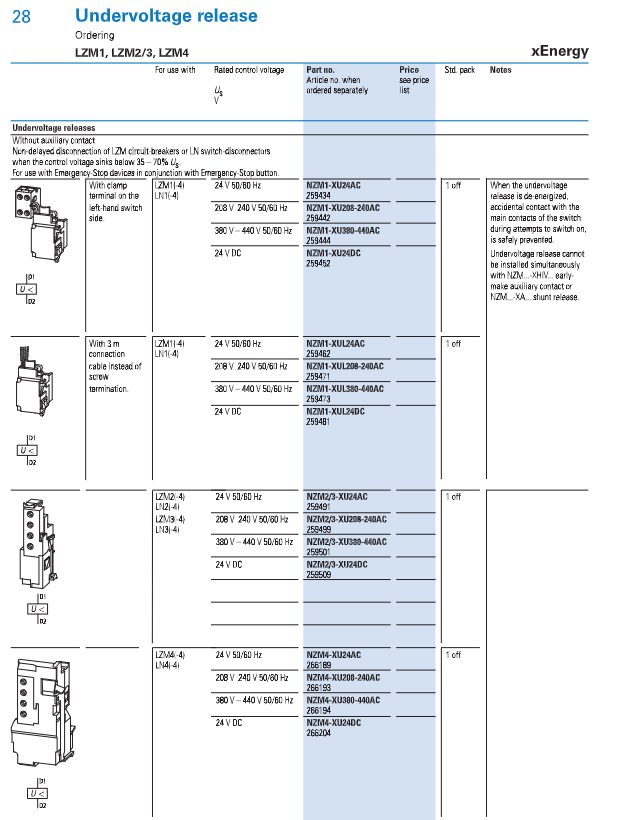

Undervoltage Release: Used to achieve zero voltage protection. When the power supply voltage drops between 35% and 70% of the rated voltage, it will trigger the circuit breaker to trip and prevent it from closing again before the voltage returns to the normal threshold (usually above 85%). When used in conjunction with the emergency stop button, it can form a safety circuit that meets safety standards.

Shunt Release: The circuit breaker can be triggered to trip instantly by an external voltage pulse (such as a signal from the fire alarm system, BMS, or remote button). It is a key component for achieving remote emergency power-off or firefighting functions.

Operating mechanism: Local and remote human-machine interface

Door linkage handle: allows the operation handle to be installed on the door panel of the distribution cabinet, achieving an IP66 protection level. Its innovative automatic centering function and unified drilling template simplify installation and ensure long-term operational reliability. The handle can be locked in the "OFF" position (up to 3 padlocks can be used) and coordinated with the door lock mechanism to ensure that the door cannot be opened when the circuit breaker is in the "ON" state, and can be opened when the circuit breaker is in the "OFF" state, ensuring personal safety.

Circuit breaker body rotating handle: directly installed on the circuit breaker, suitable for situations where cabinet door interlocking is not required. It also supports padlock locking and insulated cover, improving the safety level (IP40).

Remote operator: For situations that require central control room operation or unmanned operation, electric remote operators (NZM-XR series) are essential. It supports two or three wire control, can achieve "ON" and "OFF" operations, and even remote reset. A key parameter is the closing delay: the standard type is 110-170 milliseconds, while the fast type (XRD) can reduce the closing delay to 60-100 milliseconds, which is crucial for continuous production processes that require rapid power restoration. The remote controller is also equipped with a "manual/automatic" switch for easy on-site maintenance.

Engineering Practice: Installation, Capacity Reduction, and Mechanical Interlocking

Installation and spacing

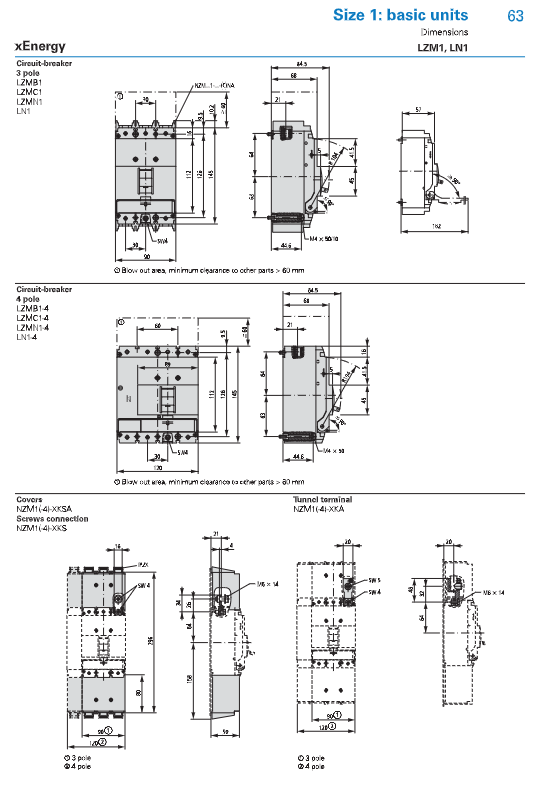

Flying arc distance: When a circuit breaker breaks a large current, ionized gas (flying arc) will be generated between the contacts. It is necessary to ensure that there are no conductive components within the arcing area. Depending on the model, the minimum clearance from other components is required to be between 35mm and 100mm. This is a mandatory requirement to ensure that there is no phase to phase short circuit or ground flashover inside the distribution cabinet, and it must be strictly followed in the design and layout.

Spacing: A minimum distance of 5mm should be maintained between adjacent circuit breakers to ensure heat dissipation.

Temperature influence and derating

The environmental temperature has a direct impact on the performance of the thermal magnetic release. All circuit breakers are calibrated at a reference temperature (usually 40 ℃). At higher ambient temperatures, it is necessary to apply a derating factor or temperature compensation factor.

Application Example 1 (Temperature Compensation): An LZM1-A100 circuit breaker (In=100A) operates at an ambient temperature of 60 ℃. The temperature compensation coefficient obtained from the table is 0.86. This means that its actual overload protection action point is equivalent to a circuit breaker set at 100A × 0.86=86A. If the load current is still 100A, it will malfunction.

Application Example 2 (Capacity Reduction): An LZM2-A250 circuit breaker needs to operate for a long time in an environment of 65 ℃. According to the table, its capacity reduction coefficient is 0.85. In order to ensure safe operation, the maximum continuous current allowed to be carried shall not exceed 250A × 0.85=212.5A. When selecting, engineers must adjust the rated current of the circuit breaker upwards based on the highest expected temperature inside the distribution cabinet.

Mechanical Interlock

Preventing two power sources from simultaneously connecting to the same load is a necessary safety function in backup power systems (such as one in use and one backup) or sequential control. LZM provides two mechanical interlocking methods:

Rotating handle interlock: Connect the rotating handle or door linkage handle of two circuit breakers through Bowden cable. The "ON" position of one handle will physically lock the other handle, preventing it from turning to "ON".

Remote operator interlock: used to install two circuit breakers driven by electric operators in adjacent positions. By using a set of mechanical linkages (NZM-XMV series) directly acting on the internal mechanisms of two operators, strict "one-to-one" interlocking is ensured. This solution cannot be used in conjunction with a manual rotating handle and must be clearly selected during system design.

Selective analysis and backup protection

Selectivity/Discretion: The goal is to ensure that the lower level circuit breaker closest to the fault point operates while its upper level circuit breaker remains closed, thereby ensuring continuous power supply to the fault free circuit. There are verified selective coordination tables between LZM series circuit breakers, as well as between LZM and lower level miniature circuit breakers (MCBs, such as FAZ series) or motor protection circuit breakers (PKZ series). Engineers need to refer to the selective limit current (Is) based on the model, rated current, and setting value of the upper and lower circuit breakers. As long as the expected fault current is lower than Is, selectivity can be guaranteed.

Backup Protection: When the expected short-circuit current exceeds the breaking capacity (Icu) of the lower level circuit breaker, a higher breaking capacity LZM circuit breaker can be connected in series upstream as backup protection. At this point, before the upstream LZM action limits energy, the downstream circuit breaker must be able to withstand and break the fault current after the limit value. The backup protection coordination table provided in the technical manual specifies which combinations can be safely used, providing a solution for economically using standard breaking capacity circuit breakers in high short-circuit capacity grid locations.
