Eaton LZM Circuit Breaker Selection and Engineering Guide

Eaton LZM Circuit Breaker Selection and Engineering Guide: From Basic Configuration to Advanced Integration

Reliability and safety are the cornerstones of design in the power distribution systems of modern high-density residential, commercial complexes, and industrial buildings. Faced with increasingly complex loads and stringent environmental requirements, engineers need a solution that not only provides protection in the event of a failure, but also excels in flexibility, modularity, and long-term reliability. The LZM series circuit breakers are designed to address these challenges. This guide aims to provide electrical engineers, system integrators, and maintenance personnel with a comprehensive technical reference on the LZM series circuit breakers (15A to 1000A), systematically elaborating on core selection, protection settings, accessory integration, and engineering considerations.

Systematic selection: logic of the four major framework sizes

The core advantage of the LZM series lies in its streamlined design, covering the complete rated current range from 15A to 1000A with only four compact frame sizes: LZM1, LZM2, LZM3, and LZM4. This design greatly reduces the complexity of engineering design, inventory management, and post maintenance.

LZM1 (maximum 160A): Suitable for terminal distribution boxes, small equipment power supply, and branch circuit protection. Its compact size and flexible installation method (such as 35mm DIN rail installation) make it an ideal choice for distribution cabinet space.

LZM2 (maximum 300A): commonly found in building main distribution cabinets, medium-sized motor control centers, and industrial control cabinets. It balances the breaking ability and volume, and is the most widely used framework level.

LZM3 (maximum 630A): As the incoming main circuit breaker for large commercial facilities, industrial workshops, and critical power distribution units (PDAs), it provides higher short-time withstand current and electronic release options.

LZM4 (maximum 1000A): Designed for the overall incoming line protection of large industrial plants, data centers, and infrastructure projects, it has the highest breaking capacity and comprehensive protection functions.

Selection criteria: When selecting the frame size, the primary criterion is the rated uninterrupted current (Iu), which must be greater than or equal to the maximum continuous load current in the system. Secondly, it is necessary to calculate the expected short-circuit current (Isc) based on the transformer capacity and system short-circuit impedance, and ensure that the rated ultimate short-circuit breaking capacity (Icu) of the selected circuit breaker meets or exceeds this value. The LZM series offers multiple breaking capacity levels such as 25kA (Class B, Basic), 36kA (Class C, Comfort), and 50kA (Class N, Standard) at 400/415V voltage, providing precise matching for systems with different short-circuit capacities.

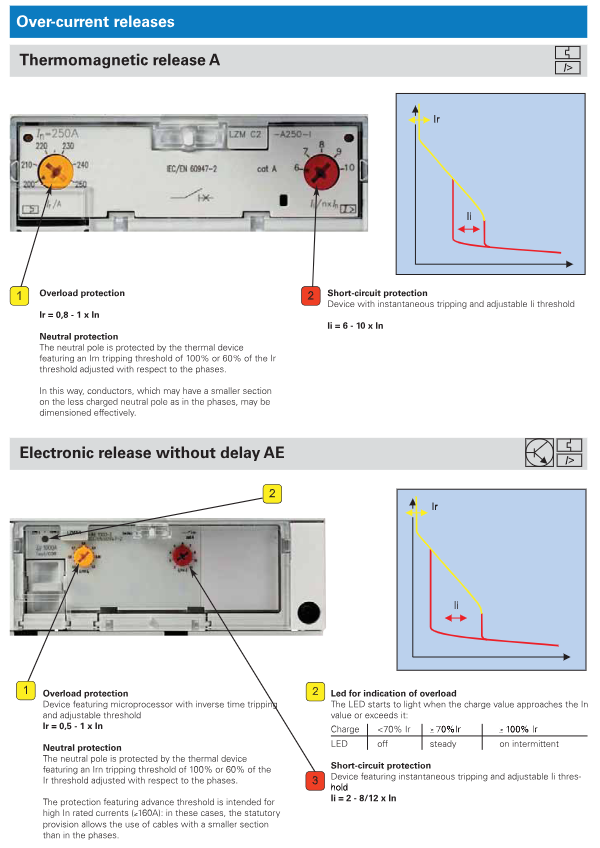

Protection Core: In depth Analysis of Thermomagnetic and Electronic Release Devices

The LZM series offers two types of release devices: thermal magnetic (type A) and electronic (type AE), to meet diverse requirements ranging from standard cable protection to complex generator protection.

1. Thermal Magnetic Release (Type A) - Fast and Reliable Basic Protection

This type of release is an ideal choice for standard distribution applications and has the following adjustable features:

Overload protection (L function): achieved through thermal bimetallic elements, the overload trip current (Ir) can be continuously adjusted between 0.8 × In and 1 × In. This provides great flexibility for on-site fine-tuning of rated current based on actual load.

Short circuit protection (I function): achieved through electromagnetic coils, the instantaneous tripping current (Ii) can be adjusted between 6 × In and 10 × In. A lower setting value (such as 6 × In) can achieve stricter protection for sensitive loads (such as electronic devices) and prevent surge impact; A higher setting value (such as 10 × In) is used for motor circuits that need to avoid peak starting currents.

2. Electronic release (AE type) - precise, programmable advanced protection

For systems that require higher precision and more complex protection logic, such as generator protection or area selective interlocking, electronic release devices have become an inevitable choice. Its core advantages include:

Wide adjustment range: Ir can be adjusted between 0.5 × In and 1 × In, while Ii has a wider range. The LZM3 framework can reach 2-8 × In, and the LZM4 framework can be extended to 2-12 × In. This makes it easy to adapt to the protection curve coordination of different components from long-distance cables to transformers.

True RMS measurement: Accurately measure the distortion current generated by nonlinear loads to avoid false tripping.

Thermal memory function: Simulate the cooling process of the device after continuous overload tripping to prevent overheating damage.

I ² t constant function: When the short-circuit current far exceeds the setting value of the circuit breaker, this function can force the circuit breaker to operate in a very short time (millisecond level), achieve energy limitation, and protect downstream cables and components. This function can be turned on or off by engineers according to system requirements.
