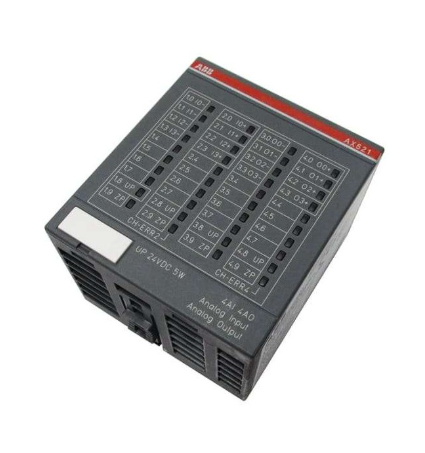

ABB 3BHB019265R0410 Analog Input/Output (I/O) Module

ABB 3BHB019265R0410 Analog Input/Output (I/O) Module

Core positioning and design features

3BHB019265R0410 is not a single function signal conversion module, but a composite industrial grade interface device that integrates multi-channel analog input (AI) and analog output (AO) functions. Its core positioning is to provide a full chain analog signal interaction solution of "precise acquisition stable transmission reliable control" for mid to high end industrial control systems. The module design strictly follows the IEC 61131-2 industrial control equipment standard and the IEC 61000 electromagnetic compatibility standard. It adopts reinforced isolation protection structure and high stability component selection, which can effectively resist harsh environmental factors such as strong electromagnetic interference, voltage fluctuations, and temperature changes in industrial sites, ensuring the accuracy of signal transmission and the reliability of long-term equipment operation.

The core design features of this module revolve around "industrial grade reliability, functional integration, and configuration flexibility": by integrating input and output functions with a single module, it significantly reduces cabinet installation space and on-site wiring complexity; Built in 24 bit high-precision A/D, D/A conversion chip and signal conditioning circuit, achieving precise capture of micro volt level weak signals and stable output of control signals; Support full parameter visualization configuration through control system configuration software, without the need for on-site modification of hardware jumpers, adapting to different brands and specifications of field instruments, significantly improving applicability and deployment efficiency in various complex industrial scenarios.

Core functional system

2.1 High precision analog input function

The analog input channel of the module is designed specifically for complex signal acquisition in industrial sites. It can directly connect analog signals output by various sensors such as temperature, pressure, flow rate, liquid level, vibration, etc. After internal signal conditioning, filtering, isolation, and digital conversion, the precise digital signals are transmitted to the control system for data processing and analysis. Its input function has the following core features:

-Multi type signal compatibility: It fully supports commonly used industrial standard signals, including 4-20mA DC standard current signals, 0-5V DC/1-5V DC/0-10V DC standard voltage signals. At the same time, some channels can be configured as thermocouple (K/J/T/E/R/S/B type) and thermistor (Pt100/Pt1000/Cu50) signal input modes through software, adapting to the direct measurement needs of various physical quantities such as temperature, pressure, flow rate, etc., without the need for additional signal conversion modules;

-Ultra high acquisition accuracy: The input signal conversion accuracy reaches 24 bits, the current/voltage signal measurement error is ≤± 0.02% FS, the thermocouple temperature measurement error is ≤± 0.1 ℃ (within the range of 0-600 ℃), the thermal resistance temperature measurement error is ≤± 0.05 ℃ (Pt100, within the range of 0-200 ℃), and the sampling rate supports 10Hz-200Hz stepless adjustment, which can accurately capture small fluctuations in on-site signals and meet the needs of precision control scenarios;

-Triple isolation protection: Adopting triple galvanic isolation technology between channels, between channels and systems, and between systems and backplane buses, the isolation voltage can reach 2500V AC/1min, effectively blocking the impact of on-site strong electrical interference, grounding loops, and common mode voltage on the module core circuit and control system, ensuring the stability of signal acquisition;

-Full scenario fault diagnosis: equipped with sensor disconnection detection, signal over range detection, channel fault self diagnosis, and temperature drift compensation functions. When the input signal is abnormal (such as sensor disconnection, signal exceeding the configured range) or the internal circuit of the module is faulty, it can send real-time alarm signals to the control system and record the fault information, making it easy for operation and maintenance personnel to quickly locate and troubleshoot problems.

2.2 High reliability analog output function

The analog output channel receives digital control instructions from the control system, and after internal D/A conversion and signal amplification, outputs stable analog signals to on-site actuators (such as regulating valves, frequency converters, solenoid valves, indicator lights, etc.) to achieve precise closed-loop control of key parameters in industrial processes. The core features of the output function are as follows:

-Multiple output specifications available: Supports 4-20mA DC standard current output and 0-5V DC/1-5V DC/0-10V DC standard voltage output, with an output signal accuracy of 24 bits, linearity error of ≤± 0.05% FS, and output signal ripple of ≤ 1mV, ensuring precise execution of control instructions and stable control of process parameters;

-Super load adaptation: The maximum load resistance of the current output channel can reach 1000 Ω, and the minimum load resistance of the voltage output channel is ≥ 500 Ω. It can directly drive most industrial grade actuator devices without the need for additional signal amplifiers or power expansion modules, reducing system deployment costs;

-Comprehensive output protection: Built in overcurrent protection, short circuit protection, overvoltage protection, and reverse connection protection mechanisms. When the output circuit experiences short circuit, overcurrent (typical current limit value ≤ 35mA), or power reverse connection, the module can quickly cut off the output circuit and activate the protection mode to avoid damage to the module core circuit and actuator. After the fault is resolved, it can automatically restore normal output;

-Dual mode control support: supports two modes: remote automatic reception of control system instructions and local manual setting of output values. The fixed output values can be set locally through configuration software or specialized debugging tools, which facilitates on-site equipment debugging, calibration, and troubleshooting, and improves operation and maintenance convenience.

2.3 Efficient System Integration and Communication

As the core I/O interface unit of the control system, this module has complete system integration capabilities and can seamlessly integrate with mainstream control systems such as ABB AC 800M and Symphony Plus. It also supports compatibility and docking with third-party industrial control systems, ensuring flexibility in system expansion and upgrading

-High speed bus communication: data exchange with the control system controller through PROFINET or ABB dedicated backplane bus (such as PRP/HSR high availability bus), with a communication rate of up to 1Gbps and a typical communication delay of ≤ 0.5ms, ensuring real-time transmission of control instructions and collected data, meeting the requirements of high-speed closed-loop control;

-Full parameter software configuration: Supports visual configuration of signal types, range, filtering parameters, alarm thresholds, sampling rates, etc. for each channel of the module through ABB Control Builder M or Symphony Plus Engineering configuration software. Configuration parameters can be encrypted and stored, and batch import and export can be performed, greatly improving the efficiency of multi module deployment;

-Equipped with hot swapping function: Supports hot swapping in accordance with IEC 61373 standard, enabling online module replacement and maintenance without interrupting the operation of the entire control system, minimizing system downtime, and significantly improving the continuity and availability of industrial production.

2.4 Redundant and fault-tolerant design

For key industrial scenarios with high reliability requirements such as power and chemical industries, module support and control systems are used in conjunction to achieve multiple redundant configurations, ensuring system stability in extreme situations

-Dual power redundant input: supports DC 24V/DC 48V dual independent power input, with automatic switching between the two power sources, with a switching time of ≤ 5ms. When the main power supply fails, it can be instantly switched to the backup power supply to ensure the continuous operation of the module;

-Key channel redundancy: The core control channel can be configured in a 1:1 redundancy mode. When the main channel fails, the backup channel can automatically take over the output task within ≤ 1ms, avoiding control process interruption and ensuring stable operation of the industrial process;

-Data fault tolerance mechanism: It has data verification, error retransmission, and breakpoint continuation functions. When there is instantaneous interference in bus communication causing data transmission errors, it can automatically perform data verification and retransmission to ensure the integrity and accuracy of collected data and control instructions.

Detailed explanation of technical parameters

3.1 Basic Parameters

parameter category

specific indicators

Module Model

3BHB019265R0410

Channel configuration

16 analog inputs (AI)+8 analog outputs (AO) (standard configuration)

Rated working power supply

DC 24V ± 15% or DC 48V ± 15% (dual redundant input, supports hot backup)

Module power consumption

≤ 20W during normal operation, ≤ 30W at full load output

Working environment temperature

-25 ℃~+70 ℃ (wide temperature version, in compliance with industrial wide temperature operation requirements)

Storage environment temperature

-40℃~+85℃

relative humidity

5%~95%, no condensation, in accordance with IEC 60068-2-3 standard

Protection level

Module body IP20, front-end connector IP44 (optional IP67 waterproof connector)

Electromagnetic Compatibility (EMC)

Compliant with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission) Class A standards

mechanical life

Plug and unplug times ≥ 1000 times (front-end connector), mean time between failures (MTBF) ≥ 1 million hours

3.2 Analog input parameters

parameter category

specific indicators

Support signal types

Current: 4-20mA DC (two-wire/four wire system); Voltage: 0-5V DC, 1-5V DC, 0-10V DC; Thermocouple: K/J/T/E/R/S/B type; Thermal resistance: Pt100 (3-wire/4-wire) Pt1000、Cu50

Input accuracy

Current/voltage signal: ± 0.02% FS; thermocouple: ± 0.1 ℃ (0-600 ℃), ± 0.2 ℃ (600-1200 ℃); Thermal resistance: ± 0.05 ℃ (Pt100, 0-200 ℃)

sampling rate

10Hz-200Hz adjustable, supports single channel independent setting, default 50Hz

Isolation method and voltage

Dual galvanic isolation between channels and between channels and systems, with an isolation voltage of 2500V AC/1min

input impedance

Current input: ≤ 5 Ω; Voltage input: ≥ 10M Ω; Thermistor input: ≤ 0.05 Ω (4-wire system)

Filtering function

Supports digital filtering, with adjustable filtering constants ranging from 0.1s-10s, effectively suppressing high-frequency interference

3.3 Analog output parameters

parameter category

specific indicators

Support signal types

Current: 4-20mA DC; Voltage: 0-5V DC, 1-5V DC, 0-10V DC, supports output signal open circuit detection

output accuracy

± 0.05% FS (full range), linearity error ≤ ± 0.03% FS, temperature drift ≤ 5ppm/℃

response time

≤ 0.5ms (from digital command input to stable output of analog signal, error ≤ 0.1%)

load capacity

Current output: maximum load of 1000 Ω; Voltage output: minimum load of 500 Ω

protection function

Overcurrent protection (≤ 35mA), short circuit protection, overvoltage protection (≥ 30V DC), reverse connection protection

Isolation method and voltage

Galvanic isolation between output channel and system, isolation voltage 2500V AC/1min

Precautions for use and maintenance

-Before powering on the module, it is necessary to confirm that the power supply voltage is consistent with the rated voltage of the module. Dual power supplies need to be connected simultaneously to achieve redundant backup, avoid misconnecting AC power supplies or DC power supplies beyond the rated range, and prevent module burnout;

-Module parameter configuration needs to be carried out by professional technicians using ABB's official configuration software. Before configuration, it is necessary to have a detailed understanding of the signal types and ranges of the on-site sensors and actuators. After configuration is completed, the configuration file needs to be backed up for subsequent maintenance and fault recovery;

-Daily inspections should focus on checking the status of module indicator lights, whether the wiring terminals are loose, whether the shielding layer is well grounded, and whether the surface temperature of the module is normal (≤ 60 ℃ during normal operation). Any abnormalities should be promptly addressed;

-When a module malfunctions, the power and signal circuits should be disconnected first, and ABB authorized service personnel should perform inspection and maintenance. Non professionals are prohibited from disassembling internal components of the module or modifying hardware circuits without authorization;

-When the module is idle for a long time, it should be stored in a dry, ventilated, and non corrosive gas environment. It should be powered on and tested regularly (every 6 months) to avoid internal circuit oxidation or component performance degradation caused by moisture;

-Software upgrades must follow the upgrade process and version compatibility instructions provided by ABB. Before upgrading, it is necessary to ensure that the module communicates normally with the configuration software. During the upgrade process, power outages or interruptions in communication are prohibited to avoid module failures caused by upgrade failures.
