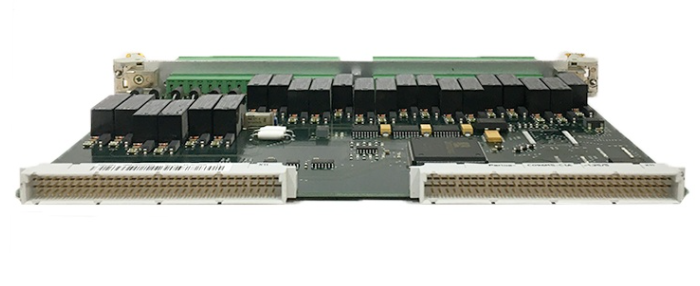

ABB 500BOM01 1MRB150023R0002 digital output module

ABB 500BOM01 1MRB150023R0002 digital output module

Module Overview

ABB 500BOM01 1MRB150023R0002 is a high-performance digital output module designed specifically for industrial automation control systems, belonging to the I/O module family of ABB AC 500 series PLCs. This module has high reliability, strong anti-interference ability, and flexible configuration characteristics. It can accurately and stably convert the digital control signal of PLC into the driving signal of on-site execution mechanism. It is widely used in industrial scenarios such as manufacturing, energy, chemical, metallurgy, etc., which require strict control accuracy and system stability. It provides core support for the action control of various automation equipment.

Core technical specifications

2.1 Basic electrical parameters

-Output type: transistor output (NPN/PNP configurable, subject to actual model)

-Number of output channels: 8 channels/16 channels (common specifications, need to be confirmed with the product nameplate)

-Rated output voltage: 24V DC (industrial standard DC power supply, suitable for most on-site execution components)

-Rated output current per channel: 0.5A/1A (maximum load capacity of a single channel to avoid overload operation)

-Total output current: ≤ 8A (module overall current limit, reasonable allocation of channel loads required)

-Response time: ≤ 1ms (delay from control signal input to output state switching, ensuring fast control requirements)

2.2 Environmental adaptation parameters

-Working temperature range: -25 ℃~+60 ℃ (to meet the high and low temperature environmental requirements of industrial sites)

-Storage temperature range: -40 ℃~+85 ℃ (convenient for transportation and long-term storage)

-Relative humidity: 5%~95% (no condensation, suitable for humid or dry working environments)

-Protection level: IP20 (module body protection, installation requires coordination with the control cabinet to achieve higher protection)

-Anti interference performance: Complies with the IEC 61000-4 series standards, has strong electromagnetic compatibility (EMC) capabilities, and can resist electromagnetic interference in industrial sites

2.3 Mechanical and Connection Parameters

-Installation method: DIN rail installation (35mm standard rail, easy to quickly fix and disassemble)

-Module size: Approximately 45mm in width, 100mm in height, and 120mm in depth (subject to actual product, compact design saves control cabinet space)

-Connection method: Spring type terminal block/screw type terminal block (firmly wired and easy to maintain)

-Communication interface: Communicate with CPU module through AC 500 series PLC backplane bus, no additional wiring required

Core functional characteristics

3.1 High reliability design

The module adopts ABB industrial grade components, which have undergone strict environmental stress screening and reliability testing. The mean time between failures (MTBF) is long and can adapt to continuous high-intensity operation in industrial sites. Simultaneously equipped with overcurrent protection and short circuit protection functions, it can quickly cut off the output when a channel experiences overload or short circuit, avoiding module damage and ensuring the safety of the entire control system.

3.2 Flexible Configuration and Diagnostic Capability

Support parameter configuration through ABB Automation Builder software, which can set response modes and fault diagnosis thresholds for output signals according to on-site requirements. The module comes with LED status indicator lights, and each channel is equipped with "power indicator", "output status indicator", and "fault indicator". Operation and maintenance personnel can quickly determine the working status of the module and each channel through the indicator lights, greatly improving the efficiency of fault diagnosis.

3.3 Compatibility and Expansion Features

Fully compatible with various CPU modules of ABB AC 500 series PLC, seamlessly integrated into AC 500 control systems. The module supports hot plugging function (which needs to be coordinated with the hot plugging design of the PLC system), and can be replaced and maintained without interrupting the operation of the entire control system, reducing downtime and improving production efficiency. In addition, through the I/O expansion bus of the AC 500 series, the number of modules can be flexibly increased or decreased according to the control scale to meet the needs of different projects.

Typical application scenarios

1. Manufacturing automation: used to control the execution components such as solenoid valves, contactors, indicator lights, etc. in production lines, achieve automated process switching, equipment start stop control, etc., such as automotive assembly lines, electronic component production lines, etc.

2. Energy industry: In scenarios such as substations and power plants, auxiliary actuators that control circuit breakers and isolating switches, as well as signal outputs from various monitoring instruments, ensure stable operation of energy production and transmission.

3. Chemical and Metallurgical: Used to control the stirring motor, valve opening and closing actions, and heating device start and stop of reaction vessels, adapting to harsh environments such as high temperature, high dust, and strong corrosion in chemical and metallurgical sites, ensuring precise control of the production process.

4. Building automation: Control the ventilation fans, water supply and drainage pumps, lighting systems and other equipment in the building to achieve intelligent management of building equipment and reduce energy consumption.

Installation and usage precautions

-Before installation, it is necessary to confirm that the module model matches the system requirements, check the appearance of the module for any damage, and ensure that the wiring terminals are not deformed.

-The module should be installed in a control cabinet with good ventilation, no direct sunlight, no corrosive gases, and strong electromagnetic radiation, avoiding close installation with high heat generating equipment.

-When wiring, it is necessary to strictly follow the module wiring diagram, distinguish between the power terminal, output terminal, and common terminal, ensure that the wiring is firm and the polarity is correct, and avoid short circuits or misconnections that may cause damage to the module.

-Before powering on the system, it is necessary to check the wiring and parameter configuration again. After powering on, confirm that the module is working properly through the status indicator light, and then connect it to the load for operation.

-During daily maintenance, it is necessary to regularly clean the dust on the surface of the module, check whether the wiring terminals are loose, and promptly turn off the power if any faults are found to prevent the fault from expanding.
