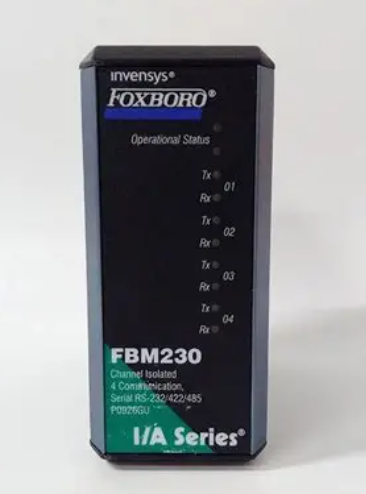

  • FOXBORO FBM230 P0926GU Communication Module
    ❤ Add to collection
  • FOXBORO FBM230 P0926GU Communication Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    FOXBORO FBM230 P0926GU is a high-performance fieldbus module launched by Schneider Electric's Foxboro brand. It belongs to the I/A Series distributed control system (DCS) core component and is compatible with Foxboro Evo ™ System. As a key communication bridge between on-site equipment and control centers in industrial automation systems, this module is designed for harsh industrial environments and has powerful signal processing, protocol conversion, and data transmission capabilities. It can accurately collect process parameters such as temperature, pressure, and flow rate, and reliably issue control system instructions to the executing agencies to achieve real-time monitoring and closed-loop control of the production process.

    • ¥17343.00
      ¥19964.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.450KG
    • Quantity:
    • (Inventory: 99999)
Description

FOXBORO FBM230 P0926GU is a high-performance fieldbus module launched by Schneider Electric's Foxboro brand. It belongs to the I/A Series distributed control system (DCS) core component and is compatible with Foxboro Evo ™ System. As a key communication bridge between on-site equipment and control centers in industrial automation systems, this module is designed for harsh industrial environments and has powerful signal processing, protocol conversion, and data transmission capabilities. It can accurately collect process parameters such as temperature, pressure, and flow rate, and reliably issue control system instructions to the executing agencies to achieve real-time monitoring and closed-loop control of the production process.




FOXBORO FBM230 P0926GU Communication Module

Product Overview

FOXBORO FBM230 P0926GU is a high-performance fieldbus module launched by Schneider Electric's Foxboro brand. It belongs to the I/A Series distributed control system (DCS) core component and is compatible with Foxboro Evo ™ System. As a key communication bridge between on-site equipment and control centers in industrial automation systems, this module is designed for harsh industrial environments and has powerful signal processing, protocol conversion, and data transmission capabilities. It can accurately collect process parameters such as temperature, pressure, and flow rate, and reliably issue control system instructions to the executing agencies to achieve real-time monitoring and closed-loop control of the production process.

The module adopts a modular architecture and high specification electronic components, supporting multi protocol compatibility and flexible configuration. It can seamlessly integrate various intelligent transmitters, actuators, and PLC devices, widely serving key industrial fields such as petrochemicals, power, metallurgy, etc., providing core technical support for safe and efficient production operation.


Specification parameters

2.1 Electrical Parameters

-Power supply voltage: typical 24V DC, wide range supporting 10-30V DC, compatible with industrial standard power supply systems

-Power consumption: ≤ 7W under regular load, as low as 5W in some light load scenarios, with excellent energy efficiency and economy

-Signal input/output: Supports 4-20mA DC current signal, 1-5V DC voltage signal, compatible with analog and digital conversion requirements

-Measurement accuracy: Analog input accuracy ± 0.1% FS (full range), 16 bit high-resolution, ensuring data acquisition accuracy

2.2 Communication Parameters

-Interface type: 4 independently configurable serial ports, supporting RS-232, RS-422, RS-485 standards

-Communication protocol: compatible with mainstream industrial protocols such as FOUNDATION fieldbus H1, HART, Modbus, ASCII, etc

-Communication speed: The maximum serial port speed is 115.2kbps, and the bus communication speed can reach over 10Mbps, meeting the requirements of high-speed data transmission

-Connectivity: A single module can support up to 64 on-site devices, suitable for large-scale system integration

2.3 Environmental and Physical Parameters

-Working temperature: -40 ℃ to+85 ℃ (wide temperature type), normal working conditions support -20 ℃ to+70 ℃

-Storage temperature: -40 ℃ to+85 ℃, suitable for harsh transportation and storage environments

-Humidity range: 5% -95% (no condensation), moisture resistance meets the requirements of humid industrial scenarios

-Protection level: IP65/IP66, effectively resisting dust and splashing water erosion, suitable for harsh on-site environments

-Physical dimensions: regular 102mm × 114mm × 104mm (length × width × height), some models 100mm × 60mm × 30mm, compact structure for easy installation

-Weight: Approximately 284g, with some lightweight models as low as 0.2kg, reducing installation load-bearing pressure


Performance characteristics

-Multi protocol compatibility and flexible integration: Supports multiple protocols such as FOUNDATION fieldbus and HART, with 4 serial ports that can independently configure interface types. It can seamlessly integrate with smart instruments, PLCs, and actuators from different manufacturers, greatly reducing system integration complexity. The module is compatible with both Foxboro I/A Series and Evo ™ System, adapted to the upgrade requirements of old and new systems.

-High reliability and stability: Adopting high-quality electronic components and redundant design, some models support dual channel backup, and single channel failure does not affect the overall operation of the system. With a wide temperature range and IP65/IP66 protection level, it can resist electromagnetic interference, dust, and moisture in industrial sites, and has a long average trouble free operation time.

-Accurate and efficient data processing: With 16 bit resolution and ± 0.1% FS measurement accuracy, it can keenly capture subtle changes in signals and provide precise data support for control decisions. Fast response time of 10 microseconds ensures real-time data acquisition and instruction issuance, meeting the requirements of dynamic process control.

-Convenient diagnosis and maintenance: Supports comprehensive status diagnosis of connected devices, providing real-time feedback on equipment failures, parameter abnormalities, and other information, making it easier for operation and maintenance personnel to troubleshoot problems in advance. Modular plug-in design and clear wiring identification simplify installation, debugging, and fault replacement processes, reducing maintenance costs.

-Wiring optimization and cost control: By using fieldbus technology to reduce the number of on-site wiring and lower installation and construction costs. Low power design and modular scalability enable flexible configuration according to system size, avoiding resource waste.


Working principle

FOXBORO FBM230 P0926GU serves as the on-site communication hub for DCS systems, with the core function of implementing a closed-loop process of "signal acquisition protocol conversion data transmission instruction execution". The specific working mechanism is as follows:

1. Signal acquisition stage: The module is connected to on-site sensors, transmitters, and other devices through four configurable serial ports, and the 4-20mA analog or digital signals converted from physical quantities such as temperature, pressure, and flow rate are connected to the internal signal conditioning circuit of the module. The conditioning circuit filters, amplifies, and denoises the signal to eliminate the impact of industrial environmental interference on the signal.

2. Protocol conversion stage: The module is equipped with a multi protocol parsing chip, which decodes the collected signals according to the communication protocol of the connected device (such as HART, Modbus) and converts them into a standard digital signal format recognizable by the DCS system. For FOUNDATION fieldbus devices, device diagnostic information and parameter configuration data can also be synchronously read.

3. Data transmission stage: The converted digital signal is transmitted to the DCS control station through a high-speed bus, with a transmission rate of up to 10Mbps, ensuring that data in industrial scenarios with high real-time requirements is not delayed. At the same time, the module receives control instructions issued by the control station and converts them into signal formats corresponding to the protocol.

4. Instruction execution stage: The module sends the converted control instructions to the executing mechanism (such as regulating valve, frequency converter) through the serial port, and drives the equipment action with 4-20mA analog or digital signals to achieve precise adjustment of production process parameters. During this process, the module continuously monitors the execution status of instructions and forms a closed-loop feedback.

5. Status monitoring and diagnosis: The module monitors its own working status (such as power supply, communication link) and the operation of connected equipment in real time. When signal abnormalities, communication interruptions, and other faults occur, the diagnostic information is immediately uploaded to the DCS system, triggering an alarm and assisting in fault location.


Precautions

5.1 Installation precautions

-Before installation, it is necessary to confirm that the appearance of the module is not damaged and the terminals are not loose. Check the compatibility between the model and the system (matching with I/A Series or Evo) ™ System).

-The installation location should be far away from strong magnetic fields, corrosive gases, and vibration sources. Adequate heat dissipation space (at least 10mm) should be reserved inside the control cabinet to ensure that the environmental temperature and humidity meet the specifications.

-Strictly follow the wiring manual to distinguish between the positive and negative terminals of the power supply and the signal terminals. The RS-485 bus should be correctly connected to the terminal resistor to avoid signal reflection interference; After all wiring is completed, the terminals should be tightened to prevent loosening and poor contact.

5.2 Precautions for Operation and Configuration

-Module configuration requires the use of Foxboro dedicated configuration software (such as Foxboro Configurator). When setting module addresses, communication protocols, signal ranges, and other parameters, they must be matched with the on-site equipment to avoid communication failures caused by address conflicts or parameter mismatches.

-Before the first power on, it is necessary to confirm that the power supply voltage is 24V DC (fluctuation range not exceeding 10-30V), and reverse wiring is strictly prohibited to prevent burning of the internal power circuit.

-When modifying configuration parameters or downloading programs, it is necessary to ensure that the system is in a shutdown or standby state to avoid control logic disorder caused by online operations.

5.3 Maintenance and Safety Precautions

-Regularly (quarterly recommended) maintain the module: clean surface dust, check wiring tightness, calibrate measurement accuracy through configuration software, and use a standard signal source to input known signals for calibration.

-When troubleshooting, it is necessary to first disconnect the module power supply. It is strictly prohibited to plug or unplug the module with power on or change the wiring; If there is a communication interruption, prioritize checking the power supply, bus connection, and configuration parameters before troubleshooting the module itself.

-The module needs to be repaired by professional personnel, and unauthorized disassembly is prohibited. When repairing, spare parts of the same model must be used to ensure that the parameters are consistent with the original module after replacement.

-Follow industrial safety regulations, wear insulated gloves during operation, and cut off the higher-level power supply before involving high-voltage related circuits.
