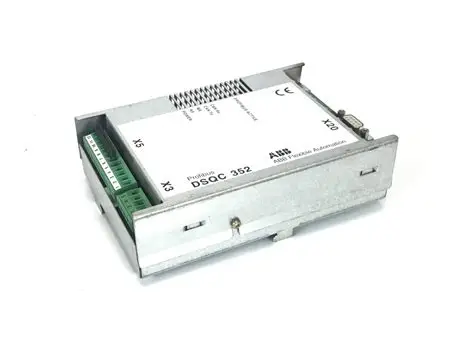

  • ABB DSQC352 High Performance Input/Output Module
    ❤ Add to collection
  • ABB DSQC352 High Performance Input/Output Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    ABB DSQC352 is a high-performance input/output (I/O) module designed specifically for industrial robot automation scenarios. It belongs to the core component series of ABB robot control systems and focuses on high-speed signal interaction and collaborative control between robots and peripheral devices. It adopts a compact modular design that can be seamlessly integrated into ABB IRC5 robot controllers and expansion units, compatible with various types of equipment such as robot bodies, end effectors, sensors, etc. With microsecond level signal response and high reliability, it has become a key signal hub for high-precision robot operations in automotive manufacturing, electronic assembly, and other fields.

    • ¥42633.00
      ¥37235.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:12.400KG
    • Quantity:
    • (Inventory: 99999)
Description

ABB DSQC352 is a high-performance input/output (I/O) module designed specifically for industrial robot automation scenarios. It belongs to the core component series of ABB robot control systems and focuses on high-speed signal interaction and collaborative control between robots and peripheral devices. It adopts a compact modular design that can be seamlessly integrated into ABB IRC5 robot controllers and expansion units, compatible with various types of equipment such as robot bodies, end effectors, sensors, etc. With microsecond level signal response and high reliability, it has become a key signal hub for high-precision robot operations in automotive manufacturing, electronic assembly, and other fields.


ABB DSQC352 High Performance Input/Output Module

Product Overview

ABB DSQC352 is a high-performance input/output (I/O) module designed specifically for industrial robot automation scenarios. It belongs to the core component series of ABB robot control systems and focuses on high-speed signal interaction and collaborative control between robots and peripheral devices. It adopts a compact modular design that can be seamlessly integrated into ABB IRC5 robot controllers and expansion units, compatible with various types of equipment such as robot bodies, end effectors, sensors, etc. With microsecond level signal response and high reliability, it has become a key signal hub for high-precision robot operations in automotive manufacturing, electronic assembly, and other fields.


Specification parameters

1. Core performance parameters

Signal processing capability

Supports 16 channels of digital input and 16 channels of digital output, with optional 4 channels of analog input (4-20mA) for expansion

Response speed

Digital signal processing delay ≤ 10 μ s, analog sampling frequency up to 500Hz

Control accuracy

Analog input error ≤ ± 0.2% FS, output signal resolution of 12 bits

Power consumption

Rated power consumption 6W, maximum power consumption 9W (including extended channel power supply)

2. Hardware and environmental parameters

Communication interface

1 x DeviceNet interface, 1 x Profinet interface, compatible with ABB RobotWare communication protocol

Power supply specifications

24V DC wide input (20-30V DC), with overvoltage, overcurrent, and reverse connection protection

Environmental tolerance

Working temperature 0 ° C to 60 ° C, storage temperature -40 ° C to 85 ° C, protection level IP20

Physical specifications

Size 130 × 80 × 40mm, weight 0.3kg, supports DIN rail and panel installation

3. Certification and compatibility

Certification: CE (EN 61131-2), UL 508 industrial safety certification, in compliance with IEC 61010-1 standard

Software compatibility: compatible with ABB RobotWare 5.10 and above versions, supporting direct calling of the RAPID programming language


Performance characteristics

Ultra high speed signal response: Using dedicated signal processing chips and optimized circuit design, the transmission delay of digital signals from input to output is as low as 10 μ s, which is more than 90% faster than ordinary I/O modules, and is suitable for millisecond level response requirements such as high-speed grasping and assembly of robots.

Flexible signal expansion capability: 32 modules of the same kind can be cascaded through the DeviceNet interface to realize the centralized control of 512 digital signals. The analog channel supports software configuration in voltage or current mode to meet the access requirements of different sensors.

Robot collaborative optimization: Deeply adapted to ABB robot control system, it can directly read real-time data such as robot joint position and velocity, and synchronize the output signal with robot motion instructions with an accuracy of ≤ 1ms, ensuring the coordination of end effector and body actions.

Enhanced diagnosis and protection: Equipped with independent self checking circuits for each channel, it can monitor open circuit, short circuit, and overload faults in real time. Through dual prompts of indicator lights and controller alarms, the fault location time is shortened to less than 1 minute; The module is equipped with a surge suppression circuit that can withstand 2kV instantaneous overvoltage.

Compact integrated design: adopting high-density channel layout, the signal capacity of 16 in and 16 out only occupies 60% of the installation space of traditional modules, supporting parallel installation with robot control cabinets, saving production line wiring and space costs.


Working principle

This module operates based on the robot collaborative control logic of "signal acquisition synchronous processing instruction output state feedback". The core process is as follows:

Signal acquisition stage: Receive status signals from fixture sensors and limit switches through digital input ports (such as the presence or absence of workpieces, fixture opening and closing), and collect parameters such as end effector pressure and temperature through analog ports. After filtering interference through signal isolation circuits, the signals are transmitted to the processing unit.

Synchronization processing stage: The embedded processor communicates in real-time with the robot controller through the Profinet interface to obtain the current motion coordinates, speed, and other command data of the robot. The collected signals are logically processed with the robot state to generate collaborative control parameters.

Instruction output stage: The processing result is converted into a digital control signal, which drives the fixture cylinder, vacuum generator and other actuators through the output port. The analog channel can adjust parameters such as end effector pressure and speed to achieve precise synchronization with the robot action.

State feedback stage: The completion signal of the actuator action is transmitted back to the module through the input channel. After verification by the processor, the state data is uploaded to the robot controller, triggering the next motion command and forming a closed-loop control link of "robot module actuator".


Precautions

1. Installation specifications

DIN rail horizontal installation is required, with at least 20mm of heat dissipation space reserved on both sides of the module to avoid close proximity to strong electromagnetic interference devices such as robot servo drives (spacing ≥ 50cm).

When wiring, digital and analog cables need to be wired separately. Analog cables use shielded twisted pair cables, with both ends of the shielding layer grounded; The DeviceNet bus needs to be equipped with a terminal resistor (120 Ω), and the cable length should not exceed 500m

2. Operation and maintenance

Before the first startup, module configuration needs to be completed through RobotWare software, including configuring input and output channel attributes and communication parameters to ensure they match the address of the robot controller.

Every month, it is necessary to check the tightness of the wiring terminals and the status of the module indicator lights. Every six months, a full channel signal test should be performed through self checking function to promptly identify poor contact or channel aging issues.

3. Safety protection

Before installation and maintenance, the module power supply and the main power supply of the robot control cabinet must be cut off, and the capacitor must be completely discharged (at least 5 minutes) before operation.

The power circuit needs to be equipped with 2A fast fuses and surge protectors (SPDs), with a grounding resistance of ≤ 4 Ω; When used in explosion-proof areas, it is necessary to cooperate with explosion-proof junction boxes and sealed joints.
