Alstom ARTN1 DIGITAL INDICATION BOARD FOR VOLTAGE REGULATION

Alstom ARTN1 DIGITAL INDICATION BOARD FOR VOLTAGE REGULATION

Product Overview

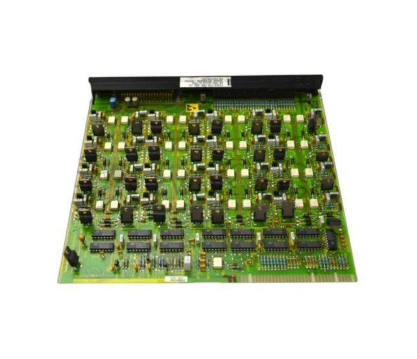

The Alstom ARTN1 digital indicator board is a core display and control module designed by Alstom specifically for voltage regulation systems. Its core functions include real-time monitoring of voltage parameters, digital display, and interaction of regulation commands. As a key human-machine interaction and status feedback unit of the voltage control system, this module board can accurately collect the measured circuit voltage signal and perform digital conversion display, while receiving upper control instructions or local operation instructions, cooperating with the executing mechanism to complete voltage regulation, ensuring that the controlled system voltage is stable within the set range. It adopts advanced SMD packaging technology and high brightness LED display solution, with strong anti-interference ability and environmental adaptability. It is widely integrated into various industrial voltage control and power guarantee systems, providing core support for visual monitoring and precise adjustment of voltage status.

Specification parameters

Based on the technical standards of the same series of products and the general specifications for industrial voltage monitoring and regulation, the core specification parameters of Alstom ARTN1 digital indicator board are as follows:

-Working voltage: AC 100-240V (50/60HZ) or DC 20-29V dual mode power supply

-Measurement voltage range: 0~600V AC/DC wide range adaptation

-Protection level: IP65, with dustproof and anti spray water capabilities, suitable for harsh industrial environments

-Physical dimensions: 96mm x 96mm x 50mm (length x width x height), standard embedded installation dimensions

-Interface type: RS-485/RS-232 communication interface, standard wiring terminal, ensuring stable connection

-Communication Protocol: Supports Modbus, a commonly used industrial communication protocol for system integration and data exchange

-Working environment: Temperature range of 0~50 ℃, relative humidity ≤ 85% RH; Storage temperature range of -20~60 ℃

-Display parameters: dual 4-digit LED digital display, display range -1999~9999, adjustable brightness; Equipped with working status indicator lights

-Measurement accuracy: 0.2% FS ± 1 bit, ensuring voltage monitoring accuracy

-Power consumption: ≤ 5W, low-power design

Performance characteristics

-High reliability and stability: using high-quality components and enclosed circuit design, with strong anti-interference ability, it can still operate stably under complex working conditions such as voltage fluctuations and electromagnetic interference; Low operating losses, with losses at rated power only about half of traditional similar products, improving system energy efficiency.

-High precision monitoring and display: The measurement accuracy reaches 0.2% FS ± 1 bit, and the dual 4-digit LED digital display screen can clearly display real-time voltage values, supporting wide range display from -1999 to 9999. At the same time, it is equipped with a measurement value percentage light column display, and the voltage status is intuitively visible.

-Strong anti-interference ability: Adopting SMD surface mount packaging technology and enclosed shielding design, it effectively resists complex working conditions such as electromagnetic interference and voltage fluctuations, ensuring stable display and reliable operation in industrial strong interference environments.

-Flexible power supply and adaptability: Supports dual mode power supply of AC 100-240V (50/60HZ) and DC 20-29V, suitable for different industrial power supply scenarios; The measurement range covers 0-600V AC/DC and can be matched with various voltage levels of regulating systems.

-Convenient operation and interaction: equipped with touch buttons on the panel, supporting functions such as voltage setting adjustment, parameter locking, and factory reset, with simple and intuitive operation; Supports Modbus communication protocol, enabling remote data exchange and instruction transmission with the upper control system.

-Comprehensive status feedback and protection: integrated working status indicator light and alarm indication function, which can promptly issue an alarm signal when the voltage exceeds the set range; Equipped with overvoltage and overcurrent protection mechanisms to prevent module damage due to circuit abnormalities.

-Convenient installation and maintenance: Adopting standard embedded installation design, compatible with 92 × 92mm installation holes, easy to install; Compact structure, clear and standardized wiring terminals, low maintenance workload in the later stage.

Working principle

The core of Alstom ARTN1 digital indicator board is based on the working logic of "signal acquisition digital conversion display feedback instruction interaction". Through precise voltage signal processing and efficient information exchange, it realizes the visualization and controllability of the voltage regulation process. Its core working mechanism relies on signal conditioning, A/D conversion, and microprocessor control technology to collaboratively achieve voltage monitoring and regulation linkage.

The specific workflow is as follows: Firstly, the module collects the voltage signal of the controlled circuit through the wiring terminal, filters and amplifies it through the internal signal conditioning circuit, removes signal interference, and standardizes the voltage signal; Subsequently, the standardized analog signal is passed into the A/D conversion unit, converted into a digital signal, and transmitted to the microprocessor; The microprocessor performs arithmetic processing on digital signals, transmits real-time voltage values to the LED display unit, and visually presents them through dual 4-digit digital screens, while driving the percentage light column to display the proportion of measured values; If there is a deviation between the real-time voltage value and the set value, the microprocessor can send a deviation signal to the upper control system through the communication interface, or directly receive upper adjustment instructions, and drive external voltage adjustment actuators (such as servo motors, controllable reactors, etc.) through the output interface to perform voltage correction; In addition, the module monitors its own working status and input voltage status in real time. When abnormal situations such as overvoltage and overcurrent occur, the alarm indicator light is immediately triggered, and the protection mechanism is activated to cut off the output circuit to prevent equipment damage. During the operation, users can adjust the voltage setting value and lock the parameters through the touch buttons on the panel. The adjusted parameters are stored in real-time and take effect.

Precautions

-Installation environment requirements: It needs to be installed in a ventilated and dry area to ensure smooth heat dissipation and avoid installation holes blocking and affecting heat dissipation; Stay away from strong electromagnetic interference sources, flammable, explosive, and corrosive gas environments, avoid direct sunlight and rainwater erosion, and ensure display clarity and module lifespan.

-Electrical connection specifications: strictly follow the wiring diagram for wiring, distinguish between voltage input terminals, communication interfaces, and power terminals, and avoid misconnection and mixing; Before wiring, it is necessary to confirm that the circuit has been disconnected. When connecting, ensure that the wiring terminals are firmly pressed and there are no exposed copper wires to prevent short circuits or poor contacts; After the wiring is completed, it is necessary to test the insulation and on/off status of the circuit, and only after confirming that there are no errors can it be powered on.

-Power access requirements: The power supply must meet the rated power supply specifications of the product (AC 100-240V or DC 20-29V) to avoid voltage exceeding the rated range; Scenarios with significant power fluctuations require the configuration of a regulated power supply to ensure stable power supply and prevent display confusion or module damage caused by abnormal power supply.

-Operation and debugging: Before debugging, it is necessary to be familiar with the panel button functions and parameter setting logic, strictly follow the operating procedures for voltage setting value configuration, and avoid blind operation that may cause parameter confusion; During the debugging process, it is necessary to observe the displayed values and alarm status in real time, confirm the accuracy of voltage acquisition and the effectiveness of adjustment linkage, and ensure compliance with system operation requirements.

-Maintenance and upkeep: Regularly clean the module panel, remove surface dust and stains, and avoid obstructing the display screen and affecting observation; Check whether the wiring terminals are loose, oxidized, etc., and tighten or handle them in a timely manner; Regularly verify the measurement accuracy, and if there is any display deviation, it should be calibrated in a timely manner; Avoid equipment maintenance during thunderstorms and take necessary lightning protection measures to prevent module damage from lightning strikes.

-Fault handling: If the module experiences display disorder, no display, or abnormal alarm, the power should be cut off first, and the power supply voltage, wiring connections, and external loads should be checked for normal operation. After eliminating external faults, the module should be restarted; If the fault is still not resolved, it is prohibited to disassemble the module by oneself. Professional technicians must conduct maintenance to avoid damaging the internal electronic components.
