    The Alstom MCRI1 module board is a core functional module designed by Alstom specifically for electrical control systems, with the core functions of parameter setting and current regulation. As a key execution unit for system control, this module board can accurately receive control instructions and configure operating parameters. At the same time, it can collect real-time current feedback signals and complete dynamic adjustments to ensure the stable operation of the controlled system under various working conditions. It adopts advanced circuit design and high reliability components, with structural characteristics that adapt to harsh industrial environments. It is widely integrated into core systems related to automation control and power regulation, providing core guarantees for precise control and efficient operation of equipment.

    • ¥17943.00
      ¥18421.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.568KG
    • Quantity:
    • (Inventory: 99999)
Description

The Alstom MCRI1 module board is a core functional module designed by Alstom specifically for electrical control systems, with the core functions of parameter setting and current regulation. As a key execution unit for system control, this module board can accurately receive control instructions and configure operating parameters. At the same time, it can collect real-time current feedback signals and complete dynamic adjustments to ensure the stable operation of the controlled system under various working conditions. It adopts advanced circuit design and high reliability components, with structural characteristics that adapt to harsh industrial environments. It is widely integrated into core systems related to automation control and power regulation, providing core guarantees for precise control and efficient operation of equipment.

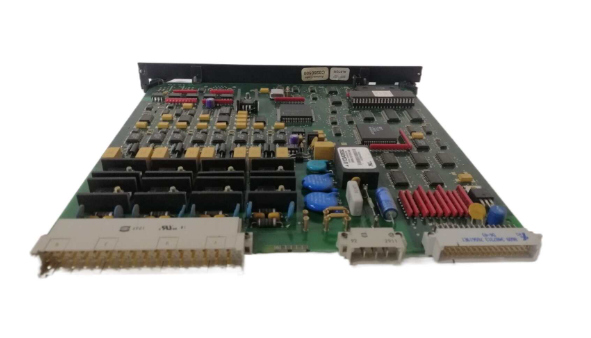

Alstom MCRI1 MODULE BOARD FOR SETTING SETTINGS AND CURRENT REGULATION

Product Overview

The Alstom MCRI1 module board is a core functional module designed by Alstom specifically for electrical control systems, with the core functions of parameter setting and current regulation. As a key execution unit for system control, this module board can accurately receive control instructions and configure operating parameters. At the same time, it can collect real-time current feedback signals and complete dynamic adjustments to ensure the stable operation of the controlled system under various working conditions. It adopts advanced circuit design and high reliability components, with structural characteristics that adapt to harsh industrial environments. It is widely integrated into core systems related to automation control and power regulation, providing core guarantees for precise control and efficient operation of equipment.


Specification parameters

Based on the technical standards and general industrial application specifications of the same series of products, the core specification parameters of Alstom MCRI1 module board are as follows:

-Working voltage: 24V DC (DC power supply)

-Rated working current: maximum 5A

-Protection level: IP65, with dustproof and anti spray water capabilities, suitable for harsh industrial environments

-Physical dimensions: 10cm x 15cm x 5cm (length x width x height)

-Interface type: M12 standard connector, ensuring connection stability and universality

-Communication Protocol: Supports commonly used industrial communication protocols such as Modbus and Profibus, facilitating system integration

-Working temperature range: -20 ℃~60 ℃, suitable for wide temperature industrial scenarios

-Weight: Approximately 0.5kg


Performance characteristics

-High precision regulation: With excellent current regulation accuracy and error control within ± 2%, it can achieve smooth and continuous current regulation, meeting the requirements of high-precision control.

-High reliability and stability: using high-quality components and enclosed circuit design, with strong anti-interference ability, it can still operate stably under complex working conditions such as voltage fluctuations and electromagnetic interference; Low operating losses, with losses at rated power only about half of traditional similar products, improving system energy efficiency.

-Quick response capability: With a short response time of up to 0.02 seconds, it can quickly respond to control commands and changes in operating conditions, adjust current parameters in a timely manner, and ensure dynamic balance of the system.

-Comprehensive protection function: Integrated with multiple protection mechanisms such as overload protection and short circuit protection, it can monitor the circuit status in real time, quickly cut off the circuit when abnormalities occur, and prevent damage to the module and controlled equipment.

-Convenient integration and maintenance: standardized interfaces and communication protocols, compatible with most industrial control systems, easy to install; Compact structural design, small volume, minimal installation space occupation, and low maintenance workload.


Working principle

The Alstom MCRI1 module board operates based on the principle of magnetic amplifier and is essentially a controllable saturation iron core reactor control module that magnetizes both AC and DC simultaneously. The core working logic is to change the saturation of the iron core through a small DC control signal (with a power of only 0.1%~0.5% of the rated power of the module), thereby adjusting the magnetic permeability and inductance value of the iron core, and ultimately achieving precise adjustment of the current size.

The specific workflow is as follows: Firstly, the module receives parameter setting instructions from the upper control system through the communication interface to determine the target current value; Subsequently, the current signal of the controlled circuit is collected in real-time and fed back to the internal processing unit for comparative analysis with the target value; If there is a deviation, the processing unit adjusts the magnitude of the DC control current by triggering the thyristor, changes the saturation degree of the iron core, and then adjusts the inductance value to correct the circuit current; When the current reaches the target value, maintain the current control state and achieve dynamic balance. Throughout the process, the freewheeling diode plays a role in freewheeling protection, ensuring stable operation of the circuit; At the same time, the built-in monitoring unit of the module continuously monitors the voltage, current, and other status of the circuit. Once overload, short circuit, or other abnormalities occur, the protection mechanism is immediately activated to cut off the circuit.


Precautions

-Installation environment requirements: It should be installed in a well ventilated area to ensure smooth heat dissipation, avoid air vents being blocked, and prevent module damage due to overheating; Stay away from hazardous environments such as flammable, explosive, and corrosive gases, and avoid direct sunlight and rainwater erosion.

-Electrical connection specifications: strictly follow the wiring diagram for wiring, ensure correct connection of positive and negative poles, and avoid reverse connection; Check the wiring terminals to ensure that there are no exposed copper wires and prevent leakage and short circuit accidents; After the wiring is completed, it is necessary to test the continuity and insulation of the circuit, and only after confirming that there are no errors can it be powered on.

-Power access requirements: The power supply must meet the rated voltage requirement of 24V DC to avoid high or low voltage; The fluctuation range of the power supply should be controlled within ± 10%, and if necessary, a regulated power supply should be configured to ensure the normal operation of the module.

-Operation and debugging: Before debugging, it is necessary to be familiar with the module parameters and control logic, strictly follow the operating procedures for parameter settings, and avoid blind debugging that may cause module failures; During the debugging process, real-time monitoring of parameters such as current and voltage is required to ensure that the adjustment effect meets expectations.

-Maintenance and upkeep: Regularly clean the module, remove surface dust and debris; Check if the interface connection is secure, free from looseness, oxidation, and other conditions; Regularly verify and adjust the accuracy, and calibrate in a timely manner if any deviation occurs; Avoid equipment maintenance during thunderstorms to prevent module damage from lightning strikes.

-Fault handling: If the module malfunctions and alarms, the power should be cut off first, the circuit and load should be checked for normal operation, and external faults should be eliminated before restarting the module; It is prohibited to disassemble or replace components while the module is live. Maintenance must be carried out by professional technicians.


Application scenarios

The Alstom MCRI1 module board, with its high precision and reliability, is widely used in industrial automation control and power regulation related fields, especially suitable for scenarios with high requirements for current control accuracy and stability, mainly including:

-Rail Transit Power System: As the core component of the traction power supply system for subway, light rail and other rail transit vehicles, it is used for regulating traction current and setting parameters to ensure stable power supply for trains under different working conditions such as starting, accelerating, braking, etc; Suitable for commonly used power supply systems in rail transit such as 1500V DC, and can be integrated into rigid contact network power supply systems.

-Industrial automation drive system: used for driving and controlling various industrial motors and mechanical equipment, such as production equipment drive circuits in the power, metallurgy, chemical and other industries. By accurately adjusting the current, the system achieves smooth operation and speed control of the equipment, improving production efficiency and product quality.

-Reactive power compensation system: integrated into the Static Var Compensator (SVC), as the control core of the magnetic valve controllable reactor, it achieves grid voltage stability by adjusting reactive current, compensates for grid reactive power, limits overvoltage, and improves grid transmission capacity and power quality.

-Special industrial testing equipment: used in testing scenarios that require precise current control, such as pressure sensor calibration, underwater explosion pressure testing, etc. The power regulation circuit of the testing equipment ensures stable current during the testing process and improves the accuracy of the testing data.

-Infrastructure power guarantee system: used for power distribution and regulation of infrastructure such as airports, ports, and large venues, ensuring stable power supply for various electrical equipment and improving the reliability of infrastructure operation.
