  • Alstom FRTN2 BOARD OF DIGITAL INDICATION OF VOLTAGE REGULATION
    ❤ Add to collection

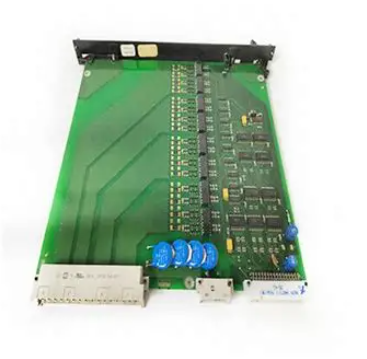

  • Alstom FRTN2 BOARD OF DIGITAL INDICATION OF VOLTAGE REGULATION

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    The Alstom FRTN2 digital indicator board is a high-precision display and control core board designed by Alstom specifically for medium and high voltage regulation systems. Its core functions include real-time monitoring of voltage parameters, precise digital display, and bidirectional interaction of regulation instructions. As a key human-machine interaction and status feedback node of the voltage control system, this board can accurately collect medium and high voltage circuit voltage signals and complete isolated digital conversion, presenting real-time voltage values and system operation status clearly. At the same time, it can receive instructions from the upper control system or local operation instructions, cooperate with the execution mechanism to achieve fine voltage adjustment, and ensure that the controlled system voltage is stable within the set threshold. It adopts highly integrated circuit design, strengthened shielding and protection structure, and industrial grade high reliability components, with excellent anti electromagnetic interference ability and adaptability to harsh environments. It is widely integrated into medium and high voltage control and power guarantee systems such as wind power and industrial high voltage power supply, providing core technical support for visual monitoring and precise control of voltage status.

    • ¥20582.00
      ¥21733.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.440KG
    • Quantity:
    • (Inventory: 99999)
Description

The Alstom FRTN2 digital indicator board is a high-precision display and control core board designed by Alstom specifically for medium and high voltage regulation systems. Its core functions include real-time monitoring of voltage parameters, precise digital display, and bidirectional interaction of regulation instructions. As a key human-machine interaction and status feedback node of the voltage control system, this board can accurately collect medium and high voltage circuit voltage signals and complete isolated digital conversion, presenting real-time voltage values and system operation status clearly. At the same time, it can receive instructions from the upper control system or local operation instructions, cooperate with the execution mechanism to achieve fine voltage adjustment, and ensure that the controlled system voltage is stable within the set threshold. It adopts highly integrated circuit design, strengthened shielding and protection structure, and industrial grade high reliability components, with excellent anti electromagnetic interference ability and adaptability to harsh environments. It is widely integrated into medium and high voltage control and power guarantee systems such as wind power and industrial high voltage power supply, providing core technical support for visual monitoring and precise control of voltage status.


Alstom FRTN2 BOARD OF DIGITAL INDICATION OF VOLTAGE REGULATION

Product Overview

The Alstom FRTN2 digital indicator board is a high-precision display and control core board designed by Alstom specifically for medium and high voltage regulation systems. Its core functions include real-time monitoring of voltage parameters, precise digital display, and bidirectional interaction of regulation instructions. As a key human-machine interaction and status feedback node of the voltage control system, this board can accurately collect medium and high voltage circuit voltage signals and complete isolated digital conversion, presenting real-time voltage values and system operation status clearly. At the same time, it can receive instructions from the upper control system or local operation instructions, cooperate with the execution mechanism to achieve fine voltage adjustment, and ensure that the controlled system voltage is stable within the set threshold. It adopts highly integrated circuit design, strengthened shielding and protection structure, and industrial grade high reliability components, with excellent anti electromagnetic interference ability and adaptability to harsh environments. It is widely integrated into medium and high voltage control and power guarantee systems such as wind power and industrial high voltage power supply, providing core technical support for visual monitoring and precise control of voltage status.


Specification parameters

Based on the technical standards of Alstom's medium and high voltage series products and the general specifications for industrial high voltage monitoring and regulation, the core specification parameters of Alstom FRTN2 digital indicator board are as follows:

-Working voltage: DC 24V ± 10% industrial standard power supply, suitable for unified power supply requirements of control systems

-Measurement voltage range: 0~1000V AC/DC wide range adaptation, focusing on medium and high voltage application scenarios

-Protection level: IP65, with dustproof and anti spray water capabilities, suitable for outdoor and industrial harsh environments

-Physical dimensions: 110mm x 110mm x 55mm (length x width x height), standard embedded installation dimensions, compatible with general control cabinets

-Interface type: isolated RS-485 communication interface, high voltage terminal block, ensuring stable signal transmission and safe operation

-Communication Protocol: Supports Modbus RTU, a commonly used industrial communication protocol, with the ability for multiple online data exchanges, facilitating system integration

-Working environment: temperature -10 ℃~60 ℃, relative humidity ≤ 90% RH (no condensation); Storage temperature -25 ℃~70 ℃

-Display parameters: dual 4-digit high brightness LED digital display, display range -1999~9999, adjustable brightness in multiple levels; Equipped with operation, alarm, and communication status indicator lights, the status is intuitive and distinguishable

-Measurement accuracy: 0.1% FS ± 1 bit, with high-precision voltage monitoring capability to ensure precise adjustment

-Power consumption: ≤ 6W, designed with low power consumption to reduce system energy consumption; Equipped with instant power outage buffering function to prevent data loss

-Insulation level: ≥ 20M Ω (500V DC), ensuring electrical safety in medium and high voltage scenarios


Performance characteristics

-High reliability and stability: using high-quality components and enclosed circuit design, with strong anti-interference ability, it can still operate stably under complex working conditions such as voltage fluctuations and electromagnetic interference; Low operating losses, with losses at rated power only about half of traditional similar products, improving system energy efficiency.

-Ultra high precision monitoring and display: The measurement accuracy reaches 0.1% FS ± 1 bit, far exceeding the industry's conventional standards, and can accurately capture subtle fluctuations in medium and high voltage; The dual 4-digit high brightness LED display screen clearly presents real-time voltage values, supports switching display of multiple types of information such as voltage percentage and running time, and is equipped with multiple status indicator lights, making the system running status clear at a glance.

-Strong anti-interference and safety protection: adopting a reinforced shielding protection structure and isolated signal processing design, effectively resisting strong electromagnetic interference in medium and high voltage environments, ensuring stable signal transmission and accurate display; Equipped with excellent insulation performance and dual protection mechanisms for overvoltage and overcurrent, as well as built-in high-speed fuses, it can prevent damage to core components under abnormal working conditions and ensure the safety of equipment and personnel.

-Wide adaptability and flexible interaction: The measurement range covers 0~1000V AC/DC, perfectly adapting to medium and high voltage regulation scenarios; Supports isolated RS-485 communication and Modbus RTU protocol, enabling remote data exchange between multiple online and upper level systems; Equipped with user-friendly panel operation buttons, supporting functions such as voltage setting value adjustment, parameter locking, abnormal reset, etc., the operation is simple and intuitive.

-High reliability and environmental adaptability: adopting industrial grade high stability components and high integration circuit design, with low operating loss and strong stability, it can work stably for a long time in a wide temperature range of -10 ℃~60 ℃ and high humidity environment; Equipped with instant power outage buffering function, output buffering can be completed within 0.5Hz to prevent abnormal damage to components caused by voltage surges.

-Convenient installation and maintenance: adopting standard embedded installation design, adapted to the installation holes of general control cabinets, easy and efficient installation; The terminal block adopts a European detachable design, which eliminates the need for rewiring the control circuit during replacement and reduces maintenance workload in the later stage; The panel supports a flip down design, which facilitates daily maintenance operations such as fuse replacement.

-Comprehensive anomaly monitoring and feedback: equipped with various anomaly detection functions such as voltage feedback anomaly, communication anomaly, load disconnection, and overheating, it can capture fault information in real time and trigger alarm indicator lights, while recording anomaly history, providing accurate basis for fault diagnosis; Equipped with abnormal dry contact output, it can be linked with external alarm devices to promptly remind operation and maintenance personnel to handle it.


Working principle

The core of Alstom FRTN2 digital indicator board is based on the working logic of "isolated signal acquisition - high-precision digital conversion - multi-dimensional display feedback - bidirectional instruction interaction", relying on isolated signal conditioning, high-precision A/D conversion and high-performance microprocessor control technology to achieve precise monitoring and controllable control of the medium and high voltage voltage regulation process, while ensuring operational safety in high voltage scenarios.

The specific workflow is as follows: Firstly, the board collects the voltage signal of the controlled medium and high voltage circuit through high-voltage isolated terminal blocks, and then filters, stabilizes, and converts the signal amplitude through an internal isolated signal conditioning circuit to remove strong electromagnetic interference and signal noise. The high voltage signal is standardized into a safe range of analog signals; Subsequently, the standardized analog signal is fed into a high-precision A/D conversion unit, converted into a digital signal, and transmitted to the core microprocessor; The microprocessor performs arithmetic processing on digital signals, transmits real-time voltage values, voltage percentages, and other information to the LED display unit, and presents them intuitively through dual 4-digit digital screens. At the same time, it drives operation, communication, and other status indicator lights to provide feedback on the current working status; If there is a deviation between the real-time voltage value and the set threshold, the microprocessor can send a deviation signal to the upper control system through an isolated RS-485 communication interface, or directly receive upper adjustment instructions, and drive external voltage regulation actuators (such as controllable reactors, servo voltage regulation devices, etc.) through the output interface to correct the voltage and achieve closed-loop regulation; In addition, the built-in monitoring unit of the board continuously monitors its own working status (such as temperature, power supply) and input voltage status. When faults such as overvoltage, overcurrent, and communication abnormalities are detected, the alarm indicator light is immediately triggered, the abnormal history is recorded, and the alarm signal is output through dry contacts. At the same time, the protection mechanism is activated to cut off the output circuit and prevent the fault from expanding. During the operation, users can adjust the voltage setting value, lock parameters, reset abnormalities, and other operations through the panel buttons. The adjusted parameters are stored in real-time and take effect.


Precautions

-Installation environment requirements: It should be installed in a well ventilated area without severe vibration to ensure smooth heat dissipation. During installation, it should be placed vertically and sufficient heat dissipation gap should be reserved to avoid high temperature accumulation; Stay away from strong electromagnetic interference sources, flammable, explosive, and corrosive gas environments, and avoid direct sunlight and rainwater erosion; Do not install in condensation areas to prevent electrical components from short circuiting and damage.

-Electrical connection specifications: strictly follow the wiring diagram for wiring, clearly distinguish between voltage input terminals, communication interfaces, and power terminals, strictly prohibit misconnection or mixing, and pay special attention to the correct connection of high-voltage input terminals; Before wiring, it is necessary to confirm that the system has been completely powered off and the medium and high voltage circuits have completed discharge. Wait for the bus voltage to drop to the safe range (≤ 36V) before proceeding with the operation; When wiring, it is necessary to wear protective equipment such as electrostatic wristbands, use shielded cables that meet specifications, and ground the shielding layer at one end; After the wiring is completed, it is necessary to check the tightness of the terminals to ensure that there are no exposed copper wires, test the insulation and continuity of the circuit, and confirm that there are no errors before powering on.

-Power access requirements: The power supply must meet the rated specifications of DC 24V ± 10% to avoid voltage exceeding the range; In scenarios with significant power fluctuations, a regulated power supply should be configured to ensure stable power supply and prevent display confusion or board damage caused by abnormal power supply; It is strictly prohibited to connect the input power supply to the output terminal, otherwise it will cause permanent damage to the board.

-Operation and debugging: Before debugging, it is necessary to read the product manual and safety precautions, familiarize oneself with the panel button functions and parameter setting logic, and have professional technicians operate them; During the debugging process, real-time observation of displayed values and alarm status is required to confirm the accuracy of voltage acquisition and the effectiveness of adjustment linkage; It is strictly prohibited to modify key parameters while in operation to avoid blind operation that may cause system failures.

-Maintenance and upkeep: Regularly clean the board panel, remove surface dust and stains, and avoid blocking the display screen and indicator lights; Regularly check whether the wiring terminals are loose, oxidized, etc., and tighten or replace them in a timely manner; Regularly verify the measurement accuracy as required, and calibrate in a timely manner if there is any display deviation; Maintenance operations must be carried out after the power is turned off and the discharge is confirmed to be completed. It is prohibited to disassemble the board or touch the terminals while the power is on; When stored for a long time, it should be placed in a dry environment at -25 ℃~70 ℃. If the storage time exceeds three months, it needs to be tested with electricity.

-Fault handling: If the board experiences display disorder, no display, or abnormal alarm, the power should be immediately cut off, and the power supply voltage, wiring connections, and external loads should be checked for normal operation. After eliminating external faults, the board should be restarted; If the fault is still not resolved, it is prohibited to disassemble the internal components of the board by oneself. Professional technicians must follow the maintenance instructions to troubleshoot, and replacement parts must comply with the product warranty agreement; After the fault handling is completed, the wiring and parameter settings need to be rechecked and confirmed to be correct before resuming operation.

-Safety operation specifications: The installation, wiring, maintenance, and overhaul of this product are only allowed to be carried out by personnel with electrical professional knowledge and relevant training. Non professionals are strictly prohibited from operating it; During power on operation, it is prohibited to open the protective cover or touch the wiring terminals to avoid the risk of electric shock; If abnormal heating or odor is found on the board during operation, the power should be immediately cut off, the use should be stopped, and maintenance should be carried out.
