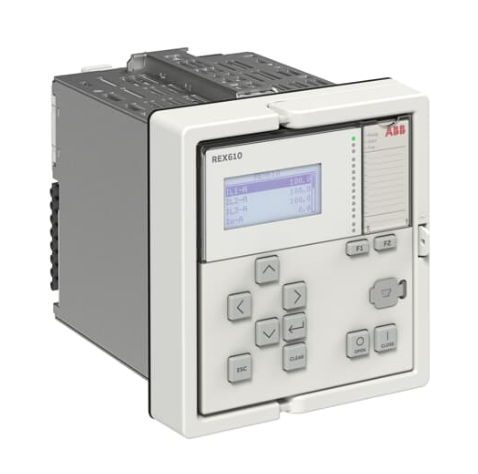

ABB B09261 Electronic Motor Protection Relay

ABB B09261 Electronic Motor Protection Relay

Core positioning and core advantages of the product

In motor control systems, protective relays are an essential safety core. ABB B09261 is positioned at the core of "precise monitoring, reliable protection, and convenient operation and maintenance". Unlike traditional mechanical protection devices, its electronic detection characteristics bring better performance. The core advantages are as follows:

-Multi dimensional precise fault monitoring: using high-precision electronic sensors and signal processing chips, it can simultaneously monitor key parameters such as motor current and voltage, covering multiple types of faults such as overload, phase loss, reverse phase, locked rotor, overvoltage, undervoltage, etc. Compared with traditional devices that can only achieve single overload protection, the protection dimensions are more comprehensive, and the fault identification accuracy is over 99%.

-Flexible and adjustable protection parameters: Supports flexible setting of protection thresholds and action delays based on motor rated power, rated current, operating conditions, and other parameters, adapting to different brands and specifications of low-voltage motors (such as asynchronous motors, synchronous motors, etc.), solving the problem of fixed parameters and poor adaptability of traditional protection devices.

-Fast response and reliable action: The electronic detection circuit has a response time of ≤ 10ms, which can capture abnormal signals at the moment of fault occurrence. Combined with optimized action logic, it can quickly cut off the fault circuit to avoid motor damage, and effectively avoid misoperation caused by instantaneous fluctuations, greatly improving the reliability of protection.

-Convenient status feedback and operation: equipped with clear LED indicator lights and fault memory function, it can intuitively display the motor operating status (normal/fault) and fault type, making it easy for on-site personnel to quickly locate the cause of the fault; Some models support communication with the upper computer to achieve remote status monitoring and fault tracing, reducing operation and maintenance costs.

-Wide environmental adaptability: Adopting industrial grade components and sealed packaging design, the working temperature range covers -20 ℃~70 ℃, and the relative humidity is 5%~95% (no condensation), which can adapt to harsh industrial environments such as high temperature, humidity, and dust. It can still operate stably in industries such as metallurgy, chemical engineering, and building materials.

Key technical parameters

Technical parameters are the core basis for product selection, installation, and debugging. The key technical parameters of ABB B09261 electronic motor protection relay are as follows (specific to the official product manual):

parameter category

specific parameters

Applicable motor types

Three phase asynchronous motor, three-phase synchronous motor, rated voltage AC 220V/380V/400V

Current protection range

Setting range 0.1A~50A (continuously adjustable), measurement accuracy ± 1%

Voltage protection range

Overvoltage setting range 105%~130% Ue, undervoltage setting range 70%~95% Ue, measurement accuracy ± 2%

Action characteristics

Overload protection: inverse time characteristic (compliant with IEC 60947-6-2 standard); Locking protection: action time ≤ 0.5s; phase loss protection: action time ≤ 2s

Output contact form

1 group normally open+1 group normally closed, contact capacity AC 250V/5A, DC 30V/5A

Power Specifications

Auxiliary power supply: AC 220V/380V (wide voltage range ± 15%), power consumption ≤ 5VA

Protection level

IP20 (panel installation), IP40 (after installing protective cover)

response time

Signal detection response time ≤ 10ms, fault action time adapts according to protection type

Communication function (optional)

Support RS485 interface, Modbus RTU protocol, realize remote monitoring and data uploading

Structural design features

ABB B09261 adopts a structural design that meets the needs of industrial sites, and has outstanding performance in installation convenience, safety, and durability:

1. Standardized installation design: supports DIN rail installation and panel embedded installation, adapts to the installation specifications of mainstream electrical control cabinets, has compact installation dimensions (typical dimensions: 72mm × 72mm × 110mm), and saves cabinet space; The wiring terminal adopts a spring type design, which is firm in wiring and easy to disassemble, reducing installation workload.

2. Strengthen electrical isolation: A triple electrical isolation design is adopted between the input detection circuit, output control circuit, and auxiliary power supply circuit, with an isolation voltage of ≥ 2.5kV AC, effectively avoiding strong electrical signals from entering the detection circuit, protecting the safety of internal electronic components, and improving the ability to resist electromagnetic interference.

3. Humanized operation interface: equipped with clear parameter setting knobs and function buttons, supporting direct adjustment of key parameters such as rated current and protection threshold through knobs, without the need for special tools; Automatically lock after parameter setting to prevent protection failure caused by misoperation.

4. Durable structure: The shell is made of flame-retardant engineering plastic (UL94 V0 grade), which has good fire resistance performance; The internal components have undergone rigorous environmental tests such as high temperature and vibration, with a service life of over 100000 hours, meeting the long-term stable operation needs of industrial equipment.

Applicable scenarios

Based on its comprehensive protection function and good environmental adaptability, ABB B09261 electronic motor protection relay is widely used in various low-voltage motor control scenarios, especially in industrial fields that require high motor reliability:

-Motor control for industrial production lines, such as conveyor motors and drive motors in automotive parts production lines and electronic component assembly lines, ensures production continuity by providing precise protection to prevent the entire production line from shutting down due to motor failures.

-Pump and fan equipment: motor protection for various industrial water pumps, cooling fans, ventilation fans, and other equipment. These types of equipment usually operate continuously for a long time, with a high risk of overload and phase loss faults. This relay can effectively extend the service life of the equipment.

-Construction and Municipal Engineering: The fan motors for building water supply pumps, sewage pumps, fire pumps, and HVAC systems can operate stably in humid and dusty building environments, ensuring the normal operation of public facilities.

-Metallurgical and chemical industry: The conveyor roller motor in the metallurgical workshop and the stirring motor in the chemical reaction kettle can provide reliable protection against harsh environments such as high temperatures and corrosive gases, avoiding safety accidents caused by motor failures.

-Agriculture and food processing: Motor protection for agricultural irrigation pumps and food processing equipment (such as mixers and conveyor belts), adapted to the characteristics of large voltage fluctuations in rural power grids, effectively solving motor failure problems caused by undervoltage and overvoltage.

Product selection suggestions

When selecting, it is necessary to combine motor parameters with actual application scenarios, and comprehensively judge from the following core dimensions to ensure that the protective relay is perfectly matched with the motor:

-Basic parameter matching of motor: Select the relay corresponding to the auxiliary power supply specification based on the rated voltage of the motor (AC 220V/380V); Determine the current protection range of the relay based on the rated current of the motor, ensuring that the rated current of the motor is within the setting range of the relay (it is recommended to reserve a 10% margin).

-Protection function requirements: If the motor is used for heavy-duty starting scenarios (such as crushers, compressors), it is necessary to focus on confirming the locked rotor protection function; If the working environment of the motor has large fluctuations in the power grid (such as rural and remote areas), priority should be given to selecting models with overvoltage/undervoltage protection.

-Installation and communication requirements: Select the installation method (rail/panel) based on the control cabinet space; If remote monitoring and data tracing are required, an extended model with RS485 communication function can be selected.

-Environmental adaptability requirements: In high temperature, high humidity, or dusty environments, it is necessary to confirm the working temperature range and protection level of the relay, and if necessary, choose customized models with enhanced protection performance.
