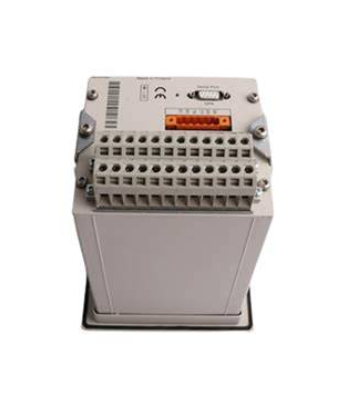

  • ABB B5LA HENF327886R0001 DC power module
    ❤ Add to collection
  • ABB B5LA HENF327886R0001 DC power module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    The B5LA HENF327886R0001 DC power module is built on ABB's industrial power platform, and its core features are concentrated in four advantages: high efficiency and stability, strong anti-interference ability, flexible adaptation, and safety and reliability. In terms of efficiency and stability, the module adopts advanced LLC resonant topology and synchronous rectification technology, with a power conversion efficiency of over 95%, effectively reducing energy consumption and heat dissipation pressure; Simultaneously equipped with high-precision voltage regulation chips, the output voltage ripple coefficient is less than 0.1%, ensuring smooth DC power supply for backend loads. In terms of anti-interference, the module has passed the IEC 61000 series electromagnetic compatibility certification and has a complete EMC (electromagnetic compatibility) design, including input EMI filtering, output ripple suppression, and surge protection, which can effectively resist common industrial power supply problems such as grid voltage fluctuations, lightning surges, and electromagnetic interference. Flexible adaptability is reflected in the module's support for wide range AC input, compatibility with different regional power grid specifications, and support for parallel operation of multiple modules to meet different load capacity requirements. In terms of reliability, industrial grade long-life components (such as electrolytic capacitors and power devices) are used, combined with redundant heat dissipation design. The mean time between failures (MTBF) exceeds 150000 hours, and it can operate continuously and stably in a wide temperature environment of -20 ℃~70 ℃.

    • ¥8458.00
      ¥8574.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:3.730KG
    • Quantity:
    • (Inventory: 99999)
Description

The B5LA HENF327886R0001 DC power module is built on ABB's industrial power platform, and its core features are concentrated in four advantages: high efficiency and stability, strong anti-interference ability, flexible adaptation, and safety and reliability. In terms of efficiency and stability, the module adopts advanced LLC resonant topology and synchronous rectification technology, with a power conversion efficiency of over 95%, effectively reducing energy consumption and heat dissipation pressure; Simultaneously equipped with high-precision voltage regulation chips, the output voltage ripple coefficient is less than 0.1%, ensuring smooth DC power supply for backend loads. In terms of anti-interference, the module has passed the IEC 61000 series electromagnetic compatibility certification and has a complete EMC (electromagnetic compatibility) design, including input EMI filtering, output ripple suppression, and surge protection, which can effectively resist common industrial power supply problems such as grid voltage fluctuations, lightning surges, and electromagnetic interference. Flexible adaptability is reflected in the module's support for wide range AC input, compatibility with different regional power grid specifications, and support for parallel operation of multiple modules to meet different load capacity requirements. In terms of reliability, industrial grade long-life components (such as electrolytic capacitors and power devices) are used, combined with redundant heat dissipation design. The mean time between failures (MTBF) exceeds 150000 hours, and it can operate continuously and stably in a wide temperature environment of -20 ℃~70 ℃.




ABB B5LA HENF327886R0001 DC power module

Basic characteristics of module

The B5LA HENF327886R0001 DC power module is built on ABB's industrial power platform, and its core features are concentrated in four advantages: high efficiency and stability, strong anti-interference ability, flexible adaptation, and safety and reliability. In terms of efficiency and stability, the module adopts advanced LLC resonant topology and synchronous rectification technology, with a power conversion efficiency of over 95%, effectively reducing energy consumption and heat dissipation pressure; Simultaneously equipped with high-precision voltage regulation chips, the output voltage ripple coefficient is less than 0.1%, ensuring smooth DC power supply for backend loads. In terms of anti-interference, the module has passed the IEC 61000 series electromagnetic compatibility certification and has a complete EMC (electromagnetic compatibility) design, including input EMI filtering, output ripple suppression, and surge protection, which can effectively resist common industrial power supply problems such as grid voltage fluctuations, lightning surges, and electromagnetic interference. Flexible adaptability is reflected in the module's support for wide range AC input, compatibility with different regional power grid specifications, and support for parallel operation of multiple modules to meet different load capacity requirements. In terms of reliability, industrial grade long-life components (such as electrolytic capacitors and power devices) are used, combined with redundant heat dissipation design. The mean time between failures (MTBF) exceeds 150000 hours, and it can operate continuously and stably in a wide temperature environment of -20 ℃~70 ℃.


Key technical parameters

Enter specifications

Voltage range: 85V~264V AC; Frequency range: 47Hz~63Hz; Power factor: ≥ 0.95 (full load)

Output specifications

Rated output voltage: 24V DC (adjustable ± 10%); Rated output current: 20A; output power: 480W

output performance

Voltage regulation rate: ≤± 0.5%; Load adjustment rate: ≤± 0.5%; Ripple and noise: ≤ 50mVp-p

conversion efficiency

Typical efficiency ≥ 93%, maximum efficiency ≥ 95% (under full load conditions)

protection function

Input overvoltage/undervoltage protection, output overcurrent/short circuit/overvoltage protection, over temperature protection, over power protection

communication interface

1 RS485 interface, supporting Modbus RTU protocol; Optional Ethernet interface (supporting Modbus TCP)

Parallel function

Support parallel operation of multiple modules, with a current sharing error of ≤ 5%; Support N+1 redundant configuration

power supply

No additional auxiliary power supply is required, power is supplied through the input grid

working environment

Temperature: -20 ℃~70 ℃; Humidity: 5%~95% (no condensation); Protection level: IP20 (module body)

Installation method

35mm standard DIN rail installation

Overall dimensions

150mm (length) x 80mm (width) x 120mm (height)

Electromagnetic compatibility certification

IEC 61000-4-2 (ESD): ± 8kV contact discharge; IEC 61000-4-3(RS):10V/m; IEC 61000-4-5 (Surge): ± 2kV line line


Applicable scenarios

The B5LA HENF327886R0001 DC power module has been widely used in multiple industrial fields due to its high stability, strong anti-interference ability, and flexible adaptability. Typical scenarios include:

1. Power supply for industrial control systems: In PLC control systems and DCS distributed control systems, modules provide stable DC power supply to core equipment such as PLC hosts, I/O modules, controllers, and human-machine interfaces (HMI), ensuring reliable operation of the control system in power grid fluctuations or electromagnetic interference environments, and avoiding production interruptions caused by abnormal power supply. For example, in a chemical DCS system, multiple modules are connected in parallel to form a redundant power supply system, providing uninterrupted power supply for on-site control stations and central control room equipment.

2. Power supply for power protection devices: In the power protection system of substations and distribution rooms, modules provide DC power for relay protection devices, measurement and control devices, fault recorders, and other equipment. Their wide range input and surge protection capabilities can withstand voltage surges during power grid faults, ensuring that the protection devices can operate normally at the moment of fault and ensuring the safe and stable operation of the power system.

3. Power supply for intelligent manufacturing equipment: In industrial robots, automated production lines, and precision inspection equipment, modules provide low ripple DC power supply for servo drives, sensors, visual inspection systems, and other equipment. Stable power supply can improve the motion accuracy of robots and the measurement accuracy of inspection equipment, while supporting multi module parallel connection to meet the high-power power supply needs of equipment. For example, in the automotive welding robot workstation, the module provides coordinated power supply for the robot controller and welding power supply.

4. Instrumentation and data acquisition system: In the pressure, temperature, flow and other data acquisition systems of industrial sites, modules provide precise DC power supply for various transmitters, data acquisition cards, recorders and other equipment. Low ripple output can reduce data acquisition errors, ensure the accuracy and reliability of collected data, and is suitable for high-precision monitoring scenarios such as chemical and metallurgical industries.

5. Emergency and Backup Power Supply System: In the emergency power supply system of important places such as hospitals, data centers, and transportation hubs, modules and battery packs work together to form a DC backup power supply. When the main power grid is cut off, the modules automatically switch to battery power supply mode to provide continuous power supply for key loads such as emergency lighting, monitoring equipment, and communication systems, ensuring the basic operation of the place.

Precautions for use

-Before installing the module, it is necessary to verify whether the model, input voltage range, and output specifications match the load requirements. Check the appearance of the module for damage and whether the wiring terminals are oxidized or loose; The installation location should be selected in a dry and ventilated area, away from high-temperature heat sources (such as frequency converters and heaters), strong electromagnetic interference sources (such as large motors), and corrosive gases. The module spacing should be kept at least 5cm to ensure good heat dissipation and avoid direct sunlight.

-Before wiring, the input power must be disconnected, and AC input, DC output, grounding, and communication terminals must be strictly distinguished according to the wiring terminal diagram. It is strictly prohibited to reverse the positive and negative poles or short-circuit the input and output; It is recommended to use copper core wires with a cross-sectional area of ≥ 1.5mm ² for communication input lines, and select a suitable cross-sectional area for DC output lines based on the load current (such as using ≥ 4mm ² copper core wires for 20A output). The grounding terminal must be reliably grounded (grounding resistance ≤ 4 Ω) to improve the module's anti-interference ability and safety.

-Before the module is put into operation, parameter checks and functional tests need to be conducted to confirm that the input voltage matches the power grid, and the output voltage is adjusted to the rated load value; Verify the output capability of the module through load testing, and test the reliability of the protection function by simulating faults (such as input voltage fluctuations and load short circuits) to ensure that the module meets the on-site power supply requirements. When multiple modules are connected in parallel, it is necessary to ensure that the models of each module are consistent and the output voltage is adjusted to the same value to avoid circulating current after parallel connection.

-During operation, maintenance personnel need to regularly monitor module operating parameters (such as input and output voltage, current, module temperature) through panel indicator lights or upper system monitoring. They should check the tightness of wiring terminals once a week, clean the surface of the module and the dust inside the control cabinet once a month, and ensure smooth heat dissipation channels; Regularly check the operating status of the module fan (if any), and replace it promptly if the fan stops running or makes abnormal noise.

-When a module malfunctions, the input power should be disconnected first. The fault type (such as overheating, overcurrent, short circuit) should be checked through the fault indicator light or the upper system, and the cause of the fault (such as load short circuit, poor heat dissipation, abnormal input voltage) should be investigated. After troubleshooting, the power should be restored; If module replacement is required, products of the same model and specifications should be selected to ensure compatibility of the power supply system.

-In areas with frequent thunderstorms or poor power grid quality, it is necessary to install lightning surge protectors and voltage regulators on the input side of the module to enhance its ability to resist power grid anomalies; In damp or dusty environments, it is necessary to install dust-proof and moisture-proof covers for modules, and regularly check for condensation or dust accumulation inside the modules to avoid damage to components caused by moisture.
