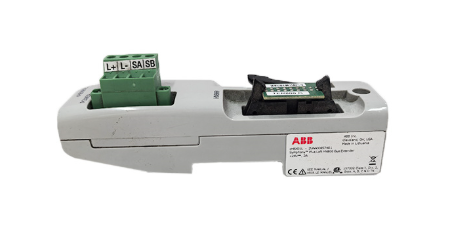

  • ABB CHBX01L 2VAA008574R1 Bus Expander
    ❤ Add to collection
  • ABB CHBX01L 2VAA008574R1 Bus Expander

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    ABB CHBX01L 2VAA008574R1 is an efficient bus expansion device for industrial automation control systems, belonging to ABB's industrial control bus product system. Its core value lies in solving the problems of limited number of nodes, insufficient transmission distance, and topology expansion in industrial fieldbus networks. Through standardized bus interfaces and flexible expansion capabilities, it achieves efficient interconnection between control equipment and distributed I/O modules, intelligent instruments, and other terminal devices, providing core support for the modular construction of medium and large-scale industrial control systems.

    • ¥26837.00
      ¥29475.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:2.740KG
    • Quantity:
    • (Inventory: 99999)
Description

ABB CHBX01L 2VAA008574R1 is an efficient bus expansion device for industrial automation control systems, belonging to ABB's industrial control bus product system. Its core value lies in solving the problems of limited number of nodes, insufficient transmission distance, and topology expansion in industrial fieldbus networks. Through standardized bus interfaces and flexible expansion capabilities, it achieves efficient interconnection between control equipment and distributed I/O modules, intelligent instruments, and other terminal devices, providing core support for the modular construction of medium and large-scale industrial control systems.




ABB CHBX01L 2VAA008574R1 Bus Expander

Basic Overview of Equipment

ABB CHBX01L 2VAA008574R1 is an efficient bus expansion device for industrial automation control systems, belonging to ABB's industrial control bus product system. Its core value lies in solving the problems of limited number of nodes, insufficient transmission distance, and topology expansion in industrial fieldbus networks. Through standardized bus interfaces and flexible expansion capabilities, it achieves efficient interconnection between control equipment and distributed I/O modules, intelligent instruments, and other terminal devices, providing core support for the modular construction of medium and large-scale industrial control systems.

This bus extender is deeply compatible with ABB AC500 series PLCs and related industrial control products, and is also compatible with mainstream industrial bus protocols. It has a compact size design and strong environmental resistance, and can be directly installed in equipment intensive industrial sites, easily integrating into existing control systems, effectively reducing wiring complexity and system integration costs. It is suitable for automation scenarios in multiple fields such as mechanical manufacturing, warehousing and logistics, and municipal engineering.


Core functions and technological advantages

2.1 Bus Node Expansion and Capacity Enhancement

The CHBX01L bus extender adopts a bus branch expansion architecture, which connects to the upper control system through a single main bus interface and provides multiple slave bus interfaces for connecting lower level terminal devices. It can increase the node access capacity of the original bus network by 3-5 times. For example, in a system using the PROFIBUS-DP bus, if the main controller natively supports 32 nodes, by connecting this extender, the effective node capacity of the bus network can be expanded to 128, meeting the demand for multi device interconnection in medium and large production lines.

The extender is equipped with independent bus signal amplification and driving units, and each slave bus interface has an independent signal conditioning circuit, which can ensure signal stability when multiple branch nodes communicate simultaneously, avoid signal attenuation or transmission conflicts caused by an increase in the number of nodes, and ensure the real-time and reliability of bus communication.

2.2 Bus distance extension and topology optimization

In response to the limited transmission distance of industrial fieldbus, this extender has a built-in bus signal relay amplification module, which can extend the bus communication distance to 1.5 times the original protocol limit. Taking EtherNet/IP bus as an example, the standard transmission distance is 100 meters. After being relayed by CHBX01L extender, the single segment transmission distance can be extended to 150 meters, and it supports multi-level cascading (up to 4 levels), further expanding the coverage range of the bus network and suitable for scenarios such as large factories and cross regional production lines.

In terms of topology optimization, the extender supports various bus topology extensions such as star and tree, and can break down the original single bus link into multiple branch links to achieve grouping management of devices in different areas. When a branch link fails, the extender will automatically isolate the fault area to prevent the fault from spreading to the entire bus network, improving the system's fault tolerance and maintenance convenience.

2.3 Multi protocol adaptation and plug and play

The device is equipped with a built-in multi protocol parsing chip, which natively supports mainstream industrial bus protocols such as PROFIBUS-DP, DeviceNet, Modbus RTU, etc. It can adapt to different protocol bus systems without the need to replace hardware. At the same time, rapid configuration of protocol parameters can be achieved through ABB dedicated configuration software (such as ABB Automation Builder), which supports seamless integration with ABB AC500, AC800M and other series controllers without the need for additional driver development, reducing the difficulty of system integration.

The extender has a "plug and play" feature, which can automatically complete the communication handshake with the main controller after connecting to the bus network, without the need for manual configuration of node addresses (supporting DHCP automatic allocation or manual setting of dip switch modes). After the device is started, it will automatically perform bus status detection to ensure that the connection will not affect the communication stability of the original bus network.

2.4 Real time monitoring and fault diagnosis

To improve operational efficiency, the extender integrates comprehensive bus status monitoring and fault diagnosis functions. The LED indicator lights (power light, bus status light, branch fault light) on the device panel can visually display the device's operating status, bus communication quality, and the connection status of each branch link. When bus conflicts, signal attenuation, node offline and other faults occur, the extender will upload the fault information to the main controller or industrial monitoring platform through the bus, and record detailed information such as the time and type of fault occurrence, providing a basis for operation and maintenance personnel to quickly locate the problem.

In addition, the device supports communication with third-party monitoring systems through the MODBUS RTU protocol, which enables real-time uploading of key parameters such as bus load rate, signal strength, and number of branch nodes, enabling remote monitoring and data analysis of the bus network.


Key technical parameters

Basic Information

model

CHBX01L 2VAA008574R1

Power parameters

input voltage

24V DC (± 15%), supports wide voltage input

power consumption

Normal operation ≤ 3W, full load ≤ 5W

Bus parameters

Supported Protocols

PROFIBUS-DP V1/V2、DeviceNet、Modbus RTU/TCP

Main bus interface

1 standard bus interface (corresponding to different physical interfaces according to the protocol)

Expansion bus interface

4 bus interfaces, supporting independent branch control

Maximum node capacity

Single device supports 128 bus nodes (depending on protocol)

Communication distance extension

Single level relay extension of 50%, supporting up to 4 levels of cascading

environmental parameters

Operating Temperature

-25 ℃~+70 ℃, suitable for high and low temperature industrial environments

relative humidity

10%~98% (no condensation)

Protection level

IP20 (panel installation), IP65 (optional for outdoor installation)

mechanical parameters

Installation method

35mm standard DIN rail installation

Dimensions (W × H × D)

22mm × 90mm × 110mm, compact and small


Typical application scenarios

4.1 Automotive final assembly production line

In the automobile final assembly production line, hundreds of devices such as welding robots, glue coating equipment, conveyor line motors, and quality inspection instruments need to be connected, and a single bus is difficult to meet the node capacity and distance requirements. The CHBX01L extender can decompose the bus network into multiple branch links such as welding area, assembly area, and inspection area. Each branch is connected to the main bus through the extender, achieving independent communication and centralized control of devices in each area. At the same time, the relay function extends the bus distance to cover every corner of large factories, ensuring the accuracy and real-time coordination of equipment control during the final assembly process.

4.2 Intelligent warehousing and logistics system

In the intelligent warehousing center, AGV scheduling system, three-dimensional shelving stacker crane, conveyor conveyor line, barcode recognition equipment, etc. are distributed in different areas and require data exchange through a bus. By utilizing the star topology expansion capability of the CHBX01L extender, the bus interface of the main controller can be expanded into multiple branches, connecting devices from different regions to avoid a single link failure causing the entire warehousing system to crash. In addition, the fault isolation function of the extender can quickly locate the branch link where the faulty AGV or stacker is located, shorten the fault handling time, and improve the efficiency of warehousing and logistics.

4.3 Municipal sewage treatment system

In municipal sewage treatment plants, grid machines, aeration tanks, sedimentation tanks, disinfection equipment, etc. are distributed in a wide area, and the sensors (liquid level, flow rate, water quality sensors) and actuators of each equipment need to be connected to the central control system. The CHBX01L extender can extend the bus transmission distance through multi-level cascading, achieving communication and interconnection between various processing units and the central control room. At the same time, its wide temperature working characteristics and high protection level can adapt to the harsh environment of humid and dusty sewage treatment plants, ensuring stable and reliable bus communication and guaranteeing the continuous operation of sewage treatment processes.

4.4 3C electronic manufacturing assembly line

In the automated production lines of 3C products such as mobile phones and computers, devices such as surface mount machines, reflow soldering, AOI testing equipment, and robotic arms have extremely high real-time requirements for bus communication. The CHBX01L extender can divide the production line into multiple modules according to the process, and each module is connected to the main system through an independent bus branch to achieve collaborative control and data synchronization between processes. Its signal amplification function ensures that high-speed equipment data transmission is not delayed, avoiding production delays or product quality defects caused by communication issues.


Installation and usage precautions

-Before installation, it is necessary to confirm the bus protocol type and connect physical interfaces according to the protocol (such as PROFIBUS-DP corresponding to DB9 interface, DeviceNet corresponding to 5-pin terminal) to avoid equipment damage caused by interface misconnection.

-The equipment should be installed in a ventilated and dry place, avoiding direct sunlight or rainwater splashing; If installed outdoors or in damp areas, a matching enclosure with IP65 protection level should be selected to ensure the safe operation of the equipment.

-Bus cables should use shielded cables that meet industrial standards, and ensure reliable grounding of the shielding layer during wiring to reduce the impact of electromagnetic interference on communication; The cable length of each branch bus should be controlled within the protocol specified range to avoid signal attenuation.

-When configuring node addresses, it is necessary to ensure that the node addresses within the entire bus network are unique, which can be manually set through dip switches or allocated through configuration software to avoid address conflicts and bus communication failures.

-After the device is started, it is necessary to check the status of each LED indicator and confirm that the communication between the main bus and branch bus is normal; Regularly clean the dust on the surface of the equipment during daily maintenance, check if the cable joints are loose, and ensure stable operation of the equipment.

-When performing multi-level cascading, it is important to note that the number of cascades should not exceed 4 levels, and to allocate the number of nodes in each level reasonably to avoid communication delays caused by excessive load on one level of the expander.
