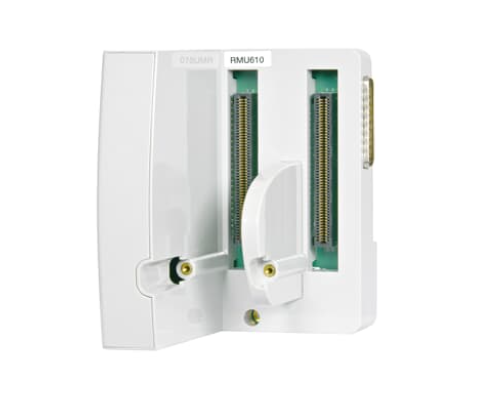

ABB RMU610 2VAA008425R1 redundant communication module

ABB RMU610 2VAA008425R1 redundant communication module

Basic overview of module

ABB RMU610 2VAA008425R1 is a high-performance redundant communication module designed specifically for industrial automation control systems, belonging to ABB's industrial communication product series. Its core positioning is to ensure the continuity and reliability of critical communication links in industrial sites through redundant architecture design, effectively avoiding system downtime or data transmission interruption caused by a single communication node failure, and providing core communication support for stable operation in fields such as intelligent manufacturing and process control.

This module is widely compatible with ABB's mainstream PLCs (such as AC500 series, AC800M series) and distributed control systems (DCS), and can seamlessly integrate into existing industrial communication networks. It is also compatible with multiple mainstream industrial communication protocols, and has strong environmental adaptability and system compatibility. It can meet the application needs of complex industrial scenarios such as high temperature, high humidity, and strong electromagnetic interference.

Core functions and redundancy advantages

2.1 Dual redundancy architecture design

The module adopts a "primary backup" redundancy mode, with built-in dual communication channels and independent fault detection units. During normal operation, the main channel is responsible for the main data transmission task, while the backup channel synchronizes the status of the main channel in real-time and is in a hot standby state; When there is a link interruption, signal attenuation, or module failure in the main channel, the system can complete the undisturbed switching between the main and backup channels within ≤ 10ms. During the switching process, data transmission is not interrupted, ensuring the real-time and integrity of control instructions and on-site data.

The redundant switching logic supports dual protection of hardware level detection and software level verification. At the hardware level, the channel status is monitored in real-time through an independent signal acquisition circuit. At the software level, the communication effectiveness is further confirmed through CRC data verification and heartbeat packet mechanism to avoid system fluctuations caused by false switching.

2.2 Multi protocol compatibility and flexible communication

The module is equipped with a multi protocol processing chip, which natively supports mainstream industrial Ethernet protocols such as PROFINET, EtherNet/IP, Modbus TCP, etc. It can also be extended to support fieldbus protocols such as DeviceNet and PROFIBUS-DP through firmware upgrades, meeting the heterogeneous communication needs between devices from different manufacturers.

According to the different transmission requirements of industrial data, the module supports the priority division of "real-time control data" and "non real-time monitoring data". The real-time data is transmitted in high priority queue to ensure the rapid response of control commands; Low priority queues are used for non real time data to avoid occupying critical communication bandwidth and optimize network resource allocation.

2.3 Fault diagnosis and operational convenience

The integrated fault diagnosis function of the module can monitor key parameters such as channel communication rate, signal strength, and data packet loss rate in real time, and visually display the module's operating status through LED indicator lights (power light, operation light, redundancy status light, fault light). When a fault occurs, the module can upload the fault information to the industrial Ethernet management platform through SNMP protocol. At the same time, it supports reading detailed fault logs through ABB dedicated configuration software (such as Control Builder M), including fault type, occurrence time, fault location and other information, providing a basis for operation and maintenance personnel to quickly locate and troubleshoot problems.

In addition, the module supports online firmware upgrades and parameter configuration, allowing maintenance operations to be completed without interrupting system operation, greatly reducing maintenance costs and system downtime risks.

Key technical parameters

Basic Information

model

RMU610 2VAA008425R1

Power parameters

input voltage

24V DC（±10%）

power consumption

Normal operation ≤ 5W, redundant switching ≤ 8W

Communication parameters

communication interface

2 RJ45 Ethernet ports (supporting 10/100/1000Mbps adaptive)

Supported Protocols

PROFINET V2.3、EtherNet/IP、Modbus TCP、UDP/IP

Data transmission rate

Maximum 1Gbps (full duplex mode)

Redundant switching time

≤10ms

environmental parameters

Operating Temperature

-20℃~+60℃

relative humidity

5%~95% (no condensation)

Electromagnetic Compatibility

Compliant with IEC 61000-6-2 and IEC 61000-6-4 standards

mechanical parameters

Installation method

DIN rail installation (35mm standard rail)

Dimensions (W × H × D)

35mm×100mm×120mm

Typical application scenarios

4.1 Process Control Field

In continuous production processes such as petrochemicals, chemical pharmaceuticals, metallurgy, etc., the RMU610 module is used to connect on-site sensors, actuators, and DCS systems, ensuring stable transmission of key process parameters such as temperature, pressure, and flow through redundant communication, avoiding production interruptions or safety accidents caused by communication failures. For example, in the control system of a chemical reaction kettle, the module can achieve redundant communication between the DCS controller and the kettle temperature control unit, ensuring real-time issuance of temperature regulation instructions and accurate uploading of feedback data.

4.2 Intelligent Manufacturing Field

In automated production lines such as automotive manufacturing and 3C electronics, modules are used for communication connections between PLCs and industrial robots, AGVs (Automated Guided Vehicles), and intelligent sorting equipment, supporting high-speed data exchange on the production line. Redundant architecture design can ensure that the production line can still operate normally in the event of communication link failures, improving production efficiency and product qualification rate. For example, in the automotive welding production line, modules are connected to PLC and multiple welding robots to ensure synchronous transmission of welding parameters and collaborative control of robot actions.

4.3 Energy and Power Sector

In scenarios such as substations and new energy power stations (photovoltaic, wind power), modules are used for communication between power monitoring systems (SCADA) and relay protection devices, smart meters, and other equipment. Through redundant links, they ensure continuous collection of power grid operation status data and reliable issuance of control instructions, ensuring the stable operation of the power grid. For example, in photovoltaic power plants, modules can achieve redundant communication between SCADA systems and inverters, monitor real-time parameters such as inverter power generation and voltage, and remotely issue start stop commands.

Installation and usage precautions

-When installing the module, it is necessary to ensure that the guide rail is firmly fixed to avoid interface looseness caused by vibration; At the same time, a distance of ≥ 30cm should be maintained from strong electromagnetic interference sources (such as frequency converters and high-power motors) to reduce the impact of electromagnetic interference on communication.

-The power wiring should strictly distinguish between positive and negative poles to avoid module damage caused by reverse connection; It is recommended to use an independent power supply circuit to power the module and ensure the stability of the power supply voltage.

-When configuring modules, redundant parameter settings (such as primary and backup channel priorities, switching conditions, etc.) need to be completed through ABB dedicated software, and redundant switching tests need to be conducted to ensure that the switching function is normal.

-In daily maintenance, it is necessary to regularly check the status of the module LED indicator lights, view communication parameters through the management platform, and promptly detect and handle potential faults; At the same time, avoid frequent plugging and unplugging of communication cables to prevent interface wear and tear.
