  • ABB CI854BK01 Communication Interface Module
    ❤ Add to collection
  • ABB CI854BK01 Communication Interface Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    ABB CI854BK01 is the core communication interface module in the ABB AC 800M series controller, designed specifically for heterogeneous network interconnection in industrial automation systems. It is a key hub for data exchange between the controller and various external devices and upper level systems. This module, with ABB's mature technology in industrial communication, has high compatibility, high reliability, and real-time data transmission capabilities. It can seamlessly integrate into complex industrial control networks, providing stable support for information integration and collaborative control of control systems.

    • ¥56557.00
      ¥57867.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:5.750KG
    • Quantity:
    • (Inventory: 99999)
Description

ABB CI854BK01 is the core communication interface module in the ABB AC 800M series controller, designed specifically for heterogeneous network interconnection in industrial automation systems. It is a key hub for data exchange between the controller and various external devices and upper level systems. This module, with ABB's mature technology in industrial communication, has high compatibility, high reliability, and real-time data transmission capabilities. It can seamlessly integrate into complex industrial control networks, providing stable support for information integration and collaborative control of control systems.

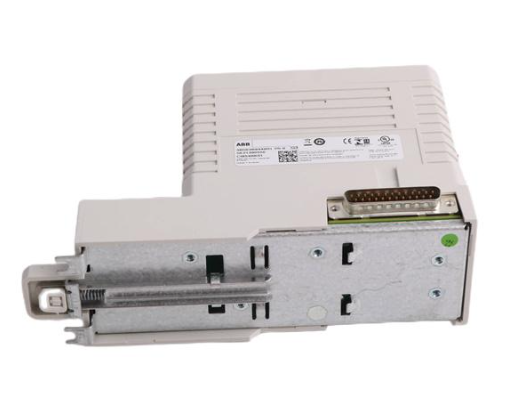

ABB CI854BK01 Communication Interface Module

Basic information of module

ABB CI854BK01 is the core communication interface module in the ABB AC 800M series controller, designed specifically for heterogeneous network interconnection in industrial automation systems. It is a key hub for data exchange between the controller and various external devices and upper level systems. This module, with ABB's mature technology in industrial communication, has high compatibility, high reliability, and real-time data transmission capabilities. It can seamlessly integrate into complex industrial control networks, providing stable support for information integration and collaborative control of control systems.

From the perspective of product positioning, CI854BK01 belongs to the modular communication interface unit, which can be directly inserted into the rack of AC 800M controller and achieve high-speed data exchange with CPU module through the controller backplane bus. It also supports multiple mainstream industrial communication protocols and can adapt to intelligent devices, sensors, actuators and monitoring systems from different manufacturers. It is widely used in various industrial scenarios such as power, chemical, metallurgy, papermaking, etc.


Core technical parameters

The core technical parameters are an important basis for module selection, network configuration, and system debugging. The following are the key technical indicators of the CI854BK01 communication interface module (specific to ABB's official technical manual):

-Power parameters: Powered by the rack backplane, the input voltage is compatible with the AC 800M controller rack, usually 5V/24V DC (matched according to the rack model), with overvoltage protection and undervoltage alarm functions to ensure stable operation of the module in the unified power supply system of the controller.

-Communication port: Equipped with 2 independent Gigabit Ethernet ports (RJ45 interface), supporting adaptive 10/100/1000Mbps transmission rates, the ports have MDI/MDI-X automatic recognition function, which can directly connect network devices or connect terminal devices through cross lines without manual switching.

-Supporting protocols: The core supports PROFINET IO controller/device mode, EtherNet/IP adapter/scanner mode, and is compatible with Modbus TCP, IEC 61850 (specific to the power industry), OPC UA and other protocols. Some protocol functions can be extended through firmware upgrades.

-Data transmission performance: The backplane bus has a transmission rate of up to 1Gbps, ensuring seamless data exchange with the CPU module; The maximum data throughput of a single Ethernet port can reach 900Mbps, supporting real-time data transmission (RT) and isochronous real-time data transmission (IRT), meeting the requirements of high-precision scenarios such as motion control.

-Environmental adaptability: Operating temperature range of -40 ℃~70 ℃, relative humidity of 5%~95% (no condensation), protection level of IP20 (module itself), suitable for harsh temperature and humidity environments in industrial sites, with anti electromagnetic interference (EMC) capability, in compliance with IEC 61000-6-2/3 industrial standards.

-Physical specifications: Adopting a standard rack mounted design, the dimensions are compatible with the AC 800M series modules (width x height x depth approximately 45mm x 100mm x 150mm), weighing approximately 300g, and can be directly installed in the standard rack slot of the AC 800M controller without additional installation space.


Main functions and working principles

The CI854BK01 communication interface module has the core functions of "protocol conversion+data forwarding+network management", and achieves multi protocol compatibility and efficient data processing through modular design. Its specific functions and working principles are as follows:

1. Multi protocol conversion and adaptation function

As the "translator" of industrial control networks, this module can achieve seamless conversion between different communication protocols. For example, when the AC 800M controller needs to communicate simultaneously with Siemens devices using PROFINET protocol and Rockwell devices using EtherNet/IP protocol, CI854BK01 can convert the internal data format of the controller into corresponding protocol data frames and send them to different devices. At the same time, it can convert the feedback data of each device into a format recognizable by the controller, achieving interconnection and intercommunication of heterogeneous networks. The protocol stack built into the module adopts hardware acceleration technology to ensure low latency and no data loss during the protocol conversion process.

2. High speed data forwarding and interaction function

The module implements a network architecture of "one primary and one backup" or "dual network segment interconnection" through dual Ethernet ports. In the "one primary and one backup" mode, two ports are connected to the main network and the backup network respectively. When the main network fails, the module can automatically switch to the backup network within 50ms to ensure the continuity of data transmission; In the "dual network segment interconnection" mode, two ports are connected to devices in different network segments, and the module serves as a gateway between network segments to achieve cross network segment data forwarding, avoiding network congestion caused by direct communication between devices in different network segments. At the same time, the module and CPU module exchange data at high speed through the backplane bus, ensuring real-time control and status monitoring of field devices by the controller.

3. Network diagnosis and fault alarm function

The module is equipped with a comprehensive network diagnostic tool, which supports viewing port connection status, data transmission rate, protocol operation status, and other information through ABB Control Builder M software or web interface. When there are issues such as network interruption, port failure, protocol abnormality, etc., the module can provide feedback on the fault in three ways: first, the LED indicator light on the module panel (such as Link/ACT flashing abnormally, Fault light always on); The second is to send fault signals to the CPU module through the backplane bus, triggering the alarm program of the controller; The third is to support SNMP protocol, which sends trap information to the Network Management System (NMS) for remote monitoring and fault location by operation and maintenance personnel.

4. Network security protection function

In response to the security requirements of industrial networks, modules have multi-level security protection capabilities. Support IP address filtering function, only allowing preset legitimate IP address devices to communicate with it, preventing illegal devices from accessing; Support TCP/UDP port restrictions, close unused ports, and reduce the network attack surface; Some firmware versions support VPN (Virtual Private Network) functionality, which enables secure communication between remote devices and modules through encrypted tunnels, preventing data from being stolen or tampered with during transmission and ensuring the information security of industrial control networks.

5. Hot swappable and redundant backup functions

This module supports the hot plug function of the AC 800M controller. Without shutting down the controller, the module can be directly plugged in and out for replacement or maintenance, avoiding the entire control system from shutting down due to module failures and improving system availability. At the same time, it supports module level redundancy configuration. When the main module fails, the backup module can automatically take over communication tasks with a switching time of ≤ 100ms, ensuring the continuity of the communication link and meeting the high reliability requirements of industrial scenarios such as nuclear power plants and large chemical plants.


Installation and configuration precautions

1. Installation requirements

-The module needs to be installed in the standard rack slot of the AC 800M controller. Before installation, it is necessary to confirm that the rack model is compatible with the module (such as the AC 800M 410/450 rack). When inserting, align it with the slot rail and slowly push it in until a "click" sound is heard, ensuring that the module is reliably connected to the backplane bus.

-The installation environment should meet the environmental adaptability requirements of the module, avoiding installation near high-temperature heat sources (such as frequency converters), strong electromagnetic radiation sources (such as high-voltage cables), and locations with high dust and humidity. The rack should be properly grounded (grounding resistance ≤ 4 Ω) to reduce electromagnetic interference.

-Ethernet cables should use industrial grade shielded twisted pair cables (such as CAT6A shielded cables), and the cable shielding layer should be connected to the rack grounding. The cable length should be controlled within 100 meters (Gigabit Ethernet) to avoid signal attenuation. When connecting ports, it is necessary to ensure that the RJ45 crystal head is firmly crimped to avoid loosening and causing communication interruption.

-The module supports hot plugging, but an anti-static wristband must be worn during plugging to avoid static electricity damaging the internal components of the module. During the plugging process, hands should be kept stable to avoid damaging the module or rack slot with excessive force.

2. Configuration points

-The module configuration requires the use of ABB Control Builder M software (the version must match the module firmware version), which connects the module through the controller backplane bus or Ethernet port. The first configuration requires assigning an IP address to the module (on the same network segment as the controller and network devices), setting the module name and communication parameters.

-Protocol configuration requires selecting the corresponding protocol mode based on the protocol type of the connected device. For example, when connecting PROFINET devices, the module needs to be configured to PROFINET IO controller mode, adding the GSD file of the slave device, and configuring the input/output data mapping address; When connecting EtherNet/IP devices, it is necessary to configure them to EtherNet/IP scanner mode and import the EDS file of the device.

-When configuring redundancy, it is necessary to set the IP addresses and protocol parameters of the primary and backup modules to be consistent, enable redundancy functions through software, configure fault switching conditions (such as port connection interruption, data transmission timeout), ensure that the status of the primary and backup modules is synchronized, and there is no data loss during the switching process.

-After the configuration is completed, communication testing is required to check the connection status between the module and each device through the software's "online diagnosis" function, send test data to verify the accuracy of data transmission, and simulate network faults to test whether the redundancy switching function is normal.
