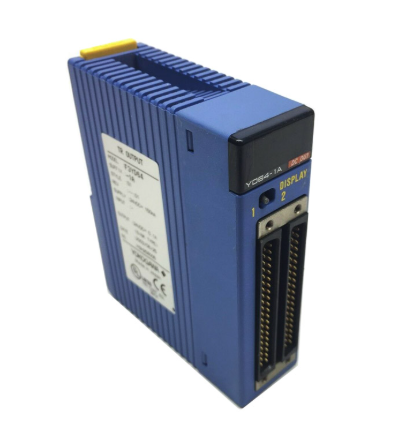

YOKOGAWA F3YD64-1A transistor output module

YOKOGAWA F3YD64-1A transistor output module

Product Overview

YOKOGAWA F3YD64-1A is a high-performance transistor output module launched by Yokogawa Electric Corporation in Japan. It belongs to the FA-M3 series programmable logic controller (PLC) supporting I/O module system and is designed specifically for the drive signal output requirements of industrial automation control systems. This module has core advantages such as high integration, stable driving capability, and reliable isolation protection. It can accurately and efficiently convert the control instructions of the PLC main controller into driving signals, and output them to various on-site execution devices, providing key execution support for the orderly operation of automated production lines. Its product positioning covers medium to large-scale industrial automation projects, suitable for various complex industrial environments, originating from Japan, with strict industrial grade quality control standards to ensure long-term stable operation.

Core functional features

1. High integration transistor output design

The module integrates 64 independent transistor output points and adopts a mature transistor switch structure, which has the advantages of fast response speed and long service life. It can directly drive industrial execution equipment such as relays, contactor coils, small solenoid valves, indicator lights, etc. The 64 point high integration design can effectively reduce the rack space occupied by modules, simplify the on-site wiring architecture, reduce system installation costs and maintenance difficulties, and is particularly suitable for centralized control scenarios with multiple actuators in large production lines.

2. Reliable photoelectric isolation protection mechanism

The module adopts a photo coupler internally to achieve electrical isolation between the output signal and the internal control circuit, effectively blocking the influence of on-site interference signals on the control system, and preventing the back electromotive force of on-site execution equipment from damaging the internal circuit of the module, greatly improving the stability of signal output and the service life of the module. Combined with built-in surge suppression and other protective designs, it can resist surge voltage and electromagnetic interference in industrial sites, and adapt to complex and harsh industrial environments.

3. Wide voltage adaptation and stable driving capability

The module supports wide voltage output adaptation from 12VDC to 24VDC, compatible with common DC power supply execution equipment in industrial fields. The rated output current can meet the driving requirements of conventional small actuators. Its output characteristics are stable, with low leakage current, which can effectively avoid equipment misoperation caused by leakage current and ensure the accurate execution of control instructions.

4. Intuitive state monitoring and convenient maintenance

The module is equipped with independent LED status indicator lights, and each output point corresponds to a dedicated indicator light. When the output signal is valid (On), the indicator light lights up, which can intuitively judge the working status of each channel and facilitate on-site troubleshooting. The module adopts standardized connectors as external interfaces, with clear and convenient wiring. At the same time, the module is compact in size and lightweight, making it easy for rack installation and later maintenance and disassembly.

5. Good system compatibility

As a dedicated module for the FA-M3 series, it is seamlessly compatible with most CPU modules in the series without the need for additional adaptation configurations. It can quickly integrate into existing FA-M3 PLC systems and support flexible networking between the main station and remote I/O stations, improving the convenience of system expansion.

Detailed technical specifications

1. Power parameters

-Power supply voltage: 12VDC~24VDC wide voltage adaptation, compatible with common DC power supply specifications in industrial sites

-Module power consumption: The external power supply consumes current in accordance with the series standard specifications, and the internal 5VDC circuit consumes current to meet the system's power supply requirements

-Instantaneous power failure protection: Attention should be paid to the possibility of erroneous output caused by instantaneous power failure. It is recommended to configure a stable power supply and standardize wiring to ensure power supply continuity

2. Output signal parameters

-Output type: transistor output (NPC/PNP compatible, please refer to the product manual for details)

-Rated output voltage/current: Supports 12VDC~24VDC output, rated output current can meet the driving requirements of conventional small actuators (specific parameters are recommended to refer to the product manual for detailed specifications)

-Response time: On → Off and Off → On. The response time is controlled at an industrial grade fast response level, which can accurately capture changes in control instructions and avoid execution delays

-Leakage current: The maximum leakage current is extremely small, effectively preventing equipment misoperation

-Interface type: using standardized connector interfaces, supporting terminal block wiring, and the wire treatment of the wiring terminals must comply with industrial wiring specifications

3. Environmental and physical parameters

-Working environment temperature: 0 ℃~40 ℃, suitable for most workshop and control room environments

-Working humidity: 25%~80% (no condensation), avoid the influence of humidity and corrosive gases, and stay away from harsh environments such as high dust, salt spray, and oil fume

-Protection level: The protection level of the module body meets industrial standards and needs to be coordinated with the control cabinet to achieve overall protection, avoiding direct exposure to rainwater, dripping water, or direct sunlight

-Weight: Complies with the lightweight design standards of FA-M3 series modules, making it easy to install densely in racks

-Material: voltage resistant, anti-aging industrial grade material with good mechanical strength and anti-interference performance

Applicable system and configuration requirements

YOKOGAWA F3YD64-1A is a dedicated module for FA-M3 series PLC, which needs to be used in conjunction with specific CPU modules of the series. Compatible CPU models include F3SP22, F3SP28, F3SP38, F3SP5 *, F3SP6 *, F3SP7 *, etc. (models with * are derivative models of the series). When configuring the system, the following points should be noted:

-Master station and slave station configuration: A single master station can connect 64 remote I/O stations, remote device stations, or local stations. It is necessary to strictly follow the system expansion specifications of the CPU module and plan the output channel allocation reasonably

-Power timing requirements: When powered on, the remote I/O module power must be turned on first, and then the data link must be started; When power is cut off, the data link should be stopped first, and then the module power should be turned off to avoid data loss or module damage

-Wiring specifications: Power cables should be kept at least 100mm away from the main circuit and high-voltage cables to avoid electromagnetic interference; The output control line should be laid in a standardized manner, away from strong interference sources, and shielded cables should be used if necessary. The shielding layer should be grounded reasonably on the signal receiving side (execution equipment side)

-Grounding requirements: The PLC system to which the module belongs must implement type D grounding, with a grounding resistance of ≤ 100 Ω, to ensure anti-interference performance and personnel safety

Typical application scenarios

With high integration, stable driving performance, and extensive compatibility, the F3YD64-1A module is widely used in various industrial automation fields, with typical scenarios including:

1. Mechanical manufacturing industry

Suitable for the execution control of CNC machine tools, machining centers, robot workstations and other equipment, it can drive the machine tool spindle start stop contactor, feed axis servo enable relay, fixture clamping/releasing solenoid valve, equipment status indicator light, etc. through 64 output channels to achieve precise collaborative control of equipment actions.

2. Process control industry

In process control scenarios such as petrochemicals, water treatment, and power production, equipment such as reaction kettle feed solenoid valves, drain valves, mixing motor start stop contactors, valve positioner control signals, alarm indicator lights, etc. can be driven to convert PLC control instructions into on-site execution actions, achieving closed-loop control of the production process.

3. Buildings and Intelligent Manufacturing

In the workshop environment control and building automation system of smart factories, it can drive air conditioning unit start stop relays, ventilation fan control switches, lighting circuit contactors, fire protection facility actuators, access control switches, etc., to achieve centralized control and energy-saving optimization of multiple systems.

4. Transportation and Logistics

In automated sorting lines for warehousing and logistics, as well as loading and unloading equipment at port terminals, conveyor start stop contactors, sorting solenoid valves, positioning cylinders, cargo blockers, warning lights and other execution devices can be driven to ensure orderly and efficient logistics transportation and sorting processes.

Precautions for safe operation and maintenance

1. Wiring safety

-Before wiring, all external power sources must be disconnected to avoid electric shock or module burnout; It is strictly prohibited to connect AC power to DC input/output terminals, otherwise it will directly damage the module and connected execution equipment

-The end of the wire should be processed according to the specifications, and the end of the twisted wire should be tightly twisted without looseness. It is not recommended to tin it; The tightening torque of the terminal should be controlled within the specified range (0.22~0.25N • m for European terminals and 0.5~0.8N • m for conventional terminals) to avoid poor contact caused by over tightening or over loosening

-Prohibit wiring empty terminals, do not connect wires that do not meet specifications or exceed the specified number of wires, to avoid short circuits or wire breakage faults; When connecting the execution device, it is necessary to confirm that the rated voltage and current of the device match the output capability of the module

2. Safe operation

-Do not touch the terminals while powered on to avoid electric shock or misoperation; Before changing the program, forcing output, or switching between RUN/STOP states during operation, it is necessary to fully confirm on-site safety to prevent mechanical damage or accidents

-Emergency stop circuit, protection circuit, and interlock circuit (such as preventing simultaneous forward and reverse actions) must be set up outside the PLC to avoid dangerous actions caused by module failures or program abnormalities

-Avoid bundling or laying control lines with main circuits or power lines in close proximity (recommended spacing ≥ 100mm) to prevent electromagnetic interference from causing misoperation; Stay away from devices that generate high-frequency interference and waveform distortion, such as frequency converters and thyristor circuits

-If used in conjunction with a current transformer (CT), it must be correctly connected to the CT secondary side. Before disconnecting the instrument, the CT secondary side should be short circuited to avoid high voltage on the secondary side that may cause electric shock or equipment damage

3. Maintenance and upkeep

-Maintenance operations such as cleaning and tightening terminals must be carried out after disconnecting all power sources; Unauthorized disassembly or modification of modules is prohibited, as it may result in malfunctions, fires, or malfunctions

-When disassembling and assembling expansion cables and peripheral devices, power off operation is required to avoid damage to the internal circuit of the module; Regularly check the terminal connection status, LED indicator light operation, and promptly identify loose or abnormal channels

-Prevent foreign objects such as chips and wire shavings from falling into the module ventilation holes to prevent short circuits, fires, or misoperations; The module casing is coated with anti-static agent. When cleaning, gently wipe it with a soft and dry cloth. Do not use a damp cloth to avoid reducing the anti-static effect

-Modules that operate in dusty and humid environments for a long time require regular cleaning of surface dust, checking of protective status, and taking additional protective measures if necessary

4. Fault handling

-If there is an abnormal output signal, first check the status of the executing device, wiring connection, and power supply, and then investigate the module channel; If there are abnormal conditions such as module overheating, odor, abnormal noise, or smoking, the power should be cut off immediately and the use should be stopped

-When a module malfunctions, it is recommended to contact an authorized repair agency of Yokogawa Electric for assistance, and self repair is not recommended; When replacing modules, it is necessary to ensure that the model matches and disassemble them after power off to avoid system compatibility issues
