  • FUJI FVR008E7S-2 High Efficiency Industrial Inverter
    ❤ Add to collection

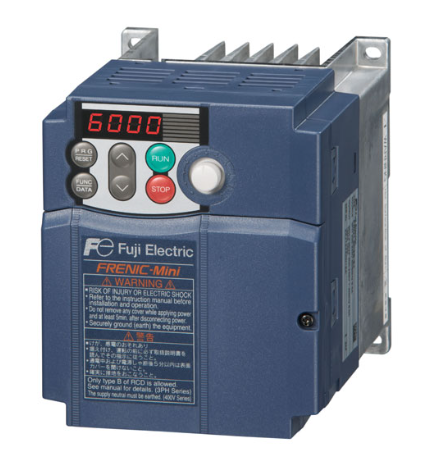

  • FUJI FVR008E7S-2 High Efficiency Industrial Inverter

    FVR008E7S-2 is a representative model in the Fuji E series inverters. "008E" represents its rated power (approximately 7.5kW, to be confirmed based on voltage level), while "7S-2" specifies that it is a three-phase 220V input specification designed specifically for medium power industrial loads. This model is positioned as "efficient, energy-saving, stable, reliable, and easy to operate". Through optimized circuit topology and control algorithms, it achieves precise speed regulation of asynchronous motors while minimizing energy loss, meeting the core requirements of "cost reduction and efficiency improvement" in the current industrial field.

    • ¥33624.00
      ¥37457.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:2.560KG
    • Quantity:
    • (Inventory: 99999)
Description

FVR008E7S-2 is a representative model in the Fuji E series inverters. "008E" represents its rated power (approximately 7.5kW, to be confirmed based on voltage level), while "7S-2" specifies that it is a three-phase 220V input specification designed specifically for medium power industrial loads. This model is positioned as "efficient, energy-saving, stable, reliable, and easy to operate". Through optimized circuit topology and control algorithms, it achieves precise speed regulation of asynchronous motors while minimizing energy loss, meeting the core requirements of "cost reduction and efficiency improvement" in the current industrial field.




FUJI FVR008E7S-2 High Efficiency Industrial Inverter

Product Core Positioning: Focusing on Efficient Control in Medium Power Scenarios

FVR008E7S-2 is a representative model in the Fuji E series inverters. "008E" represents its rated power (approximately 7.5kW, to be confirmed based on voltage level), while "7S-2" specifies that it is a three-phase 220V input specification designed specifically for medium power industrial loads. This model is positioned as "efficient, energy-saving, stable, reliable, and easy to operate". Through optimized circuit topology and control algorithms, it achieves precise speed regulation of asynchronous motors while minimizing energy loss, meeting the core requirements of "cost reduction and efficiency improvement" in the current industrial field.


Core advantage: Empowering technology to enhance industrial production value

1. Efficient and energy-saving, reducing operating costs

As an "efficient industrial inverter", this product has outstanding energy-saving performance. Firstly, adopting Fuji's patented "vector control technology", the output voltage and frequency can be adjusted in real time according to changes in motor load, ensuring that the motor always operates in the optimal efficiency range. Compared with traditional constant speed operation mode, the energy-saving rate can reach 10% -30%, especially suitable for variable load scenarios such as water pumps and fans; Secondly, the built-in high-efficiency IGBT power module has low switching losses and a maximum conversion efficiency of over 97%, reducing energy waste during power transmission; Thirdly, it supports the "sleep wake-up" function. When the load is in a low load state for a long time, the inverter can automatically enter sleep mode, further reducing standby energy consumption.

2. Precise control to ensure production accuracy

In industrial production, the stability of motor speed directly affects product quality. FVR008E7S-2 is equipped with Fuji's advanced "sensorless vector control" technology, which can achieve precise control of motor speed and torque without the need for additional encoders. The speed fluctuation range is less than ± 0.5%, meeting the requirements of precision machining, conveying equipment and other precision requirements. At the same time, the inverter supports multiple control mode switching, including V/F control, vector control, torque control, etc., which can adapt to the needs of different working conditions.

3. Stable and reliable, adaptable to harsh environments

The voltage fluctuations, temperature changes, dust interference and other factors in industrial sites pose extremely high requirements for the reliability of inverters. FVR008E7S-2 has been optimized in terms of hardware design and protection level: high voltage resistant and anti-interference electronic components are used in the hardware, and multiple protection functions such as overcurrent, overvoltage, overload, overheating, phase loss, and motor stalling are built-in. It can monitor the operating status in real time and trigger the protection mechanism immediately in case of abnormalities to avoid equipment damage and production interruption; The protection level reaches IP20, and with an independent heat dissipation duct design, it can operate stably in ambient temperatures ranging from -10 ℃ to 40 ℃, adapting to the environmental conditions of most industrial workshops.

4. Convenient operation, reducing operation and maintenance costs

To improve operation and maintenance efficiency, the inverter has been designed with humanization in operation and debugging: equipped with a clear LED display panel that can display key information such as speed, current, voltage, and fault codes in real time, making it convenient for staff to quickly troubleshoot problems; Support control and parameter settings through the operation panel, external terminals, and RS485 communication interface (optional), where the RS485 interface can achieve centralized monitoring and data uploading of multiple inverters, suitable for industrial automation control systems; The parameter memory function can save multiple sets of commonly used parameters, eliminating the need for repeated debugging when replacing equipment and improving replacement efficiency.


Key technical parameters: Quantitative performance indicators

parameter category

specific indicators

Input specifications

Three phase AC 220V ± 10%, 50/60Hz ± 5%

Rated output power

7.5kW (corresponding to motor power, please refer to the product manual for details)

Rated output current

35A (continuous output)

Output frequency range

0.1~400Hz

Control method

V/F control, sensorless vector control, torque control

overload capacity

150% rated current, lasting for 60 seconds; 200% rated current, lasting for 0.5 seconds

Protection level

IP20

cooling method

forced air cooling

Communication interface (optional)

RS485 (supports Modbus RTU protocol)


Applicable scenarios: Core control equipment covering multiple industries

Based on its efficient, precise, and reliable performance characteristics, FVR008E7S-2 is widely used in multiple industrial fields, with typical scenarios including:

-General machinery manufacturing: such as CNC machine tools, printing machinery, packaging equipment, etc., ensure processing accuracy and production efficiency through precise speed regulation;

-Heating, Ventilation, and Air Conditioning (HVAC): Air conditioning units and ventilation fans in shopping malls and factory workshops achieve precise temperature regulation through variable speed control, reducing energy consumption of the air conditioning system;

-Water treatment industry: Water pumps in water supply pumping stations and sewage treatment plants automatically adjust their speed according to changes in water level, avoiding the phenomenon of "big horses pulling small cars" and saving electricity costs;

-Textile and Printing and Dyeing: Motor control of textile machines and printing and dyeing equipment to ensure stable yarn tension and printing and dyeing speed, and improve product quality;

-Transportation and Logistics: Production line conveyor belts and logistics sorting equipment adapt to different production rhythms through speed regulation to improve logistics turnover efficiency.


Usage and operation instructions

1. Installation should be carried out by a professional electrician to ensure that the input voltage matches the specifications of the inverter, the wiring is secure, and to avoid short circuits or poor contacts;

2. The inverter should be installed in a well ventilated, dust-free, and non corrosive gas environment, avoiding direct sunlight or proximity to high-temperature heat sources;

3. Regularly check whether the cooling fan and filter are clean. If there is dust accumulation, it should be cleaned up in a timely manner to prevent equipment failure caused by poor cooling;

When a malfunction occurs, the cause can be investigated by comparing the fault code on the display panel with the product manual. Do not disassemble the equipment without power off.
