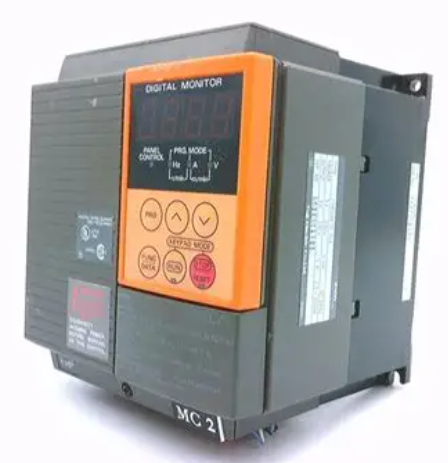

  • FUJI FVR008E7S-2UX AC driver module
    ❤ Add to collection
  • FUJI FVR008E7S-2UX AC driver module

    Three phase AC 200-240V, 50/60Hz

    Wide voltage input design, adaptable to power grid fluctuations in different regions

    Rated output power

    0.75kW

    Match small and medium power motors to meet conventional industrial drive requirements

    Rated output current

    4.0A


    • ¥28444.00
      ¥28945.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:5.450KG
    • Quantity:
    • (Inventory: 99999)
Description

Three phase AC 200-240V, 50/60Hz

Wide voltage input design, adaptable to power grid fluctuations in different regions

Rated output power

0.75kW

Match small and medium power motors to meet conventional industrial drive requirements

Rated output current

4.0A



FUJI FVR008E7S-2UX AC driver module

Core technical parameters

Input power

Three phase AC 200-240V, 50/60Hz

Wide voltage input design, adaptable to power grid fluctuations in different regions

Rated output power

0.75kW

Match small and medium power motors to meet conventional industrial drive requirements

Rated output current

4.0A

Continuously output stable current to ensure reliable operation of the motor

Output frequency range

0.1-400Hz

Wide frequency adjustment range, supporting high-speed and low-speed motor operation control

Control method

V/F control, sensorless vector control

V/F control is suitable for general scenarios, and vector control can achieve high-precision torque and speed control

Protection level

IP20

Suitable for installation inside control cabinets, effectively preventing dust

ambient temperature

-10 ℃~40 ℃ (operation), -20 ℃~60 ℃ (storage)

Adapting to different temperature environments in industrial sites requires attention to ventilation and heat dissipation


Core performance characteristics

1. Efficient and energy-saving, reducing operating costs

This module adopts Fuji's advanced variable frequency control algorithm, which can automatically adjust the output voltage and frequency according to changes in motor load, avoiding energy waste of the motor under light load. Especially in variable load scenarios such as fans and pumps, compared to traditional constant speed drive methods, more than 30% energy-saving effects can be achieved, and long-term operation can significantly reduce the power consumption cost of enterprises. At the same time, low loss power devices are used inside the module, resulting in low energy consumption and further improving the overall energy utilization efficiency of the system.

2. Precise control to improve equipment accuracy

Supporting sensorless vector control mode, high-precision control of motor torque and speed can be achieved without the need for additional encoder installation. The speed control accuracy can reach ± 0.5% of the rated speed, with fast torque response speed and the ability to quickly adapt to dynamic changes in load. In scenarios where high control accuracy is required for machine tool feed and precision conveying, it can effectively improve the machining accuracy and operational stability of the equipment, and reduce product errors.

3. Comprehensive protection functions to ensure system security

The module is equipped with multiple security protection mechanisms to ensure the safe operation of the drive system and load devices in all aspects. The main protection functions include:

-Overcurrent protection: When the output current exceeds a certain range of the rated value, the module immediately cuts off the output to avoid damage to power devices;

-Overvoltage/undervoltage protection: monitors input voltage, triggers protection when voltage fluctuates abnormally, and prevents motor damage due to voltage issues;

-Overload protection: Determine the overload status based on the load situation and promptly stop the machine for protection;

-Overheating protection: The module is equipped with a built-in temperature sensor, which automatically reduces the rating or shuts down when the temperature exceeds the threshold to avoid overheating damage;

-Motor stalling protection: When the motor stalls, quickly cut off the output to prevent the motor from burning out.

4. Flexible interfaces and debugging methods

The module is equipped with rich external interfaces, including digital input/output interfaces and analog input interfaces (0-10V/4-20mA), which can easily achieve linkage control with PLC, touch screen and other control devices. At the same time, it supports parameter setting, operation monitoring, and fault diagnosis through Fuji specific debugging software (such as FRENIC Loader), making the debugging process simple and efficient. In addition, the module also has functions such as multi-stage speed control and PID control, which can be flexibly configured according to different application scenarios.

5. Stable and reliable, adaptable to harsh environments

Adopting Fuji's mature power electronics technology and high reliability components, after rigorous environmental adaptability testing, it can operate stably under harsh conditions such as dust and vibration in industrial sites. The module adopts an optimized heat dissipation structure internally, which can ensure stable output performance even in high temperature environments, reduce equipment failure rates, and improve production continuity.


Typical application scenarios

Based on its performance characteristics, the typical application scenarios of FUJI FVR008E7S-2UX AC driver module mainly include:

1. Machine tool equipment: used for spindle drive or feed system of machine tools to achieve high-precision speed control and improve machining accuracy;

2. Conveyor machinery: such as assembly line conveyor belts, logistics sorting equipment, etc., achieve smooth conveying by adjusting the speed to adapt to different production rhythms;

3. Fans and pumps: used for frequency conversion control of industrial fans, water supply pumps and other equipment, adjusting flow according to actual needs to achieve energy-saving effects;

4. Packaging machinery: such as food packaging machines, printing and packaging equipment, etc., to achieve stable speed control and ensure packaging quality;

5. Small textile machinery: used for winding, traction and other processes of textile equipment to achieve constant or variable speed control.


Precautions for use

To ensure the safe and stable operation of the module, the following precautions should be taken during use:

-During installation, it is necessary to ensure good ventilation inside the control cabinet and avoid placing the module in an environment with high temperature, humidity, dust, or corrosive gases;

-Before wiring, the power supply must be disconnected and wiring must be strictly carried out according to the wiring diagram to avoid reverse polarity of the power supply or incorrect connection between the output and input terminals;

-Before module operation, relevant parameters such as motor rated voltage, rated current, control mode, etc. need to be correctly set through debugging software based on motor parameters and application requirements;

-If a fault alarm occurs during operation, the fault code should be checked in a timely manner, and the cause of the fault should be investigated according to the manual. Only after the fault is eliminated can the machine be restarted;

-Regularly maintain the module, clean the surface dust, check whether the wiring terminals are loose, and ensure that the heat dissipation channel is unobstructed.
