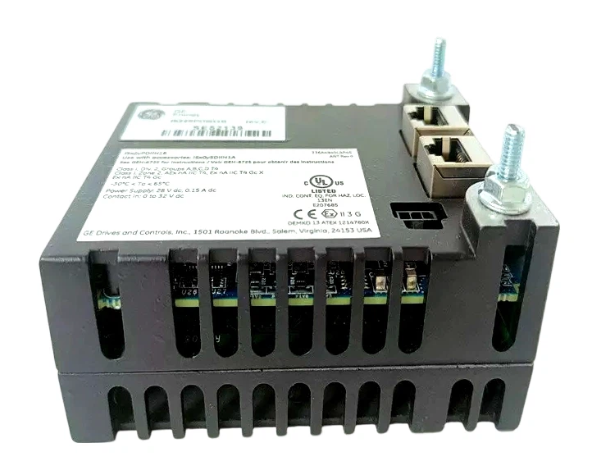

GE IS220PDIIH1B 336A5026ADP1 Input/Output Module

Product Overview

GE IS220PDIIH1B (part number 336A5026ADP1) is a critical input/output (I/O) module in the General Electric (GE) Speedtronic Mark VIe control system, designed specifically for industrial complex control scenarios and responsible for the core responsibility of bidirectional interaction of on-site signals. This module integrates analog and digital processing capabilities, which can accurately collect continuous or discrete signals output by on-site sensors, transmitters, and other devices, and convert control system instructions into executable electrical signals to drive terminal devices such as actuators and contactors, achieving closed-loop control of industrial processes. It adopts a hardware design with high integration and reliability, strictly meeting the requirements of anti-interference and wide temperature range in industrial environments. It is widely used in fields such as power, chemical, metallurgy, and energy that require strict control accuracy and system stability.


Core functions and advantages

1. Multi functional signal processing capability

As a composite I/O module, IS220PDIIH1B has flexible signal processing capabilities, supporting multiple analog inputs (such as 4-20mA current signals, 0-10V voltage signals), digital inputs (dry/wet contact signals), and digital output functions. Different signal types of channels can be configured according to on-site requirements, reducing the complexity of module selection and improving system integration efficiency. Each type of signal channel adopts independent signal conditioning circuits to ensure the accuracy of signal acquisition and output.

2. High isolation performance ensures system security

The module adopts a multi-level isolation design, achieving electrical isolation between input channels and output channels, channels and core circuits within the module, and modules and system buses. The isolation voltage can reach 2500Vrms or more (specific parameters subject to official specifications). This design can effectively block electromagnetic interference, surge voltage, and grounding loop interference on the site side, avoiding damage to the core unit of the control system caused by abnormal on-site signals, while ensuring the electrical safety of operators.

3. Deeply compatible with Mark VIe system

This module is a standard supporting component of the GE Mark VIe control system, which achieves high-speed communication with the controller through a system specific bus, with fast data transmission rate and low latency, ensuring real-time issuance of control instructions and real-time feedback of on-site signals. The module supports online configuration and diagnostic functions of the system, and can complete channel parameter configuration, signal calibration, and fault troubleshooting through configuration software such as GE Proficy PlantCruise, without interrupting system operation and improving maintenance convenience.

4. Industrial grade environmental adaptability

The module uses industrial grade high stability components, with a working temperature range covering -40 ℃~70 ℃, which can adapt to industrial scenarios with high temperature, low temperature, and drastic temperature differences; Simultaneously possessing excellent moisture and dust resistance, it can operate stably in environments with relative humidity ranging from 5% to 95% (without condensation). The circuit board adopts a three proof coating treatment, which can effectively resist corrosive gases and dust erosion in industrial sites, and extend the service life of the module.

5. Comprehensive fault diagnosis and protection mechanism

The module is equipped with a comprehensive self diagnostic function, which can monitor channel signal abnormalities (such as disconnection, overcurrent, overvoltage), module power failure, communication failure, etc. in real time, and upload fault information to the controller through indicator lights or system bus, making it easy for engineers to quickly locate problems. At the same time, the output channel has overcurrent protection function. When the load experiences a short circuit or overload, the output circuit can be automatically cut off to protect the module and external equipment from damage. After troubleshooting, it can automatically resume operation.

6. Convenient installation and wiring design

The module adopts a standardized 35mm DIN rail installation method, which complies with industrial equipment installation specifications and is easy and efficient to install and disassemble. The wiring terminal adopts spring crimping or screw crimping design, which makes the wiring firm and reliable, and has an anti misoperation structure, which can effectively avoid wiring errors. The front of the module is equipped with clear channel numbers, signal type identification, and status indicator lights (power lights, communication lights, channel fault lights), making it easy for on-site personnel to intuitively grasp the operating status of the module.


Key technical parameters

Product Model

IS220PDIIH1B

Material Number (ADP)

336A5026ADP1

Signal processing type

Analog Input (AI)+Digital Input (DI)+Digital Output (DO)

Analog input channel

8 channels (typical value), supporting 4-20mA/0-10V signals

Digital input channel

16 channels (typical value), supporting dry/wet contacts (DC 24V)

Digital output channel

8 channels (typical value), relay output/transistor output optional

isolation voltage

Inter channel: 1500Vrms; Channel System: 2500Vrms (1 minute)

Analog input accuracy

± 0.1% FS (full scale)

Digital input response time

≤1ms

Digital output load capacity

Relay output: AC 250V/5A, DC 30V/5A; Transistor output: DC 24V/2A

working power supply

DC 24V ± 10%, power consumption ≤ 15W

Working temperature range

-40 ℃~70 ℃ (operation); -40 ℃~85 ℃ (storage)

humidity range

5%~95% (no condensation)

communication interface

GE Mark VIe system dedicated bus (such as IC698 bus)

Installation method

35mm DIN rail installation


Applicable scenarios

IS220PDIIH1B is widely used in industrial fields centered around GE Mark VIe control systems due to its multifunctional integration, high reliability, and strong compatibility. Typical scenarios include:

-Power industry: acquisition of parameters such as speed, pressure, and temperature for thermal power unit steam turbines (AI), monitoring of valve switch status (DI), and output of valve control signals (DO); Wind speed and pitch angle signal acquisition and pitch control of wind turbines.

-Petrochemical industry: Collecting process parameters such as temperature, pressure, and liquid level of reaction vessels, controlling the start stop of feed pumps and discharge valves (DO), and monitoring the operating status (DI) to ensure stable and controllable reaction processes.

-Metallurgical industry: collection of furnace temperature and pressure signals for steelmaking converters, start stop control of conveyor belts, monitoring of motor operation status, and valve control for dust removal systems.

-Energy and environmental protection industry: collection of water quality parameters (such as pH value and dissolved oxygen) for sewage treatment plants, control and status monitoring of aeration pumps and reflux pumps; The collection of operating parameters for inverters in photovoltaic power plants and the output of grid connected control signals.

-General manufacturing industry: Equipment operation status monitoring (DI), process parameter acquisition (AI), and action control (DO) of actuators (such as cylinders and motors) for large-scale production lines to achieve automated linkage of production lines.


Installation and usage precautions

Before installing the module, it is necessary to confirm that the model (IS220PDIIH1B) and material number (336A5026ADP1) are consistent with the system requirements to avoid communication failure or functional loss due to model mismatch.

2. The installation location should be far away from strong electromagnetic interference sources such as high-power motors and frequency converters, while ensuring good ventilation to avoid the module being in a high-temperature, humid, or dusty environment, which may affect operational stability.

3. Before wiring, it is necessary to cut off the power supply of the module and on-site equipment, strictly distinguish the AI, DI, DO channels and power and grounding terminals according to the module wiring diagram, and avoid strong electrical signals from connecting to weak electrical channels, which may cause damage to the module.

4. When wiring analog input channels, it is recommended to use shielded twisted pair cables with the shielding layer grounded at one end to reduce interference during signal transmission; The digital output channel needs to select the appropriate wire cross-sectional area according to the load type to avoid overload.

When configuring the system, it is necessary to accurately configure the signal type, range, and output mode of the channel to ensure that they match the parameters of the on-site equipment; After the configuration is completed, signal calibration is required to ensure the accuracy of data acquisition and output.

6. During operation, it is necessary to regularly check the status of the module indicator lights. The module operation status can be determined by the on/off status of the power light, communication light, and channel indicator lights, and any faults should be promptly investigated.

7. When maintaining the module, the working power must be cut off first. It is forbidden to plug or unplug the module or wire it with power on to avoid arc damage to the module and control system.
