  • GE IC800SSI216RD2-CE servo motor controller
    ❤ Add to collection
  • GE IC800SSI216RD2-CE servo motor controller

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    The GE IC800SSI216RD2-CE servo motor controller is a high-performance industrial grade control device launched by General Electric (GE), designed for precise driving and control of servo motors. It is widely used in fields such as automated production lines, intelligent manufacturing equipment, and precision machining that require high precision motion control. This controller has become an indispensable core component in industrial automation systems due to its stable performance, flexible configuration, and strong anti-interference ability.

    • ¥24753.00
      ¥26845.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:2.370KG
    • Quantity:
    • (Inventory: 99999)
Description

The GE IC800SSI216RD2-CE servo motor controller is a high-performance industrial grade control device launched by General Electric (GE), designed for precise driving and control of servo motors. It is widely used in fields such as automated production lines, intelligent manufacturing equipment, and precision machining that require high precision motion control. This controller has become an indispensable core component in industrial automation systems due to its stable performance, flexible configuration, and strong anti-interference ability.

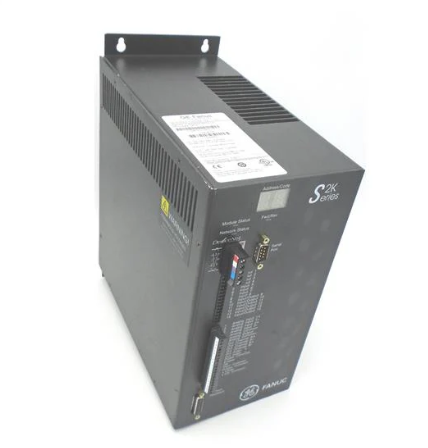

GE IC800SSI216RD2-CE servo motor controller

Core Features and Advantages

1. High precision motion control capability

This controller supports multiple motion control modes, including position control, speed control, and torque control, and can be flexibly switched according to different application scenarios. By adopting advanced PID regulation algorithm and pulse command processing technology, the position control accuracy can reach 0.001 °, and the speed control accuracy error is less than 0.1%, which can meet the micro level control requirements in precision machining, assembly and other scenarios. At the same time, its electronic cam and electronic gear functions can achieve synchronous linkage between multiple axes, greatly improving the control accuracy of complex motion trajectories.

2. Powerful compatibility and scalability

In terms of hardware interfaces, GE IC800SSI216RD2-CE is equipped with rich digital input/output interfaces, analog interfaces, and high-speed pulse input/output interfaces, which can directly connect various peripherals such as servo motors, encoders, sensors, etc. Supports mainstream industrial communication protocols such as RS485 and EtherNet/IP, and can easily integrate into common industrial control systems such as PROFINET and Modbus, achieving seamless data interaction with devices such as PLC and HMI. In addition, the controller has reserved expansion slots for adding functional modules according to actual needs, expanding the number of control axes or adding special control functions.

3. High reliability and stability

The product adopts industrial grade high anti-interference components and undergoes strict electromagnetic compatibility (EMC) testing, which can effectively resist the adverse environmental effects such as electromagnetic interference and voltage fluctuations in industrial sites, ensuring long-term stable operation of the equipment. It has complete fault diagnosis and protection functions, including overcurrent protection, overvoltage protection, undervoltage protection, overload protection, overheating protection, and encoder fault protection. When the system encounters an abnormality, it can quickly respond and cut off the output to avoid equipment damage. At the same time, it can provide timely feedback of fault information through alarm signals, making it easy for operation and maintenance personnel to quickly troubleshoot problems.

4. Convenient debugging and operation

Equipped with dedicated GE servo debugging software, it supports configuring, modifying, and monitoring controller parameters through a computer or HMI. The software interface is intuitive and provides real-time waveform display function, which can clearly observe the dynamic changes of key data such as motor speed, torque, and position, helping debugging personnel to quickly optimize control parameters. In addition, the controller has a built-in fault log storage function that can record recent fault information, providing strong basis for equipment maintenance and reducing operation and maintenance costs.


Key technical parameters

Power Specifications

input voltage

AC 200-240V,50/60Hz

rated current

16A (continuous output)

control performance

number of controlled axes

Single axis independent control

Position control method

Pulse+direction, CW/CCW pulse, analog command, communication command

Speed control range

0.1-3000rpm (matching according to motor model)

encoder interface

Supported types

Incremental encoder, absolute encoder

interface form

Differential signal input, maximum response frequency 1MHz

Environmental adaptation

Operating Temperature

-10℃~55℃

Protection level

IP20 (Controller Body)

communication interface

Standard Configuration

1 RS485, 1 EtherNet/IP


Typical application scenarios

1. Precision machining: In CNC machine tools, laser cutting machines, engraving machines and other equipment, it is used to control servo motors to achieve precise positioning and high-speed movement of cutting tools or workbenches, ensuring machining accuracy and efficiency.

2. Automated production line: In food packaging, electronic component assembly and other production lines, responsible for controlling the movement of conveying mechanisms and robotic arms, achieving precise grasping, handling and positioning of materials, and improving the automation level of the production line.

3. Printing and textile equipment: In printing and textile machines, the speed synchronization of feeding and receiving is achieved by controlling servo motors, ensuring the alignment of printing patterns and stable tension of textile fabrics.

4. Medical and laboratory equipment: Used in medical testing instruments and laboratory automation equipment to control sample transfer and precise movement of testing institutions, ensuring the accuracy of testing data.


Installation and usage precautions

-The installation environment should be kept dry and ventilated, avoiding dust, oil stains, corrosive gases, and strong vibrations, while ensuring sufficient heat dissipation space is reserved around the controller (recommended to be greater than 10cm).

-Before wiring, the power must be cut off, and the power supply, motor, encoder, and peripheral circuits must be strictly connected according to the wiring diagram to avoid reverse polarity or short circuit of the circuit.

-Before the first use, the motor parameters (such as rated speed, rated torque), control mode, etc. need to be matched and configured through debugging software to ensure that the controller is compatible with the motor.

-If there is an abnormal alarm during the operation of the equipment, it should be stopped immediately for inspection, and the fault should be eliminated before restarting to avoid equipment damage caused by forced operation.

-Regularly maintain the controller, clean surface dust, check for loose wiring terminals, and ensure long-term stable operation of the equipment.
