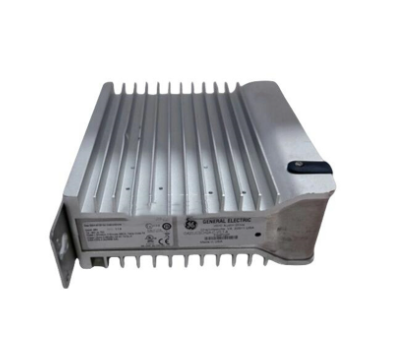

  • GE IS420UCSCH1A-F.V0.1-A Independent Turbine Controller
    ❤ Add to collection
  • GE IS420UCSCH1A-F.V0.1-A Independent Turbine Controller

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    This controller belongs to the GE IS420 series of industrial control products and is a specialized equipment customized for the control scenario of turbomachinery. The "IS420" in the model indicates the core series of GE industrial grade controllers, clearly defining their product genes of high reliability and strong environmental adaptability; UCSCH1A "is the functional code of the controller, where" UCS "represents the Turbine Control Unit, and" CH1A "indicates the core control channel and hardware version information; F.V0.1-A "is the firmware version and configuration identifier to ensure traceability and upgrade compatibility of controller functionality.

    • ¥9274.00
      ¥9566.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:2.560KG
    • Quantity:
    • (Inventory: 99999)
Description

This controller belongs to the GE IS420 series of industrial control products and is a specialized equipment customized for the control scenario of turbomachinery. The "IS420" in the model indicates the core series of GE industrial grade controllers, clearly defining their product genes of high reliability and strong environmental adaptability; UCSCH1A "is the functional code of the controller, where" UCS "represents the Turbine Control Unit, and" CH1A "indicates the core control channel and hardware version information; F.V0.1-A "is the firmware version and configuration identifier to ensure traceability and upgrade compatibility of controller functionality.




GE IS420UCSCH1A-F.V0.1-A Independent Turbine Controller

Basic Overview of Controller

This controller belongs to the GE IS420 series of industrial control products and is a specialized equipment customized for the control scenario of turbomachinery. The "IS420" in the model indicates the core series of GE industrial grade controllers, clearly defining their product genes of high reliability and strong environmental adaptability; UCSCH1A "is the functional code of the controller, where" UCS "represents the Turbine Control Unit, and" CH1A "indicates the core control channel and hardware version information; F.V0.1-A "is the firmware version and configuration identifier to ensure traceability and upgrade compatibility of controller functionality.

In the control system of the turbine unit, the controller plays the role of the "core decision-making and execution center": on the one hand, it collects key operating parameters of the turbine unit in real time through various sensors (such as speed, shaft vibration, bearing temperature, inlet and outlet pressure/temperature, oil system pressure, etc.); On the other hand, based on the built-in control logic and algorithms, the collected data is analyzed and calculated, and precise control signals are output to the actuator (such as regulating valves, fuel injectors, actuators, etc.) to achieve closed-loop control of core parameters such as turbine speed, load, and intake air volume; At the same time, real-time monitoring of the operating status of the unit is carried out, and corresponding protective measures are triggered when abnormal working conditions occur to ensure the safe shutdown or load reduction operation of the unit.


Core performance parameters

The performance parameters of the GE IS420UCSCH1A-F.V0.1-A independent turbine controller directly determine the control accuracy, response speed, and operational safety of the turbine unit. The following is a detailed explanation of the key technical indicators:

1. Control object and core control accuracy

The controller can adapt to steam turbines, gas turbines, and water turbines with a power range of 1MW-100MW, supporting independent control of single or multi axis turbine units. Excellent performance in core control accuracy: the speed control accuracy can reach ± 0.01% of the rated speed (for example, when the rated speed is 3000rpm, the control deviation is ≤ 0.3rpm); The load control accuracy is ± 0.5% of the rated load, which can achieve smooth adjustment and precise distribution of the load; The temperature control accuracy is ± 1 ℃, and the pressure control accuracy is ± 0.1% FS (full range), ensuring that the operating parameters of the turbine unit are stable in the optimal range.

2. Signal acquisition and processing capability

-Input signal types: Supports multiple types of sensor signal access, including analog input (4-20mA current signal, 0-10V voltage signal, a total of 32 channels), digital input (dry/wet contact signal, a total of 16 channels), pulse signal input (speed sensor signal, supporting magneto electric and photoelectric speed sensors, 4 high-speed pulse channels, maximum sampling frequency 10kHz), thermocouple signal (K type, E type, J type, 8 channels), and thermistor signal (PT100, 8 channels).

-Data processing performance: Built in 32-bit dual core industrial grade microprocessor, with a main frequency of up to 200MHz and a data processing cycle of ≤ 1ms. It can simultaneously process 64 input signals and execute complex control algorithms, ensuring fast response to changes in the operating status of the turbine unit.

3. Control output and actuator adaptation

The output signal type is highly matched with the actuator, including: ① Analog output (4-20mA current signal, 16 channels, load capacity ≤ 500 Ω), used to control and regulate analog actuators such as valves and fuel injectors; ② Digital output (relay output, 16 channels, contact capacity AC 250V/5A or DC 30V/5A), used for controlling unit start stop, alarm devices, auxiliary equipment, etc; ③ Pulse output (2 channels, maximum frequency 1kHz), used for precise control of special actuators. Supports direct connection with various types of actuators such as hydraulic actuators, electric actuators, and pneumatic actuators, without the need for additional signal conversion modules.

4. Communication and data interaction capabilities

Equipped with rich communication interfaces and supporting multiple industrial communication protocols, including 2 Ethernet ports (supporting Modbus TCP, EtherNet/IP protocols, communication rate 10/100Mbps adaptive), 2 RS485 interfaces (supporting Modbus RTU protocol), and 1 PROFIBUS-DP interface, it can achieve high-speed data exchange with upper monitoring systems (such as SCADA, DCS), HMI human-machine interfaces, historians data servers, and other control devices. Support functions such as data upload, remote control command reception, parameter remote configuration, etc., with a data transmission delay of ≤ 10ms, meeting the requirements of remote monitoring and centralized management.

5. Environmental adaptability and reliability

Designed for complex industrial environments, with excellent environmental adaptability: the working temperature range is -20 ℃~70 ℃, which can adapt to extreme temperature scenarios such as high-temperature machine rooms and outdoor equipment; The relative humidity range is 5%~95% (no condensation), which can operate stably in humid hydropower stations or coastal industrial areas; Equipped with IP40 protection level, it can effectively prevent dust and splash water, and adapt to the dusty and high humidity environment in the turbine room. The reliability index is outstanding, with an average time between failures (MTBF) of ≥ 200000 hours, supporting 24-hour continuous operation, and meeting the control requirements for uninterrupted operation of the turbine unit.

6. Power supply and power consumption specifications

Adopting dual redundant DC power supply, the input voltage range is DC 24V ± 20% (compatible with 19.2V~28.8V), supporting automatic power switching (switching time ≤ 10ms) to ensure power continuity. The typical input current is 200mA~300mA, with multiple protection functions such as overvoltage (≥ 30V), undervoltage (≤ 18V), overcurrent (≥ 500mA), short circuit, etc. When the power supply is abnormal, the fault circuit can be quickly cut off to avoid damage to the controller. Under normal working conditions, the power consumption of the controller is ≤ 5W, which belongs to low-power energy-saving design.


Functional features and advantages

1. Advanced control algorithms and dynamic response performance

Built in multiple specialized control algorithms for turbomachinery, including PID+feedforward+differential control algorithm, adaptive fuzzy control algorithm, and nonlinear control algorithm based on turbine characteristic curve. The optimal control strategy can be automatically switched based on the operating conditions of the turbine unit, such as start-up, stable operation, sudden load changes, and shutdown, effectively suppressing the impact of disturbance factors such as load fluctuations and changes in intake pressure on the operation of the unit. When the unit starts, the speed climbs steadily without overshoot; When the load suddenly changes, the response time is ≤ 50ms, the speed fluctuation amplitude is ≤ ± 1% of the rated speed, and the dynamic adjustment performance is excellent to ensure the stable operation of the unit.

2. Comprehensive security protection mechanism

Equipped with comprehensive safety protection functions, covering all risk points of turbine operation scenarios: ① overspeed protection. When the turbine speed exceeds 110% of the rated speed, an emergency stop command is immediately triggered to cut off the air supply and activate the braking device; ② Vibration protection, real-time monitoring of shaft vibration and bearing vibration, issuing an alarm signal when the vibration value exceeds the alarm threshold, and executing shutdown protection when it exceeds the shutdown threshold; ③ Temperature protection, monitoring key temperature parameters such as bearing temperature, stator temperature, exhaust temperature, etc., and automatically reducing load or shutting down in case of overheating; ④ Oil system protection, monitoring lubricating oil pressure, oil temperature, and oil level. When abnormalities such as low oil pressure and low oil level occur, corresponding protective measures are triggered. All protection functions adopt a hardware independent circuit+software dual redundancy design to ensure the reliable execution of protection instructions, and the response time of protection actions is ≤ 10ms.

3. Flexible configuration and usability

Support control logic configuration and parameter settings through GE dedicated configuration software (such as Proficy Machine Edition), providing a graphical programming interface and rich turbine control function blocks (such as speed control block, load control block, protection logic block, etc.), without the need to write complex code to complete control strategy design. Equipped with a 7-inch color touch screen HMI, it can display real-time unit operating parameters (speed, load, temperature, pressure, etc.), control status, and fault information, supporting on-site personnel to modify parameters, manually operate, and reset faults, with intuitive and convenient operation.

4. Powerful fault diagnosis and traceability capabilities

Equipped with comprehensive fault diagnosis functions, it can achieve accurate diagnosis of multiple types of faults such as sensor faults, actuator faults, communication faults, internal circuit faults, etc., with diagnostic accuracy up to channel level. When a fault occurs, the controller will immediately display the fault code and fault description through the HMI, and upload the fault information to the upper system through the communication interface. It will also record the time of the fault occurrence and the operating parameters of the unit before and after the fault (with a data recording interval of 10ms), forming a complete fault traceability report for operation and maintenance personnel to analyze the cause of the fault. Built in fault memory function, can store the last 100 fault records, and data will not be lost after power failure.

5. Good compatibility and scalability

As an important component of GE's industrial control ecosystem, this controller is seamlessly compatible with GE's full range of turbine sensors, actuators, and monitoring software. Once integrated into the system, it can function normally without the need for additional driver development. At the same time, it supports interconnection with sensors, actuators, and control systems of third-party brands, and achieves collaborative control of cross brand devices through protocol conversion functions. The controller adopts a modular hardware architecture and is equipped with multiple expansion slots. I/O expansion modules, communication expansion modules, etc. can be added according to actual needs to achieve flexible expansion of control functions and meet the personalized control needs of different turbine units.

6. Support remote operation and upgrade

By supporting remote operation and maintenance functions through Ethernet interfaces, operation and maintenance personnel can remotely access the controller through the upper system in the monitoring center, enabling control parameter viewing, modification, control logic debugging, and troubleshooting without the need to visit the site, reducing operation and maintenance costs and risks. Support remote firmware upgrade function, which can download the latest version of firmware through the network and complete the upgrade, ensuring continuous optimization of controller functions and adaptation to new operating requirements.


Typical application scenarios

The GE IS420UCSCH1A-F.V0.1-A independent turbine controller, with its high-precision control performance, comprehensive protection mechanism, and strong environmental adaptability, has been widely used in multiple key industrial fields that rely on turbomachinery. Typical scenarios include:

1. Power generation industry: used for controlling steam turbine/gas turbine units in thermal power plants and gas-fired power plants, achieving unit start-up, speed regulation, load control, and safety protection, ensuring stable power generation of the units, and cooperating with the power grid to achieve precise load dispatch. In small hydropower stations, it is used for controlling the turbines, automatically adjusting the turbine speed and output according to the incoming water volume, and improving power generation efficiency.

2. Petrochemical industry: Used for controlling gas turbine driven compressor units in refineries and chemical plants, controlling the turbine speed to regulate the outlet pressure and flow rate of the compressor, meeting the precise requirements for medium delivery pressure in the chemical production process, and avoiding unit shutdown due to process fluctuations through comprehensive protection functions.

3. Energy and power industry: In the waste heat power generation turbine units of steel and metallurgical plants, the controller automatically adjusts the turbine operation status based on the steam parameters (pressure, temperature) of the waste heat boiler, achieving efficient recovery and utilization of waste heat resources while ensuring stable operation of the unit during steam parameter fluctuations.

4. Ship power industry: Gas turbine controllers used for ship propulsion systems, accurately adjust turbine speed according to ship navigation requirements (acceleration, deceleration, uniform speed), control ship navigation speed, and have anti vibration and anti impact characteristics to adapt to complex working conditions during ship navigation.

5. Industrial drive industry: In large cement plants and paper mills, the controller controls the flow and pressure of the turbine driven fan and water pump units by adjusting the turbine speed to meet production process requirements, while achieving energy-saving operation and reducing production energy consumption.
