  • ABB MTA025 EBG92026 motor terminal adapter
    ❤ Add to collection
  • ABB MTA025 EBG92026 motor terminal adapter

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    MTA025 EBG92026 is a standardized motor terminal adapter developed by ABB for industrial motor connection requirements. It adopts an integrated design of "integrated wiring signal conversion safety protection". Its core function is to serve as an intermediate connection hub between the motor and the drive control equipment, achieving centralized conversion and reliable transmission of power signals, control signals, and feedback signals. This adapter abandons the cumbersome method of direct wire connection in traditional motor wiring, and achieves fast plug-in connection between the motor and the driving equipment through standardized terminal interfaces and modular structural design, greatly simplifying the wiring process. It adopts industrial grade conductive materials and reinforced insulation design, which can work stably in complex industrial environments such as high temperature, high vibration, and high dust. It is compatible with ABB's multiple series of low-voltage motors and drive products, and also supports the adaptation of some third-party standard motors, providing basic support for the flexible construction and efficient operation and maintenance of motor control systems.

    • ¥9284.00
      ¥9845.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:2.840KG
    • Quantity:
    • (Inventory: 99999)
Description

MTA025 EBG92026 is a standardized motor terminal adapter developed by ABB for industrial motor connection requirements. It adopts an integrated design of "integrated wiring signal conversion safety protection". Its core function is to serve as an intermediate connection hub between the motor and the drive control equipment, achieving centralized conversion and reliable transmission of power signals, control signals, and feedback signals. This adapter abandons the cumbersome method of direct wire connection in traditional motor wiring, and achieves fast plug-in connection between the motor and the driving equipment through standardized terminal interfaces and modular structural design, greatly simplifying the wiring process. It adopts industrial grade conductive materials and reinforced insulation design, which can work stably in complex industrial environments such as high temperature, high vibration, and high dust. It is compatible with ABB's multiple series of low-voltage motors and drive products, and also supports the adaptation of some third-party standard motors, providing basic support for the flexible construction and efficient operation and maintenance of motor control systems.

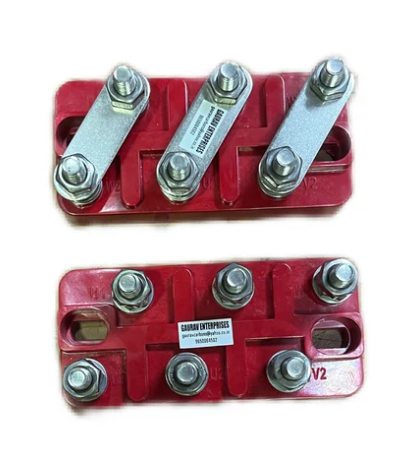

ABB MTA025 EBG92026 motor terminal adapter

Product Overview

MTA025 EBG92026 is a standardized motor terminal adapter developed by ABB for industrial motor connection requirements. It adopts an integrated design of "integrated wiring signal conversion safety protection". Its core function is to serve as an intermediate connection hub between the motor and the drive control equipment, achieving centralized conversion and reliable transmission of power signals, control signals, and feedback signals. This adapter abandons the cumbersome method of direct wire connection in traditional motor wiring, and achieves fast plug-in connection between the motor and the driving equipment through standardized terminal interfaces and modular structural design, greatly simplifying the wiring process. It adopts industrial grade conductive materials and reinforced insulation design, which can work stably in complex industrial environments such as high temperature, high vibration, and high dust. It is compatible with ABB's multiple series of low-voltage motors and drive products, and also supports the adaptation of some third-party standard motors, providing basic support for the flexible construction and efficient operation and maintenance of motor control systems.


Core functional features

1. Standardized interface design to achieve seamless adaptation between motors and drive equipment

The adapter adopts ABB's standardized terminal interface architecture, with input terminals equipped with connection slots that precisely match ABB motor output terminals, and output terminals designed to accommodate standard wiring terminals for ABB frequency converters (such as ACS580 series), soft starters (such as PSTX series), and other drive equipment, achieving a "plug and play" connection between the motor and the drive equipment. The interface has a built-in anti misoperation positioning structure, which can effectively avoid problems such as reverse polarity and phase mismatch during wiring, ensuring the accuracy of electrical connections. At the same time, the adapter supports multiple motor wiring methods (such as star and triangle), and can be flexibly configured according to motor power and drive requirements through built-in wiring switching terminals, greatly improving product compatibility and adaptability.

2. Reliable electrical connection to ensure signal transmission stability

To ensure the stable transmission of power and signals during the operation of the motor, the adapter uses high conductivity copper alloy as the core conductive component, and the surface is treated with tin plating to effectively reduce contact resistance (contact resistance ≤ 5m Ω) and reduce energy consumption and heat generation during current transmission. The terminal connection part adopts a spiral crimping structure, combined with an elastic contact plate design, which can achieve a tight fit between the wire and the terminal. Even under strong motor vibration conditions, it can effectively prevent poor contact caused by loose connections. For the transmission of control signals, the adapter has a built-in signal anti-interference circuit that can suppress the impact of electromagnetic interference generated during the motor start stop process on the control signal, ensuring clear transmission of speed commands, fault feedback, and other signals.

3. Integrated wiring architecture simplifies installation and maintenance processes

The adapter integrates multiple sets of signals such as power input, speed feedback, temperature protection, and fault alarm of the motor into a unified wiring platform, replacing the complex way of connecting multiple wires separately in traditional motor wiring. When installing, only one end of the adapter needs to be directly connected to the motor terminal, and the other end can be connected to the drive equipment through standardized wires to complete the wiring. Compared with traditional wiring methods, the installation time can be shortened by more than 60%. During equipment maintenance, if it is necessary to replace the motor or drive equipment, simply disconnect the adapter from the corresponding equipment without dismantling the wires one by one, greatly reducing maintenance difficulty and downtime, especially suitable for industrial scenarios where production lines operate continuously.

4. Comprehensive security protection to enhance the safety of system operation

The adapter is equipped with a comprehensive safety protection mechanism. Firstly, it adopts a reinforced insulation design, with an insulation resistance between terminals of ≥ 100M Ω (500V DC) and an electrical strength of 2kV AC/1min, which can effectively prevent electrical faults such as leakage and short circuit; Secondly, equipped with overcurrent protection terminals, when the motor experiences overload and abnormal current rise, it can be quickly cut off with an external circuit breaker to avoid damage to the adapter and motor; In addition, the adapter housing is made of engineering plastic material with a flame retardant rating of UL94 V-0, which has good high temperature resistance and corrosion resistance. It can effectively block pollutants such as dust and oil from entering the internal circuit, and prevent the risk of electric shock caused by accidental contact, comprehensively improving the operational safety of the motor control system.

5. Adapt to harsh working conditions and have strong environmental adaptability

In response to the complex operating environment of industrial sites, the adapter has undergone comprehensive environmental adaptability optimization. Its working temperature range covers -30 ℃ -85 ℃, which can adapt to extreme high and low temperature working conditions; The shell adopts a sealed structure design with a protection level of IP65, which can effectively prevent dust and splashes, and is suitable for dusty and humid environments such as metallurgical workshops and chemical plants; The internal circuit adopts anti vibration design, and the core components are isolated from the shell through an elastic fixed structure, which can withstand the vibration impact generated during the operation of the motor (vibration level reaches IEC 60068-2-6 standard), ensuring long-term stable operation in harsh environments.

6. Modular expansion design to meet diverse needs

The adapter adopts a modular structure design, supporting the integration of additional components such as temperature sensor module and speed detection module through expansion interfaces, to achieve multi-dimensional monitoring of the motor's operating status. For example, after connecting to the PT100 temperature sensor module, the motor winding temperature can be collected in real time. When the temperature exceeds the set threshold, an alarm signal is transmitted to the driving equipment through an adapter to achieve motor overheating protection; After connecting the speed pulse module, the motor speed signal can be converted into a standard digital signal and fed back to the frequency converter to achieve speed closed-loop control. This expansion method does not require modification of the motor body, improving the flexibility and scalability of the system's functions.


Key technical parameters

Suitable motor type

ABB low-voltage asynchronous motor (0.75kW-250kW), compatible with some third-party IEC standard motors

Adapt to driver devices

ABB ACS series frequency converters, PSTX series soft starters, AC contactors, etc

rated voltage

AC 220V/380V/690V(50Hz/60Hz), Compatible with wide voltage input

rated current

Maximum continuous current 125A, short-time withstand current 300A (10s)

wiring method

Supports star (Y) and triangle (Δ) wiring, which can be switched through terminals

signal interface

3-channel power input terminal, 2-channel speed feedback terminal, 1-channel temperature protection terminal, 1-channel fault alarm terminal

insulation performance

Insulation resistance ≥ 100M Ω (500V DC), electrical strength 2kV AC/1min

contact resistance

Single terminal contact resistance ≤ 5m Ω

working environment

Temperature: -30 ℃ -85 ℃; Humidity: 5% -95% (no condensation); Protection level: IP65

Vibration level

Compliant with IEC 60068-2-6 standard, capable of withstanding vibrations of 10-500Hz and acceleration ≤ 5g

Shell material

Flame retardant engineering plastic, flame retardant grade UL94 V-0

Installation method

Motor terminals are directly fastened and bolted together, supporting 35mm DIN rail auxiliary installation


Typical application scenarios

MTA025 EBG92026 motor terminal adapter is widely used in various industrial motor control scenarios due to its standardized adaptation, convenient installation, reliable protection and other characteristics. Typical applications include:

1. Industrial production line motor drive system: In automated production lines such as automotive manufacturing and electronic processing, adapters are used to connect conveyor line motors, robotic arm drive motors, and ABB ACS580 series frequency converters to achieve precise speed control of motors. Its standardized wiring design ensures the consistency of motor wiring across multiple production lines, greatly improving the efficiency of production line installation and commissioning. At the same time, its convenient maintenance features reduce equipment downtime and ensure the continuous operation of the production line.

2. Load control for fans and water pumps: In the control systems of fans and water pumps in power plants and chemical enterprises, adapters are used to connect the fan and water pump motors with ABB PSTX series soft starters. The soft start function reduces the current surge during motor start-up, protecting the motor and grid stability. The temperature protection terminal integrated into the adapter can be connected to the motor winding temperature sensor to achieve motor overheating protection and avoid motor damage caused by excessive load.

3. Motor control in the metallurgical industry: In the steel rolling production line of steel enterprises and the stirring motor control system of non-ferrous metal smelting, adapters are used to connect high-power motors with high-voltage frequency converters. Their strong anti vibration and high protection performance can adapt to the harsh environment of high dust and high vibration in metallurgical workshops. Meanwhile, by expanding the speed feedback module, real-time monitoring and closed-loop control of motor speed can be achieved to ensure the stability of metallurgical processes.

4. Municipal engineering motor system: In the pump station of urban water supply system and the aeration fan system of sewage treatment plant, the adapter connects the pump/fan motor with the driving equipment in the control cabinet. Its IP65 protection level can adapt to the humid working environment of the pump station and sewage treatment plant. The standardized wiring method facilitates regular maintenance and equipment replacement by operation and maintenance personnel, ensuring the stable operation of municipal facilities.

5. Motor equipment upgrade and renovation project: In the upgrade and renovation of motor systems in old factories, for motors that use traditional wiring methods, the MTA025 EBG92026 adapter can be installed to quickly connect with new ABB drive equipment without the need for modification of the motor body, greatly reducing upgrade costs and improving the control accuracy and operational reliability of the motor system.


Precautions for use

1. Applicability confirmation: Before use, it is necessary to confirm whether the adapter matches the model of the motor and driving equipment, with a focus on checking the parameters such as motor power, rated voltage, and wiring method to ensure that the rated current and voltage of the adapter meet the system requirements and avoid equipment damage caused by parameter mismatch. For third-party motors, it is necessary to refer to ABB's official compatibility list for confirmation, or contact technical support for compatibility testing.

2. Installation operation specifications: Before installation, the power supply of the driving equipment and motor must be cut off, and live operation is strictly prohibited; When connecting the adapter to the motor terminal, ensure that the positioning buckle is fully engaged and fastened with matching bolts to prevent vibration from loosening the connection; The installation position of the adapter should avoid direct sunlight and rainwater erosion. Although its protection level is IP65, long-term exposure to harsh environments can still affect its service life.

3. Key points for wiring inspection: After wiring is completed, a multimeter should be used to check the continuity and insulation resistance of each terminal to ensure that there are no short circuits or virtual connections; For power terminals, it is necessary to confirm again that the positive and negative poles and phase connections are correct to avoid motor reversal or short circuit; The control signal line should be laid separately from the power line to reduce the impact of electromagnetic interference on the control signal.

4. Operation status monitoring: During the operation of the motor, it is necessary to regularly check the temperature changes of the adapter. During normal operation, the surface temperature of the adapter should be ≤ 60 ℃. If there is abnormal heating (temperature exceeding 80 ℃), the machine should be stopped immediately for inspection, and problems such as loose wiring and load overload should be investigated; At the same time, check whether the motor feedback signal is normal through the monitoring interface of the driving device to ensure stable signal transmission of the adapter.

5. Maintenance requirements: Regularly (quarterly) clean the adapter, use a dry brush to remove surface dust, and avoid dust accumulation that affects heat dissipation; Check whether the adapter housing and wiring terminals are damaged or corroded, and replace them in a timely manner if damaged; For long-term operating equipment, an insulation resistance test should be conducted once a year to ensure that the insulation performance meets the requirements.

6. Fault handling specifications: When the motor system malfunctions, the power should be cut off first, and the cause of the fault should be preliminarily determined through the fault code of the driving equipment; If you suspect that the adapter is faulty, you can replace it with a spare adapter for testing. After confirming the fault, you need to contact an authorized ABB service provider for repair or replacement. It is strictly prohibited to disassemble the internal circuit of the adapter by yourself.
