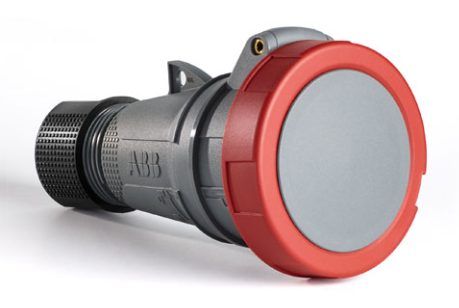

  • ABB 103.32125AF 8431160021 connector
    ❤ Add to collection
  • ABB 103.32125AF 8431160021 connector

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    103.32125AF 8431160021 is a high reliability joint developed by ABB for industrial electrical connection requirements. It adopts an integrated structure design of "precision contact sealing protection convenient connection", and its core function is to achieve mechanical fixation and electrical conductivity between ABB automation equipment (such as PLC modules, sensors, frequency converters) and cables, busbars or other electrical components. This joint abandons the shortcomings of poor compatibility and insufficient protection of traditional universal joints, and adopts structural dimensions that are precisely matched with ABB equipment interfaces. Combined with industrial grade conductive materials and reinforced sealing processes, it can work stably for a long time in complex industrial environments such as high temperature, high vibration, high dust, and humidity. Its standardized connection method and foolproof design not only ensure the accuracy of the connection, but also simplify the installation and maintenance process. It is compatible with multiple series of electrical equipment from ABB and supports the adaptation of some third-party standard interface devices, providing support for the flexible construction of industrial electrical systems.

    • ¥3835.00
      ¥3958.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.940KG
    • Quantity:
    • (Inventory: 99999)
Description

103.32125AF 8431160021 is a high reliability joint developed by ABB for industrial electrical connection requirements. It adopts an integrated structure design of "precision contact sealing protection convenient connection", and its core function is to achieve mechanical fixation and electrical conductivity between ABB automation equipment (such as PLC modules, sensors, frequency converters) and cables, busbars or other electrical components. This joint abandons the shortcomings of poor compatibility and insufficient protection of traditional universal joints, and adopts structural dimensions that are precisely matched with ABB equipment interfaces. Combined with industrial grade conductive materials and reinforced sealing processes, it can work stably for a long time in complex industrial environments such as high temperature, high vibration, high dust, and humidity. Its standardized connection method and foolproof design not only ensure the accuracy of the connection, but also simplify the installation and maintenance process. It is compatible with multiple series of electrical equipment from ABB and supports the adaptation of some third-party standard interface devices, providing support for the flexible construction of industrial electrical systems.


ABB 103.32125AF 8431160021 connector

Product Overview

103.32125AF 8431160021 is a high reliability joint developed by ABB for industrial electrical connection requirements. It adopts an integrated structure design of "precision contact sealing protection convenient connection", and its core function is to achieve mechanical fixation and electrical conductivity between ABB automation equipment (such as PLC modules, sensors, frequency converters) and cables, busbars or other electrical components. This joint abandons the shortcomings of poor compatibility and insufficient protection of traditional universal joints, and adopts structural dimensions that are precisely matched with ABB equipment interfaces. Combined with industrial grade conductive materials and reinforced sealing processes, it can work stably for a long time in complex industrial environments such as high temperature, high vibration, high dust, and humidity. Its standardized connection method and foolproof design not only ensure the accuracy of the connection, but also simplify the installation and maintenance process. It is compatible with multiple series of electrical equipment from ABB and supports the adaptation of some third-party standard interface devices, providing support for the flexible construction of industrial electrical systems.


Core functional features

1. Precise adaptation design to achieve seamless connection of devices

The connector adopts ABB's dedicated interface specifications, with pin spacing and insertion size perfectly matching the output terminals of ABB's specific series of automation equipment (such as AC500 PLC I/O modules and ACS series frequency converter signal interfaces), achieving precise "plug socket" docking. The interface has built-in anti misoperation positioning protrusions and guiding structures, which can effectively avoid problems such as pin misalignment and reverse insertion during insertion, ensure the accuracy of electrical connections, and reduce the risk of equipment short circuits or signal failures caused by connection errors. At the same time, the connector supports multiple cable specifications (such as 0.5mm ² -2.5mm ² cross-sectional area wires), and through an adjustable core crimping structure, it adapts to cable connection requirements of different wire diameters, enhancing the product's applicability.

2. Excellent conductivity ensures stable and efficient transmission

To ensure stable transmission of electrical signals and power, the core conductive components of the joint are made of high-purity oxygen free copper material with a copper content of ≥ 99.9%. Combined with surface silver plating treatment (coating thickness ≥ 5 μ m), it not only effectively reduces contact resistance (single pin contact resistance ≤ 3m Ω), reduces energy consumption and heat generation during current transmission, but also enhances the stability and antioxidant capacity of the conductive performance. The pin adopts an elastic clamping structure design, which can generate stable contact pressure (contact pressure ≥ 5N) after insertion. Even under equipment vibration or temperature changes, it can maintain a tight fit between the pin and the socket, avoiding signal attenuation, power outage and other problems caused by poor contact, and ensuring the continuity of equipment operation.

3. Multiple sealing protection to adapt to harsh industrial environments

In response to the complex environmental conditions of industrial sites, multiple sealing protection designs are adopted for joints to build a comprehensive protection system. The joint housing and mating surface use EPDM sealing rings, combined with a threaded locking structure, to achieve IP67 protection performance, effectively blocking dust intrusion and water splashing, suitable for humid and dusty workshop environments; The connection between the pins and cables is treated with a double layer of heat shrink sealing sleeve and waterproof adhesive to prevent moisture from seeping into the joint along the cable core and avoid short circuit faults; In addition, the joint housing is made of engineering plastic with a flame retardant rating of UL94 V-0, which has good high temperature resistance and chemical corrosion resistance. It can resist the erosion of pollutants such as oil stains and weak acids and alkalis, and is suitable for harsh working conditions such as metallurgy and chemical engineering.

4. Convenient installation structure to improve connection efficiency

The connector adopts a modular installation design, simplifying the connection process between cables and equipment. The cable access end adopts a crimping type core fixing structure, which can achieve fast and reliable crimping of wires and pins with the help of specialized crimping tools. The crimping tension is ≥ 150N to ensure a firm connection; The device connection end adopts a rotary locking or snap on fixing method, which can complete the insertion and fixation of the joint and the device without complex tools, and the installation time is shortened by more than 70% compared to traditional screw fixing methods. At the same time, the surface of the joint is clearly labeled with pin numbers and polarity markings, making it easy for installation personnel to quickly identify the wiring sequence and reduce wiring error rates. It is particularly suitable for batch equipment installation and on-site debugging scenarios.

5. Anti interference design to ensure signal transmission quality

In response to the electromagnetic interference problem in industrial sites, the joint is equipped with a built-in signal anti-interference structure. For models used for controlling signal transmission, a shielding layer design is adopted, and the shielding layer is reliably connected to the metal shell of the joint, which can effectively suppress the interference of external electromagnetic radiation on the signal; Optimized spacing design and insulation isolation are used between pins to reduce signal crosstalk and ensure clear transmission of analog signals (such as 4-20mA current signals) and digital signals. This anti-interference design makes the joint particularly suitable for strong electromagnetic interference environments such as the vicinity of frequency converters and high-power motors, ensuring the signal transmission quality of the control system.

6. High mechanical strength, extended service life

The joint adopts high-strength structural design, which improves mechanical performance and service life. The shell is made of reinforced nylon material, with an impact strength of IK08 level, which can withstand slight mechanical impacts without damage; The pins are made of brass alloy material, which has undergone quenching treatment and has good bending and wear resistance. The insertion and removal life can reach more than 1000 times; The thread locking structure is made of high-strength stainless steel material to avoid thread slippage caused by long-term use. After testing, the joint can maintain stable mechanical and electrical performance within a wide temperature range of -40 ℃ to 100 ℃, with an average time between failures (MTBF) of over 50000 hours.


Key technical parameters

Adaptive device

ABB AC500 series PLC, ACS series frequency converter, sensor and dedicated automation module

pin count

12 pins (standard configuration), supporting customized pin specifications

rated voltage

AC/DC 0-600V, Compliant with IEC 60947 standard

rated current

Single needle rated current 10A, overall rated current 8A (12 needles working simultaneously)

contact resistance

Single pin contact resistance ≤ 3m Ω (initial value)

insulation resistance

The insulation resistance between pins and between pins and the casing is ≥ 1000M Ω (500V DC)

dielectric strength

The electrical strength between pins and between pins and the shell is ≥ 2.5kV AC/1min

Protection level

IP67 (plugged in state), IP20 (unplugged state)

Adapt cable specifications

Wire cross-sectional area of 0.5mm ² -2.5mm ², cable outer diameter of 5mm-12mm

working environment

Temperature: -40 ℃ -100 ℃; Humidity: 5% -95% (no condensation)

Shell material

Reinforced nylon, flame retardant grade UL94 V-0

Conductive material

Pin: oxygen free copper plated with silver; Shielding layer: Tin plated copper wire

connection method

Cable end: crimping type; Equipment end: threaded locking/snap on type

Insertion and extraction life

≥ 1000 times


Typical application scenarios

103.32125AF 8431160021 connector is widely used in various industrial electrical connection scenarios due to its precise adaptation, reliable protection, and convenient installation characteristics. Typical applications include:

1. Connection of automation control system equipment: In automation production lines such as automobile manufacturing and electronic processing, connectors are used to connect the I/O modules of ABB AC500 series PLC with on-site sensors (such as photoelectric sensors, proximity switches) and actuators (such as solenoid valves, indicator lights). Its foolproof design ensures the accuracy of multi module and multi-channel wiring, and IP67 protection performance adapts to humid and dusty environments in the workshop, ensuring stable transmission of control signals.

2. Connection between frequency converter and peripheral equipment: In the frequency conversion speed control system of fans and pumps, the connector is used to connect the ABB ACS580 series frequency converter with motor encoders, speed sensors, and control panels. Its anti-interference design can effectively suppress electromagnetic interference generated by the operation of the frequency converter, ensuring clear transmission of speed feedback signals and control commands. At the same time, the convenient plug-in structure facilitates the maintenance and replacement of the frequency converter.

3. Electrical equipment connection in the metallurgical industry: In steel rolling production lines and non-ferrous metal smelting workshops of steel enterprises, connectors are used to connect temperature sensors, pressure transmitters, and acquisition modules in control cabinets under high temperature environments. Their high temperature resistance (-40 ℃ -100 ℃) and chemical corrosion resistance can adapt to harsh working conditions in metallurgical workshops. Multiple sealing designs prevent dust and iron filings from entering the interior of the connectors, ensuring stable operation of the equipment.

4. Surrounding Connection of Explosion proof Areas in the Chemical Industry: In the transition zone between non explosion proof and explosion proof areas of chemical enterprises, joints are used to connect explosion-proof sensors and non explosion proof control equipment. Their reliable sealing and insulation properties can reduce the risk of electrical sparks. When used in conjunction with explosion-proof cables, they can enhance the safety protection level of the system and are suitable for scenarios such as chemical raw material storage and reactor control.

5. Connection of municipal engineering electrical system: In the electrical control system of urban water supply pump stations and sewage treatment plants, the connector is used to connect the pump motor control module with the liquid level sensor and pressure sensor. Its IP67 protection level can adapt to the humid working environment of the pump station, and its anti vibration performance ensures a firm connection under the vibration environment of the pump operation, ensuring the stable operation of the municipal water supply and sewage treatment system.

6. Equipment upgrade and maintenance replacement: In the upgrading and renovation of old industrial equipment, for ABB equipment that uses traditional wiring methods, by replacing them with 103.32125AF 8431160021 connectors, the equipment can be quickly connected to new sensors and controllers, simplifying the upgrade process, while improving the reliability and maintenance convenience of the connection, and reducing equipment downtime.


Precautions for use

1. Applicability confirmation: Before use, it is necessary to confirm that the connector model matches the interface specifications of the ABB equipment connected, with a focus on checking the number of pins, rated voltage, rated current, and other parameters to ensure that the electrical performance of the connector meets the operational requirements of the equipment; For third-party devices, it is necessary to refer to ABB's official compatibility list for confirmation to avoid loose connections or equipment damage caused by interface mismatch.

2. Cable handling specifications: Before cable connection, the insulation layer of the appropriate length (usually 8mm-12mm) should be stripped according to the joint specifications to ensure that the wire core is free of oxidation and broken wires; Use specialized crimping tools for wire core crimping, ensuring that the wire core is fully inserted into the pin crimping hole during crimping. After crimping, check the firmness of the crimping to avoid virtual connections; The cable shielding layer needs to be reliably connected to the joint shielding structure to enhance anti-interference performance.

3. Installation operation requirements: Before installation, the power supply of the equipment must be cut off, and it is strictly prohibited to plug and unplug connectors with power on; When inserting and closing, it is necessary to align with the anti misoperation positioning structure, smoothly push in, and avoid bending and damaging the pins due to forced twisting; For joints that use threaded locking, the threads need to be tightened until the sealing ring is fully fitted to ensure protective performance; The installation location should avoid direct exposure to rainwater, direct sunlight, or high temperature heat sources. If outdoor installation is required, additional protective covers should be installed.

4. Sealing performance inspection: After installation, the sealing status of the joint should be checked to ensure that the sealing ring is not damaged or displaced; For joints used in humid and dusty environments, it is recommended to check the sealing performance once every quarter. If aging or deformation of the sealing ring is found, it should be replaced in a timely manner; The heat shrink sleeve at the connection between the cable and the joint must ensure complete shrinkage, without bubbles or gaps, to prevent moisture from seeping in.

5. Operation status monitoring: During the operation of the equipment, it is necessary to regularly check the temperature changes of the joints. During normal operation, the surface temperature of the joints should be ≤ 60 ℃. If there is abnormal heating, the machine should be stopped immediately for inspection, and problems such as poor contact and load overload should be investigated; At the same time, observe whether the joint shell is damaged or corroded, and promptly deal with any problems found to avoid the expansion of the fault.

6. Maintenance and replacement standards: Regularly (recommended every six months) clean the interface, use a dry brush to remove dust from the joint surface and mating surface, and avoid dust accumulation that affects contact performance; When plugging or unplugging connectors, avoid pulling the cable to prevent damage to the connection between the cable and the connector; When there is poor contact, decreased insulation performance or mechanical damage in the joint, it is necessary to replace it with the same type of joint in a timely manner. Before replacement, the power supply must be cut off and live operation is strictly prohibited.

7. Storage and transportation requirements: Unused joints should be stored in a dry, ventilated, and non corrosive gas environment, avoiding direct sunlight and high temperature and humidity environments; During transportation, shockproof packaging should be used to prevent deformation of the pins or damage to the casing caused by mechanical impact; The storage and transportation temperature should be controlled within the range of -20 ℃ -50 ℃ to avoid extreme temperature affecting the joint performance.
