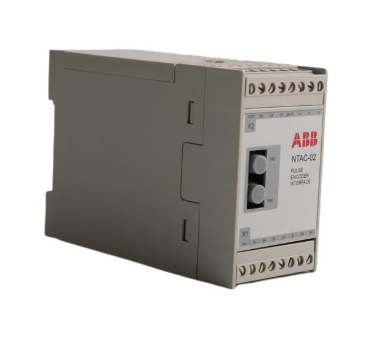

ABB NTAC-02 58967441E pulse encoder

ABB NTAC-02 58967441E pulse encoder

Product positioning and core values

NTAC-02 58967441E is an incremental pulse encoder belonging to ABB's industrial sensor product series, designed specifically for mid to high end industrial drive systems. Its core function is to convert the rotational or linear displacement of mechanical components into electrical pulse signals that can be recognized by the control system, providing real-time and accurate position and velocity feedback for ABB frequency converters, PLCs, and dedicated controllers, thereby achieving closed-loop control of the driving equipment.

The core value of this product is reflected in three aspects: firstly, improving equipment control accuracy and reducing operational errors through high-precision signal acquisition; Secondly, by relying on high reliability to ensure the continuous and stable operation of industrial systems, the risk of downtime is reduced; The third is to rely on ABB's standardized design to achieve rapid integration with existing automation systems, reducing user selection and debugging costs.

Core technical characteristics

The NTAC-02 58967441E pulse encoder combines ABB's advantages in sensing technology and industrial reliability design, and has the following key features:

1. High precision signal acquisition and output

This encoder adopts the principle of photoelectric induction, with a built-in high-precision grating disk and photoelectric detection component. The number of pulses can be matched according to application requirements (typical pulse number range covers hundreds to thousands of lines), and can accurately capture the subtle displacement of mechanical motion. The output signal adopts differential signal form (such as RS422 standard), effectively suppressing electromagnetic interference in industrial sites, ensuring that the signal remains stable during long-distance transmission, and avoiding the decrease in control accuracy caused by signal distortion.

2. Superb environmental adaptability

NTAC-02 has undergone comprehensive protection design for the complex working environment of industrial sites. The shell is made of high-strength metal material, with a protection level of IP65 or above, which can effectively resist the invasion of dust, oil, and a small amount of liquid; The internal electronic components adopt a wide temperature range design, which can work stably in the temperature range of -20 ℃~+80 ℃ and adapt to harsh scenarios with alternating high and low temperatures. At the same time, it has strong anti vibration and anti impact capabilities (typical anti vibration level up to 10g, anti impact level up to 100g), which can meet the installation needs of equipment with strong vibration such as motors and machine tools.

3. Deeply compatible with ABB systems

As an ABB original factory matching sensor, NTAC-02 58967441E seamlessly matches hardware interfaces and communication protocols with ABB ACS series frequency converters, AC500 series PLCs, and other products. No additional signal conversion module is required, and the connection to the control system can be completed through standard wiring. It also supports ABB's dedicated control algorithm for fast parsing of encoded signals, shortening the system debugging cycle and improving control response speed.

4. Long lifespan and low maintenance design

The encoder adopts a non-contact photoelectric detection structure inside, which avoids the wear problem caused by mechanical contact and has a service life of tens of thousands of hours; Meanwhile, the built-in overvoltage and overcurrent protection circuits can effectively prevent equipment damage caused by abnormal power supply or wiring errors. Its modular structural design also provides convenience for later maintenance, allowing for quick replacement in case of malfunctions and reducing maintenance costs.

5. Flexible installation and adaptation capabilities

Supports multiple installation methods, including common industrial installation forms such as shaft sleeve and flange, and can adapt to different models of motor output shafts or actuator shafts; The shaft diameter specifications cover commonly used industrial standards (such as 6mm, 8mm, 10mm, etc.), and can meet the installation needs of different equipment by replacing the matching accessories, improving the universality of the product.

Key technical parameters

encoder type

Incremental pulse encoder

Pulse count (line count)

Typical value of 1024 lines/2048 lines, supporting customized adaptation

Output signal form

Differential signals (A, A -, B -, Z -), RS422 standard

power supply voltage

DC 5V ± 10% or DC 12-24V ± 10%, supports wide voltage input

maximum speed

6000 rpm (continuous operation), instantaneous speed can reach 10000 rpm

Protection level

IP65 (housing), IP67 (shaft end, optional)

Working temperature range

-20 ℃~+80 ℃ (regular), -40 ℃~+100 ℃ (wide temperature customized version)

Installation method

Sleeve type (clamped or fixed with top thread), flange type (30mm/50mm flange)

Adapt to shaft diameter

6mm, 8mm, 10mm (standard), supporting customized special shaft diameters

cable length

Standard 2m, customizable 5m, 10m long cable versions

Anti-interference performance

Compliant with EN 61000-6-2/3 industrial anti-interference standard

Typical Applicable Scenarios

NTAC-02 58967441E, with its high precision, reliability, and compatibility with ABB systems, is widely used in various industrial scenarios that require precise motion control, including:

1. Industrial motor speed and position control

In frequency conversion speed control systems such as fans, water pumps, and conveyor belts, it is used in conjunction with ABB ACS880, ACS580, and other series of frequency converters. By collecting real-time speed and position signals of the motor shaft, the frequency converter can achieve vector control or closed-loop speed control of the motor, improving the stability and energy-saving effect of motor operation. In the servo motor control system, precise position feedback can be provided for the servo driver to achieve precise positioning control of the motor.

2. Machine tools and CNC machine tools

In the feed axis and spindle control of CNC machine tools such as lathes, milling machines, and machining centers, this encoder can accurately detect the displacement and motion speed of the coordinate axis, and feedback the signal to the CNC system (such as ABB CNC system or third-party CNC system), achieving precise control of the tool motion trajectory and improving the machining accuracy and surface quality of the parts.

3. Metallurgical and Steel Equipment

In metallurgical equipment such as rolling mills, continuous casting machines, and coiling machines, it is used to detect the rotational speed of the rolling mill, changes in the coil diameter of the coiling machine, and the conveying position of the steel billet, providing real-time feedback to the equipment control system to ensure the accuracy of steel rolling and the continuity of the production process. Its high temperature resistance and dust resistance characteristics can adapt to the harsh environment of metallurgical workshops.

4. Lifting and conveying equipment

In the lifting mechanism, walking mechanism, and stacker crane of the three-dimensional warehouse of the crane, the encoder can accurately detect the lifting height of the hook, the walking position and running speed of the equipment, and cooperate with ABB PLC to achieve precise positioning and safety protection control of the equipment, avoiding dangerous working conditions such as overtravel and overspeed.

5. Power and energy equipment

In the speed control system of the generator set and the pitch control of the fan, it is used to detect the rotational speed of the generator shaft and the angular position of the fan blades, providing feedback signals for the control system, achieving precise adjustment of the power generation, and improving energy utilization efficiency.

Installation and usage precautions

To ensure the detection accuracy and service life of NTAC-02 58967441E pulse encoder, the following points should be noted during installation, debugging, and use:

-Installation alignment and clearance control: During installation, it is necessary to ensure that the coaxiality error between the encoder shaft and the controlled equipment shaft does not exceed 0.1mm, and the axial clearance is controlled within the range of 0.5-1mm to avoid signal fluctuations or mechanical wear caused by eccentricity or axial movement.

-Wiring specifications: Strictly follow the wiring diagram in the product manual for wiring, distinguish between the positive and negative poles of the power supply and the signal line, and avoid component damage caused by reverse wiring; Differential signal lines should use shielded twisted pair cables, with the shielding layer grounded at one end to reduce electromagnetic interference.

-Environmental protection: In environments with high dust concentration, oil pollution, or humidity, additional protective covers should be installed to ensure that the protection level meets the on-site requirements; Avoid installing the encoder near strong magnetic field equipment such as large transformers and welding machines.

-Parameter matching debugging: After connecting with the control system, it is necessary to correctly set the pulse number, signal type, and other parameters of the encoder in the control software to ensure accurate analysis of the encoded signal by the system; Verify the correctness of position and velocity feedback through jog or low-speed operation testing.

-Regular maintenance: Regularly clean the dust and oil stains on the surface of the encoder, check whether the cable joints are loose, and whether the protective shell is intact; For long-term operating equipment, it is recommended to perform signal accuracy calibration every 1-2 years to ensure stable detection performance.

-Troubleshooting: If there is signal loss or distortion, first check whether the wiring is secure, whether the cable is damaged, then check whether the power supply voltage is stable, and finally use a dedicated instrument to detect the output signal of the encoder and locate the cause of the fault.
