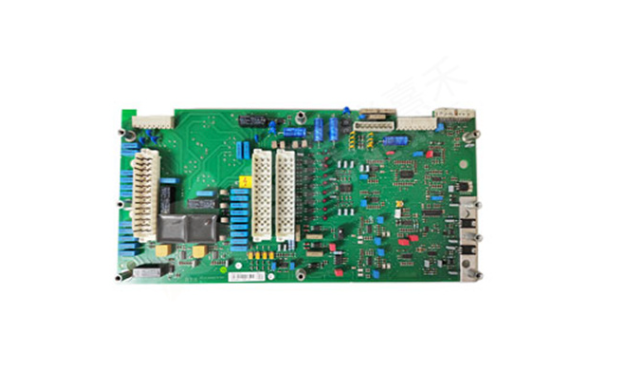

ABB PFSK142 3BSE006505R1 Control board

ABB PFSK142 3BSE006505R1 Control board

Product core positioning

ABB PFSK142 3BSE006505R1 is the core logic control board in industrial automation control systems. Its main function is to receive signals from various input modules (such as analog input modules and digital input modules), perform logical operations, data processing, and command generation according to preset control programs, and then send control commands to output modules (such as analog output modules and digital output modules), ultimately driving actuators (such as valves and motors) to act, achieving precise control of industrial production processes. This control board belongs to the ABB Advant OCS system series and is a key control unit that connects the system signal acquisition end and the execution end. It is widely used in industries that require complex logic control, such as petrochemicals, power, metallurgy, and water treatment.

Key technical parameters

Processor configuration

Adopting a high-performance 32-bit microprocessor with a clock frequency of 200MHz, it has powerful data operation and logic processing capabilities

Storage capacity

Program memory: 8MB Flash (expandable up to 16MB); Data storage: 2MB SRAM (supports power down protection)

Input/output interface

Supports 16 digital input interfaces (DC 24V) and 16 digital output interfaces (DC 24V, maximum load current 0.5A/channel); Reserve 2 RS485 communication interfaces and 1 Ethernet interface (10/100Mbps)

Control cycle

The minimum control cycle is 1ms, which can be adjusted through software settings according to control requirements to meet fast response control scenarios

Power specifications

Working power supply: DC 24V (± 15%), power consumption of about 5W; Backup power interface: supports lithium battery backup (optional)

Environmental adaptability

Working temperature -10 ° C-60 ° C, storage temperature -40 ° C-85 ° C, relative humidity 5% -95% (non condensing), anti vibration level IEC 60068-2-6 (10-500Hz, 10g acceleration)

Physical specifications

The dimensions (length x width x height) are approximately 180mm x 120mm x 30mm, using a card design that is compatible with ABB standard control cabinet slot installation

Compatibility

Compatible with various I/O modules of ABB Advant OCS system (such as DSAI133A analog input module, DSAO132 analog output module), supporting industrial Ethernet communication with System 800xA monitoring system

Core functions and advantages

1. Efficient control computation capability

Equipped with a 32-bit high-performance microprocessor and optimized instruction set, it can quickly complete complex logical operations (such as ladder diagram and functional block diagram programming logic) and data processing, with a minimum control cycle of only 1ms. It can respond to dynamic changes in the industrial field in a timely manner, ensuring the fast execution of control instructions and meeting the high control timeliness requirements of high-speed production lines, precision machining, and other scenarios.

Large capacity program storage and data storage, supporting the storage of complex control programs (up to 16MB of programs) and massive process data. At the same time, the data storage has power failure protection function, which can prevent critical control data loss caused by sudden power failure and ensure the continuity of system control logic.

2. Rich interfaces and communication capabilities

Equipped with multiple types of input/output interfaces, it can directly connect digital sensors (such as photoelectric switches, proximity switches) and digital actuators (such as relays, solenoid valves) without the need for additional conversion modules, simplifying system wiring and reducing hardware costs; The reserved RS485 and Ethernet communication interface supports industrial communication protocols such as Modbus RTU and Profinet, enabling data exchange with other control devices (such as frequency converters, human-machine interfaces) and upper monitoring systems, and building a distributed control network.

The Ethernet interface supports 10/100Mbps adaptive speed, which enables high-speed data transmission between the control board and the System 800xA monitoring system. Operators can view the real-time operation status and process data of the control board through the monitoring terminal, and remotely modify control parameters, improving the convenience of system operation and maintenance.

3. High reliability and anti-interference design

By using industrial grade components such as military grade capacitors and high stability resistors, and undergoing rigorous reliability tests such as high and low temperature cycling and vibration impact, we ensure stable operation in harsh industrial environments. Our MTBF (mean time between failures) exceeds 150000 hours, significantly reducing the probability of equipment failure and minimizing production downtime losses.

The board is equipped with a multi-level electromagnetic compatibility (EMC) protection circuit, which can resist electromagnetic interference from industrial sites (such as harmonic interference generated by frequency converters and radiation interference generated by high-voltage equipment). The input/output interface has overvoltage and overcurrent protection functions. When external signals are abnormal, it can automatically cut off the fault channel and protect the core circuit of the control board from damage.

4. Flexible programming and debugging

Support ABB Control Builder programming software, compatible with multiple programming languages of IEC 61131-3 standard (ladder diagram LD, function block diagram FBD, structured text ST, sequential function diagram SFC), engineers can choose familiar programming methods according to control requirements, reducing program development difficulty; The software has a rich built-in function library (such as PID control functions, mathematical operation functions), which can quickly implement complex control logic (such as temperature closed-loop control, flow ratio control).

The control board has online debugging function, and engineers can monitor the program running status in real time through programming software (such as variable values, contact status), set breakpoints to troubleshoot program logic errors, and complete debugging without disconnecting the system connection, reducing the impact of the debugging process on production; Simultaneously supporting online downloading and updating of programs, when control requirements change, the control program can be directly updated remotely, improving the flexibility and scalability of the system.
