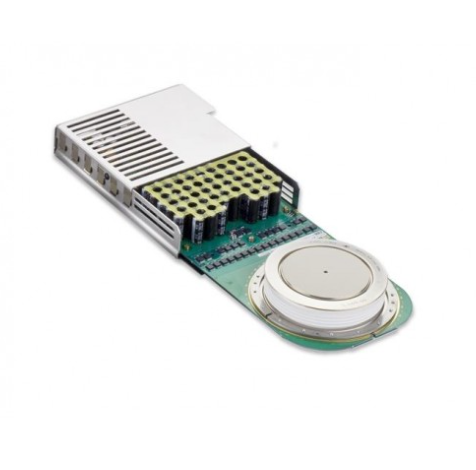

    ABB PPD513AOC -100440 3BHE039724R0C3D 800 D513 is a fully controlled IGCT device designed specifically for high voltage and high power scenarios, with the core positioning of "high voltage and high current, high efficiency and low loss, stable and shock resistant". The essence of its technology is to achieve precise on/off control of high-voltage circuits through the integration of gate drive circuits and high-power semiconductor chips. It not only inherits the tolerance of thyristors under high voltage (kV level) and high current (kA level) conditions, but also breaks through the limitations of traditional thyristors that cannot turn off actively. It has fast switching performance comparable to IGBT and solves the core pain points of "controllable, durable, and low consumption" in high-voltage and high-power scenarios.

    • ¥8645.00
      ¥8374.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.620KG
    • Quantity:
    • (Inventory: 99999)
Description

ABB PPD513AOC -100440 3BHE039724R0C3D 800 D513 is a fully controlled IGCT device designed specifically for high voltage and high power scenarios, with the core positioning of "high voltage and high current, high efficiency and low loss, stable and shock resistant". The essence of its technology is to achieve precise on/off control of high-voltage circuits through the integration of gate drive circuits and high-power semiconductor chips. It not only inherits the tolerance of thyristors under high voltage (kV level) and high current (kA level) conditions, but also breaks through the limitations of traditional thyristors that cannot turn off actively. It has fast switching performance comparable to IGBT and solves the core pain points of "controllable, durable, and low consumption" in high-voltage and high-power scenarios.




ABB PPD513AOC -100440 3BHE039724R0C3D 800 D513 Integrated Gate Commutator Transistor (IGCT)

Core positioning and technological essence of the product

ABB PPD513AOC -100440 3BHE039724R0C3D 800 D513 is a fully controlled IGCT device designed specifically for high voltage and high power scenarios, with the core positioning of "high voltage and high current, high efficiency and low loss, stable and shock resistant". The essence of its technology is to achieve precise on/off control of high-voltage circuits through the integration of gate drive circuits and high-power semiconductor chips. It not only inherits the tolerance of thyristors under high voltage (kV level) and high current (kA level) conditions, but also breaks through the limitations of traditional thyristors that cannot turn off actively. It has fast switching performance comparable to IGBT and solves the core pain points of "controllable, durable, and low consumption" in high-voltage and high-power scenarios.

As a high-end product of ABB's power semiconductor family, this device adopts a modular packaging design and can seamlessly adapt to ABB high-voltage converters, inverters and other equipment. It also supports third-party system integration and is the core component for performance upgrades of high-voltage power electronic equipment.


Core technological advantages

1. High voltage and high current tolerance, suitable for extreme working conditions

The IGCT device adopts ABB's patented semiconductor chip structure and packaging technology, with a rated voltage of over 8000V and a rated current covering 4000A level. It can directly withstand peak voltage and surge current impact in high-voltage and high-power systems. In terms of hardware design, the multi chip parallel current sharing technology and optimized heat dissipation path effectively solve the problem of heat concentration under high current conditions, ensuring that the device can still operate stably in extreme load scenarios in metallurgy, power and other industries without the need for additional power expansion modules, reducing system volume and cost.

2. Fast switching characteristics and ultra-low losses improve system efficiency

Compared to traditional thyristors, this IGCT has active turn off capability, with a switching frequency of several hundred Hz and a turn off time of only microseconds. It can quickly respond to control commands and reduce transition losses during the energy conversion process. At the same time, the electronic injection enhancement mode design adopted by it controls the conduction voltage drop at a lower level, reducing the conduction loss by 15% -20% compared to the same specification IGBT. Taking the application of high-voltage frequency converters as an example, the use of this IGCT device can improve the overall efficiency to over 98.5%, significantly reducing equipment operating energy consumption, especially suitable for industrial equipment that operates continuously for a long time.

3. Integrated design and high reliability, simplifying system integration

The device adopts an integrated design of "chip gate drive protection circuit", which directly integrates the gate drive unit, overcurrent protection, over temperature monitoring and other functions inside the package, without the need for users to design complex drive circuits, greatly simplifying the research and integration process of high-voltage power electronic equipment. At the same time, integrated design reduces external wiring links and lowers the risk of faults caused by loose lines and electromagnetic interference. Its MTBF (mean time between failures) exceeds 150000 hours, far exceeding the industry average, ensuring the continuous and stable operation of large equipment.

4. Strong anti-interference and environmental adaptability, suitable for complex scenarios

In response to the complex electromagnetic environment of industrial sites, the gate drive circuit of this IGCT device adopts optoelectronic isolation and shielding design, with anti-interference ability meeting the level 4 requirements of IEC 61000-4 standard, which can effectively resist high-frequency electromagnetic radiation and voltage pulse interference. In terms of environmental adaptability, the device adopts wide temperature range components, with a working temperature coverage of -40 ℃~125 ℃, which can adapt to extreme industrial environments such as high temperature, low temperature, and high humidity. At the same time, it has anti vibration and anti-corrosion packaging characteristics, and is suitable for harsh working conditions such as mining and rail transit.

5. A comprehensive protection mechanism to ensure system security

The device is equipped with comprehensive fault protection functions, including overcurrent protection, overvoltage protection, over temperature protection, and gate fault protection. When the current exceeds 1.5 times the rated value, the shutdown protection can be triggered within microseconds; When the temperature of the chip exceeds the threshold, real-time feedback is provided through the temperature sensor and the system is linked to reduce the load; When the gate drive signal is abnormal, the main circuit is automatically cut off to avoid device damage. These protective functions form a dual guarantee with the system control unit, greatly improving the operational safety of high-voltage power electronic equipment.


Key technical parameters

model

PPD513AOC-100440 3BHE039724R0C3D 800 D513

Device Type

Integrated Gate Commuter Transistor (IGCT), N-type

Rated voltage (Uce)

8000V DC

Rated current (Ic)

4000A (continuous), 12000A (peak)

switching frequency

Up to 500Hz

Turn off time (tq)

≤5μs

Voltage drop during conduction (Vce (sat))

≤ 3.5V (under rated current)

Gate driving voltage

+15V (on), -15V (off)

Working temperature range

-40 ℃~125 ℃ (junction temperature)

package form

Modular packaging (including heat dissipation substrate)

Isolation voltage

≥ 20000V AC (primary and secondary sides)

protection function

Overcurrent, overvoltage, overtemperature, and gate fault protection


Typical application scenarios

This IGCT device, with its high voltage and high current characteristics and efficient and stable performance, has become the core choice for high-voltage power electronic equipment. Typical application scenarios include:

1. High voltage frequency converter: As the power conversion core of 10kV and above high-voltage frequency converters, it achieves precise speed regulation of high-voltage motors, adapts to large equipment such as fans, water pumps, and steel mills in the power and metallurgical industries, and improves energy utilization efficiency;

2. Static Var Generator (SVG): Applied to the reactive power compensation system of the power grid, it dynamically adjusts the reactive power through fast switch control, improves the power factor of the power grid, suppresses voltage fluctuations, and ensures the stable grid connection of new energy power plants (wind power, photovoltaic);

3. Rail Transit Traction Converter: Suitable for high-speed rail, subway and other rail transit vehicles, the traction converter converts AC power from the power grid into DC power required by the traction motor, and achieves smooth speed regulation and energy recovery of the motor with fast switching characteristics;

4. Industrial rolling mill inverter: a large-scale rolling mill inverter system used in the metallurgical industry to withstand the impact of large loads during the rolling process, provide stable power output, and ensure rolling accuracy and production efficiency;

5. Energy storage system inverter: Suitable for inverters in large electrochemical energy storage power plants, it realizes bidirectional energy conversion between energy storage batteries and the grid, and ensures the charging and discharging efficiency and safe operation of the energy storage system with high reliability.
