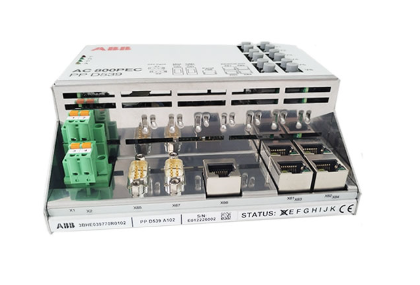

  • ABB PPD539A102 3BHE039770R0102 Control System Module
    ❤ Add to collection
  • ABB PPD539A102 3BHE039770R0102 Control System Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    -Module model: PPD539A102

    -Order number (material code): 3BHE039770R0102

    -Manufacturer: ABB Group (Asea Brown Boveri Ltd.)

    -System: Mainly compatible with mainstream DCS (Distributed Control Systems) such as ABB AC800M and Advant OCS, and can also be used for extended configuration of some SIS (Safety Instrumented Systems)


    • ¥48337.00
      ¥49486.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:4.740KG
    • Quantity:
    • (Inventory: 99999)
Description

-Module model: PPD539A102

-Order number (material code): 3BHE039770R0102

-Manufacturer: ABB Group (Asea Brown Boveri Ltd.)

-System: Mainly compatible with mainstream DCS (Distributed Control Systems) such as ABB AC800M and Advant OCS, and can also be used for extended configuration of some SIS (Safety Instrumented Systems)





ABB PPD539A102 3BHE039770R0102 Control System Module

Basic information of module

1.1 Core identification information

-Module model: PPD539A102

-Order number (material code): 3BHE039770R0102

-Manufacturer: ABB Group (Asea Brown Boveri Ltd.)

-System: Mainly compatible with mainstream DCS (Distributed Control Systems) such as ABB AC800M and Advant OCS, and can also be used for extended configuration of some SIS (Safety Instrumented Systems)

1.2 Physical and Environmental Parameters

-Size specifications: Designed with standard DIN rail installation, the dimensions are approximately 140mm x 100mm x 25mm (length x width x height, subject to actual product), suitable for the standard installation space of industrial control cabinets

-Power supply voltage: The typical working voltage is 24V DC (18V~32V DC wide voltage range), supporting redundant power supply access to ensure smooth module switching in case of power failure

-Working temperature: -40 ℃~70 ℃ (wide temperature design, suitable for extreme industrial environments), storage temperature is -55 ℃~85 ℃

-Protection level: The module body has an IP20 rating, and when installed in the control cabinet, it can achieve a protection effect of IP54 or above, preventing dust and splashing water

-Anti interference capability: compliant with IEC 61000-4 series standards, with ± 2kV electrostatic discharge immunity and ± 1kV pulse group immunity, suitable for industrial strong electromagnetic environments


Core functions and technical features

2.1 Core Function Positioning

The PPD539A102 module is the "signal processing and instruction execution center" in the control system, mainly responsible for the acquisition, operation and processing of digital/analog signals, logic control, and real-time communication with the system main controller. Specifically, it is manifested as:

-Multi type signal acquisition: supports 8-channel analog input (AI), 4-channel analog output (AO), and 16 channel digital input/output (DI/DO) mixed configuration, which can directly connect sensor signals such as temperature, pressure, and flow, as well as actuator control signals such as valves and pumps, without the need for additional signal conversion modules

-High precision data processing: The analog signal acquisition accuracy reaches 0.1% FS (full range), with a sampling rate of up to 100Hz, which can quickly capture parameter fluctuations in industrial processes and provide accurate data support for control algorithms

-Independent logic operation: Built in 32-bit high-performance microprocessor, supports custom logic control programs (implemented through ABB Control Builder programming software), can perform localized control tasks such as interlock protection and sequence control, and reduce the load on the main controller

-Real time communication interaction: equipped with PROFINET, EtherNet/IP, and ABB dedicated PROFIBUS-DP communication interfaces, with a maximum communication speed of 100Mbps, it can achieve millisecond level data interaction with the main controller, HMI (human-machine interface), and other modules, ensuring fast response to control instructions

2.2 Key technological advantages

-High reliability design: adopting a "dual CPU redundancy" architecture, when the main CPU fails, the backup CPU can seamlessly switch within 10ms to ensure uninterrupted control process; All key components are selected from industrial grade high-temperature and aging resistant models, with an average time between failures (MTBF) exceeding 100000 hours

-Flexible configuration and maintenance: supports online configuration, online diagnosis, and hot plugging functions. Maintenance personnel can complete module parameter modification, troubleshooting, and replacement without interrupting system operation, greatly reducing downtime

-Safety compliance: Complies with the IEC 61508 functional safety standard, supports SIL 2 safety level configuration, and can be used for safety critical scenarios such as chemical reactor overpressure protection and power boiler water level control

-Compatibility and Scalability: Compatible with the hardware and software ecosystem of ABB's full range of control systems, it can connect peripheral devices such as signal isolators and relay modules through expansion interfaces, and adapt to industrial control scenarios of different scales


Typical application scenarios

Based on its stable performance and flexible adaptability, the PPD539A102 module has mature applications in multiple industrial fields, with core scenarios including:

1. Power industry: used for combustion control systems in thermal power plant boilers, collecting parameters such as furnace temperature and oxygen content in flue gas, outputting instructions to control coal feeding and air supply, achieving efficient combustion and environmental emissions; Or used for signal acquisition and control of secondary equipment in substations to ensure stable operation of the power grid

2. Chemical industry: Adapt to the reaction process control of chemical production equipment, such as temperature and pressure closed-loop control of polymerization reactors. By accurately adjusting the flow rate and feed rate of the cooling medium, ensure the stability of the reaction process and avoid the risk of overheating and overpressure

3. Metallurgical industry: applied to the control system of blast furnace ironmaking in steel plants, collecting key parameters such as furnace top pressure and hot air temperature, controlling the processes of blast furnace material distribution and blowing, and improving the quality and production efficiency of molten iron

4. Oil and gas industry: Used as a wellhead control unit for oil and gas extraction platforms, it collects pressure and flow signals, realizes remote switch control and emergency shutdown interlocking of wellhead valves, and ensures the safety of the extraction process

Installation and usage precautions

4.1 Installation specifications

-The module should be installed in a well ventilated control cabinet without severe vibration, and the distance from other heating elements (such as power modules) should not be less than 50mm to ensure smooth heat dissipation

-Strictly follow the wiring terminal diagram for wiring, and separate the wiring of analog and digital signals to avoid signal interference; The power supply line needs to be equipped with 1A fuse protection to prevent module damage caused by overcurrent

-Before installation, it is necessary to confirm that the module model, order number, and system requirements are consistent. Check the appearance of the module for any damage and ensure that the pins are not bent to avoid physical damage during installation

4.2 Configuration and Debugging

-Using ABB Control Builder M or corresponding programming software for configuration, it is necessary to correctly configure the signal type (such as 4-20mA current signal, 0-10V voltage signal) and range according to the actual sensor/actuator type connected

-During debugging, offline simulation is required to verify the correctness of the logic control program; During the online debugging phase, it is necessary to gradually input signals, observe whether the module output is consistent with expectations, and focus on testing key functions such as fault switching and interlock protection

-After debugging, it is necessary to back up the configuration parameters for quick recovery of configuration during subsequent maintenance or module replacement

4.3 Key points of daily maintenance

-Regularly (quarterly) inspect the appearance of the module, clean the dust on the terminal block, check for loose wiring, and avoid poor contact that may cause abnormal signals

-Real time monitoring of module working status through system diagnostic function, focusing on power supply voltage, communication link, and signal acquisition accuracy, and promptly troubleshooting any abnormalities found

-When a module fails, the fault type can be preliminarily determined by the status indicator lights (power light, running light, fault light) on the module. If replacement is needed, a module of the same model and order number should be selected to ensure compatibility
