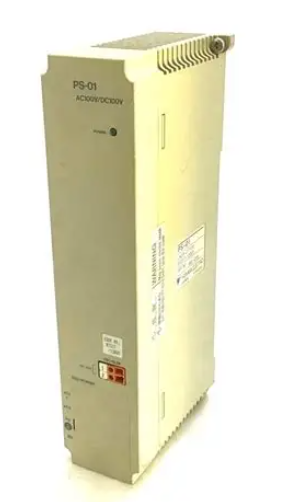

  • YASKAWA PS-01 Industrial Programmable Logic Controller
    ❤ Add to collection
  • YASKAWA PS-01 Industrial Programmable Logic Controller

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    YASKAWA PS-01 is an industrial programmable logic controller (PLC) launched by Yaskawa (YASKAWA) brand. Its core positioning is the logic control and equipment coordination of general industrial automation systems, with reliable instruction processing, multi type I/O interaction, and stable control signal transmission capabilities. It can achieve seamless integration with industrial equipment such as sensors, actuators, touch screens, and frequency converters, and accurately complete core control tasks such as logic operations, sequential control, and timing counting. This PLC adopts a compact modular architecture design, compatible with the entire range of industrial control components and mainstream automation equipment from Yaskawa. It supports rail type convenient installation and functional expansion, and has excellent anti-interference and environmental adaptability. It is the core control equipment for improving the stability of general industrial control systems, optimizing production control processes, and ensuring continuous and efficient production operation. At present, there is sufficient stock supply of this PLC model, which can meet diverse needs such as new system construction, upgrading of existing industrial equipment control, and equipment maintenance.

    • ¥15722.00
      ¥18045.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.450KG
    • Quantity:
    • (Inventory: 99999)
Description

YASKAWA PS-01 is an industrial programmable logic controller (PLC) launched by Yaskawa (YASKAWA) brand. Its core positioning is the logic control and equipment coordination of general industrial automation systems, with reliable instruction processing, multi type I/O interaction, and stable control signal transmission capabilities. It can achieve seamless integration with industrial equipment such as sensors, actuators, touch screens, and frequency converters, and accurately complete core control tasks such as logic operations, sequential control, and timing counting. This PLC adopts a compact modular architecture design, compatible with the entire range of industrial control components and mainstream automation equipment from Yaskawa. It supports rail type convenient installation and functional expansion, and has excellent anti-interference and environmental adaptability. It is the core control equipment for improving the stability of general industrial control systems, optimizing production control processes, and ensuring continuous and efficient production operation. At present, there is sufficient stock supply of this PLC model, which can meet diverse needs such as new system construction, upgrading of existing industrial equipment control, and equipment maintenance.


YASKAWA PS-01 Industrial Programmable Logic Controller

Product Overview

YASKAWA PS-01 is an industrial programmable logic controller (PLC) launched by Yaskawa (YASKAWA) brand. Its core positioning is the logic control and equipment coordination of general industrial automation systems, with reliable instruction processing, multi type I/O interaction, and stable control signal transmission capabilities. It can achieve seamless integration with industrial equipment such as sensors, actuators, touch screens, and frequency converters, and accurately complete core control tasks such as logic operations, sequential control, and timing counting. This PLC adopts a compact modular architecture design, compatible with the entire range of industrial control components and mainstream automation equipment from Yaskawa. It supports rail type convenient installation and functional expansion, and has excellent anti-interference and environmental adaptability. It is the core control equipment for improving the stability of general industrial control systems, optimizing production control processes, and ensuring continuous and efficient production operation. At present, there is sufficient stock supply of this PLC model, which can meet diverse needs such as new system construction, upgrading of existing industrial equipment control, and equipment maintenance.


Core specification parameters

-Core electrical parameters: rated input voltage DC 24V, rated power consumption ≤ 12W; equipped with high-performance industrial grade control chip, basic logic instruction processing speed of 0.15 μ s/step, supporting complex logic control and multi device collaboration; Working temperature range -10 ℃~60 ℃, relative humidity ≤ 90% RH (no condensation), suitable for complex industrial workshop electromagnetic environment, ensuring stable operation; Standard configuration includes 16 point digital input and 12 point digital output, supporting up to 32 point I/O expansion, which can meet the control needs of various low and medium power industrial loads.

-Communication interface and protocol: Standard RS-485 communication interface, supporting Modbus RTU industrial mainstream communication protocol; Optional Ethernet expansion module to achieve TCP/IP and Modbus TCP protocol communication; Equipped with programming and monitoring interfaces, it can achieve local/remote uploading and downloading of control programs, as well as real-time monitoring of device operation status. It also supports seamless interconnection with touch screens, upper management systems, and frequency converters, and can flexibly integrate into various industrial automation architectures.

-Control and Interaction Performance: Supports core PLC control functions such as logic control, sequential control, timed counting, and data computation, which can meet the diverse control needs of general industrial scenarios; Fast I/O response speed, input response time ≤ 1ms, output response time ≤ 2ms, ensuring fast execution of control instructions; Built in data cache and signal filtering mechanism effectively suppress interference signals, ensuring the integrity and accuracy of control signals and data transmission; Equipped with communication fault detection function to ensure stable and reliable communication links.

-Protection and expansion parameters: Built in overvoltage protection, undervoltage protection, short circuit protection, output overload protection, and electromagnetic interference suppression circuit, which can quickly respond to various electrical abnormalities and protect the safety of PLC and related equipment; Equipped with 2 expansion slots, compatible with digital I/O expansion modules, analog acquisition/output modules, and communication expansion modules, to meet the functional expansion needs of different scenarios; Support built-in flash data storage, capable of controlling program backup and running log recording, with power-off data retention time ≥ 10 years.

-Physical parameters: Weight approximately 450g, size in accordance with industrial control cabinet standard installation specifications (90 × 140 × 75mm); The protection level reaches IP20, suitable for installation environment inside industrial control cabinets, effectively preventing dust and foreign objects from entering; The installation method supports standard 35mm rail installation and is suitable for various industrial scenarios such as general mechanical processing, light industry manufacturing, and municipal engineering.


Core Advantage Characteristics

-High performance logic control and fast response: relying on high-performance industrial grade control chips, it achieves high-speed processing and precise execution of basic logic instructions, and can quickly complete complex sequential control and logic judgment tasks; The excellent I/O response speed ensures real-time interaction of control signals, effectively improving the coherence and efficiency of production control processes, and adapting to high-frequency start stop industrial control scenarios.

-Flexible communication and multi device adaptation: Through standard RS-485 interface and optional Ethernet expansion module, compatible with multiple industrial communication protocols, seamless interconnection with different brands and types of industrial equipment can be achieved without customized development, reducing system integration complexity; Support quick integration with touch screens, facilitating visualization of control interfaces and convenient operation, and improving operational efficiency.

-Strong environmental adaptability and high reliability: using industrial grade high stability components and anti-interference circuit design, it has excellent electromagnetic interference suppression ability. Through electromagnetic compatibility (EMC) testing, it can operate stably in complex industrial workshop environments with strong electromagnetic and high dust; The comprehensive electrical protection function can cope with various electrical abnormalities and operational failures, significantly reducing the probability of equipment damage; Has good adaptability to power fluctuations, adapts to slight voltage fluctuations in industrial power grids, and ensures the continuous and reliable operation of the control system.

-Comprehensive fault diagnosis and convenient maintenance: equipped with comprehensive fault self diagnosis function, it can detect power failure, I/O signal abnormality, communication interruption, expansion module failure and other status in real time, send alarm signals through LED indicator lights and communication interfaces, and record detailed fault codes and fault logs; Support fast backup and recovery of control programs, with key parameters that can be imported and exported; Modular design facilitates later replacement and maintenance, allowing for easy maintenance without the need for a complete shutdown, significantly reducing downtime losses.

-Compact modular design and flexible expansion: adopting a compact architecture, occupying small installation space, suitable for the installation needs of small industrial control cabinets; Flexible configuration of expansion modules based on control system requirements to achieve on-demand expansion of I/O points and communication functions; Compatible with the entire range of industrial control software from Yaskawa, supporting multiple programming languages such as ladder diagrams and functional block diagrams, making it easy for engineers to quickly develop and debug.


Working principle

The YASKAWA PS-01 industrial programmable logic controller is the core control unit of industrial automation systems, and its working principle is based on the full process industrial control logic of "signal acquisition logic operation control output state feedback fault protection". Firstly, the PLC receives on-site signals from sensors, buttons, and other devices through its built-in digital input interface, and also receives control instructions from the upper computer or touch screen through the communication interface; Subsequently, the internal high-performance control chip performs logical operations, sequence judgment, timing counting, and other processing on the received signals and instructions to generate accurate control instructions; Next, the control instructions are transmitted to the executing mechanism (such as solenoid valves, contactors, frequency converters, etc.) through the digital output interface, driving the equipment to operate according to the set parameters; At the same time, the PLC provides real-time feedback on equipment operation status, I/O signal status, and other data to the touch screen or upper computer, achieving visual monitoring of control status; In addition, the internal fault diagnosis and protection circuit continuously monitors the operating status of the entire system. Once power abnormalities, I/O faults, communication interruptions, and other issues are detected, the protection mechanism is immediately triggered to cut off relevant outputs and issue alarm signals, ensuring the safety of equipment and personnel.


Installation and usage precautions

(1) Installation precautions

-Voltage matching and power protection: Before installation, it is necessary to confirm that the input voltage is consistent with the rated voltage of the PLC (DC 24V) to avoid voltage fluctuations beyond the allowable range; It is recommended to install surge protectors and power filters at the power input end to prevent damage to internal circuits caused by power grid surge voltage and electromagnetic interference; When not in use for a long time, the power should be disconnected to avoid component aging caused by standby current.

-Installation environment requirements: The PLC needs to be installed in the industrial control cabinet, away from strong electromagnetic interference equipment such as welding machines and high-power motors, to avoid electromagnetic interference causing a decrease in control accuracy or communication abnormalities; The installation location should ensure good ventilation and maintain a distance of ≥ 20mm from other equipment to ensure smooth heat dissipation; It is strictly prohibited to install in environments with direct sunlight, high temperature and humidity, high dust or corrosive gases to extend the service life of the equipment.

-Correct wiring and grounding: Strictly distinguish power interfaces, communication interfaces, I/O interfaces, and expansion module interfaces according to the wiring manual, strictly prohibit misconnection or mixing, and avoid permanent damage to PLC or related equipment; Ensure that the terminals are securely fastened during wiring to prevent loose connections or abnormal signal transmission; Special shielded cables are selected for communication cables, and the distance between power cables and signal cables is ≥ 300mm to reduce signal interference; PLC must be reliably grounded with a grounding resistance of ≤ 4 Ω to prevent the risk of electric shock or electromagnetic interference.

(2) Precautions for use and maintenance

-Parameter configuration specification: Before the first use, the system parameter configuration must be completed through the supporting software, including I/O parameter settings, communication protocol selection, control logic programming, protection parameter settings, etc. After the parameter configuration is completed, a trial run test must be conducted to confirm that there are no abnormalities before it can be officially put into use; Prohibit arbitrary modification of core control parameters and communication parameters to avoid causing abnormal system operation.

-Regular maintenance: Regularly check the operating status of the PLC, including indicator light status, heat dissipation, terminal tightness, cable damage, etc; Regularly clean the dust on the surface of the control cabinet and equipment to ensure smooth heat dissipation; Regularly backup control programs and operational data to prevent data loss; It is recommended to conduct a comprehensive system inspection and maintenance every 6 months.

-Fault handling specifications: When a fault occurs, it is necessary to first check the fault code and fault log, and investigate the cause of the fault according to the instruction document. It is strictly prohibited to forcefully start the equipment without troubleshooting; When replacing components or expanding modules, it is necessary to use Yaskawa original parts to ensure equipment compatibility and operational reliability; Complex faults require maintenance by professional technicians.
