GE SR469-P5-H-A20-T Motor Management Relay

GE SR469-P5-H-A20-T Motor Management Relay

Basic Overview of Relays

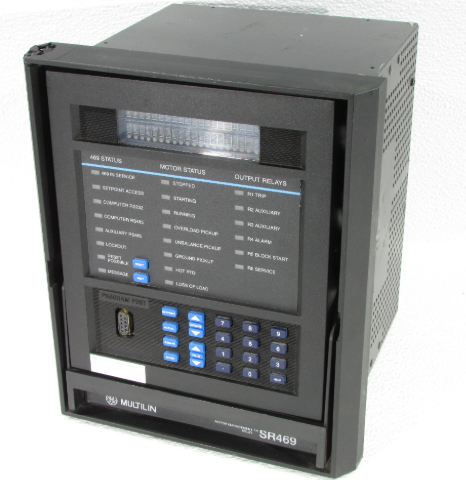

The GE SR469-P5-H-A20-T motor management relay is a high-performance intelligent protection and monitoring device launched by General Electric (GE) for the industrial motor control field, belonging to the SR469 series motor management product family. This relay is positioned with "precise protection, comprehensive monitoring, and intelligent linkage" as its core, integrating multiple protection functions such as motor overload, short circuit, phase loss, locked rotor, and ground fault. At the same time, it has the expansion capabilities of real-time monitoring of motor operating parameters, fault recording and diagnosis, communication networking, etc. It is mainly used in the control circuit of low-voltage AC motors (0.75kW-1000kW), providing full life cycle safety guarantee for motors. It is widely applicable to various industrial motor equipment such as fans, water pumps, compressors, and conveyor belts, and is a key component for improving the reliability of motor operation and reducing equipment failure rates in industries such as metallurgy, chemical, power, and manufacturing.

Core technical parameters

2.1 Electrical and Rated Parameters

-Applicable motor types: three-phase AC asynchronous motor, synchronous motor, supporting rated voltage AC 200-690V (50/60Hz);

-Current measurement range: achieved through an external current transformer (CT), adapted to a CT ratio range of 5:5A-2000:5A, with a measurement accuracy of ± 0.5% (within the rated current range);

-Power parameters: Control power supply AC/DC 100-240V, power consumption ≤ 10VA, with wide voltage adaptability, suitable for different industrial power supply environments;

-Output contact capacity: 2 sets of DPDT (double pole double throw) relay outputs, rated capacity AC 250V/10A, DC 30V/5A, can directly drive motor contactor coils;

-Input signals: 3-channel current input (connected to CT secondary side), 2-channel passive digital input (used for external interlocking signals), 1-channel PT voltage input (optional, used for voltage monitoring).

2.2 Protection Function Parameters

-Overload protection: supports two modes: inverse time limit (in accordance with IEC 60947-4-1 standard) and definite time limit. The overload current setting range is 0.5-12 times the rated current, and the action time is adjustable from 0.1s to 300s;

-Short circuit protection: instantaneous short circuit protection current setting range 2-20 times rated current, action time ≤ 10ms; delayed short circuit protection time adjustable from 0.1s-10s;

-Phase loss/unbalance protection: Phase loss detection sensitivity ≤ 20% of rated current, unbalance detection range adjustable from 5% to 50%, action time adjustable from 0.1s to 60s;

-Other protections: locked rotor protection (action current 2-10 times rated current, time 0.1s-10s), ground fault protection (adjustable ground current 0.1-10A, time 0.1s-60s), undervoltage/overvoltage protection (voltage range 70% -130% rated voltage, time 0.1s-60s).

2.3 Environmental and Physical Parameters

-Working environment: working temperature -20 ℃~70 ℃, storage temperature -40 ℃~85 ℃, relative humidity 5%~95% (no condensation), suitable for high temperature and high humidity industrial scenes;

-Anti interference performance: Complies with the IEC 61000-4 series standards, with 4kV ESD electrostatic protection, 2kV surge protection capabilities, and excellent anti electromagnetic interference capabilities;

-Physical structure: Modular design, dimensions of 96mm (width) x 96mm (height) x 110mm (depth), supports panel embedded installation, protection level IP40;

-Display and operation: Equipped with a 128 × 64 dot matrix LCD display screen, supporting Chinese/English interface switching, and comes with 4 operation buttons for easy parameter setting and status inquiry.

Core functions and features

3.1 Multi dimensional precise protection to eliminate the risk of motor damage

This relay adopts a 32-bit high-speed microprocessor, combined with a high-precision current sampling chip, which can achieve real-time acquisition and calculation of motor operating current, voltage and other parameters. The protection function covers the entire process of motor start-up, operation and shutdown. Its inverse time overload protection curve can accurately match the heating characteristics of the motor, avoiding the problems of "protection overshoot" or "insufficient protection" of traditional thermal relays; In response to the high current characteristics during the motor start-up phase, the built-in "start-up lockout" function can automatically relax the protection threshold during start-up to prevent misoperation. At the same time, the grounding fault protection adopts the "residual current detection" technology, which can quickly respond even in low grounding current scenarios, effectively preventing safety accidents caused by insulation damage to motor windings.

3.2 Comprehensive monitoring and intelligent diagnostic capabilities

Relays can monitor key parameters such as three-phase current, line voltage, power factor, operating time, and start stop times of motors in real time, and display them intuitively through LCD screens. Staff can grasp the motor's operating status without the need for additional instruments. Equipped with comprehensive fault recording function, it can store the latest 50 fault information (including fault type, occurrence time, current/voltage parameters at the time of fault), support fault information export and printing, and provide accurate data basis for equipment maintenance. The built-in motor health diagnosis algorithm can provide early warning of potential faults such as bearing wear and winding aging by analyzing parameters such as current imbalance and power fluctuations, achieving "preventive maintenance".

3.3 Flexible control and linkage functions

Supports multiple motor starting methods such as "direct start", "star delta start", "soft starter linkage", "frequency converter linkage", etc., and can be adapted to different control circuits through parameter configuration. Equipped with 2 programmable digital input interfaces, it can connect external signals such as pressure switches and liquid level switches to achieve interlocking control of motors (such as automatic start stop of water pump liquid level); Two sets of relay outputs can be configured with functions such as "protection trip", "alarm prompt", "operation status feedback", etc., flexibly linking motor contactors, sound and light alarms, and other equipment. In addition, it supports switching between manual/automatic control modes to meet the dual needs of on-site emergency operations and automated operations.

3.4 Powerful communication and networking capabilities

The module has a built-in RS485 communication interface and supports Modbus RTU communication protocol. It can upload motor operating parameters and fault information to PLC, SCADA system or upper computer monitoring platform through industrial bus, achieving centralized monitoring and unified management of multiple motors. Supporting the "remote parameter setting" function, engineers can remotely modify relay protection parameters, startup modes, and other configurations through the upper computer software, without the need for on-site operation, reducing maintenance costs. At the same time, it has communication fault tolerance capability, and even if communication is interrupted, the relay can still independently perform protection functions to ensure motor safety.

Typical application scenarios

-Metallurgical industry: In the motor control of blast furnace fans and converter dust removal fans in steel plants, it is used to monitor motor current fluctuations and bearing temperatures. When overload, locked rotor and other faults occur, the power supply is quickly cut off to avoid production interruption caused by fan shutdown;

-Chemical industry: In the circuits of chemical reaction kettle stirring motors and raw material conveying pump motors, grounding fault protection and leakage current monitoring are used to prevent the risk of flammable and explosive gas leakage caused by motor insulation damage. At the same time, interlocking functions are used to achieve coordinated control between motors and valves;

-Municipal engineering: In the pressurized water pump motor of the urban water supply system and the aeration tank fan motor of the sewage treatment plant, the motor is automatically started and stopped through liquid level interlocking signals, and the running time and fault frequency of the motor are monitored to provide a basis for regular maintenance of the equipment;

-Manufacturing industry: In the control of conveyor belt motors and machine tool spindle motors in automotive production lines, precise overload and short circuit protection is used to reduce production line downtime caused by motor failures, and fault diagnosis functions are utilized to quickly locate problems and improve equipment utilization.

Installation and usage precautions

1. The relay should be installed in a well ventilated control cabinet, avoiding direct sunlight or proximity to heating equipment. The installation position should be at least 50mm away from other components to ensure smooth heat dissipation;

2. The secondary side of the current transformer (CT) must be reliably grounded and strictly correspond to the polarity of the relay current input terminal to avoid measurement errors or protection misoperation caused by reverse connection;

3. Before the first use, it is necessary to accurately configure CT transformation ratio, protection threshold, starting time and other parameters according to the rated parameters of the motor (power, voltage, current) to ensure that the protection function matches the motor;

4. When wiring, it is necessary to distinguish between the control power supply and the main circuit power supply. The control power supply should be wired separately to avoid parallel laying with the strong current cable of the main circuit and to prevent electromagnetic interference from affecting the performance of the relay;

5. Regularly maintain the relay, including cleaning the LCD screen and buttons, checking for loose wiring terminals, verifying the effectiveness of protection functions (through simulated fault testing), and ensuring that the equipment is in normal working condition.
