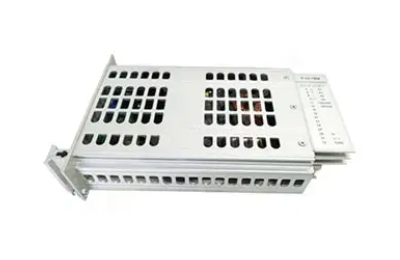

GE WES5120 2340-21005 power module

GE WES5120 2340-21005 power module

Basic overview of module

The GE WES5120 2340-21005 power module is a specialized power supply unit tailored by General Electric (GE) for the WES5100 series industrial control system. As the "energy core" of the system, its core function is to convert the AC or DC input power of the industrial site into a stable DC power source required by the control system, providing continuous and reliable power supply for the WES5120 control module, expansion module, and other peripheral devices. This module adopts the industrial grade redundancy design concept, with a wide input voltage range, high stability, and complete protection functions. It is widely used in industrial scenarios such as energy, manufacturing, and municipal engineering that require strict power supply reliability. It is a key supporting component to ensure the continuous and safe operation of the WES5100 series control system.

Core technical parameters

2.1 Input and output parameters

-Input voltage range: Supports wide range AC input, AC 85-264V； Simultaneously compatible with DC input, DC 110-300V， Adapt to the power supply environment of most industrial sites worldwide;

-Output voltage specification: The main output is DC 24V, with an output accuracy of ± 0.5%, ripple and noise ≤ 50mVpp, providing pure and stable power for the control module; Equipped with an auxiliary DC 5V output and a current of 1A, it is used to power the internal logic circuit of the module;

-Output power and current: rated output power of 100W, DC 24V output rated current of 4.2A, peak current up to 6A (continuous for 10 seconds), meeting the power supply requirements for multi module parallel operation;

-Efficiency characteristics: Under typical loads, the conversion efficiency is ≥ 92%, and under light loads (20% load), the efficiency is ≥ 88%. The high-efficiency and energy-saving design reduces the energy consumption of the system operation.

2.2 Electrical protection parameters

-Overvoltage protection (OVP): The protection threshold for the DC 24V output terminal is 27 ± 0.5V. After triggering, the module automatically shuts off the output, and manual reset is required after troubleshooting;

-Overcurrent protection (OCP): adopting constant current limiting protection mode, automatically limiting the current when the output current exceeds 5A, to avoid overload damage to modules and load equipment;

-Short circuit protection (SCP): Supports infinite current short circuit protection at the output end. When a short circuit occurs, the module instantly shuts off the output, and automatically restores the output after the short circuit is resolved without manual intervention;

-Other protections: It has input undervoltage protection (triggered when AC<75V or DC<90V), over temperature protection (turned off when the internal temperature of the module is ≥ 85 ℃), and anti reverse connection protection functions.

2.3 Environmental and Physical Parameters

-Working environment: working temperature -25 ℃~70 ℃, storage temperature -40 ℃~85 ℃, relative humidity 5%~95% (no condensation), suitable for harsh industrial environments such as high temperature and high humidity;

-Isolation performance: The isolation voltage between input and output is ≥ 3000V AC, and the isolation voltage between output and ground is ≥ 500V AC. The anti-interference ability meets the IEC 61000-4-2/3/4 standard;

-Physical dimensions: Adopting standardized guide rail installation design, the dimensions are 120mm (length) x 75mm (width) x 100mm (height), saving internal space of the control cabinet;

-Heat dissipation method: Adopting natural heat dissipation combined with aluminum heat sink design, fanless structure, to avoid heat dissipation failures caused by dust accumulation and improve reliability.

Core functions and features

3.1 Wide range adaptation and stable output

The module adopts advanced PFC (Power Factor Correction) technology, with a power factor of ≥ 0.95, effectively reducing harmonic interference to the power grid, and achieving wide range input adaptation of AC 85-264V. It can be directly applied to industrial sites of different voltage levels without the need for additional transformers. It adopts high-precision DC/DC conversion circuit and feedback regulation mechanism internally, even in the case of input voltage fluctuation of ± 10% or load variation of 50% -100%, the output voltage fluctuation is still controlled within ± 0.5%, providing stable power for the control system that is not affected by grid fluctuations and avoiding control logic disorder caused by voltage fluctuations.

3.2 Comprehensive redundancy and fault-tolerant design

Support multi module parallel redundant operation, up to 4 modules can work in parallel, and automatic load current sharing is achieved through the built-in current sharing circuit, with a current sharing error of ≤ 5%. When one of the modules fails, the remaining modules can automatically bear all the load, ensuring uninterrupted power supply and greatly improving the reliability of system power supply. It is suitable for critical industrial scenarios where shutdown is not allowed. In addition, the module has a "hot plug" function, which can replace faulty modules while the system is running without cutting off the main power supply, reducing system downtime.

3.3 Comprehensive state monitoring and diagnosis

The module is equipped with rich status indication and signal output functions. The front is equipped with a power indicator light (PWR), an output normal indicator light (OK), and a fault indicator light (FAULT). Staff can intuitively judge the operating status of the module through the indicator lights. At the same time, the module provides a DC 24V fault alarm relay output interface. When overvoltage, overtemperature, overload and other faults occur, the relay contacts will act and can directly link with the upper computer or alarm device to issue a prompt. Support uploading module operating parameters (such as input voltage, output current, module temperature) to the control module through the WES5100 series system bus, enabling remote monitoring and fault diagnosis.

3.4 Industrial grade reliability and durability

Adopting full industrial grade component selection, such as long-life electrolytic capacitors (with a lifespan of ≥ 50000 hours @ 40 ℃) and high-temperature resistant power devices, to ensure long-term stable operation of the module in harsh environments. The internal PCB of the module is treated with a three proof coating, which has the ability to prevent corrosion, moisture, and dust, and can adapt to highly corrosive industrial scenarios such as chemical and metallurgical industries. Its anti vibration performance meets the IEC 60068-2-6 standard (10-500Hz, 10g acceleration), and its anti impact performance meets the IEC 60068-2-27 standard (50g acceleration, 11ms duration), adapting to the mechanical vibration environment of industrial sites.

Typical application scenarios

-In the field of energy control, stable power supply is provided for the WES5120 control module, sensors, and actuators in the inverter control system of photovoltaic power plants and the pitch control system of wind power generation, ensuring continuous control of the energy conversion process and avoiding energy loss caused by power interruption;

-In the field of intelligent manufacturing, as the core power supply unit in the control system of automated production lines, it supplies power to the WES5120 control module, PLC, HMI, and robot end effectors, ensuring the continuity of production line process connection and reducing production downtime caused by power supply failures;

-In the field of municipal public utilities: In the control systems of urban sewage treatment plants and water treatment plants, 24V stable power is provided for water quality monitoring equipment, pump control modules, and valve actuators to ensure the continuous operation of water treatment processes and avoid the risk of water quality exceeding standards;

-In the field of chemical production: In chemical reaction kettle control and hazardous chemical storage monitoring systems, redundant parallel design is used to provide uninterrupted power supply for the control system. At the same time, its anti-corrosion and anti-interference characteristics can adapt to the harsh environment of chemical workshops, ensuring production safety.

Installation and usage precautions

1. The module needs to be installed on a DIN 35mm standard guide rail, and the installation position should be away from devices with high heat generation (such as frequency converters and high-power resistors). A heat dissipation space of ≥ 10mm should be reserved around the module to ensure good heat dissipation;

2. Before wiring, it is necessary to confirm that the input power type (AC/DC) is compatible with the module. The input power line should use copper core wire with a cross-sectional area of ≥ 1.5mm ², and the output line should use copper core wire with a cross-sectional area of ≥ 2.5mm ² according to the load current. The wiring terminals should be tightened to prevent poor contact and heat generation;

When running multiple modules in parallel redundancy, it is necessary to connect the "current sharing" terminals of all modules to each other and ensure that the module model and firmware version are consistent to avoid module damage caused by abnormal current sharing;

4. The output of the module fault alarm relay should be correctly connected to the upper computer or alarm device for timely response to faults; When replacing modules, it is necessary to first disconnect the input power supply and wait for the capacitor to discharge (about 5 minutes) before operating to avoid the risk of electric shock;

5. Regularly maintain the module, check whether the input and output wiring is loose, whether the heat sink is dusty, and whether the indicator light status is normal. When the environmental humidity is high, it is necessary to strengthen the module's moisture-proof protection to extend its service life.
