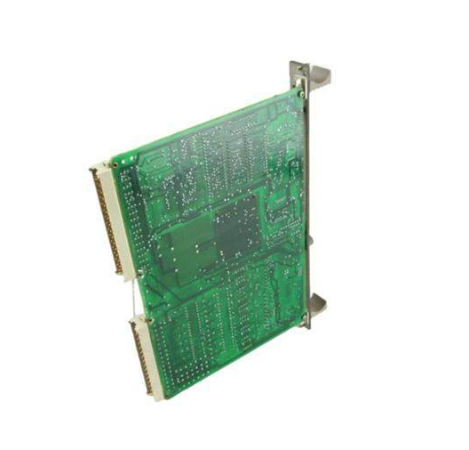

ABB TAS.580.0560G00 Industrial Controller Module

ABB TAS.580.0560G00 Industrial Controller Module

Core positioning and basic parameters of the product

1. Core attributes

Product type: High precision industrial process control module (belonging to ABB TAS series, focusing on parameter acquisition, logical operation and closed-loop control of process industry, suitable for small and medium-sized distributed control systems)

Model identification: TAS.580.0560G00 ("TAS" is the series code, "580" represents high-performance control level, "0560G00" is the specification code, distinguishing input/output configuration from hardware version)

Physical specifications: Adopting a standard 3U rack mounted design, the dimensions are 160mm (width) × 130mm (height) × 280mm (depth), with a net weight of 1.8kg, suitable for the standardized layout of industrial control cabinets, and can be installed in conjunction with I/O modules and power modules of the same series, supporting high-density stacking deployment.

2. Key electrical and performance parameters

Power supply demand

DC 24V ± 10%, rated power consumption of 12W, maximum power consumption of 18W (during full load operation)

Industrial grade regulated power supply (such as ABB SD800 series) is required, and it is recommended to reserve 20% power margin to avoid power supply fluctuations affecting operation

Control signal interface

16 analog inputs (AI, 4-20mA/0-10V/PT100 platinum resistor optional), 8 analog outputs (AO, 4-20mA), 16 digital inputs (DI, 24V DC, optoelectronic isolation), 8 digital outputs (DO, 24V DC/2A, relay output)

Covering the collection of various process parameters such as temperature, pressure, and flow rate, supporting switch control and analog adjustment for small and medium-sized equipment

Processing performance

32-bit RISC processor with a processing speed of 150 MIPS, program storage capacity of 32MB (Flash), and data storage capacity of 16MB (RAM)

It can run 8 independent PID control loops simultaneously, support complex logic operations (such as ladder diagrams and functional block diagrams), and meet real-time control requirements

Communication interface

2 Ethernet (TCP/IP) interfaces (supporting Modbus TCP, EtherNet/IP), 2 RS485 (Modbus RTU) interfaces, and 1 Profibus DP slave interface

Support multi protocol communication with upper monitoring systems, on-site sensors/actuators, and third-party devices, adapted to industrial network architecture

Working environment

Temperature -25 ℃ to+70 ℃, humidity 5% -95% (no condensation), protection level IP20 (module body), anti vibration level IEC 60068-2-6 (5-500Hz, 10g)

Adapting to industrial site environments with high and low temperatures and multiple vibrations, it needs to be installed in a closed control cabinet to avoid direct contact between dust and water vapor

Core functions and technological advantages

1. High precision process control capability

Multi algorithm integration: Built in PID, fuzzy PID, cascade control, feedforward control and other algorithms, PID control accuracy error ≤ 0.05%, supports precise adjustment of temperature, pressure, flow and other parameters, such as temperature closed-loop control of chemical reaction kettle (temperature collected through PT100, 4-20mA output control heating rod power).

Signal processing optimization: Analog input supports hardware filtering (adjustable filtering frequency of 0.1-100Hz) and software calibration, which can effectively suppress electromagnetic interference in industrial sites (such as high-frequency interference generated by frequency converters and motors); The digital input has a 5ms anti shake function to avoid false triggering caused by contact shaking and ensure signal acquisition stability.

Loop control flexibility: Supports 8 independent PID loops or 4 cascade PID loops, and can configure loop correlation logic (such as flow pressure cascade control) through software to meet the collaborative regulation requirements of complex processes without the need for additional control modules.

2. High reliability and fault-tolerant design

Redundancy and fault protection: Supports power redundancy (requires dual power modules), and in the event of a main power failure, the backup power supply can seamlessly switch (switching time ≤ 5ms); Equipped with module level fault self diagnosis function, it can monitor the status of the processor, memory, and I/O interface in real time. When there is a fault, it can send alarm information to the upper computer through indicator lights and communication protocols, making it easy to quickly locate the problem.

Anti interference and stability: Complies with the IEC 61000-6-2 industrial anti-interference standard, with an anti-interference level of 4 for electrostatic discharge (ESD), radio frequency interference (RFI), and electrical fast transient burst (EFT), ensuring stable operation in complex electromagnetic environments (such as heavy industry workshops) without the risk of data loss or control failure.

Power off data protection: The program storage adopts Flash memory, and the data storage is equipped with supercapacitor backup (which can maintain data for 72 hours after power failure), to avoid accidental power failure and loss of control programs and historical data. After power restoration, it can automatically restart and continue the previous control state.

3. Flexible system integration and ease of use

Multi system compatibility: It can be seamlessly integrated into control systems such as ABB 800xA and Freelance, and supports communication with third-party monitoring software such as Siemens WinCC and Rockwell FactoryTalk. Data exchange is achieved through standard protocols, reducing the difficulty of system upgrades and modifications.

Convenient configuration and debugging: Supports graphical programming through ABB Control Builder M software (supports IEC 61131-3 standard programming language), with built-in commonly used control templates (such as PID circuits and logic interlocks), eliminating the need to write code from scratch; During debugging, real-time monitoring of module operating parameters (such as input and output values, CPU usage, communication status) can be achieved through software, and online modification of parameters and programs is supported without the need for power outages or restarts.

Humanized maintenance: The module adopts a modular design, and both the I/O interface and communication interface are plug-in. When replacing the module, there is no need to disassemble a large amount of wiring, and the maintenance time can be shortened to less than 20 minutes; The panel is equipped with operation, fault, and communication status indicator lights (LEDs), which intuitively display the working status of the module and reduce troubleshooting time.

Selection and maintenance precautions

1. Key indicators for selection

I/O point matching: Determine module specifications based on the type (analog/digital) and quantity of signals to be collected on site. If the AI/AO points are insufficient, remote I/O modules (such as ABB AI830 and AO830 modules) can be extended through Profibus DP; If more PID loops need to be controlled, it is necessary to confirm the maximum number of loops supported by the module (TAS.580.0560G00 supports 8 independent PID loops).

Signal type adaptation: Confirm the signal type of the on-site sensor/actuator. If using PT100 platinum resistance for temperature acquisition, select an AI channel that supports resistance input; If using a 4-20mA pressure sensor, it is necessary to select a current input channel to avoid signal type mismatch that may prevent data collection.

Environmental adaptability: If the temperature in the application scenario exceeds+60 ℃ (such as near the control cabinet of the heating equipment), the high-temperature version module should be selected (some models support -25 ℃ to+85 ℃); If there is significant on-site vibration (such as near the control cabinet of a fan or pump), it is necessary to install shock-absorbing brackets for the module to ensure compliance with the anti vibration level requirements.

2. Maintenance and troubleshooting

Regular maintenance: Conduct maintenance on the module once a quarter, including cleaning the surface dust of the module (using a dry soft cloth), checking the tightness of the wiring terminals (tightening with a torque wrench at 0.6-1.0 N · m), and testing the power supply voltage (ensuring it is within the range of 24V ± 5%); Control programs and parameters through software backup every six months to prevent data loss.

Common troubleshooting

The running indicator light is not on

Power supply failure, loose power wiring, and damage to the internal power supply of the module

1. Measure the voltage of the module power terminal with a multimeter (normally it should be 24V ± 10%); 2. Re plug and unplug the power supply wiring terminals; 3. Replace the backup power module for testing

Analog input without signal

Sensor malfunction, wiring error, channel damage

1. Check the sensor output signal (such as measuring 4-20mA signal with a multimeter); 2. Confirm whether the positive and negative poles of the wiring are correct; 3. Connect the sensor to the backup channel for testing

Communication interruption

Communication cable failure, IP address/protocol configuration error, interface damage

1. Use a network cable tester to test Ethernet cables (or use a multimeter to test RS485 cables); 2. Confirm that the module IP address does not conflict with the upper computer and that the communication protocol is consistent; 3. Replace the backup communication interface for testing

PID control has a large deviation in accuracy

Improper parameter configuration, sensor calibration failure, actuator malfunction

1. Re optimize PID parameters (such as proportional gain, integration time); 2. Calibrate the sensor (such as using a standard signal generator to calibrate the AI channel); 3. Check if the actuator action is normal (such as whether the valve opening matches the AO output)
