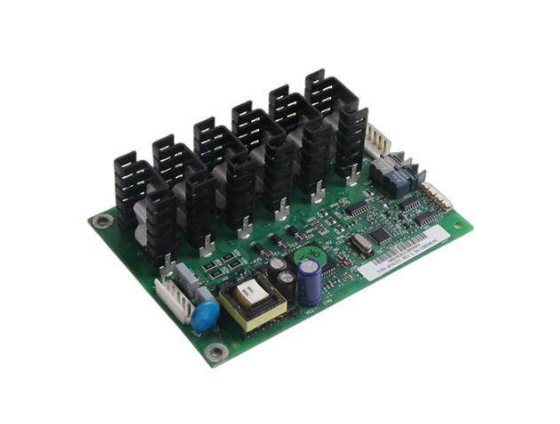

ABB UAD206A101 Controller Module

ABB UAD206A101 Controller Module

Product core positioning

ABB UAD206A101 is a high reliability industrial control and communication module that focuses on customized processing and multi scenario adaptation. Its core is compatible with control systems such as ABB Advant OCS/800xA, and it also has digital I/O expansion, data communication, and process control functions. It is a key interface and control unit for industrial automation systems. Its official order number is often associated with component codes such as 3BHE019958R0101 and 3BHE019959P201, and it is important to note the consistency of the model numbers marked by different suppliers.

Key technical parameters

I/O channel configuration

Digital input: 16-32 channels (supporting switch/pulse/encoder signals, optoelectronic isolation) Digital output: 16 channels (relay/transistor output) Analog input: 16 channels (0-10V, 12 bit resolution) Analog output: 8 channels (4-20mA, 12 bit resolution)

Electrical specifications

Power supply voltage: 24V DC/220V AC/240V AC (different configurations) Power consumption: 5W/maximum 1000W Output frequency: 50Hz/60Hz or 50kHz

Physics and Environment

Size: 100 × 75 × 35mm to 150 × 100 × 50mm (model difference) Weight: 200g to 2.8kg Protection level: IP20 Operating temperature and humidity: -20 ℃~60 ℃, 5%~95% RH (non condensing)

Communication and Compatibility

Protocol: Modbus RTU/TCP, Profinet, Profibus DP, HDLC, FBI Supporting devices: 100 series FBM module, FCP 270 Controller Installation method: DIN rail installation

Core functions and advantages

High reliability design

Adopting dual control modules to achieve patented fault-tolerant operation significantly improves reliability compared to ordinary controllers; The built-in self-test circuit can monitor sensor/transmitter faults in real time, and when a fault occurs, it switches to the "logic OK output" state and triggers a 4-20mA signal zeroing alarm.

Flexible Expansion and Integration

Supports 268kbps HDLC bus expansion and can communicate with multiple brands of devices; Compatible with ABB Modicon Momentum controller and I/A Series ®  System, adapted to new installation and old system upgrade scenarios.

Intelligent operation and maintenance features

Provide GPS satellite time synchronization (optional), FCP 270 controller fault-tolerant online mirror update, and support non-stop maintenance; Supports programming languages such as C/C++and ladder diagrams, making debugging and secondary development convenient.

Adaptation to harsh environments

Made of high-quality materials, it can withstand harsh conditions such as dust and vibration in industrial sites, and has passed international certifications such as CE, UL, ISO 9001, etc.

Typical application areas

Industrial automation: production line logic control, robot signal processing, equipment status monitoring

Energy and electricity: grid status monitoring, power generation process regulation, substation automation

Process industry: Petrochemical reactor control, pharmaceutical/food and beverage production process adaptation

Infrastructure: Intelligent traffic signal control, building equipment automation, environmental data collection
