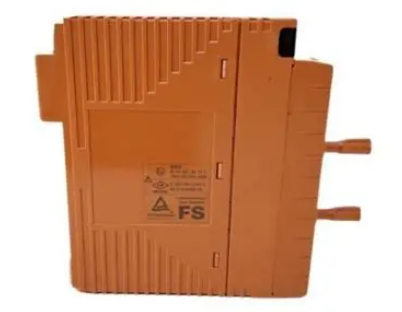

YOKOGAWA V0/E1/TCAM/L08 Advanced Process Control Module

YOKOGAWA V0/E1/TCAM/L08 Advanced Process Control Module

Module core positioning and application scenarios

In modern industrial production, single parameter control can no longer meet the control requirements of complex processes. Multi parameter coupling, dynamic process adjustment, and precise collaborative control have become the core demands for improving production efficiency. The YOKOGAWA V0/E1/TCAM/L08 advanced process control module is designed specifically for complex industrial process control. It can synchronously collect various types of process parameter signals such as temperature, pressure, flow rate, and liquid level on site. Through the internal advanced process control (APC) algorithm unit, data fusion and logic analysis are carried out. Combined with preset process models, precise control signals are output to drive various actuators (such as regulating valves, frequency converters, heaters, etc.) to achieve collaborative control, forming a closed-loop control loop for the entire process. This module not only has high-precision parameter measurement and precise control capabilities, but also supports custom process logic programming, remote monitoring, and intelligent diagnosis. It can be seamlessly integrated into various industrial automation control systems (DCS, PLC) to meet the complex control requirements of high-end manufacturing and process industries.

Based on its multi parameter collaboration, advanced algorithm driven, and high reliability characteristics, the typical application scenarios of this module include:

-Fine Chemicals: Collaborative control of multiple parameters (temperature, pressure, liquid level, flow rate) in complex reaction vessels, precise control of catalyst addition, and optimization control of the entire distillation process;

-Semiconductor manufacturing: temperature and pressure coordinated control during wafer processing, precise control of lithography process environmental parameters (temperature, humidity, cleanliness), dynamic adjustment of etching process parameters;

-Biopharmaceuticals: Collaborative regulation of multiple parameters (temperature, pH value, dissolved oxygen, liquid level) in the biological fermentation process, precise control of drug refining processes, and stable control of sterile production environment parameters;

-High end metallurgy: coordinated control of temperature and composition in the melting process of special alloys, precise control of multi-stage temperature and pressure in rolling processes, and dynamic optimization of heat treatment process parameters;

-New energy materials: Multi parameter control of battery cathode material synthesis process, temperature field optimization control of photovoltaic silicon wafer manufacturing process, precise control of energy storage equipment production process.

Core functional characteristics

The advanced process control module YOKOGAWA V0/E1/TCAM/L08 integrates Yokogawa Electric's advanced multi parameter acquisition technology and intelligent control algorithm, and has the following core functional characteristics, which can adapt to the multi scene fine control requirements in complex industrial environments:

1. Multi parameter collaborative acquisition and high-precision control

The module supports synchronous acquisition of multiple types and channels of parameters (standard 8-channel, expandable), compatible with temperature (Pt100, Pt1000, thermocouple), pressure (pressure transmitter 4-20mA signal), flow (flow transmitter signal), liquid level (liquid level sensor signal) and other process parameter types. Users can flexibly configure the parameter types and measurement ranges of each channel through software. By using high-precision AD conversion circuit and adaptive digital filtering algorithm, it can effectively suppress on-site electromagnetic interference, and the measurement accuracy of various parameters is at the leading level in the industry (temperature measurement accuracy ± 0.1 ℃, pressure measurement accuracy ± 0.075% FS, etc.). At the same time, the module is equipped with an advanced process control (APC) algorithm library, which includes various advanced algorithms such as model predictive control (MPC), fuzzy adaptive control, and multivariable decoupling control. It can achieve precise control in multi parameter coupling scenarios, avoid process fluctuations caused by single parameter control, and improve process stability.

2. Comprehensive signal isolation and full link security protection

To cope with the complex electromagnetic environment and extreme working conditions in industrial sites, the module adopts full channel optoelectronic isolation technology to achieve electrical isolation between input signals, output signals, and module power supply. The isolation voltage can reach 2.5kV rms or more, effectively blocking interference conduction and preventing damage to the module and control system caused by on-site voltage spikes and surges. The module shell is coated with polyurethane resin baking, which has good corrosion resistance and wear resistance, and is suitable for harsh industrial environments. In addition, the module has full chain security protection function: when a sensor disconnection, short circuit, or parameter exceeding the safety threshold is detected, a fault alarm is immediately triggered and a protection signal is output; Support emergency stop signal linkage, which can quickly cut off the execution mechanism of dangerous processes, avoiding equipment damage and process accidents; Simultaneously equipped with overvoltage, overcurrent, and over temperature protection functions, further enhancing operational safety.

3. Flexible process configuration and expansion capability

The module supports diversified parameter and process logic configuration. Users can customize the measurement range, control target value, alarm threshold, process interlock logic and other parameters of each channel through the upper computer software. It supports multiple programming methods such as ladder diagrams and functional blocks, adapting to personalized process requirements of different industries. The configuration parameters have a power-off saving function to avoid parameter loss caused by unexpected power outages. Adopting standardized modular design, supporting DIN rail installation, multiple modules can be cascaded through dedicated expansion interfaces, and the number of channels can be flexibly expanded according to production process requirements, up to 32 channels, to meet the control needs of large-scale, multi parameter production scenarios. Meanwhile, the module supports mainstream industrial communication protocols such as PROFINET and EtherNet/IP, seamlessly integrating with mainstream DCS and PLC systems to achieve remote monitoring, parameter configuration, and data exchange.

4. Real time status monitoring and intelligent fault diagnosis

The module integrates comprehensive self diagnosis and status monitoring functions, which can monitor its own working status (power supply voltage, internal circuit operation status, communication status), channel parameter acquisition status, and actuator working status in real time. Equipped with LCD digital indicators (optional) and LED indicator lights, it can intuitively provide feedback on the working status (normal, alarm, fault), power status, and communication status of each channel, making it convenient for on-site maintenance personnel to quickly view. The module supports adjustable damping time constant (0.2~64 seconds, 9 gears), which can optimize signal response characteristics according to process requirements. When a fault occurs, the module immediately triggers an audible and visual alarm (requiring an external alarm), and uploads detailed fault codes and fault information to the upper computer system through a communication interface. The fault codes include sensor faults, power supply abnormalities, communication faults, parameter exceeding thresholds, and other types, helping maintenance personnel quickly locate and solve problems.

5. Diversified output and process chain linkage

The module is equipped with various types of output interfaces, including relay output, transistor output, 4-20mA analog output, etc., which can directly drive different types of actuators such as regulating valves, frequency converters, heaters, etc., adapting to diverse process regulation scenarios. Supporting multi module collaboration and process chain linkage functions, cross module collaborative control can be achieved based on multi-channel parameter coupling relationships, meeting the full process control requirements under complex processes (such as reaction kettle temperature and pressure collaboration+feed flow chain control). At the same time, the module has alarm output and emergency linkage functions. When the process parameters exceed the preset safety range or a fault occurs, the alarm output interface can trigger external alarm devices and link other control systems to execute emergency measures such as emergency shutdown and safety pressure relief, ensuring production safety.

Key technical parameters

Control the number of channels

Standard configuration includes 8 channels (L08) and supports cascading expansion of multiple modules, with a maximum expansion of 32 channels

Support parameter types

Temperature, pressure, flow rate, liquid level, etc; Compatible sensor/transmitter types: Pt100, Pt1000, K/J/S thermocouple, 4-20mA transmitter signal, etc

measurement range

Temperature: -200 ℃~850 ℃ (Pt100), -270 ℃~1372 ℃ (K-type thermocouple); Pressure: 0~10MPa (according to transmitter configuration); Flow rate: 0~100m ³/h (depending on transmitter configuration)

measurement accuracy

Temperature: ± 0.1 ℃ (-50 ℃~200 ℃, Pt100 sensor); Pressure: ± 0.075% FS; Flow rate: ± 0.1% FS

control accuracy

± 0.2 ℃ (temperature steady state), ± 0.1% FS (pressure/flow steady state, no load fluctuation)

control algorithm

Model Predictive Control (MPC), Fuzzy Adaptive Control, Multi Variable Decoupling Control, PID Control, Supporting Parameter Self tuning

output type

2 outputs per channel: 1 relay output (AC250V/5A), 1 4-20mA analog output; Supports transistor output (optional)

Isolation method

Input/output/power fully isolated, isolation voltage 2.5kV rms (1 minute)

Rated power supply voltage

24V DC ±10%

power consumption

≤ 18W during normal operation, ≤ 2W during standby

Working environment temperature

-10 ℃~60 ℃ (no condensation), special configuration can support -40 ℃~60 ℃

Working environment humidity

10%~90% RH (no condensation)

Protection level

IP20 (panel installation status)

Installation method

DIN rail installation (compliant with EN 50022 standard), panel installation

communication interface

Supports industrial communication protocols such as PROFINET, EtherNet/IP, RS485 (Modbus RTU), etc. (specific configuration required)

Damping time constant

0.2~64 seconds, 9 adjustable gears

Shell material

Shell: polyurethane resin baked coating; Flange: JIS SUS316; Bolt: JIS SUS304

Troubleshooting strategy

When a module malfunctions, the principle of "appearance first, internal second; power first, signal second; hardware first, software second" can be followed for troubleshooting to quickly locate and solve the problem. The following are common faults and troubleshooting methods:

1. The power indicator light is not on, and the module is unresponsive

Reason for malfunction: incorrect power wiring, abnormal power voltage, power module malfunction, damaged internal power circuit of the module; Troubleshooting method: ① Check if the power wiring is correct, if the terminals are loose, unplug and tighten the wiring again; ② Measure the input voltage of the power supply with a multimeter and confirm that the voltage is within the range of 24V DC ± 10%; ③ Replace the backup power module. If the module returns to normal, it indicates that the original power module is faulty; ④ If the above methods are ineffective, it may be due to damage to the internal power circuit of the module, and it is necessary to contact Yokogawa Electric for official repair or replacement of the module.

2. Inaccurate parameter measurement with excessive deviation

Reason for malfunction: sensor/transmitter wiring error, sensor damage or expired calibration, incorrect measurement range configuration, failure to perform accuracy calibration, on-site electromagnetic interference, improper damping time constant setting; Troubleshooting method: ① Check the wiring method and correctness of the sensor/transmitter, ensure the three wire/four wire wiring specification for the temperature sensor, and confirm the positive and negative pole connections for the 4-20mA signal; ② Replace the backup sensor/transmitter. If the measurement is normal, it indicates that the original sensor/transmitter is damaged or needs calibration; ③ Check if the module channel measurement range configuration matches the sensor/transmitter specifications; ④ Perform zero and full-scale calibration on the module, adjust the damping time constant to meet the process requirements; ⑤ Check if the shielding layer of the sensor cable is well grounded and if it is laid parallel to the power cable. If there is interference, reorganize the cable laying path; If installing sensors for pipelines, check whether the straight pipe section meets the requirements.

3. Unstable process control and excessive parameter fluctuations

Reason for malfunction: Unreasonable control algorithm parameter settings, insufficient decoupling of multi parameter coupling, lagging response of the actuator, excessive load fluctuations, improper damping time constant settings; Troubleshooting method: ① Enable the parameter self-tuning function of the module to automatically optimize the control algorithm parameters; If it is multivariable control, check whether the decoupling parameter settings are reasonable; ② Manually adjust control parameters (such as PID parameters, fuzzy control weights), or replace the adapted control algorithm; ③ Check whether the actuator (such as regulating valve, frequency converter) is working properly, whether there are any problems such as jamming or response lag, and repair or replace the actuator if necessary; ④ Analyze whether there are frequent fluctuations in the on-site load, and if so, add load stabilization measures or adjust the process logic; ⑤ Adjust the damping time constant to balance signal response speed and stability.

4. The channel alarm light is on, and the upper computer displays a fault

Fault causes: Sensor/transmitter disconnection/short circuit, parameter exceeding alarm upper and lower limits, module channel failure, process interlock condition triggered; Troubleshooting method: ① Check the fault code of the upper computer and confirm the type of fault; ② If it is a sensor malfunction, check whether the sensor/transmitter cable is broken or short circuited, and whether the wiring terminals are loose; ③ If the parameter exceeds the threshold alarm, check whether the on-site process is abnormal, whether the executing mechanism is working normally, and adjust the upper and lower limits of the alarm or optimize the process if necessary; ④ If it is a chain triggered alarm, check if the chain conditions are met and confirm if it is a false trigger; ⑤ Swap the sensors/transmitters of the faulty channel with those of the normal channel. If the fault follows the sensor transfer, it indicates a sensor problem; If the fault is still in the original channel, it indicates that the module channel is damaged and needs to be repaired or replaced.

5. Communication failure, the upper computer cannot read/control the module

Reason for malfunction: Poor connection of communication cables, inconsistent configuration of communication parameters (such as IP address, communication protocol, baud rate), communication interface malfunction, and failure to install bus terminal resistors; Troubleshooting method: ① Check whether the communication cable is firmly connected, and confirm that the A and B wires are not reversed for RS485 communication; ② Verify the communication parameters between the module and the upper computer to ensure consistency in IP address, subnet mask, communication protocol, baud rate, and address code; ③ Install or check the bus terminal resistance (120 Ω), especially when the communication distance is far away; ④ Replace the backup communication cable. If communication is restored to normal, it indicates that the original cable is faulty; ⑤ If the above methods are ineffective, check if the module communication interface is damaged and contact the official repair if necessary.
