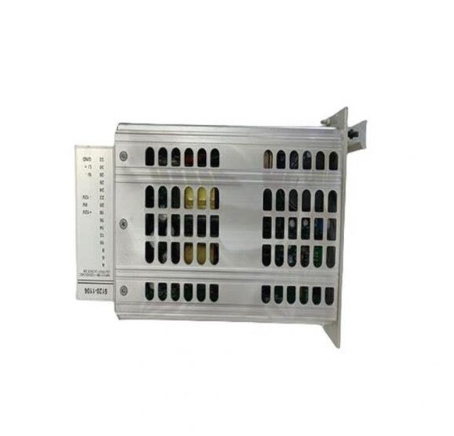

  • GE WES5120 2340-21003 Control Module
    ❤ Add to collection
  • GE WES5120 2340-21003 Control Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    The GE WES5120 2340-21003 control module is a high-performance core control unit developed by General Electric (GE) for the field of industrial automation and process control. It belongs to the WES5100 series intelligent control module family. This module has the core advantages of high computational accuracy and strong real-time response capability. It mainly undertakes key tasks such as signal acquisition, logical operation, control instruction output, and equipment linkage control in industrial sites. It is the core component for building small and medium-sized distributed control systems (DCS) and PLC control systems. Its applications cover multiple fields such as energy, manufacturing, and municipal engineering, especially in scenarios with strict requirements for control accuracy and system reliability, providing precise and stable control support for the automation operation of industrial production processes.

    • ¥12045.00
      ¥12745.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:1.340KG
    • Quantity:
    • (Inventory: 99999)
Description

The GE WES5120 2340-21003 control module is a high-performance core control unit developed by General Electric (GE) for the field of industrial automation and process control. It belongs to the WES5100 series intelligent control module family. This module has the core advantages of high computational accuracy and strong real-time response capability. It mainly undertakes key tasks such as signal acquisition, logical operation, control instruction output, and equipment linkage control in industrial sites. It is the core component for building small and medium-sized distributed control systems (DCS) and PLC control systems. Its applications cover multiple fields such as energy, manufacturing, and municipal engineering, especially in scenarios with strict requirements for control accuracy and system reliability, providing precise and stable control support for the automation operation of industrial production processes.




GE WES5120 2340-21003 Control Module

Basic overview of module

The GE WES5120 2340-21003 control module is a high-performance core control unit developed by General Electric (GE) for the field of industrial automation and process control. It belongs to the WES5100 series intelligent control module family. This module has the core advantages of high computational accuracy and strong real-time response capability. It mainly undertakes key tasks such as signal acquisition, logical operation, control instruction output, and equipment linkage control in industrial sites. It is the core component for building small and medium-sized distributed control systems (DCS) and PLC control systems. Its applications cover multiple fields such as energy, manufacturing, and municipal engineering, especially in scenarios with strict requirements for control accuracy and system reliability, providing precise and stable control support for the automation operation of industrial production processes.


Core technical parameters

2.1 Core operational parameters

-Processor model: Adopting a 32-bit industrial grade ARM Cortex-M4 core processor with a clock speed of up to 120MHz, it has efficient floating-point operations and interrupt processing capabilities;

-Memory configuration: Built in 256KB SRAM for real-time data caching, 512KB Flash for program storage, supporting up to 8GB external SD card expansion to meet the storage needs of complex control programs;

-Control cycle: The minimum control scanning cycle can reach 1ms, supporting multi task priority scheduling to ensure real-time response of critical control logic;

-Programming language support: Compatible with IEC 61131-3 standard, supports various programming methods such as LD (ladder diagram), FBD (functional block diagram), ST (structured text), etc., adapting to the usage habits of different engineers.

2.2 Input and output parameters

-Analog input: 8 differential analog input channels, supporting 4-20mA current signals or 0-10V voltage signals, input impedance ≥ 1M Ω, measurement accuracy ± 0.1% FS, suitable for continuous signal acquisition of temperature, pressure, flow, etc;

-Analog output: 4 analog output channels, optional output range of 4-20mA current or 0-10V voltage, output accuracy ± 0.2% FS, load capacity ≤ 500 Ω, can directly drive actuators, regulating valves and other equipment;

-Digital input: 16 channel isolated switch input, supports dry/wet contact input, response time ≤ 10 μ s, input voltage range DC 12-24V, with optocoupler isolation protection;

-Digital output: 8 relay outputs (contact capacity AC 250V/5A, DC 30V/5A)+8 NPN transistor outputs (maximum current 1A) to meet the control requirements of different types of loads.

2.3 Electrical and Environmental Parameters

-Power supply voltage: Wide range DC power supply, supporting DC 12-24V ± 10%, with overvoltage, overcurrent, and reverse connection protection functions, with protection thresholds of 30V and 5A respectively;

-Power consumption: No load power consumption ≤ 2W, full load power consumption ≤ 10W, excellent energy consumption performance in industrial control systems;

-Working environment: working temperature -20 ℃~60 ℃, storage temperature -40 ℃~85 ℃, relative humidity 5%~95% (no condensation), suitable for most industrial site environments;

-Isolation performance: The analog channel has 2500V AC isolation, and the digital channel has 1500V AC isolation. The anti-interference ability meets the IEC 61000-4 series standards.


Core functions and features

3.1 High precision control and data processing

The high-performance processor and high-precision signal conditioning circuit installed in the module ensure that the analog signal acquisition error is controlled within ± 0.1% FS, providing accurate data foundation for control logic operations. Supports PID (Proportional Integral Derivative) control algorithm and custom advanced control algorithm, with built-in PID parameter self-tuning function, which can automatically optimize control parameters according to the characteristics of the controlled object, suitable for closed-loop control of process variables such as temperature, pressure, liquid level, etc. At the same time, it has data processing functions such as data filtering, peak detection, and trend analysis, which can effectively eliminate on-site interference signals and improve control stability.

3.2 Rich communication and interconnection capabilities

The module is equipped with multiple types of communication interfaces, including 1 RS485 (supporting Modbus RTU/ASCII protocol), 1 Ethernet (supporting Modbus TCP, EtherNet/IP protocol), and 1 CANopen interface, which can achieve flexible interconnection with HMI, upper computer, intelligent instrument, and other control modules, and build a distributed control network. Support data transmission and protocol conversion functions, which can break down communication barriers between different devices and improve system integration efficiency. In addition, remote monitoring and program download functions are supported, allowing engineers to remotely configure module parameters and update control programs through the network, reducing on-site maintenance costs.

3.3 High reliability and safety design

The module adopts industrial grade components and reinforced PCB design, with excellent anti vibration (in accordance with IEC 60068-2-6 standard) and anti impact (in accordance with IEC 60068-2-27 standard) performance, suitable for harsh mechanical environments in industrial sites. Built in hardware watchdog circuit, which can automatically restart when the module encounters program abnormalities, ensuring the continuous operation of the system. At the same time, it has fault diagnosis and alarm functions, which can monitor the power supply status of modules, I/O channel faults, communication abnormalities, etc. in real time, and send alarm signals through relay output or communication methods, making it easy for staff to respond quickly.

3.4 Flexible Expansion and Adaptation Capability

The module supports connecting digital expansion modules, analog expansion modules, and special function modules (such as high-speed counting modules and pulse output modules) of GE WES5100 series through a dedicated expansion bus. It can expand up to 8 expansion modules to meet the I/O point requirements of different sites. Compatible with mainstream configuration software such as GE iFIX and Intellution FIX, supports data access to third-party SCADA systems, and has good software adaptability. The module adopts a standardized guide rail installation method, which is convenient to install and can be quickly integrated into existing control systems.


Typical application scenarios

-Energy industry: In the control systems of photovoltaic power plants and wind farms, it is used to collect the operating parameters of photovoltaic modules/wind turbines (such as voltage, current, power), and regulate the working status of inverters and converters through PID algorithms to achieve efficient energy conversion and stable output;

-Manufacturing industry: In the automation control of production lines, it undertakes the tasks of sensor signal acquisition (such as photoelectric sensors, proximity switch signals), actuator control (such as cylinders, motors, solenoid valves), and realizes the automation connection of processes through logical operations, improving production efficiency and product quality consistency;

-Municipal engineering: used for water pump control in water plants, dissolved oxygen control in aeration tanks in sewage treatment plants, collecting parameters such as water pressure, flow rate, and water quality, automatically adjusting equipment operation status, ensuring stable and compliant water supply/sewage treatment processes, and reducing energy consumption;

-Food and pharmaceutical industry: In the temperature control system of food processing and pharmaceutical production, high-precision temperature acquisition and PID control are used to control the temperature of the reaction kettle and oven within ± 0.5 ℃, meeting the strict requirements of the industry for the production environment.


Installation and usage precautions

1. The module needs to be installed on a DIN 35mm standard guide rail, and the installation position should avoid being close to high-power equipment (such as frequency converters) to prevent electromagnetic interference from affecting module performance;

2. Before wiring, it is necessary to confirm that the power supply voltage matches the rated voltage of the module. Analog input/output wiring should distinguish between positive and negative poles to avoid module damage caused by reverse wiring;

Before downloading programs or configuring parameters, ensure that the communication link between the module and the programming software is normal, and avoid power outages during the download process to prevent program loss or module failure;

4. In damp or dusty environments, protective enclosures should be provided for modules to ensure good ventilation and avoid poor heat dissipation affecting their service life;

5. Regularly maintain the module, check whether the wiring terminals are loose, whether the I/O channel signals are normal, clean the dust on the surface of the module in a timely manner, and ensure stable operation of the module.
