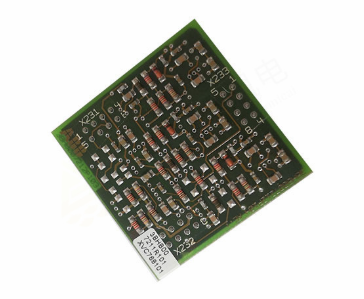

ABB XVC768101 3BHB007211R101 Controller Module

ABB XVC768101 3BHB007211R101 Controller Module

Core Features and Advantages

1. High speed and precise control performance

This module is equipped with a multi-core high-performance processor, combined with ABB's independently developed control chip, achieving nanosecond level data processing capability and millisecond level control response. It can simultaneously process multi-channel real-time signals in parallel, accurately execute complex adjustment control (such as PID, fuzzy control, predictive control), sequential control, and interlock protection logic. Even in industrial sites with multiple variable couplings and complex interference sources, it can ensure accurate output of control instructions and stable maintenance of process parameters, effectively improving the level of precision in industrial production.

2. Comprehensive compatibility and interconnectivity

The XVC768101 module follows international industrial communication standards and has rich hardware interfaces and protocol compatibility. It can seamlessly integrate with various I/O modules (AI/AO/DI/DO, special function modules, etc.) of ABB AC 800M series, and support mainstream industrial communication protocols such as PROFINET, EtherCAT, Modbus TCP/IP, OPC UA, etc. It can easily integrate into the existing automation network of the factory, achieve data exchange with sensors, actuators, PLCs, SCADA systems, and MES systems, and provide efficient data support for intelligent manufacturing in Industry 4.0 scenarios.

3. High reliability redundancy and fault-tolerant design

In response to the core requirement of "zero downtime" in industrial production, this module adopts a fully redundant architecture design, supporting a triple guarantee mechanism of controller thermal redundancy, power redundancy, and communication redundancy. The main controller and the backup controller synchronize data in real time. When the main controller encounters an abnormality, the backup controller can switch without disturbance within ≤ 5ms to ensure continuous and uninterrupted control process. At the same time, the module is equipped with hardware level fault diagnosis circuits and software fault-tolerant algorithms, which can monitor its own operating status in real time, automatically repair minor faults, and promptly alarm and locate serious faults, greatly reducing production losses caused by equipment failures.

4. Strong adaptability to the environment

The module adopts industrial grade reinforced housing and wide temperature range components, and has undergone rigorous environmental adaptability testing. It can operate stably in extreme temperature ranges of -40 ℃~70 ℃, humid environments with humidity of 10%~95% (no condensation), and harsh working conditions with vibration ≤ 5g and impact ≤ 15g. Has excellent electromagnetic compatibility performance (compliant with IEC 61000-6-2/3 standard), can resist strong electromagnetic interference in industrial sites, and ensure operational stability in strong interference scenarios such as power and metallurgy.

5. Convenient configuration and operation experience

Support graphical programming through official configuration software such as ABB Control Builder M or Automation Builder, providing a rich library of industry-specific functional blocks (such as turbine control blocks in the power generation industry and reaction process control blocks in the chemical industry). Engineers can quickly complete control program development through drag and drop configuration. At the same time, the software has remote monitoring, online debugging, fault diagnosis, and firmware upgrade functions, and operation and maintenance personnel can achieve equipment status monitoring and maintenance without physically visiting the site, greatly reducing operation and maintenance costs.

Key technical parameters

Basic Information

model

XVC768101 3BHB007211R101

Basic Information

affiliated system

ABB AC 800M/High end Process Control System

processor

Processor configuration

Dual core industrial grade processor with a clock speed of ≥ 1.2GHz

processor

control cycle

Minimum control cycle ≤ 1ms, supports multi cycle task scheduling

Memory configuration

Program memory

16MB FLASH (expandable to 32MB)

Memory configuration

Data memory

32MB RAM (expandable to 64MB)

I/O interface

interface type

Supports digital, analog, and pulse I/O modules, compatible with HART protocol modules

I/O interface

Maximum scalability

Support expansion of ≤ 32 I/O modules, maximum I/O points ≥ 1024 points

communication function

communication interface

2 Gigabit Ethernet ports, 1 RS485 interface, 1 redundant communication port

communication function

Supported Protocols

PROFINET, EtherCAT, Modbus TCP/IP, OPC UA, ABB S800 I/O bus

Power requirements

input voltage

24V DC (± 15%), supports dual power redundant input

Power requirements

Maximum Power Consumption

≤ 20W (full load operation)

environmental parameters

Operating Temperature

-40℃~70℃

environmental parameters

relative humidity

10%~95% (no condensation)

environmental parameters

Protection level

IP20 (module body), the installation inside the control cabinet can reach IP54

redundant function

Redundant configuration

Controller thermal redundancy, power redundancy, communication redundancy

Typical application scenarios

1. Power generation industry

In scenarios such as thermal power, nuclear power, and new energy generation, this module serves as the core controller and can achieve integrated control of boiler combustion systems, turbine speed control systems, generator excitation systems, and auxiliary equipment. By accurately adjusting key parameters such as fuel supply, steam parameters, excitation current, etc., the stable operation of the generator set is ensured, and the equipment status is monitored in real time to achieve fault warning and interlock protection, thereby improving power generation efficiency and operational safety. In wind power scenarios, it can be used for precise control of wind turbine pitch and yaw systems, adapting to changes in wind speed and maximizing wind energy utilization efficiency.

2. Rail Transit Industry

In the traction power supply system, signal control system, and station electromechanical equipment (such as ventilation, air conditioning, water supply and drainage) control of subways and high-speed railways, XVC768101 module achieves real-time control and monitoring of power supply voltage, traction torque, and equipment operation status with its high reliability and fast response capability. Support real-time interaction between train operation data and ground control system, ensuring the safe and efficient operation of the rail transit system. At the same time, its strong anti-interference performance can adapt to the complex electromagnetic environment along the track.

3. High end manufacturing industry

In high-end manufacturing scenarios such as automotive welding production lines, semiconductor manufacturing equipment, and precision machine tools, this module can achieve precise control of multi axis motion and process parameters (such as temperature, pressure, and flow). Through collaborative linkage with robots and visual inspection systems, automation and intelligence of the production process can be achieved, improving product processing accuracy and production efficiency. Its flexible expansion capability can adapt to the customized control requirements of different production lines and support rapid upgrading and iteration of the production process.

4. Chemical and metallurgical industry

In scenarios such as chemical reaction process control, metallurgical blast furnace smelting, and non-ferrous metal processing, modules can accurately control key process parameters such as reaction temperature, pressure, material ratio, and smelting current. Through complex control algorithms, they ensure stable production processes and improve product quality. Its high redundancy design and strong environmental adaptability can cope with corrosive gases in chemical workshops and high temperature and high dust environments in metallurgical sites, ensuring continuous and uninterrupted production processes.

Installation and usage precautions

-The module should be installed in a sealed, dust-proof, and well ventilated industrial control cabinet to avoid direct exposure to high temperatures, humidity, corrosive gases, and strong electromagnetic radiation environments. The installation location should reserve a heat dissipation space of ≥ 10cm to ensure smooth heat dissipation.

-Before wiring, all relevant power sources must be cut off, and wires and terminals that meet specifications must be used. Power circuits, signal circuits, and grounding circuits must be strictly distinguished according to the wiring diagram to avoid module damage caused by cross wiring. The grounding resistance should be ≤ 4 Ω to ensure good grounding.

-When configuring programming, it is necessary to use ABB official genuine configuration software and ensure that the software version matches the module firmware version. After programming is completed, offline simulation and logic verification should be performed to confirm that there are no errors before downloading the program through redundant communication links to avoid interruptions during the program download process.

-During the operation of the module, key parameters such as CPU load, memory usage, and communication status should be monitored regularly through configuration software. Monthly dust removal maintenance should be carried out on the control cabinet, and the tightness of the wiring terminals and the operation status of the module cooling fan should be checked quarterly to ensure stable operation of the equipment.

-When replacing modules or upgrading firmware, the backup controller should be activated first to ensure that the system is in a redundant operating state. After the replacement is completed, redundancy synchronization and functional testing should be performed to confirm that the new module is running normally before switching to the main controller to avoid production interruptions.

Summary

The ABB XVC768101 3BHB007211R101 controller module has become a high-end core control equipment in the field of industrial automation due to its high-speed and precise control performance, comprehensive compatibility and interconnection capabilities, highly reliable redundancy design, and strong environmental adaptability. Whether in industries with extreme reliability requirements such as power and rail transit, or in complex control scenarios such as high-end manufacturing and chemical metallurgy, this module can accurately empower the production process, achieving efficient, safe, and intelligent automation control. In practical applications, strictly following installation specifications and operation requirements can fully leverage its performance advantages and provide solid support for the digital transformation of industrial production.
