Complete Guide to Installation, Debugging, and Troubleshooting of Honeywell 7800 Series Relay Modules

In the field of industrial burner control, Honeywell 7800 series relay modules (including EC/RM7830A and EC/RM7850A) have become the preferred safety control equipment for gas, fuel, and dual fuel burners due to their microprocessor intelligent control, comprehensive flame monitoring, and powerful self diagnostic functions. This series of products not only meets strict safety standards such as EN298 and SIL3, but also supports keyboard display modules (KDM), data control buses, and combustion system management software, greatly improving the convenience of on-site debugging and maintenance. However, due to on-site wiring errors, external interlocking faults, unstable flame signals, or configuration jumper misoperation, engineers often encounter issues such as module failure to start, safety locking, and abnormal alarm indications. This article is based on the official technical manual, systematically reviewing the technical specifications, installation points, static inspection process, operation sequence, and typical troubleshooting methods of the 7800 series, providing a practical technical manual for on-site service personnel.

Product Series Overview and Model Differences

The Honeywell 7800 series includes four main models:

Model Power Supply Voltage Control Type Applicable Scenarios

RM7830A 120 Vac switch quantity (ON/OFF) North American market, gas/fuel single burner switch control

EC7830A 220-240 Vac switch quantity (ON/OFF) for European and international markets, switch control

RM7850A 120 Vac Modulation North American Market, Proportional Control

EC7850A 220-240 Vac fully modulating for European and international markets, proportional control

The EC/RM7830A and EC/RM7850A systems consist of relay modules, Q7800 sub bases, flame amplifiers, and purge timing cards, and can be optionally equipped with keyboard display modules (KDM), PC interfaces, data control bus modules, etc. EC7850A/RM7850A provides additional power regulation outputs (high fire, low fire, modulation terminals), suitable for applications that require continuous adjustment of combustion output power (such as steam boilers, hot oil furnaces).

Core Technical Specifications and Certification

2.1 Electrical Rating

Parameters RM7830A/RM7850A EC7830A/EC7850A

Power supply voltage 120 Vac (+10%/-15%) 220/240 Vac (+10%/-15%)

Frequency 50/60 Hz (± 10%) 50/60 Hz (± 10%)

Power consumption ≤ 10 W ≤ 10 W

Maximum total load 2000 VA 2000 VA

15A fast fuse, SC type 15A fast fuse, SC type

2.2 Environmental conditions

Working temperature: -40 ° F to+140 ° F (-40 ° C to+60 ° C)

Storage temperature: -40 ° F to+150 ° F (-40 ° C to+66 ° C)

Humidity: 85% relative humidity, continuous, no condensation

Vibration: Maximum 0.5G

2.3 Security Certification

SIL 3 capability (in appropriately designed safety instrumented systems)

FM certification (Factory Mutual)

EU Gas Appliance Directive (90/396/EEC), LVD, EMC

EN298 certification

Lloyds Register

Compliant with FCC Part 15 Class B radiation restrictions

Installation points and wiring specifications

3.1 Sub base installation

The Q7800 sub base can be installed on walls, burners, or electrical panels. Installation direction: Vertical is the recommended position, and it can also be installed horizontally, but the blade terminal must be facing downwards. During installation, it is necessary to ensure that:

Reserved maintenance space: at least 2 inches (51mm) below the relay module for flame amplifiers; At least 3 inches (76mm) on both sides are used for voltage probes.

Secure with 4 # 6 screws.

The sub base wiring must comply with NEC Class 1 (line voltage) specifications.

3.2 Wiring precautions (key)

Power disconnection: The main power supply must be disconnected before wiring, and there may be multiple disconnection points.

Wire specifications: The line voltage terminals use 14, 16, or 18 AWG copper conductors, 600V insulation, and moisture resistance. KDM and data bus use 22 AWG twisted pair shielded wire (Belden 8723 or equivalent).

Wiring rules:

It is strictly prohibited to thread the high-voltage ignition transformer wire into the same conduit as the flame detector, data bus, or remote reset module wire.

The wires of the flame detector must be protected by metal pipes or conduits.

The Data ControlBus should adopt a daisy chain topology, and when the connection exceeds 100 feet (30.5 meters), a 120 Ω (1/4W) terminal resistor should be connected in parallel between terminals 1 and 2 at both ends.

Grounding: The sub base and relay module need to be reliably grounded, using wide copper tape or 14 AWG wire to ensure that the grounding resistance is low enough to melt the 15A fuse in case of internal short circuit. The signal shielding layer should be grounded at both ends of the daisy chain.

3.3 Maximum wire length

Control inputs (terminals 6, 17, 20, etc.): 300 feet (91 meters)

Flame detector wire: determined by the strength of the flame signal (usually recommended ≤ 100 feet)

Remote reset button: 1000 feet (305 meters)

Data bus: total length 4000 feet (1219 meters)

3.4 Relay module installation

Align the relay module vertically with the L-shaped guide slot of the sub base and insert it with a motion (rather than hinge action) to fully insert the blade terminal into the fork shaped contact, then tighten the top two screws (without deforming the plastic). After installation, check if there are any protruding wires that interfere with the contact.

Static inspection (required before power on)

Static inspection is a critical step in verifying the integrity of external wiring and equipment before installing the relay module onto the sub base. All manual fuel shut-off valves must be closed to prevent explosions.

4.1 Required Tools

Voltage meter (input impedance ≥ 1M Ω/V, range 0-300V AC)

Two 14 AWG insulated jumpers with insulated alligator clips at both ends, approximately 12 inches long

4.2 EC/RM7830A Static Inspection Procedure (Abstract)

Follow the order in the table below (see Table 5 in the original text for the complete table):

Test the position of the jumper voltmeter and troubleshoot any abnormal results

1 without 5-2 terminal 5 with line voltage main switch, power supply, fuse

2 without 17-2 terminal 17 with voltage pre blowing interlock

3 5-16- Alarm Action Alarm Circuit

4 5-16, 2-20 20-2 have limit switches in the voltage locking circuit

5-16, 2-6 6-2 have voltage cycling limit and burner control

6 5-16, 5-4 7-2 fan start, terminal 7 has voltage fan circuit, operating limit, wind pressure switch

7 5-10- Spark ignition electrode, ignition transformer

8 5-8- Ignition spark+pilot valve opening pilot valve actuator, valve head

9 5-21- Same Test 8 (if using intermittent guidance) Same Test 8

10 5-9- Main fuel valve open main valve actuator

After the test is completed, the main switch must be turned on and all jumpers must be removed!

4.3 EC/RM7850A Static Inspection Procedure (Additional Item)

In addition to the above items 1-10 (corresponding to slightly different terminal numbers, see Table 6 in the original text), it is also necessary to test the firepower regulation circuit:

Test jumper, normal results, abnormal troubleshooting

11, 12-13, 18-2, terminal 18 voltage changes from presence to absence (motor on to high fire), low fire start switch, regulating motor and transformer

On December 12-13 and 19-2, the motor is turned to high flame, and terminal 19 has a voltage high flame blow switch and motor adjustment

13, 14-13, 19-2 motor turned off to low flame, terminal 19 has no voltage, low flame start switch, motor adjustment

When the controller is given a change, the corresponding action of the motor is controlled by the controller and the motor is adjusted

Important: All jumpers must be removed after completion, otherwise it may damage the equipment.

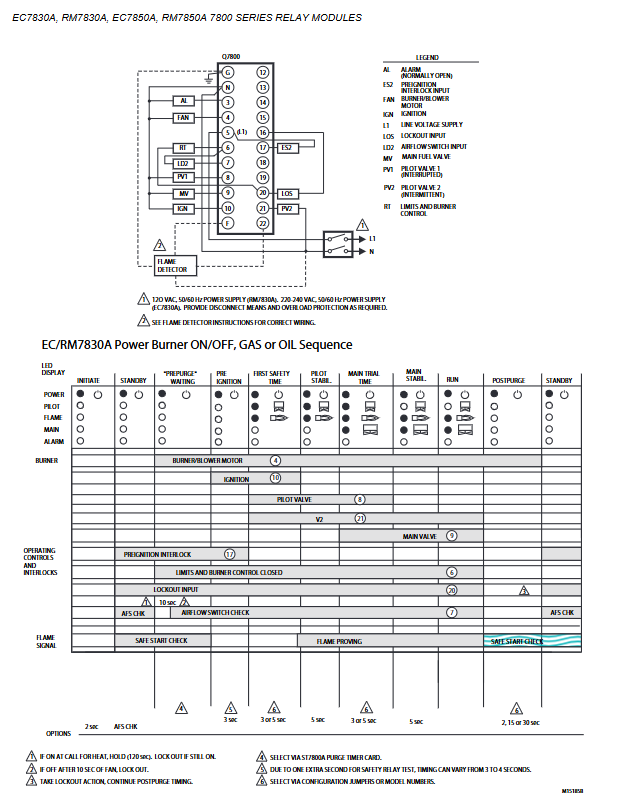

Operation sequence and security locking conditions

The 7800 series relay module follows the standard burner start/run sequence, with strict safety interlocks at each stage. The following are the key conditions that may trigger lockout in each stage.

5.1 Initial Stage

When the module is powered on for the first time or detects that the voltage/frequency exceeds the tolerance (+10/-15% voltage, ± 10% frequency), it enters. If the conditions are not met, it will remain in a hold state for up to 4 minutes and then lock. Common reasons: AC line power failure, line noise, low voltage.

5.2 STANDBY Stage

The locking conditions include:

There is a false flame signal for more than 40 seconds

Pre blowing interlock cumulative disconnection for 30 seconds

Enable and close the wind pressure switch for 120 seconds (when the limit and burner control are closed)

Accidentally energized guide valve or main valve terminals

Internal system malfunction

The blowing card is missing or damaged

5.3 PurGE Stage

Locking conditions:

Pre blowing interlock disconnected

Detected flame signal

High flame switch not closed within 5 minutes (EC/RM7850A)

The wind pressure switch does not close within 10 seconds

The wind pressure switch is disconnected during blowing

Lock input disconnected

Guide valve or main valve terminals are energized

Internal malfunction, blowing card issue

5.4 Pre ignition stage

Locking conditions:

Lock input, wind pressure switch, pre blow interlock disconnected

Detected flames

The ignition transformer is not charged

Guide valve terminal not charged or main valve terminal charged (opposite)

Blow card defect

5.5 First Safety Time (SAFETY1) Stage

Locking conditions:

Lock input, wind pressure switch, low flame switch (EC/RM7850A) disconnected

Safe time ends without flames

The ignition transformer is not charged

The guide valve terminal is not energized

The main valve terminal is live

Blow card issue

5.6 PILOT STAB. Phase of Guided Stability

Locking conditions:

Lock input, wind pressure switch, low fire switch disconnected

flame lost

The ignition transformer is energized (should have been cut off)

The guide valve terminal is not energized

The main valve terminal is live

5.7 Main Trial Stage

Locking conditions:

Lock input, wind pressure switch, low fire switch disconnected

flame lost

The ignition transformer is energized (should have been cut off)

The guide valve terminal is not energized

The main valve terminal is not energized

Blow card defect

5.8 RUN phase

Locking conditions:

flame lost

Lock input disconnected

Accidental electrification of ignition transformer or pilot valve

The main valve terminal is not energized

Wind pressure switch disconnected

Blow card issue

Post Purge Stage 5.9

Locking conditions:

Guide valve or main valve terminals are energized

Internal malfunction or blowing card issue

Configurable jumper settings and locking risks

The 7800 series module is equipped with three field configurable jumpers (JR1, JR2, JR3), which are achieved by cutting the corresponding resistors. The module will lock the jumper state after the first 200 hours of operation of the main valve. Any subsequent cutting or restoring operation will result in an irretrievable lock (code 110), and the module must be replaced. Therefore, all jumper configurations must be completed during the installation and debugging phase (before 200 hours of operation).

The jumper function remains (uncut) and is cut off

JR1 first safety time (SAFETY1) 5 seconds 3 seconds (note: EC7850A1148/RM7850A1035 is 3 seconds → 2 seconds)

JR2 main flame test time 5 seconds 3 seconds

JR3 wind pressure switch without wind pressure switch (terminals 6-7 need to be short circuited) with wind pressure switch (short circuited 6-7 is prohibited)

Important: If JR3 is cut (with the wind pressure switch enabled), there must be no jumper wires between sub base terminals 6 and 7, otherwise the module will immediately lock.

Compatibility between flame signal measurement and amplifier

The 7800 series relay module is compatible with various flame amplifiers such as R7824, R7847, R7848, R7849, R7861, R7886, etc. The voltage range of the flame signal (between terminal F (11) and ground) is 60-220 Vac, with limited current. A high impedance voltmeter is required for measurement.

Common reasons for weak flame signals:

Flame detector lens contamination

The detector wiring is too long or the shielding is poor

Improper sensitivity setting of amplifier

Improper proportioning of burner air doors leads to unstable flames

Tip: KDM can be used to read flame signal intensity in real-time (displayed in microamperes or voltage values), making it a powerful tool for quickly diagnosing flame detection problems.

On site application of Run/Test switch

The Run/Test switch located at the top of the relay module is very practical for debugging and troubleshooting:

Switch position effect

Blow high flame stage → TEST stop blowing timing, maintain high flame position

Blow down low flame stage → TEST Keep low flame position

Guiding stable phase → TEST stop timer, allowing for guiding flame adjustment (activation of 15 second flame loss timer)

Operation phase → TEST drive adjustment motor to low fire position (EC/RM7850A only)

After completing the debugging, be sure to turn the switch back to the RUN position!

Common fault phenomena and troubleshooting ideas

Troubleshooting steps for possible causes of fault phenomena

The module has no response when powered on, the POWER LED is not lit, the power supply is missing, and the fuse is blown. Measure the voltage at terminal 5-2 (120V/220V); Check the external fuse

The lock indicator light is on, and the KDM displays an error code. The safety interlock is disconnected or there is an internal fault. Please refer to the KDM error code table (if code 110 is a jumper change lock, the module needs to be replaced)

The blowing fan does not start, and the pre blowing interlock is not closed or the wind pressure switch is faulty. Static inspection test 6: Short circuit 5-16 and 5-4 and measure the voltage at terminal 7. If there is no voltage, check the fan circuit

The ignition spark is normal but there is no guiding flame. The guiding valve is not open or the gas pressure is low. Static inspection test 8: Short circuit 5-8 and listen to the valve head action; Measure the voltage of the valve coil

Guide the flame normally but the main valve does not open. Main valve coil fault or wiring error. Static inspection test 10: Short circuit 5-9 and observe the action of the main valve; Check the voltage of terminal 9

Immediately lock the flame signal detection circuit after the flame is established, and measure the flame signal voltage if the amplifier sensitivity is inappropriate; Check the grounding of the detector; Adjust amplifier

During the MAIN DUAL phase, if the module is locked and the flame is lost or the main valve is not opened, check the supply pressure and valve position switch of the main valve; Confirm flame stability

Check the quality of the power supply for occasional and irregular locking of line noise, voltage drop, and poor grounding; Verify shielding grounding; Install line filter

Preventive maintenance and spare parts recommendations

To ensure the long-term reliable operation of the 7800 series system, it is recommended to:

Every six months: Clean the flame detector lens, check the insulation of the wires and the tightness of the terminals.

Every year: simulated flame fault testing (closing fuel valve, starting burner, verifying module locks within specified safe time); Clean the sub base pins.

Every 3 years: Replace the flame amplifier (if the model is discontinued); Update KDM firmware (if available).

Spare parts: Relay module body, Q7800 sub base, commonly used flame amplifier (R7847/7848), ignition transformer, pilot valve/main valve coil.
