KEB F4 Inverter Debugging Guide

CP.5 Rated frequency: Set the frequency at which the frequency converter outputs the maximum voltage, usually equal to the rated frequency on the motor nameplate (such as 50Hz or 60Hz). Setting errors can cause overheating of the motor magnetic circuit or insufficient torque.

CP.6 Enhancement: Compensate for voltage drop on stator resistance at low frequencies. The factory value is 2%. If the motor shakes or loses power during low-frequency startup, this value can be increased appropriately, but excessive value can cause the motor to overheat.

CP.7/CP.8 Acceleration/deceleration time: defined as the time required from 0 to 100Hz. The actual addition and subtraction time to the target frequency is calculated proportionally.

Application scenario: If CP.7=10s, it is required to accelerate from 10Hz to 60Hz (with a change of 50Hz), and the actual acceleration time is (50/100) * 10s=5s. This calculation method is crucial for precise control of the process rhythm.

CP.9 Minimum Frequency&CP.10 Maximum Frequency: Define the output frequency corresponding to a given analog quantity of 0% and 100%.

CP.11-13 Fixed frequency: selected through digital input I1/I2. If the set value exceeds the range of CP.9/CP.10, it will be internally limited.

Chapter 3: Advanced Feature Optimization - Improving System Performance and Protection

After the basic operation is met, dynamic response and equipment protection need to be optimized through the following parameters.

3.1 Current limitation and stall protection

CP.14 Maximum Slope Current: During acceleration, if the current exceeds this set value, the acceleration process will pause (displaying "LAS") and continue accelerating after the current drops. This effectively prevents overcurrent tripping caused by excessive load or steep acceleration. The setting range is 10-200%, with 200% indicating that this function is turned off.

CP.15 Maximum constant speed current: During constant speed operation, if the load suddenly increases and the current exceeds the standard, the frequency converter will automatically reduce the frequency to reduce the current (display "SSL") and prevent motor overload tripping.

3.2 Speed Search and Voltage Stability

CP.16 Speed Search: When connecting a rotating motor (such as wind-driven or inertial coasting), activate this function (with a combination of set values of 1, 2, 4, and 8), and the frequency converter will search for the current actual speed and smoothly take over. This has extremely high value when restarting wind turbine loads, avoiding startup overcurrent.

CP.17 Voltage Stability: It can stabilize the output voltage and prevent it from being affected by fluctuations in the input power supply. This is a good choice in remote areas with unstable power grids or generator power supply scenarios.

3.3 Torque compensation and slip compensation

CP.18 Slip compensation: An increase in load will cause a decrease in the speed of the asynchronous motor. Setting this parameter to 1.00 and optimizing it can automatically increase the frequency to compensate for slip and achieve almost constant speed characteristics.

CP.19 Automatic Boosting: Automatically boosts voltage under high load torque to maintain a constant magnetizing current. When using this function, it is necessary to check the motor voltage without load to ensure that the voltage returns to normal. Otherwise, the set value needs to be lowered.

3.4 DC braking

CP.20 DC braking mode&CP.21 braking time: DC braking is suitable for situations that require rapid "stopping" or "positioning" (such as lifting and positioning).

Mode 1: Brake when the direction signal is turned off and the frequency reaches 0Hz.

Mode 7: Trigger braking through external terminal X1.6. This configuration is commonly used for emergency stop or front action of mechanical brake.

3.5 Relay Output Programming

CP.22 Relay output function: The factory default value is 2 (fault indication). It can be modified to more than 20 states, such as 12 (load rate>100% warning), 15 (accelerating), 23 (running signal without fault), etc., providing rich operating information for external monitoring systems.

CP.23 frequency level: When using version S and setting CP.22 to 20 or 21, this parameter determines the frequency threshold for relay action and has a hysteresis of 0.5Hz to prevent frequent shaking of the relay near the threshold.

Chapter 4: Operation Mode and Manual Debugging - The Wonderful Use of "Drive Mode"

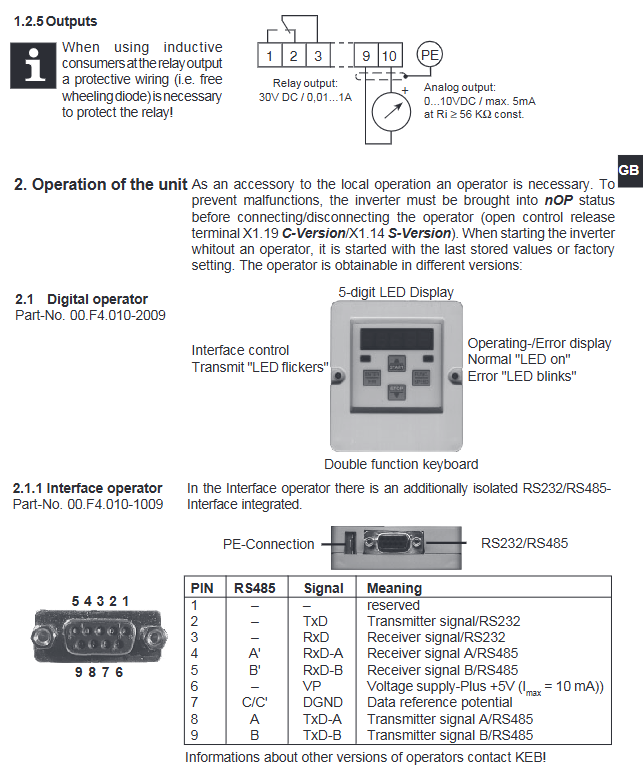

The F4 series provides a powerful on-site debugging mode, Drive Mode. No external PLC or potentiometer is required, the motor can be controlled solely through the operation keyboard.

Activation method: Enter a specific password in CP.0 (password input) (see page 129 of the document, usually a maintenance level password).

Operation logic:

Forward and Reverse: Set through the directional keys on the keyboard, and "Forward" has priority.

Set value: Modify the given frequency directly by pressing the up and down keys.

Start stop: Control the short-circuit status of the release terminal.

Exit method: In the shutdown state (displaying noP or LS), press and hold the FUNC+ENTER keys simultaneously for 3 seconds.
