Troubleshooting of Rockwell AutoMax DPS

Rockwell AutoMax DPS Distributed Power System On site Troubleshooting and Maintenance Guide

In the field of industrial automation, Rockwell Automation's AutoMax distributed power system (DPS) is widely used for AC/DC drive control in industries such as metallurgy, papermaking, mining, and shipbuilding, thanks to its modular architecture, high-speed RISC processor, and fiber optic communication technology. The system achieves excellent dynamic response and reliability by separating advanced control from power conversion. However, with equipment aging, harsh on-site environments, or improper operation, engineers often face typical faults such as communication interruptions in UDC modules, inability to start PMI, excessive attenuation of fiber optic links, and loss of drive configurations. This article is based on the official technical manual of AutoMax DPS, combined with years of on-site service experience, to systematically sort out the core hardware composition, common failure modes, and standardized troubleshooting methods of the system, helping maintenance personnel quickly locate problems and restore production.

Overview of AutoMax DPS System Architecture

The AutoMax distributed power system adopts a hierarchical control concept, dividing control tasks into three levels:

AutoMax processor layer: located in the mainframe, responsible for high-level control algorithms, multi drive coordination, and system level sequential control.

Universal Drive Controller (UDC) module layer: Installed in the AutoMax rack, each UDC can control 1 to 2 drives. It runs the outer loop control task and communicates with the power module interface (PMI) through a fiber optic link.

Power module interface (PMI) layer: located near the power module, it executes real-time adjustment algorithms such as current loop and speed loop to generate trigger pulses for power devices.

The system supports multiple types of drives, including SD3000/SF3000 DC drives, SA500, SA3000 (medium/high power), SA3100 AC drives, and 1567 PowerMax medium voltage drives. The PMI hardware configuration of different drives varies (4-slot or 8-slot rack), but they are all controlled through the same UDC module and fiber optic link.

Typical System Component List (Taking SA3000 High Power Drive as an Example):

UDC module (with dual port memory and flash memory)

Optical fiber cable (point-to-point, up to 750m, 10Mbps Manchester encoding)

8-slot PMI rack: power module, PMI processor module, rotary/drive I/O module, AC power technology module, parallel interface module, up to 3 gate drive interface modules

Local Power Interface (LPI) module

High power AC power module (534A, 972A, 1457A)

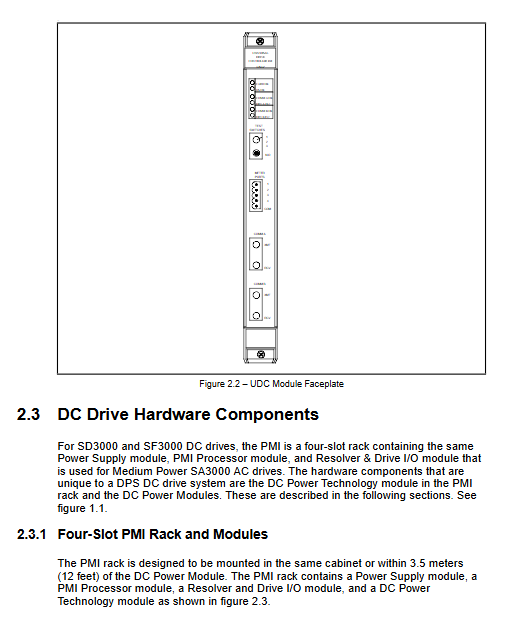

UDC module troubleshooting

The UDC module is the core control unit of the DPS system, and its failure can cause the corresponding driver to fail to operate.

2.1 Common Fault Phenomena and Causes

Possible causes of fault phenomena and diagnostic methods

UDC module LED is completely off, and the rack power supply is missing or the module is not fully inserted. Check the rack power supply and unplug the module again

The communication link LED (COMM A/B) flashes or goes out. If the fiber optic link has excessive attenuation, connector contamination, or PMI is not powered on, use an optical power meter to measure the optical power at the receiving end and clean the connector

After the module is powered on, it cannot load the operating system. The operating system in the flash memory is damaged or the version does not match. Use AutoMax programming to execute software and re download the UDC operating system (57C65x series software)

Check the D/A enable bit in the UDC task for software configuration errors or hardware faults without signal output port, and measure the output with an oscilloscope

Dual port memory data exception AutoMax processor and UDC scan synchronization issue check rack backplane CCLK signal, adjust SPI% register (2001)

2.2 UDC module replacement steps

When the UDC module is damaged and needs to be replaced, please follow the following process:

Record existing configuration: Use AutoMax programming software to upload the current rack configuration and save it as SY file.

Power off and mark the fiber: Turn off the rack power and mark the receiving and transmitting ends of the two fibers (COMM A TX/RX, COMM B TX/RX). Note that there are two fiber channels on the UDC module panel, each containing transmit and receive ports.

Remove the faulty module: Release the upper and lower buckles of the module and pull out the module.

Install new module: Insert the new UDC module into the same slot to ensure it is fully seated.

Restore fiber optic connection: reinsert the fiber optic cable according to the markings, taking care not to bend it too small (see cable specifications for minimum bending radius).

Restore power supply and download configuration: After powering on, use programming software to download rack configuration files and UDC tasks. If there is no operating system in the flash memory, the UDC operating system needs to be downloaded first (through the "Load OS" function).

Verify communication: Observe that the COMM A/B LED on the UDC panel should be constantly green (indicating successful synchronization with PMI).

Note: The non-volatile flash memory of the UDC module stores the PMI operating system. After replacement, PMI will request the operating system from UDC. As long as the UDC operating system exists and the parameters are correct, PMI will automatically download and run it.

Troubleshooting of Fiber Optic Link Malfunctions

The fiber optic link is the only communication channel between UDC and PMI, and its reliability directly determines system stability.

3.1 Typical faults

Link completely interrupted: PMI cannot start, UDC panel COMM LED is red or off.

High bit error rate: The drive occasionally reports "communication failure" and speed fluctuations.

Insufficient optical power: The received power measured by the optical power meter is close to the sensitivity limit of the receiver.

3.2 Diagnostic Tools and Procedures

Required tools: optical power meter (compatible with 650nm or 850nm wavelengths), fiber cleaning pen, spare fiber jumper.

Steps:

Disconnect the transmitting fiber at the UDC end, connect it to an optical power meter, and measure the transmitted optical power. The normal value should be ≥ the nominal value (usually -15dBm to -5dBm).

If the transmission power is normal, measure the received optical power at the PMI end. The allowed link loss should meet the optical power budget (transmit power receive sensitivity margin ≥ 0). The typical receiving sensitivity is -25dBm to -30dBm.

If the loss is too large (such as>10dB), check:

Is the bending radius of the optical fiber too small (should not be less than 10 times the outer diameter of the cable).

Whether the connector is contaminated (clean the ceramic plug with anhydrous alcohol and lint free cotton swabs).

Whether the fiber optic cable is stretched excessively (maximum allowable tension is specified in the cable specification).

Use a fiber optic fault locator or OTDR to locate breakpoints or macro bends.

3.3 Fiber replacement guide

When the fiber optic cable is damaged and needs to be replaced, it must use multimode fiber optic cables that meet Rockwell specifications (50/125 μ m or 62.5/125 μ m) and have a length not exceeding 750 meters. When making homemade optical fibers on site, attention should be paid to:

Use specialized fiber optic cutting knives and crimping tools.

Correctly install ST or SMA type connectors (recommended types in the manual).

Test insertion loss ≤ 0.5dB/connector.

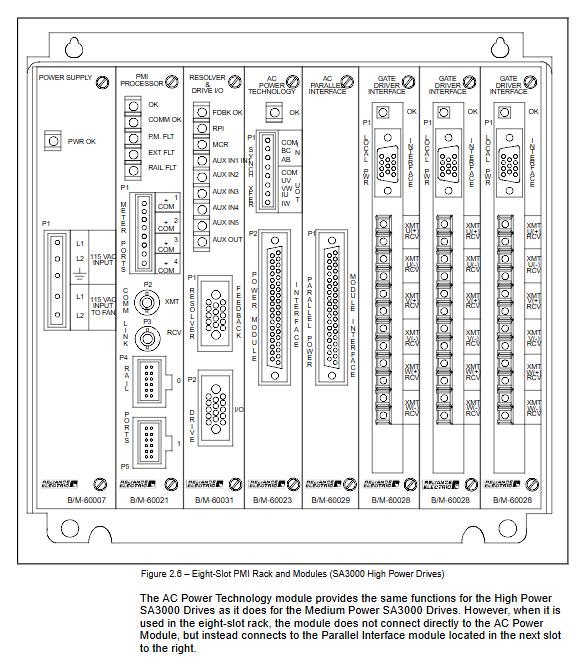

PMI rack and module troubleshooting

PMI racks come in two types: 4-slot and 8-slot, depending on the type of drive. Taking the SA3000 high-power drive as an example.

4.1 Power module malfunction

The PMI power module provides 115VAC input and outputs DC voltages such as+5V and ± 15V to the backplane. Fault manifestation: All LEDs of the entire PMI rack are turned off.

Troubleshooting steps:

Measure the input terminal voltage (should be 115VAC ± 10%).

Check the LED on the power module panel: If the input is normal but there is no output, replace the power module.

Check if there is a short circuit on the backplane (unplug all modules and insert them one by one for testing).

4.2 PMI processor module failure

The PMI processor runs the inner loop algorithm and the panel has 5 status LEDs. Common faults:

LED 'RUN' not lit: processor is not running. Attempt to re download the PMI operating system through UDC.

LED "COMM" flashing: synchronization with UDC lost. Check the driver enable bits in the fiber optic link and UDC tasks.

LED "FLT" constantly on: hardware failure or internal self-test failure. The module needs to be replaced.

Note: The PMI processor module comes with two rail ports (Rail A/B) for connecting AutoMate digital/analog rails. If there is a communication failure in the rail, check if the rail cable is short circuited or if the terminal resistance is correct.

4.3 Rotary/Drive I/O Module Failure

This module provides a rotary feedback interface, analog input, and driver I/O. common problem:

Rotary feedback loss: Abnormal motor speed feedback. Measure the sine/cosine signal with an oscilloscope and check the shielding grounding.

Drive I/O point unresponsive: Check external wiring and module internal configuration (through variable mapping).

The rotary to digital converter of this module can automatically tune the cable length (up to 150 meters). If replacing the rotary cable, the "self-tuning" command should be sent through the UDC task.

4.4 AC power technology module malfunction

This module generates PWM trigger pulses and is connected to the power module through a parallel interface module (PIM) or directly. Fault manifestation:

PMI unable to output: The "EN" LED on the module panel is not lit. Check the enable conditions from the PMI processor.

Trigger pulse missing: Use an oscilloscope to measure the pulse at the module output. If the output is normal, the problem lies in the subsequent gate drive interface or power module.

4.5 Gate driver interface (GDI) module malfunction

In high-power driving, each power unit corresponds to a GDI module, which is connected to the IGBT gate driver through optical fibers. Fault phenomenon:

GDI module panel LED "PWR" is not lit: check the power supply of the backplane.

Fiber optic communication failure: The fiber optic link between GDI module and LPI module is interrupted. Test using the same method as UDC-PMI.

Gate fault feedback: The power unit reports IGBT short circuit or open circuit. Need to check the power module.

Replacement precautions: The GDI module is paired with a specific power unit and needs to be recalibrated after replacement (executed through AutoMax software).

Power module and bus malfunction

5.1 SA500 Driver

The PMI of the SA500 driver is integrated into the power module without a separate rack. Common faults:

Abnormal DC bus power supply: Check the LED on the DC Bus Supply panel. If the bus voltage is too low, check the input power supply, fuses, and braking resistors.

Overheating of power module: Check if the fan is running and if the ambient temperature exceeds 50 ° C.

IGBT fault: Report "overcurrent" or "ground fault". Measure the resistance of the power module output terminal to the DC bus using a multimeter to determine if the IGBT has broken down.

5.2 SA3000 Medium/High Power Drivers

The medium power module (70-240A) adopts IPM intelligent power module with built-in protection and diagnosis. The high-power module (534-1457A) consists of multiple power units connected in parallel, requiring additional attention to current sharing issues.

Troubleshooting of current sharing faults:

Measure the current feedback signal of each parallel unit (through LPI module), and if the deviation exceeds 10%, check whether the gate drive signal is synchronized.

Check whether the PMI output reactor is overheated or damaged.

5.3 1567 PowerMax Medium Voltage Drive

This driver uses a three-level NPC inverter with GTO as the power device. Typical faults:

Liquid cooling system alarm: Check the coolant level, pump pressure, and temperature sensors.

Gate Drive Unit (GDU) malfunction: Fiber optic link or GDU power supply issue.

Neutral point potential deviation: monitored through PMI's MV power technology module, the DC bus capacitor bank needs to be checked.

Software configuration and programming issues

All configuration and programming of the AutoMax DPS system are completed through the AutoMax programming execution software (Windows environment). The most common software malfunctions on site include:

6.1 Driver parameter configuration error

When configuring drive parameters in Rack Configurator, inputting incorrect motor nameplate data (rated voltage, current, speed) or power module model can cause the drive to malfunction.

Solution:

Re enter the drive configuration form and verify the following parameters:

Rated power/current/speed of motor

Current transformer ratio (if any)

Twisted polar logarithm

Power module types (S6, S6R, SA500, etc.)

Download the modified configuration to the UDC module (UDC task needs to be restarted).

6.2 UDC task cannot be compiled or run

UDC tasks are written in Control Block language and are limited by predefined block sets. Common compilation errors:

Undefined predefined variables: Each UDC task must contain predefined variables specific to the driver type (such as gain data, spin calibration data). Refer to the template in the software manual (SKELETON. UDC).

Improper scanning time setting: When using the SCAN_LOOP statement, the scanning period (tick count x tick rate) must match the feedback period of PMI. The UDC fixed tick rate is 0.5ms.

Debugging skills:

Monitor the variable values of UDC tasks online in AutoMax Executive and observe the updates of dual port registers.

Check the SPI% register (2001), which determines the relationship between the number of UDC task scans and dual port memory updates and interrupt triggering.

6.3 Operating system loading failure

When the UDC module or PMI's operating system is damaged, it needs to be reloaded. Steps:

Ensure that the corresponding DPS software product (such as 57C653 SA3000 DPS software) has been purchased.

Use the "Load OS" function of the programming execution software to select the correct operating system file (. HEX).

Do not turn off the power during the loading process. After completion, the UDC module will automatically download the operating system to PMI.

Note: If PMI powers on before UDC, PMI will continue to request the operating system until UDC responds. Therefore, the rack should be powered on first, and then the PMI rack should be powered on.

Typical Fault Case Analysis

Case 1: SA3000 Drive Jumps "Communication Fault" During Startup

Phenomenon: After pressing the start button, the motor micro rotates and immediately stops, the UDC panel COMM A LED flashes red, and the PMI processor LED "COMM" goes out.

Troubleshooting process:

Measure the optical power at the receiving end of the fiber optic link: -28dBm (sensitivity below -25dBm).

Check the fiber optic cable routing: It was found that a section of fiber optic cable was pressed under the cable tray, with a bending radius of about 2cm.

Repay the fiber optic cable and restore the optical power to -18dBm after bending with a radius greater than 5cm.

Restart the system and restore normal communication.

Conclusion: Macrobending leads to excessive attenuation of optical power, resulting in loss of bit synchronization.

Case 2: Speed fluctuation of SD3000 DC driver

Phenomenon: The motor has unstable speed and periodic shaking at low speeds (<50RPM).

troubleshoot

Entering the AutoMax Executive to monitor the speed feedback values in the UDC task online, it was found that the fluctuations were synchronized with the current feedback.

Check the current loop gain (adaptive gain function) in PMI. The parameter 'Adaptive Gain Enable' has not been enabled.

After enabling adaptive gain, low-speed fluctuations disappear.

Principle: In the low current intermittent region of a DC driver, conventional gain cannot be maintained stably, and adaptive gain needs to be enabled.

Case 3: 567 PowerMax medium voltage drive reports "gate pole fault"

Phenomenon: Sudden tripping during operation, with the fault recorded as' Gate Driver Fault - Phase A '.

troubleshoot

Check the panel LED of the corresponding GDI module: The fiber TX/RX is normal, but the "Gate Fault" LED is on.

Check the gate drive board (GDU) of the power unit and find that the power indicator light of one GDU is not on.

Measuring the input voltage of GDU, it was found that the fuse was blown.

After replacing the GDU and fuse, resume operation.

Attention: After replacing the GDU, the gate pulse width needs to be recalibrated (using PMI software tool).

Preventive maintenance and spare parts list

To ensure the long-term reliable operation of the AutoMax DPS system, it is recommended to maintain it according to the following cycles:

Component cycle content

Clean the end face of the fiber optic connector with anhydrous alcohol every six months and check for scratches

PMI rack fans clean the filter screen annually, measure the speed or replace the bearings

Measure the capacitance and equivalent series resistance (ESR) of the DC bus capacitor every 5 years, and replace it if it decreases by 20%

UDC module battery (if any) is measured for voltage every year and replaced when it falls below 3V (note: UDC uses flash memory and does not require batteries)

The power module heat sink is cleaned of dust with compressed air every quarter

Check the grounding resistance of the shielding layer and measure the insulation resistance of the rotary cable every 2 years

Recommended spare parts list (based on on-site configuration):

UDC module (P/N 57Cxxx)

PMI processor module (applicable to corresponding driver types)

Fiber optic jumper (ST-ST, multiple lengths)

Power module (115VAC input)

Rotary/Drive I/O Module

IGBT or IPM of power module (specific model needs to be confirmed)
