In the field of ship propulsion control, ZF Marine's ClearCommand 9000 series electronic control system is widely used in various types of government ships, merchant ships, and yachts due to its advantages of single pole control, multi station joint control, and high reliability. However, salt spray corrosion, vibration impact, and electrical interference in the marine environment often lead to typical faults such as communication interruption, control failure, and alarm false alarms in the system. This article is based on the official technical manual of ClearCommand 9000 series, combined with on-site service experience, to systematically sort out the setting process, common fault codes, auditory alarm meanings, and systematic troubleshooting methods of this series of control systems, helping marine engineers and maintenance personnel quickly locate problems and restore normal system operation.

System Overview and Core Model Identification

The ClearCommand 9000 series includes multiple processor models, each optimized for different combinations of actuators. Correctly identifying the processor type is the first step in troubleshooting.

Processor model, throttle type, clutch type, drag valve type, typical applications

9120 mechanical cable (servo 2) solenoid valve without mechanical throttle+solenoid valve clutch

9121 Mechanical Cable (Servo 2) Electromagnetic Valve Servo 1 (Mechanical Cable) Add Mechanical Dragging Valve

9122 mechanical cable (servo 2) solenoid valve solenoid valve drag control

9210 electronic throttle servo 1 (mechanical cable) without electronic control engine+mechanical clutch

9211 electronic throttle servo 1 (mechanical cable) servo 2 (mechanical cable) electronic control engine+mechanical drag

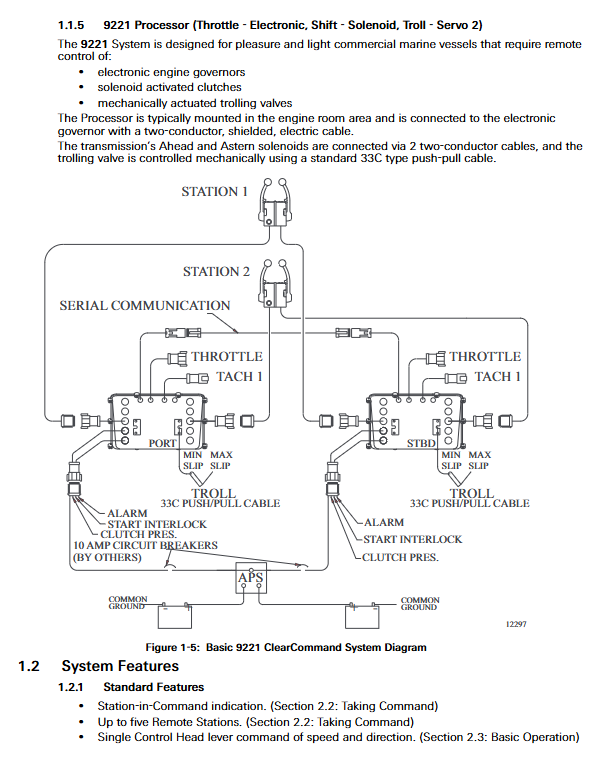

9221 electronic throttle solenoid valve servo 2 (mechanical cable) electronic control engine+electromagnetic clutch+mechanical drag

The four digit seven segment LED display on each processor casing is the core tool for on-site inspection. During normal operation, the display screen will show the processor model (such as 9210) in the form of a ticker. Once a malfunction occurs, the display screen will show an error code consisting of two letters and two digits (such as E1, A0, C6, etc.).

System initialization and core function code settings

Correct parameter configuration is the foundation for stable system operation. All settings are completed through the four buttons (up, down, left, right) on the processor circuit board in conjunction with the LED display screen.

2.1 Setting sequence that must be followed for dual machine applications

For Twin Screw vessels, parameter settings must be strictly in the following order:

Firstly, set A1 (number of engines): change the value to 02. Both the left and right side processors need to be configured.

Next, set A0 (processor identification number): set 01 on the port side and 02 on the starboard side. The two processor numbers must be different.

The remaining functional codes can be set in any order.

If in a single blade application, functional values can be entered and stored in any order.

Important notice: After modifying the codes for A1, A0, A2 (single pole operation), A3 (station extender), E7 (synchronization), L0 (drag enable) and other functions, the system will take up to 5 minutes to activate. If you want it to take effect immediately, you need to power off the processor and then power it back on.

2.2 Core functional codes of throttle and clutch

Typical setting values for code function names

E0 throttle signal type or servo direction 06 (Scania voltage) or 20 (cable retraction acceleration) electronic throttle selection engine protocol; Mechanical throttle selection cable direction

E2 minimum throttle value (idle) 0.0~20.0% eliminates control dead zone and adjusts to the position where idle has just changed

E3 maximum throttle (full speed) 10.0~100.0% mechanical throttle is the percentage of cable travel; Electronic throttle as a percentage of signal range

E4 reverse throttle limit 0.0~100.0%. It is recommended to set it to 50~80% according to the ship type to prevent rapid reverse

After shifting E5, the throttle is delayed by 0.0~5.0 seconds, with a default of 0.5 seconds. Ensure that the clutch is fully engaged before accelerating

E6 high idle 0.0~20.0% used in warm-up mode, as a percentage of E3 value

E7 synchronization type 00/01/02/03 00 throttle synchronization; 01 Active synchronization (degraded when speed signal is lost)

C5 clutch servo direction or solenoid valve type 20 (cable retraction forward) or 01 (ZF Urth 12V) mechanical clutch selects cable direction; Electromagnetic clutch selection voltage level

C6/C7 forward/reverse clutch stroke or duty cycle 80.0% mechanical clutch is a percentage of cable stroke; Electromagnetic clutch has a current duty cycle

L0 drag enable and joystick angle range 01~04 01=20 °; 02=35 °; 03=45 ° (with a speed limit of 75%); 04=55 ° (with a speed limit of 10%)

L2 drag minimum pressure 10.0~80.0% adjusted to 30~50% when the shaft speed is idle

Adjust the maximum pressure of L3 drag to 20.0-100.0% to 70-80% when the shaft speed is idle

Quick search for auditory alarm codes and on-site response

The ClearCommand system prompts the type of fault through different beeps emitted by the console. The following are the six most common auditory alarms on site and their meanings:

3.1 Slow Repetitive Sound (approximately once per second)

Timing of occurrence: When the system is first powered on or suddenly appears during operation.

meaning:

When powered on normally: The system initialization is complete, but there is no console to obtain command authority.

Sudden occurrence during operation: The processor voltage drops instantly below 8VDC and then recovers.

Troubleshooting steps:

Check the battery voltage (>12.4V for 12V systems and>24.8V for 24V systems).

Measure the difference between the voltage at the processor end and the voltage at the battery end. For 12V systems, it should not exceed 1.2V, and for 24V systems, it should not exceed 2.4V.

If using an automatic power selector (APS), an additional 0.7V diode voltage drop needs to be included.

Check all power terminals, circuit breakers, and grounding wires for looseness or corrosion.

3.2 One long and three short notes

Meaning: The control lever signal of the current command console exceeds the valid range (below 0.6VDC or above 4.4VDC).

Troubleshooting method:

Enter the diagnostic menu H0 and check the corresponding A/D count value on the console.

The normal idle/neutral position should have an A/D count value of 485~505.

If the A/D value is greater than 910, the cause of the fault is that the potentiometer signal is too high - check whether the 5V reference voltage circuit (blue wire) or green wire (signal wire) is open circuit.

If the A/D value is less than 100, the cause of the fault is low signal - check if the green wire (signal wire) is open or if the potentiometer ground (yellow wire) is disconnected.

3.3 Continuous long sound (non-stop)

Meaning: The Transfer Button has been stuck for more than 12 seconds.

Countermeasures:

Attempt to obtain command authority from another console, the long sound will stop.

Unable to obtain command authority again before repairing the faulty console.

Enter the diagnostic menu H0 and check if the status display of the transfer button for the corresponding station is "1".

3.4 Three second long tone

Meaning (one of the three):

The transfer button on the current console is stuck.

If equipped, the system has entered backup mode.

If equipped with an integrated solenoid drag, the drag solenoid valve may have an open or short circuit.

Solution: Refer to the error code displayed on the LED for further judgment.

3.5 One long and one short tone (clutch servo or solenoid valve)

Servo type (clutch): Abnormal feedback potentiometer signal. Error code 63 (feedback too high) or 64 (feedback too low). Check the orange (ground) and green (signal) lines.

Electromagnetic valve model: clutch solenoid valve failure. Error codes 1-6 correspond to reverse short circuit, reverse open circuit, forward short circuit, forward open circuit, etc. This alarm can only be generated after enabling the H2 driver fault detection function.

3.6 One long and two short notes (throttle servo or drag servo)

Throttle servo: The throttle feedback potentiometer signal is abnormal. Error code 66 (feedback too high) or 67 (feedback too low).

Dragging servo: The dragging feedback potentiometer signal is abnormal.

3.7 One long and two short high-speed repetitive sound (servo card lag sound)

Meaning: The throttle servo (or drag servo, clutch servo) cannot reach the commanded position. Error codes 65 (throttle servo stuck) and 62 (clutch servo stuck).

Troubleshooting steps:

Disconnect the push-pull cable from the engine/transmission rocker arm.

Observe whether the feedback A/D value changes with the instruction in the diagnostic menu.

If there is still a stuck sound after disconnection, check if the power supply voltage of the processor is normal, otherwise it may be a processor failure.

If the stuck sound disappears after disconnection, the problem is that the push-pull cable is stuck or the rocker arm resistance is too high.

Deep analysis of typical error codes

4.1 Console related errors (error codes 13~42)

The main reasons and solutions for the meaning of error codes

Check the red (+5V) and blue (reference circuit) lines for high N signal and missing 5V reference voltage or open circuit of potentiometer on console 13-22; Check the jumper wires between starboard console terminals 3 and 5, and port terminals 3 and 7

Check the continuity of the green wire if the signal line (green) of the 23~32 console N signal is too low or if the potentiometer grounding is disconnected; Check if the yellow wire (grounding) is disconnected

33-42 Console N Transfer Button Stuck Button Physical Stuck or Line Short Circuit Cleaning Button; Check if there is a short circuit between the orange wire (button signal) and the ground wire

4.2 Communication and power supply errors (error codes 43~61)

The main reasons and solutions for the meaning of error codes

43-49 CAN communication protocol error: The serial communication cable is too long (>120 feet) or improperly shielded to shorten the length of the serial cable; Ensure that only one end of the shielded wire is grounded

The processor corresponding to the communication timeout with processor N between 50 and 54 did not correctly set the A0 number or power off to check the A0 setting; Check processor power supply

56 high voltage fault: battery voltage exceeds 30VDC for 2 seconds. Check the generator voltage regulator

57 low voltage fault: The battery voltage is below 10VDC for 2 seconds. Check the battery charging system and connection terminals

4.3 Electromagnetic valve monitoring error (error codes 1-10, H2 needs to be enabled)

Error code meaning handling

1. Check the resistance of the reverse clutch solenoid valve coil for short circuit (should be greater than 2 Ω); Check if the circuit is short circuited to ground

Check if the solenoid coil of the reverse clutch solenoid valve is burnt out due to an open circuit; Check if the circuit is broken

5. Short circuit of forward clutch solenoid valve with error code 1

6 Forward clutch solenoid valve open circuit with error code 2

9. Drag the proportional solenoid valve to check if the current exceeds the limit; Check the coil

10 drag proportional solenoid valve open circuit check for circuit continuity

Troubleshooting of control transfer faults

Station Transfer is one of the most commonly used functions of the ClearCommand system. If the transfer fails, it should be investigated in the following order:

5.1 Verification of Necessary Conditions

The successful transfer of control must simultaneously meet the following requirements:

The control lever of the receiver console is in neutral/idle position (A/D value 485~505).

The transfer button on the receiver console is pressed (signal changes from 5V to 0V).

5.2 Diagnostic steps

Enter the diagnostic menu H0 and scroll to the corresponding station's A/D value display. Confirm that the A/D value is between 485 and 505.

Continue scrolling to the transition button status display interface. When the button is not pressed, the corresponding position displays "0"; When pressed, it changes to "1".

If the A/D value is normal but the transfer is invalid, check if the orange line (button signal) is open.

5.3 Special Tips

The colors of terminals 5 and 7 on the port and starboard control consoles are opposite: the blue line on the port side is at terminal 5, and the yellow line is at terminal 7; The yellow line on the starboard side is at terminal 5, and the blue line is at terminal 7. Reverse connection can cause the processor to misjudge the direction of the joystick.

When installing the aft facing console (with the operator facing the stern), it is necessary to exchange the connections of terminals 5 and 7.

Common problems with engine synchronization function

6.1 Waiting for throttle synchronization not working

Phenomenon: The green LED does not light up, or there is a significant difference in engine speed between the two engines.

Possible reasons and solutions:

Synchronization not enabled: Push both control levers to a throttle range greater than 5% and press and hold the transfer button for 5 seconds. If the green LED lights up (turns off when released) when the button is pressed, it indicates that synchronization is disabled. Press and hold again for 5 seconds to reactivate.

Serial communication line not connected: Check if the 6-pin gray plug between the left and right side processors is secure.

Processor not set to dual paddle mode: Check if A1 value is 02.

Duplicate processor numbers: Check if A0 values are 01 and 02 respectively.

6.2 Active synchronization does not work (waiting for throttle synchronization to work normally)

Phenomenon: After synchronization is enabled, the green LED flashes but cannot remain stable and on, or there is a large difference in speed.

Possible reasons and solutions:

Signal loss of speed sensor: Enter diagnostic menu H0 and check the speed frequency display. If "0000" is displayed, check the sensor and wiring. Active synchronization will be downgraded to equal throttle synchronization after losing the speed signal.

Mismatched sensor type: AC coupled sensor (such as magneto electric type) connected to TB9-2; Connect the open electrode sensor (such as Hall type) to TB9-3 and use a three core cable (red+9V, green signal, black return).

Improper E7 value setting: It is recommended to use 01 for mechanical throttle models (downgrade to equal throttle synchronization when speed signal is lost), and avoid using 03 (completely stop synchronization when speed signal is lost).

Key points for adjusting drag mode

Dragging mode is used to reduce shaft speed by controlling clutch slip during low-speed navigation. The order of calibration is crucial:

Enable drag: Set L0 to 01~04 (angle range).

Select drag valve type (L1):

Servo drag: Value 20 (lock position cable retracts) or 21 (lock position cable extends).

Electromagnetic valve drag: value 00~07, select the preset current curve according to the ZF gearbox model.

Adjust the minimum pressure (L2):

Enter drag mode (flashing red light) and push the joystick to the forward position.

Measure the current shaft speed using a shaft tachometer.

Adjust the L2 value to make the shaft speed 30-50% of the idle shaft speed.

Adjust maximum pressure (L3):

Maintain drag mode and continue pushing forward.

Adjust the L3 value to make the shaft speed 70-80% of the idle shaft speed.

Attention: The temperature of the gear oil must reach 60 ° C or above for accurate calibration.

Troubleshooting of power system and grounding faults

The ClearCommand system is sensitive to power quality and grounding electrodes. The following are the most commonly overlooked issues:

8.1 Voltage Drop

The minimum operating voltage of the processor is 8VDC, but it is recommended not to be lower than 10VDC under any operating conditions.

When starting the engine, the high current of the starter motor may cause the processor voltage to drop instantly, leading to system reset and slow repetitive sounds.

Solution: Use an automatic power selector (APS) to draw power from two independent batteries, or provide dedicated batteries separately for the control system.

8.2 Grounding (grounding) requirements

The grounding resistance must be less than 100 Ω, and a wire of no less than 2mm ² should be used.

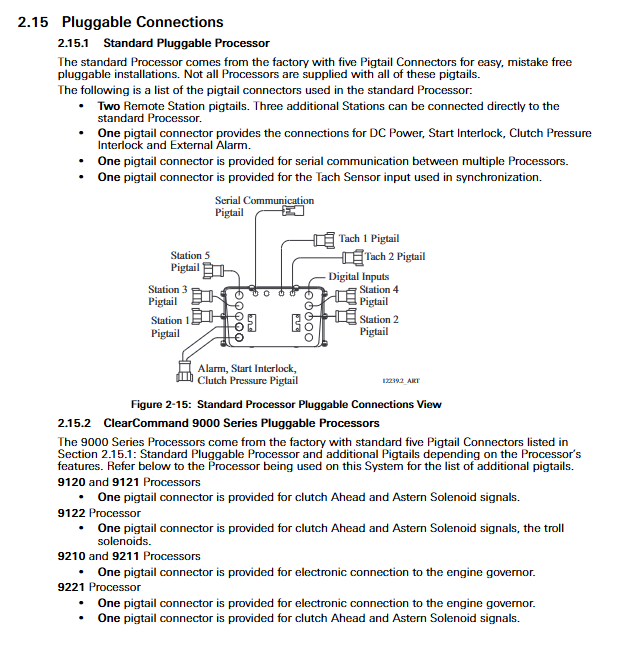

The fourth mounting hole on the processor casing needs to be connected to the ship's grounding bus.

The shielding layer of serial communication cables is only grounded at one end (usually at the port processor end), and grounding at both ends can introduce ground loop interference.

8.3 APS automatic power selector

The voltage drop of model 13505 APS is 0.7VDC (50% load). When calculating the allowable pressure drop, the following must be taken into account:

12V system: Battery 12.6V -10% voltage drop (1.26V) -0.7V (APS)=10.64V (minimum allowable value)

Suggestions for essential tools and spare parts on site

9.1 Recommended Testing Tools

Tool model and purpose

On site test box (Break out Box) 13927 measures throttle signal, clutch current, and drag current online without interrupting the original connection

Digital multimeter Fluke 80 series or equivalent for measuring voltage, current, frequency, duty cycle, resistance

Measuring shaft speed during handheld drag calibration of shaft tachometer

The anti-static wristband is provided with the processor and must be worn when opening the processor cover

9.2 Regular inspection cycle

Project cycle content

Check the console terminals for corrosion and looseness every year, and apply polytetrafluoroethylene grease

Check all plugs and terminals of the processor terminals annually for looseness and corrosion

Check the push-pull cable annually for any jamming and whether the bending radius is too small

Check the electrolyte level and terminal cleanliness of the battery every quarter

Battery load testing is performed annually by professional electricians for performance load testing

Install the sealing gasket and check for aging and cracking every year. Replace it if necessary

Difficult problem handling without error codes

Some faults may not trigger error codes, but they can affect system performance. The following are typical scenarios:

10.1 There is no sound from a certain console

Reason: The black wire (audio+) is not properly connected to console terminal 1 and processor terminal 8.

Verification: Measure the AC voltage between console terminals 1 and 3, which should be 20-25VAC. If there is no voltage, check the circuit; If there is voltage, replace the sound transducer inside the console.

10.2 The red light on the console is not on (but other functions are normal)

Reason: Brown wire (LED+) open circuit.

Verification: Measure the DC voltage between terminals 2 and 3. When the red light is on, it should be approximately 2.2VDC. If 4.0VDC is measured, it indicates that the LED circuit is open and the console needs to be replaced.

10.3 Warm up mode can only be obtained in reverse direction

Reason: The direction detection of the joystick is incorrect, usually due to the color exchange of the wiring between terminals 5 and 7.

Inspection: Terminal 5 of the starboard console should have a yellow wire, and terminal 7 should have a blue wire; Terminal 5 of the port console should have a blue wire, and terminal 7 should have a yellow wire.
