Product Overview

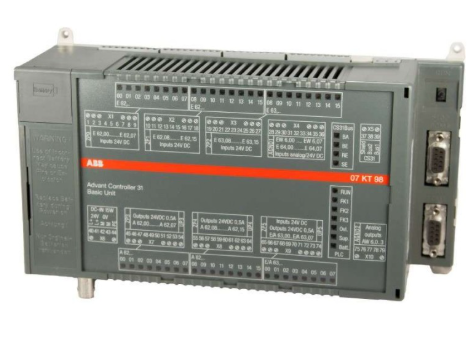

The 07KT94-98 controller is an important member of ABB's industrial control series, designed specifically for the comprehensive control and protection of medium and low voltage industrial equipment. The controller is based on a high-performance microprocessor and integrates advanced signal processing technology and mature control algorithms. It can collect real-time device operation data, accurately execute control instructions, and quickly trigger protection mechanisms when the device encounters abnormalities. It combines local control and remote communication capabilities, seamlessly integrates into industrial automation systems, adapts to the intelligent control needs of modern industry, and demonstrates excellent environmental adaptability and operational stability in various industrial scenarios.

Core functional features

1. Multi dimensional monitoring and protection

The controller has comprehensive equipment status monitoring capabilities and can real-time collect core operating parameters such as three-phase current, voltage, speed, temperature, and vibration of the equipment. Based on the built-in precision monitoring algorithm, it can automatically identify fault types such as overcurrent, overvoltage, undervoltage, overload, overtemperature, vibration exceeding the standard, and abnormal speed, and quickly trigger protective actions such as tripping and alarm when faults occur, effectively avoiding equipment damage and reducing production losses. At the same time, it supports flexible configuration of protection parameters and can customize protection logic according to the rated parameters and operating requirements of different devices.

2. Precise speed control

For industrial equipment that requires speed regulation, this controller integrates advanced speed control functions and supports multiple control modes such as V/F control and vector control. It can achieve smooth adjustment of equipment speed and meet the precise requirements of different production processes for equipment operating speed. Its speed regulation accuracy is as high as ± 0.1%, which can effectively improve equipment operating efficiency, reduce energy consumption, and minimize the impact of speed fluctuations on production quality, especially suitable for production scenarios with high requirements for speed control.

3. Flexible control logic and operation mode

The controller supports multiple control signal inputs, including analog signals (4-20mA, 0-10V) and digital signals. It can seamlessly integrate with automation systems such as PLC and DCS, receive control instructions from higher-level systems, and provide feedback on equipment operation status. In terms of operation mode, it combines local panel operation and remote control functions. It is equipped with high-definition LCD display screens and physical operation buttons locally, making it easy for on-site personnel to view parameters and perform operations in real time; Remote parameter configuration, status monitoring, and control command issuance can be achieved through communication networks, improving the convenience of operation and maintenance.

4. Comprehensive data recording and communication functions

Equipped with a large capacity storage module, it can automatically record the operation logs, fault events, and key operating parameter curves of the equipment, including the time of fault occurrence, fault type, parameter values at the time of fault, etc., providing reliable data support for fault tracing and equipment performance analysis. In terms of communication, it is compatible with various mainstream industrial communication protocols such as Modbus and Profibus, equipped with communication interfaces such as RS485 and Ethernet, and can easily connect to industrial Ethernet or fieldbus systems to achieve centralized monitoring and management of data.

Key technical parameters

power input

AC 220V/380V ± 10%, 50/60Hz; DC 24V/48V

Wide voltage adaptation to meet different industrial power supply scenarios

controlled object

Three phase asynchronous motors, DC motors, and various rotating machinery

Adaptive power range: 0.75kW-500kW

Current measurement range

0-1000A (connected through current transformer)

Measurement accuracy: Level 0.5

Voltage measurement range

0-480V (phase voltage), 0-850V (line voltage)

Support voltage monitoring of medium and low voltage equipment

Speed control range

0-3000rpm (asynchronous motor), 0-6000rpm (DC motor)

Speed regulation accuracy: ± 0.1%

Temperature measurement range

-40℃-200℃

Support the connection of sensors such as Pt100 and K-type thermocouples

Protection action response time

≤ 10ms (overcurrent, short circuit protection)

Quick response and effective protection of equipment safety

communication interface

RS485、Ethernet、Profibus-DP

Supports Modbus RTU/TCP, Profibus and other protocols

working environment

Temperature: -20 ℃ -60 ℃; Humidity: 10% -90% (no condensation); Protection level: IP20 (panel)/IP54 (module)

Adapt to the complex environment of industrial sites

Overall dimensions

210mm x 180mm x 120mm (length x width x height)

Compact design, easy to install and layout inside the cabinet

Applicable scenarios

This controller, with its comprehensive functionality and stable performance, is widely used in the following industrial scenarios:

-Manufacturing production line: used for controlling production line equipment such as machine tools, conveying equipment, packaging machinery, etc., to achieve precise speed regulation and safety protection of the equipment, ensuring continuous and stable operation of the production line;

-Metallurgical and mining industries: Suitable for large equipment such as fans, water pumps, crushers, etc., to cope with harsh environments of high temperature and high dust, ensuring reliable operation of equipment;

-Water treatment industry: used for controlling equipment such as aeration fans and lift pumps in sewage treatment plants, achieving precise adjustment of flow and pressure, and improving water treatment efficiency;

-Construction and building materials industry: Applied in equipment such as grinding machines and conveyor belts on cement and building materials production lines to meet the control requirements of high load and continuous operation;

-Textile and papermaking industry: used for speed control of textile machinery and papermaking equipment, ensuring the stability of product quality and reducing production energy consumption.

Product advantages

1. Accurate and reliable control: ABB's advanced control algorithms and high-precision signal processing technology are used to ensure the accuracy of speed control and protection actions, with an average time between failures (MTBF) of over 80000 hours;

2. Comprehensive and diverse functions: integrating monitoring, protection, speed regulation, communication and other functions without the need for additional auxiliary equipment, reducing system integration costs;

3. Strong compatibility: Supports multiple control signals, communication protocols, and sensor types, and can seamlessly integrate with different brands of industrial equipment and automation systems;

4. Convenient and intuitive operation: The high-definition LCD display screen can display real-time device operating parameters, the layout of operation buttons is reasonable, and it supports Chinese operation interface, reducing personnel training costs;

5. Significant energy-saving effect: Through precise speed control, the operating status of the equipment can be adjusted according to the load demand, saving 10% -30% energy compared to traditional control methods, which meets the needs of industrial energy conservation and consumption reduction;

6. Comprehensive service guarantee: Relying on ABB's global service network, we can provide professional installation and commissioning guidance, technical training, and fast fault repair services to ensure the stable operation of equipment throughout its entire lifecycle.

Precautions

-The installation of the controller must be operated by qualified professional technicians, strictly following the ABB official installation manual for wiring and wiring, to avoid strong electrical interference affecting equipment operation;

-Before putting into operation, it is necessary to configure and debug parameters such as protection threshold and speed control curve according to the rated parameters of the control object and the requirements of the operating process, to ensure that the parameter settings meet actual needs;

-Regularly maintain the controller, including cleaning the panel, checking the tightness of the wiring terminals, testing the stability of the communication link, etc., to avoid equipment failures caused by dust accumulation and loose wiring;

-It is prohibited to plug or unplug communication modules or sensor wiring while the controller is live. If maintenance operations are required, the power must be cut off first and ensure that the equipment is discharged completely;

-The controller software upgrade requires the use of the official ABB upgrade program. Before upgrading, it is necessary to backup the device parameters to avoid parameter loss or equipment damage during the upgrade process.
