Product Overview

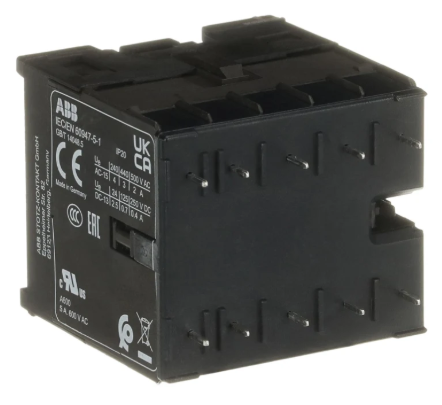

2RCA013655A0001H is a specialized power relay in the ABB relay series, designed specifically for industrial circuit control. Its core function is to achieve on-off control of high-power load circuits through small control current signals, while also having circuit isolation function to effectively avoid the influence of load side interference on the control circuit. This relay adopts a modular structure design, compatible with standard rail installation methods, and can be quickly integrated into various control cabinets to adapt to different brands of control equipment. It adopts high-quality contact materials and optimized electromagnetic structure internally to ensure stable performance even in frequent switching scenarios, meeting the long-term continuous operation needs of industrial sites.

Core functional features

1. Reliable circuit on-off control

The core function of this power relay is to achieve precise linkage between the control circuit and the load circuit. By receiving electrical signals from the control end (such as PLC output signals), it drives the internal electromagnetic mechanism to operate, thereby controlling the closing and opening of the main contacts and achieving on/off management of the power circuit. Its contact switching response is fast, the action time is short, and it can accurately execute control instructions. Whether it is single start stop control or periodic switching scenarios, it can maintain stable action consistency, avoiding circuit failures caused by contact adhesion and action delay.

2. Efficient electrical isolation

Built in reinforced electromagnetic isolation structure, electrically isolates the control circuit from the load circuit. The isolation voltage level meets industrial safety standards and can effectively block the impact of voltage fluctuations, surge surges, and electromagnetic interference on the control circuit on the load side. At the same time, it prevents control circuit failures from being transmitted to the load end, improving the anti-interference ability and operational safety of the entire control system. This isolation characteristic makes it particularly prominent in industrial environments with high voltage and strong interference.

3. Overload and surge protection

The relay integrates overload protection and surge suppression mechanisms internally. When the load circuit experiences overload current, its built-in protection structure can quickly respond and achieve circuit protection through contact disconnection or signal feedback, avoiding relay burnout or load equipment damage caused by overload. At the same time, it has a certain tolerance for potential transient surge voltages in the circuit, reducing the impact of surges on contacts and internal components, and extending the product's service life.

4. Convenient installation and maintenance

Adopting industrial standard rail installation design, compatible with 35mm DIN rail, the installation process is simple and efficient, without the need for complex fixed structures, and can quickly complete layout combinations with other control components. The relay housing is made of transparent or semi transparent flame-retardant materials, which facilitates on-site personnel to visually observe the internal contact status and indicator light signals, and detect abnormal situations in a timely manner. In addition, its pin layout is standardized, and the wiring terminals adopt a crimping design, which makes the wiring firm and easy to disassemble, reducing maintenance costs.

Key technical parameters

Control coil voltage

DC 24V/AC 220V (optional)

Suitable for mainstream industrial control power supply, can be selected according to the scene

Coil power consumption

DC 24V：≤2W； AC 220V：≤3VA

Low power design to reduce system energy consumption

Contact form

1 set of conversion contacts (CO)/2 sets of normally open contacts (NO)

Meet the wiring requirements of different control circuits

Contact rated load

AC 250V / 10A； DC 30V / 10A

Support control of low to medium power load circuits

Action Time

Suction time ≤ 15ms; release time ≤ 10ms

Quickly respond to control instructions and reduce latency

electrical life

≥ 1 million times (under rated load)

Adapt to frequently switching industrial scenarios

mechanical life

≥ 10 million times

High strength mechanical structure, extending service life

isolation voltage

Between coil and contact: ≥ 2500V AC (1min)

Compliant with IEC 61810 safety standard

working environment

Temperature: -40 ℃ -85 ℃; Humidity: 10% -95% (no condensation)

Adapt to harsh industrial environments such as high and low temperatures, high humidity, etc

Protection level

IP40 (after installation)

Effective dust prevention and protection of internal components

Overall dimensions

17.5mm x 55mm x 78mm (width x height x depth)

Compact design, saving installation space inside the cabinet

Applicable scenarios

This power relay is widely used in the following fields due to its stable performance and flexible adaptability:

-Industrial automation control system: used for signal conversion and power amplification between PLC control circuits and actuators (such as motors and solenoid valves) to achieve precise start stop control of equipment, commonly found in production lines, automated assembly lines, and other scenarios;

-Power equipment control: As a power switching component in low-voltage distribution cabinets and boxes, it realizes functions such as automatic backup power supply and circuit on/off control, ensuring the reliability of power supply;

-Heating, Ventilation, and Air Conditioning (HVAC) System: Used for power control of air conditioning units, water pumps, fans, and other equipment. It automatically switches equipment operating status based on temperature, pressure, and other signals to improve system energy efficiency;

-New energy equipment: used as auxiliary power control components in photovoltaic inverters and energy storage systems to achieve safe isolation and on/off protection of circuits, adapting to the electrical requirements of new energy scenarios;

-Transportation and security equipment: used for elevator control circuits, power management of security monitoring equipment, and other scenarios to ensure stable operation of equipment in complex environments and enhance system security.

Product advantages

1. High reliability: Using ABB's dedicated contact material (silver alloy) and optimized electromagnetic design, the contact resistance is small, wear-resistant, and can operate stably under rated conditions, effectively reducing the occurrence rate of failures;

2. Wide environmental adaptability: It has a wide temperature working range and good moisture and dust resistance, and can work normally in harsh industrial environments such as high temperature, low temperature, and high humidity, adapting to the usage needs of different regions and scenarios;

3. Excellent safety performance: The strengthened electrical isolation structure and overload protection mechanism comply with international safety standards, effectively avoiding safety hazards such as electric shock and circuit short circuits, and ensuring the safety of personnel and equipment;

4. High cost-effectiveness: Compact design reduces installation space requirements, long lifespan reduces replacement frequency, and combined with ABB brand quality assurance, achieves lower full lifecycle costs;

5. Strong compatibility: It is compatible with standard guide rails and mainstream control signals, and can seamlessly integrate with different brands of PLCs, controllers, and other equipment, simplifying the system integration process;

6. Brand service guarantee: Relying on ABB's global technical support network, we can provide professional selection guidance, installation suggestions, and after-sales service to solve various problems encountered by users during use.
