Product Overview and Functional Logic

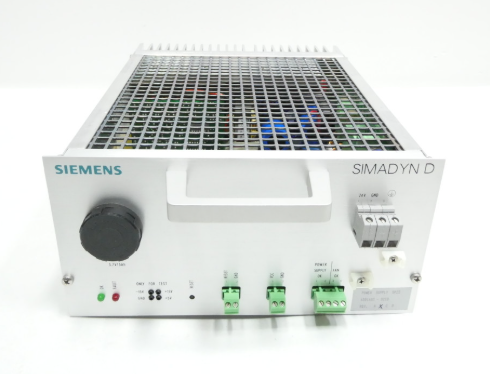

The SIEMENS 6DD1683-0CC0 is a specialized interface module integrated within the legacy yet powerful SIMADYN D control system architecture. Often utilized in conjunction with high-performance closed-loop control tasks, this module acts as a vital link for signal distribution and hardware adaptation.

In the realm of advanced automation, the 6DD1683-0CC0 provides the physical and electrical transition necessary to connect specialized ribbon cables or circular connectors to standard terminal blocks or CPU sub-modules. It is engineered to handle complex data streams without compromising the temporal precision required for high-speed dynamic processes.

Technical Specifications

Adhering to strict Siemens industrial standards, the 6DD1683-0CC0 is characterized by its electrical durability and mechanical reliability. Below is a detailed technical breakdown based on official engineering documentation:

Key Features and Engineering Benefits

1. Signal Integrity and Shielding

The 6DD1683-0CC0 is designed with integrated shielding concepts. In industrial environments where high-frequency interference is prevalent—such as near large motor drives or induction furnaces—the module maintains signal purity. This is achieved through optimized internal circuitry that minimizes cross-talk between adjacent channels.

2. Versatile Integration

While primarily associated with SIMADYN D, the module's design allows for integration into specific SIMATIC S7-400 configurations where specialized hardware interfacing is required. It supports the transition from high-density system cabling to manageable field wiring.

3. Robust Mechanical Design

The housing of the 6DD1683-0CC0 is built to withstand industrial vibrations. The terminal connections are designed for long-term stability, reducing the risk of intermittent failures caused by thermal expansion or mechanical stress.

Installation and Wiring Guidelines

For optimal performance of the 6DD1683-0CC0, engineers must adhere to specific installation protocols defined in the Siemens system manual:

• Grounding: Ensure a low-impedance connection to the central grounding point of the control cabinet.

• Cable Routing: Separation of power and signal cables is mandatory. The interface module should be positioned to minimize the length of unshielded cable runs.

• Ambient Temperature: Maintain an operating temperature between 0°C and +55°C to ensure component longevity.

Industrial Applications

The 6DD1683-0CC0 is typically found in heavy industrial sectors where precision control is non-negotiable. Key application areas include:

• Metal Processing: Rolling mills where high-speed synchronization of multiple drives is required.

• Power Generation: Control systems for turbines and large-scale power conversion units.

• Paper and Printing: Tension control systems requiring microsecond response times for feedback loops.

Compliance and Standards

The SIEMENS 6DD1683-0CC0 complies with international safety and quality standards, including:

• CE Certification for European markets.

• UL/CSA recognition for North American safety requirements.

• EMC Directive compliance for industrial environments.
