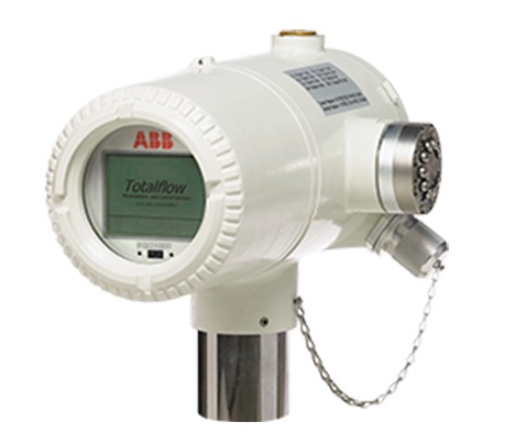

  • ABB 769111B gas chamber detector
    ❤ Add to collection
  • ABB 769111B gas chamber detector

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    This detector belongs to the mainstream model of ABB's industrial gas detection series, with the core design concept of "precise detection, fast response, safety and reliability". It adopts advanced sensing technology and modular structure design to achieve real-time and continuous monitoring of specific gases in response to the complex environmental characteristics of industrial sites. It not only has high sensitivity detection capability, but also has complete self diagnosis and fault alarm functions, which can effectively avoid the occurrence of missed or false alarms and reduce operation and maintenance costs.

    As a front-end sensing device in industrial safety monitoring systems, ABB 769111B gas chamber detector can operate independently and be connected to the safety monitoring platform through signal interfaces, achieving centralized collection, analysis, and early warning linkage of gas concentration data, providing accurate and reliable data support for safety production management.


    • ¥8274.00
      ¥8485.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:3.470KG
    • Quantity:
    • (Inventory: 99999)
Description

This detector belongs to the mainstream model of ABB's industrial gas detection series, with the core design concept of "precise detection, fast response, safety and reliability". It adopts advanced sensing technology and modular structure design to achieve real-time and continuous monitoring of specific gases in response to the complex environmental characteristics of industrial sites. It not only has high sensitivity detection capability, but also has complete self diagnosis and fault alarm functions, which can effectively avoid the occurrence of missed or false alarms and reduce operation and maintenance costs.

As a front-end sensing device in industrial safety monitoring systems, ABB 769111B gas chamber detector can operate independently and be connected to the safety monitoring platform through signal interfaces, achieving centralized collection, analysis, and early warning linkage of gas concentration data, providing accurate and reliable data support for safety production management.



ABB 769111B gas chamber detector

Core positioning and design philosophy of the product

This detector belongs to the mainstream model of ABB's industrial gas detection series, with the core design concept of "precise detection, fast response, safety and reliability". It adopts advanced sensing technology and modular structure design to achieve real-time and continuous monitoring of specific gases in response to the complex environmental characteristics of industrial sites. It not only has high sensitivity detection capability, but also has complete self diagnosis and fault alarm functions, which can effectively avoid the occurrence of missed or false alarms and reduce operation and maintenance costs.

As a front-end sensing device in industrial safety monitoring systems, ABB 769111B gas chamber detector can operate independently and be connected to the safety monitoring platform through signal interfaces, achieving centralized collection, analysis, and early warning linkage of gas concentration data, providing accurate and reliable data support for safety production management.


Core technical parameters

model

769111B

Detecting gas types

Combustible gases (such as methane, propane, ethane, etc.), toxic and harmful gases (to be determined according to the sensing module, such as hydrogen sulfide, carbon monoxide, etc.)

Detection principle

Catalytic combustion (combustible gas), electrochemical/semiconductor (toxic and harmful gas)

measurement range

Combustible gas: 0-100% LEL (lower explosive limit); Toxic gas: customized according to gas type (such as 0-100ppm hydrogen sulfide)

detection accuracy

± 2% FS (full range), combustible gas alarm point error ≤ ± 5% set value

response time

Flammable gas ≤ 3 seconds; Toxic gas ≤ 15 seconds (depending on gas type and concentration)

alarm method

Two level alarm (low alarm, high alarm), on-site sound and light alarm (red LED indicator flashing, buzzer ≥ 85dB)

output signal

Analog output: 4-20mA DC; Digital output: RS485 (supporting Modbus RTU protocol), 2-channel relay output (for alarm linkage)

working power supply

DC 24V ± 15%, power consumption ≤ 5W

working environment

Temperature: -40 ℃ -70 ℃; Humidity: 10% -95% RH (no condensation); Pressure: 86-106kPa

Protection level

IP67 (dustproof, anti short-term immersion)

Installation method

Wall mounted or pipe mounted (optional), installation angle ± 15 °


Core functional advantages

1. High precision sensing technology with stable detection performance

By using imported high-performance sensing components and combining them with ABB's independently developed signal processing algorithm, the accuracy and stability of gas concentration detection are effectively improved. In response to common issues such as temperature and humidity fluctuations and dust interference in industrial sites, the equipment is equipped with a built-in temperature and humidity compensation module and dust filtration device, which can automatically correct the impact of environmental factors on the detection results, ensuring reliable data can still be provided under complex working conditions.

2. Fast response and multi-level alarm, comprehensive security guarantee

With optimized gas sensing reaction structure and signal transmission path, the device has an extremely fast response speed to gas leakage, and can trigger an alarm at the moment when the gas concentration reaches the alarm threshold. Support users to customize low and high alarm thresholds according to process requirements. When the alarm is high, emergency devices such as exhaust equipment and shut-off valves can be directly linked to quickly control the source of danger and minimize safety risks.

3. Comprehensive self diagnosis and fault protection

It has automatic diagnostic functions for various faults such as sensor faults, line faults, and power supply abnormalities. When a fault occurs, the on-site indicator light will switch to a yellow flashing state, and at the same time, the fault information will be sent to the upper computer through output signals, which is convenient for operation and maintenance personnel to investigate and handle in a timely manner. In addition, the device is equipped with overcurrent and overvoltage protection modules, which can effectively prevent equipment damage caused by circuit abnormalities.

4. Strong environmental adaptability and wide applicability in various scenarios

The shell is made of high-strength die cast aluminum alloy material, which has undergone anti-corrosion and anti-static treatment, with a protection level of IP67. It can adapt to harsh industrial environments such as high temperature, low temperature, high humidity, high dust and corrosive gases. Whether it is an open-air oil drilling platform or a closed chemical reaction workshop, this detector can operate stably.

5. Convenient installation and operation, reducing usage costs

Adopting modular design, core components such as sensors and circuit boards can be quickly disassembled and replaced, reducing maintenance difficulty. The device supports two methods of on-site button calibration and remote software calibration, and operation and maintenance personnel can complete the calibration work without carrying complex tools. Meanwhile, the sensor has a lifespan of up to 2-3 years (depending on the usage environment), effectively reducing equipment replacement costs.


Applicable scenarios and typical applications

The ABB 769111B gas chamber detector, with its excellent performance, is widely used in various industrial scenarios with gas leakage risks. Typical applications include:

1. Petrochemical industry: Monitor gas leaks such as methane, ethylene, hydrogen sulfide, etc. in production workshops, tank areas, loading and unloading platforms of refineries and chemical plants to prevent explosions and poisoning accidents.

2. Metallurgical industry: Monitoring the concentration of gases such as carbon monoxide and coal gas in coking workshops and blast furnace gas pipelines of steel plants to ensure the safety of operators.

3. Mining industry: Monitor toxic and harmful gases such as methane and hydrogen sulfide in underground coal mines and non coal mining operations to prevent gas explosions, poisoning and suffocation accidents.

4. Municipal gas industry: Monitor natural gas (mainly composed of methane) leaks along gas gate stations, pressure regulating stations, and gas pipelines to ensure the safety of urban gas supply.

5. Other scenarios: anaerobic reaction tanks in sewage treatment plants (monitoring hydrogen sulfide), food processing workshops (monitoring ammonia), laboratories (monitoring specific toxic gases), etc.


Key points for installation and debugging

1. Installation specifications

-Installation location selection: Determine the installation height based on the density of the detected gas (if methane density is lower than air, install at a distance of 30-60cm from the ceiling; Hydrogen sulfide has a higher density than air and is installed at a distance of 30-60cm from the ground; Avoid air vents, fire sources, high-temperature equipment, and strong electromagnetic interference sources to ensure that the gas in the detection area can fully contact the sensor.

-Wiring requirements: Power lines and signal lines should be wired separately, using shielded cables to reduce interference; When wiring, strictly follow the terminal diagram to ensure correct connection of positive and negative poles, secure wiring without looseness, and seal the cable inlet to prevent dust and water vapor from entering the equipment.

-Explosion proof requirements: When installing in explosive environments, it is necessary to confirm that the explosion-proof level of the equipment (such as Ex d IIB T6 Gb) meets the requirements of the on-site explosion-proof area classification. It is strictly prohibited to disassemble the equipment in non explosion-proof areas.

2. Debugging steps

1. Pre power on inspection: Confirm that the power supply voltage is consistent with the rated voltage of the equipment, the wiring is correct, the housing is not damaged, and the sensor is installed in place.

2. Zero point calibration: Place the device in a clean air environment (without detecting target gases), start zero point calibration through on-site buttons or remote software, and after calibration is completed, the device displays a value of "0" or close to "0".

3. Range calibration: Introduce a standard gas with a known concentration (approximately 80% of the full range), activate the range calibration function, wait for the sensor to respond stably, complete the calibration, and save the parameters.

4. Alarm function test: Introduce standard gas with a concentration reaching the alarm threshold, check whether the equipment can trigger the sound and light alarm in a timely manner, and confirm that the output signal and relay linkage function are normal.
