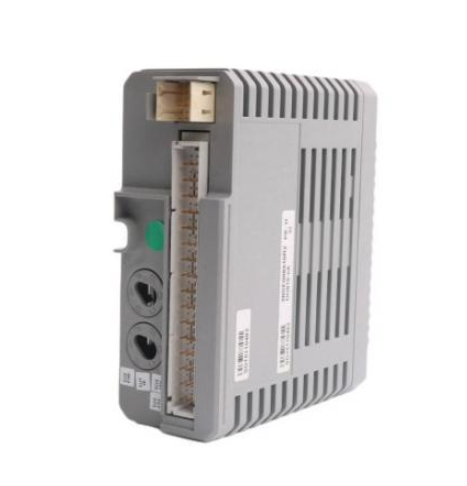

  • ABB AO845A eA Analog Output Module
    ❤ Add to collection
  • ABB AO845A eA Analog Output Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    1. Output channel configuration: The module comes standard with 8 independent analog output channels, each of which can be independently configured with parameters. It supports isolation design between channels, effectively avoiding signal interference and improving system stability.

    2. Signal type support: Compatible with mainstream analog output signals in the industrial field, including 4-20mA DC current signals and 0-10V DC voltage signals. The two signal types can be flexibly configured through software to meet the signal requirements of different executing devices.


    • ¥6457.00
      ¥6673.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:1.680KG
    • Quantity:
    • (Inventory: 99999)
Description

1. Output channel configuration: The module comes standard with 8 independent analog output channels, each of which can be independently configured with parameters. It supports isolation design between channels, effectively avoiding signal interference and improving system stability.

2. Signal type support: Compatible with mainstream analog output signals in the industrial field, including 4-20mA DC current signals and 0-10V DC voltage signals. The two signal types can be flexibly configured through software to meet the signal requirements of different executing devices.



ABB AO845A eA Analog Output Module

Core performance parameters

The performance parameters of the AO845A eA module determine its adaptability and control accuracy in industrial scenarios. The core parameters are as follows:

1. Output channel configuration: The module comes standard with 8 independent analog output channels, each of which can be independently configured with parameters. It supports isolation design between channels, effectively avoiding signal interference and improving system stability.

2. Signal type support: Compatible with mainstream analog output signals in the industrial field, including 4-20mA DC current signals and 0-10V DC voltage signals. The two signal types can be flexibly configured through software to meet the signal requirements of different executing devices.

3. Accuracy and linearity: The current signal output accuracy can reach ± 0.1% full scale (FS), the voltage signal output accuracy is ± 0.2% FS, and the linearity error is less than 0.05% FS, ensuring high accuracy of signal conversion and providing guarantee for precision control.

4. Output load capacity: In current output mode, the maximum load resistance is 750 Ω; In voltage output mode, the minimum load resistance is 1k Ω, which can be adapted to most industrial actuators (such as regulating valves, frequency converters, etc.).

5. Response time: The response time from digital instruction input to stable output of analog signal is less than 1ms, which can quickly respond to changes in control system instructions and is suitable for scenarios with high dynamic control requirements.

6. Power supply and power consumption: Supports 24V DC power supply, with a normal power consumption of about 5W and a standby power consumption of less than 1W, meeting the low-power design requirements of industrial equipment and reducing system operating costs.


Functional Features

1. High reliability and anti-interference ability

The module adopts industrial grade components and reinforced circuit design, with excellent resistance to electromagnetic interference (EMI) and radio frequency interference (RFI), and complies with the IEC 61000-4 series electromagnetic compatibility standards. At the same time, the module is equipped with overcurrent and overvoltage protection circuits. When there is a short circuit or abnormal high voltage at the output terminal, the output can be quickly cut off and an alarm can be triggered to avoid module damage and on-site equipment failures, thereby improving the safety of system operation.

2. Flexible configuration and diagnostic functions

Through ABB Control Builder M configuration software, users can personalize the signal type, range, alarm threshold and other parameters for each channel of the module, making the operation convenient and efficient. The module supports comprehensive self diagnostic functions, which can monitor key information such as channel output status, power supply voltage, and internal temperature in real time. When abnormal situations such as channel faults, signal drift, and overload occur, diagnostic information can be uploaded to the control system through communication interfaces such as PROFIBUS DP or EtherNet/IP, making it easy for operation and maintenance personnel to quickly locate and handle the problem.

3. Modular and easy to maintain design

The module adopts a standardized guide rail installation method, with a compact size that can seamlessly integrate with other I/O modules, controllers, etc. in the AC 800M series, saving installation space in the control cabinet. The module supports hot swapping function, which allows for direct disassembly and replacement of modules without shutting down the system, greatly reducing maintenance time and minimizing losses caused by production interruptions. In addition, the front of the module is equipped with LED status indicator lights, which can intuitively display the power status, channel working status, and fault information, making it easy for on-site personnel to quickly troubleshoot.

4. Wide compatibility

The AO845A eA module is perfectly compatible with ABB AC 800M controllers and supports docking with third-party PLC and DCS systems through standard industrial communication protocols. Its signal output range can be adapted to various industrial execution equipment, such as pneumatic control valves, electric actuators, frequency converters, recorders, etc., meeting the control needs of different industries and possessing strong application flexibility.


Applicable scenarios

This module, with its high precision, high reliability, and flexible configuration capabilities, is widely used in the following fields:

-Process industry: closed-loop control of process parameters such as temperature, pressure, flow rate, and liquid level in industries such as petrochemicals, chemical engineering, and metallurgy, driving control valves, pumps, and other executing equipment to achieve precise regulation.

-Manufacturing industry: Automated control of production lines in fields such as automobile manufacturing, mechanical processing, and electronic manufacturing, including motor speed regulation, robot motion control, and equipment operation parameter setting.

-Energy and Environmental Protection: Equipment control in industries such as power, water treatment, and environmental protection, such as variable frequency control of fans and pumps, and regulation of chemical dosage in sewage treatment processes.

-Infrastructure: Environmental parameter control and equipment operation status adjustment in areas such as rail transit and building automation.


Key points for installation and configuration

1. Installation requirements

The installation environment should meet the conditions of temperature -20 ℃~60 ℃, relative humidity 5%~95% (no condensation), and avoid installation in locations with dust, corrosive gases, and strong vibrations. The module needs to be fixed with a 35mm standard DIN rail, and during installation, ensure a minimum heat dissipation gap of 5mm with adjacent modules to avoid overheating affecting performance. The power supply line needs to be wired separately and laid separately from the signal line to reduce interference.

2. Configuration steps

1. Create a project in Control Builder M software and add the AC 800M controller and AO845A eA module hardware configuration.

2. Assign addresses to modules and configure communication parameters (such as PROFIBUS addresses or IP addresses).

3. For each output channel, set parameters such as signal type (4-20mA or 0-10V), range upper and lower limits, alarm triggering conditions, etc.

4. Write control logic programs to achieve associated control from digital instructions to analog signal output.

5. Download the configuration program to the controller, complete module debugging and calibration, and ensure accurate and stable output signals.
