  • ABB PP877K control panel
    ❤ Add to collection
  • ABB PP877K control panel

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

     Display and operation unit: equipped with a 15 inch high-resolution color TFT touch screen, with a resolution of 1024 × 768 pixels, rich display colors, clear images, support for multi touch operation, and sensitive response; Simultaneously integrating physical function buttons and navigation knobs to meet the precise operation requirements in complex industrial scenarios.

    • ¥6457.00
      ¥6673.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:1.680KG
    • Quantity:
    • (Inventory: 99999)
Description

 Display and operation unit: equipped with a 15 inch high-resolution color TFT touch screen, with a resolution of 1024 × 768 pixels, rich display colors, clear images, support for multi touch operation, and sensitive response; Simultaneously integrating physical function buttons and navigation knobs to meet the precise operation requirements in complex industrial scenarios.

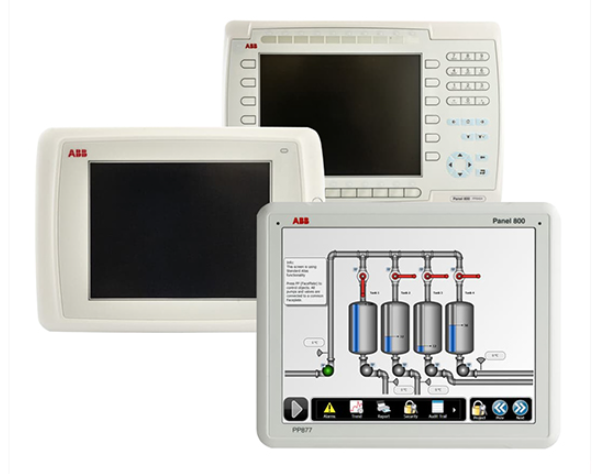

ABB PP877K control panel

Core performance parameters

The performance parameters of the PP877K control panel directly determine its operating experience and adaptability. The core parameters are as follows:

1. Display and operation unit: equipped with a 15 inch high-resolution color TFT touch screen, with a resolution of 1024 × 768 pixels, rich display colors, clear images, support for multi touch operation, and sensitive response; Simultaneously integrating physical function buttons and navigation knobs to meet the precise operation requirements in complex industrial scenarios.

2. Processor and Storage: Equipped with a high-performance industrial grade processor with a clock speed of no less than 1.8GHz, coupled with 2GB DDR3 memory and 8GB industrial grade flash memory, it can quickly run complex monitoring programs, ensuring smooth multitasking processing. It also supports external SD cards or USB flash drives for storage expansion.

3. Communication interface configuration: Equipped with 2 Gigabit Ethernet interfaces, 2 RS232/RS485 serial interfaces, 4 USB 2.0 interfaces, supporting mainstream industrial communication protocols such as PROFIBUS DP, EtherNet/IP, Modbus TCP, etc., it can flexibly interface with AC 800M controllers and third-party PLC and DCS systems.

4. Power supply and power consumption: Supports 100-240V AC wide voltage power supply, suitable for different regional power grid environments; The normal operating power consumption is about 35W, and the standby power consumption is less than 5W, which meets the energy-saving requirements of industrial equipment.

5. Environmental adaptability: The working temperature range is 0 ℃~50 ℃, the storage temperature range is -20 ℃~60 ℃, and the relative humidity is 5%~95% (without condensation), which can adapt to the complex temperature and humidity environment of industrial sites.

6. Protection level: The front panel has a protection level of IP65 and has good dust and water resistance. It can be directly installed in production workshops and other dusty environments that may come into contact with splashing water. The body protection level is IP20, which meets the installation requirements inside the control cabinet.


Functional Features

1. Humanized operation and display experience

The panel adopts a 15 inch large-sized touch screen, combined with optimized display driver technology, with wide viewing angle and high brightness characteristics. Even in industrial sites with strong light exposure, operators can clearly read the image information. The touch screen supports gesture operations (such as zooming and sliding), combined with physical navigation knobs and custom function buttons, which can quickly switch screens, adjust parameters, start and stop devices, and reduce operational difficulty. At the same time, it supports multilingual interface display and can flexibly switch between multiple languages such as Chinese and English according to usage scenarios, improving the adaptability of international projects.

2. Powerful configuration and data processing capabilities

PP877K is compatible with ABB Control Builder M and Panel Builder 800 configuration software. Users can quickly build monitoring interfaces through drag and drop components, supporting the drawing of process flow diagrams, real-time data trend charts, alarm lists, parameter setting panels, and other various screen types. The panel has real-time data collection and processing capabilities, can synchronously display the operating parameters of multiple devices (such as temperature, pressure, speed), and supports data storage and historical queries, providing data support for production process analysis.

3. Comprehensive alarm and safety functions

The panel supports multi-level alarm configuration. When the monitoring parameters exceed the preset threshold (such as equipment overheating or abnormal pressure), alarm signals can be sent out through various methods such as screen flashing, sound prompts, and indicator lights. At the same time, the alarm time, alarm type, and related parameters are recorded, making it easy for operators to respond quickly. To ensure system security, the panel supports user permission management function, and different operation permissions can be set according to job requirements (such as operators can only perform start stop operations, and administrators can modify parameter configurations), to prevent production accidents caused by misoperation.

4. High reliability and easy to maintain design

By adopting industrial grade hardware design and fanless cooling structure, the risk of equipment shutdown caused by fan failure is avoided, while effectively preventing dust and extending equipment service life. The panel supports automatic recovery function. When an unexpected power outage occurs and power is restored, it can automatically return to the operating state before the power outage, reducing manual intervention. In addition, remote diagnosis and maintenance can be achieved through Ethernet interfaces, and operation and maintenance personnel can complete program updates, troubleshooting, and other operations without the need to arrive on site, reducing maintenance costs.

5. Flexible installation and expansion capabilities

Supports three installation methods: panel installation, wall mounted installation, and cabinet embedded installation, which can be flexibly selected according to the on-site spatial layout. The interface is rich and supports multiple industrial communication protocols. It can not only seamlessly integrate with ABB AC 800M control systems, but also connect with third-party devices such as frequency converters, sensors, and smart meters to meet the monitoring needs of different automation systems. At the same time, it supports external peripherals such as printers, keyboards, mice, etc., to expand operation and data output functions.

3、 Applicable scenarios

This control panel is widely used in the following fields due to its user-friendly operation, stable performance, and flexible adaptability:

-Process industry: Production process monitoring in industries such as petrochemicals, chemical engineering, metallurgy, pharmaceuticals, etc., such as temperature and pressure monitoring of reaction vessels, material flow regulation of production lines, and monitoring of equipment operation status, to achieve centralized operation and precise control.

-Discrete manufacturing: Production line control in fields such as automotive manufacturing, mechanical processing, and electronic assembly, such as adjusting machine tool operating parameters, monitoring robot workstations, and managing production line rhythms, to improve production efficiency.

-Energy and Electricity: Equipment monitoring for power plants, substations, and new energy (such as photovoltaic and wind power) power stations, including monitoring of generator operation status, display and regulation of power parameters (voltage, current, power), and control of energy storage systems.

-Water treatment and environmental protection: Process monitoring of water treatment plants and sewage treatment plants, such as monitoring of water quality indicators (pH value, turbidity), control of pump and valve start and stop, adjustment of chemical dosage, etc., to ensure the effectiveness of water treatment.

-Infrastructure: Monitoring of mechanical and electrical equipment for rail transit (subway, light rail), management of air conditioning and drainage equipment for building automation systems, and operation monitoring of automated three-dimensional warehouses for warehousing and logistics.


Key points for installation and configuration

1. Installation requirements

The installation location should avoid direct sunlight, strong electromagnetic radiation, and severe vibration, and be away from high temperature heat sources and corrosive gases. When installing on a panel, it is necessary to ensure that the installation hole size matches the panel and is firmly fixed to prevent loosening; Wall mounted installation requires the use of brackets with load-bearing capacity that meets the requirements; During embedded installation, sufficient heat dissipation space should be reserved inside the cabinet to avoid close contact with other heating devices. The power supply line needs to be laid separately and equipped with voltage stabilizing equipment to prevent voltage fluctuations from affecting equipment operation.

2. Configuration and debugging steps

1. Create a project in Panel Builder 800 configuration software, and design process flow diagrams, data display interfaces, alarm screens, and parameter setting interfaces according to monitoring requirements.

2. Configure communication parameters, select the corresponding communication protocol (such as PROFIBUS DP), set the communication address, IP address, and other information between the panel and controller to achieve data exchange.

3. Define monitoring variables, associate real-time data in the controller, set parameters such as data collection cycle and alarm threshold.

4. Configure user permissions, divide operational permissions for different positions, and limit the modification permissions for key parameters.

5. Download the configuration program to the PP877K panel for online debugging, verify the accuracy of data display, timely operation response, and effectiveness of alarm function.
