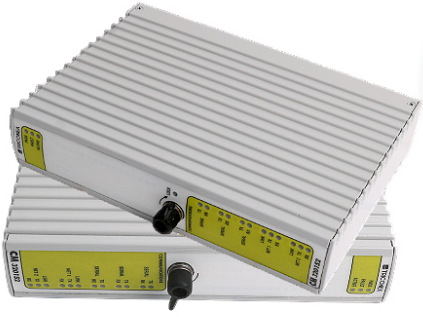

TRICONEX CM3201S2 Communication Module

TRICONEX CM3201S2 Communication Module

In today's highly interconnected industrial automation environment, the communication capability of control systems directly determines their integration depth, information transparency, and overall reliability. The TRICONEX CM3201S2 communication module (referred to as the CM module) serves as the "diplomatic portal" for Trident's Triple Modular Redundancy (TMR) control system, specifically designed to build a robust, flexible, and intelligent data bridge between safety critical control systems and the external world. It is not just a communication interface, but also an intelligent connectivity hub that integrates redundant architecture, multi protocol support, and advanced network management functions, providing excellent communication solutions for industries such as petrochemicals, power, and rail transit that require extreme reliability.

Core roles in product positioning and system architecture

The CM3201S2 communication module plays a crucial role as an "information exchange center" in the Trident system. It serves as a dedicated interface between the main processor module (MP) and external devices, securely and accurately transmitting the triple layered and highly deterministic control data within the system to a wider upper layer network and external devices. Its design follows the "two out of three" fault-tolerant concept at the core of the Trident system, but innovatively applies it to communication paths to ensure the integrity, timeliness, and high availability of data transmission.

Unlike I/O modules that handle direct control tasks in the system, CM modules focus on managing information flow. It enables a single Trident controller to seamlessly integrate with distributed control systems, monitoring and data acquisition systems, open industrial networks, network printers, and even other Trident or Tricon systems. This powerful interconnection capability integrates the originally independent "safety island" into the factory level information and intelligent network, which is a key infrastructure for achieving digitalization and predictive maintenance of the factory. A Trident controller can support up to two independent CM modules installed on a CM base board, providing a hardware foundation for achieving network redundancy or connecting multiple heterogeneous networks.

Core features: Redundant, flexible, and high-performance communication engine

Triple architecture communication fault tolerance: CM3201S2 inherits the essence of Trident system, and its interface with the main processor adopts a triple design. It serves as a unified communication proxy for three MP modules, integrating the processing results of the three channels and communicating externally through a single, consistent interface. This design means that even if a certain MP channel fails, the communication module can still maintain a reliable connection with the outside world based on the data of the remaining healthy channels, fundamentally avoiding the risk of the entire communication link being interrupted due to a single internal failure of the control system, and providing uninterrupted data services for upper layer applications.

Rich and diverse physical interfaces: The module provides extremely flexible physical connection options. Its front-end panel integrates three software configurable serial communication ports, each of which can be independently set to RS-232 or RS-485 mode. It supports point-to-point or multi-point network connections, with a maximum transmission rate of 115kbps, which can meet a wide range of needs from simple devices to Modbus networks. More importantly, the module is equipped with two independent Ethernet ports: a 10Mbps port (supporting 10BaseT and AUI interfaces) and a 100Mbps port (supporting 100BaseTX and MII interfaces). The dual port design not only provides convenience for connecting network segments with different speeds, but also is the key to achieving network redundancy. Two CM modules can be configured as redundant pairs, or two ports of one module can be used to connect different network paths, ensuring that communication links remain unobstructed in the event of a single point of failure in network cables, switches, and other links.

Comprehensive industrial protocol stack support: The strength of CM3201S2 lies in its "multilingual" capability. On the serial port side, it fully supports the most commonly used Modbus protocol in the industrial field, which can be used as a master station to actively poll slave devices, or as a slave station to respond to queries from DCS or SCADA systems. On the Ethernet side, its protocol support is more diverse: it supports the TSAA protocol optimized specifically for TriStation programming workstations; Support efficient TriStation point-to-point communication; Support becoming a Modbus TCP server or client, easily integrating into modern industrial Ethernet; Support precise time synchronization through UDP/IP SNTP protocol; Even traditional DLC/LLC protocols are supported to connect specific types of network printers (such as JetDirect). This extensive protocol compatibility allows the Trident system to integrate into almost any existing factory network architecture without the need for additional protocol gateways, greatly simplifying system integration complexity and reducing costs.

Detailed explanation of technical specifications and key points of system integration

The CM3201S2 module is designed for harsh industrial environments. The logic power supply is provided by the MP base board, with an input voltage range of 19.2 to 30VDC. The maximum power consumption of the module itself is 8W. When connected to an external media conversion unit, it will consume a small amount of additional power (AUI type MAU about 6W, MII type about 3.75W). The electrical isolation and protection design of the module complies with the overall environmental specifications of Trident system, and can operate stably in a wide temperature range of -4 ° F to+158 ° F and G3 level corrosive environment.

During system integration, it is necessary to follow key guidelines to ensure performance and compliance. To meet the electromagnetic compatibility requirements of the EU CE mark, the CM module must be installed together with the MP module in a metal cabinet. At the same time, the power supply for on-site equipment must comply with the requirements of IEC 61010-1 for safety extra low voltage circuits. These installation details are the foundation for ensuring communication stability and overall system authentication effectiveness.

Hot swappable and easy maintenance: Like other modules in the Trident system, CM3201S2 supports hot swappable functionality. This means that when module replacement or upgrade is required, there is no need to turn off the entire controller power, greatly improving the system's availability and meeting the needs of continuous production in the process industry.

Application scenario: From traditional integration to modern intelligent factories

Deep integration of safety control system and DCS: In large petrochemical complex units, the CM module uploads key information such as process alarms, equipment status, and interlocking actions of the Trident safety instrument system in real-time to the distributed control system of the entire plant through Modbus TCP or serial Modbus, enabling operators to monitor safety and process parameters uniformly on the DCS operation station, achieving true control integration.

Building a highly available redundant network: In the host protection system of a supercritical power plant, two CM3201S2 modules are configured to form redundant communication pairs, which are respectively connected to two physically isolated factory networks. Even if a network path completely fails, all critical protection signals and status information can still be transmitted to the control room through the backup path, providing dual communication guarantee for the safe operation of the unit.

Protocol conversion and legacy system integration: In situations where automation transformation of old production lines is required, the multiple RS-485 ports of the CM module can connect existing PLCs, smart meters, and other devices using Modbus RTU protocol. At the same time, data is aggregated and converted into modern protocols (such as OPC UA or Modbus TCP) through Ethernet ports and uploaded to the newly deployed MES system, protecting existing investments and achieving data connectivity.

Asset management and remote support: By using a HART multiplexer (such as Triconex 4850) in conjunction with analog I/O modules that support the HART protocol, the CM module can establish a digital communication channel with on-site intelligent instruments to upload asset data such as equipment diagnosis and verification information to the asset management system, providing a data foundation for predictive maintenance.
