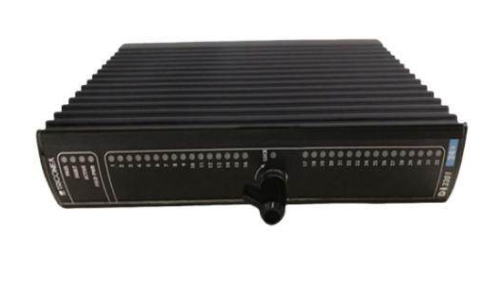

TRICONEX DI3361 Digital Input Module
The TRICONEX DI3361 is a core component of the Triconex safety controller architecture, recognized globally for its role in high-integrity pressure protection and emergency shutdown systems. As a Digital Input Module, its primary function is to monitor the state of field devices—such as switches, pushbuttons, and contact closures—and relay that information to the main processors with absolute precision.
Triple Modular Redundancy (TMR) Integration
The defining feature of the DI3361 is its alignment with Triple Modular Redundancy (TMR) technology. Every signal entering the module is split into three separate paths. Each path is processed by an independent sub-circuit, and the results are continuously compared through a hardware-based voting system.
This design ensures that if one component within the module fails, the remaining two branches continue to provide accurate data, allowing the system to maintain its safety function while flagging the internal fault for maintenance. This "Two-out-of-Three" (2oo3) logic is what allows the DI3361 to achieve SIL 3 (Safety Integrity Level 3) compliance.
Key Technical Specifications
The TRICONEX DI3361 is built to handle the rigorous demands of industrial automation. Below are the essential specifications that define its performance:
Input Channels: 32 points, non-isolated from each other but isolated from the logic.
Nominal Voltage: 24 VDC (Direct Current).
Input Delay: Optimized filtering to prevent false triggering from contact bounce or noise.
Point-to-Point Diagnostics: Continuous self-testing of each input circuit.
Power Consumption: Low-power design to reduce heat dissipation within the chassis.
Hot-Swappable: Supports online replacement to ensure zero downtime during maintenance.
Advanced Self-Diagnostics and Reliability
Reliability in a safety system is not just about staying running; it is about knowing when something is wrong. The DI3361 performs extensive self-diagnostics that go far beyond standard industrial IO modules. It monitors the health of the input circuitry, the status of the internal communication bus, and the integrity of the voting logic.
If the module detects a "stuck-at" condition or a hardware discrepancy, the integrated status LEDs provide immediate visual feedback, while the system software generates a detailed diagnostic report. This level of transparency is critical for maintaining the High Availability required in chemical plants, refineries, and nuclear facilities.
Installation and Field Wiring
The DI3361 module is designed for easy installation into a Triconex chassis. It interfaces with the field via an External Termination Assembly (ETA). This setup allows for clean wiring and provides a layer of protection against electromagnetic interference (EMI) and voltage surges.
Field sensors are connected to the ETA, which then connects to the module through a heavy-duty interface cable. This modular approach ensures that field wiring does not need to be disturbed during a module swap, significantly reducing the risk of human error during servicing.
Primary Application Scenarios
Because of its high reliability and TMR architecture, the DI3361 is the preferred choice for several critical sectors:
Petrochemical: Monitoring pressure switches and level sensors in volatile environments.
Power Generation: Interfacing with turbine trip signals and boiler safety controls.
Manufacturing: Implementing complex safety interlocks for heavy machinery.
Oil and Gas: Offshore platform safety monitoring where maintenance access is limited.
Summary
The TRICONEX DI3361 represents the pinnacle of digital input technology for safety-critical systems. By combining high-density 32-point monitoring with the unmatched fault tolerance of TMR voting, it provides the robust data foundation required for modern safety instrumented systems. Its ability to perform under pressure while providing detailed health diagnostics ensures that industrial operators can maintain both safety and productivity simultaneously.
