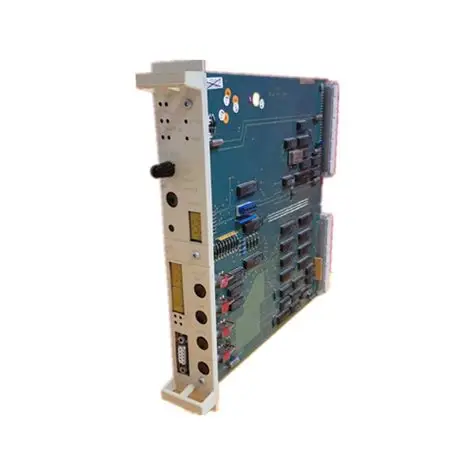

ABB DSPC172 CPU Module

ABB DSPC172 CPU Module

Product Overview

ABB DSPC172 is a high-performance CPU module designed for high-end industrial automation scenarios. As the core component of ABB Master series controllers, it integrates DSP and FPGA technology and focuses on real-time processing of complex control algorithms and high-precision equipment control. Its modular design is compatible with ABB AC800M control system and S800/S900 remote I/O system, and can be seamlessly integrated into existing industrial infrastructure. With its compact structure and wide temperature operation capability, it has become the preferred core unit for automation tasks in harsh environments.

Specification parameters

1. Core performance parameters

Processor

32-bit RISC architecture, with a clock speed of 800MHz (ARM Cortex-A9 core) or 100MHz high-performance processor

Memory configuration

64KB-512MB RAM，128KB-4GB Flash/ROM， Support program storage expansion

Response speed

The latency of critical tasks is as low as sub milliseconds, with a typical control response time of 1ms

Power consumption

Typical 10W, maximum 15W

2. Hardware and environmental parameters

Communication interface

2 x Ethernet (supporting redundancy), 4 x RS-232/422/485, 2 x CAN ports, compatible with protocols such as Profibus DP

I/O compatibility

Support S800/S900 remote I/O system, can connect up to 98 I/O sites

Supply voltage

24V DC (industrial grade wide width adaptation)

Environmental tolerance

Working temperature -20 ° C to 60 ° C, storage temperature -40 ° C to 85 ° C, with IEC 60068-2-6 anti vibration capability

Physical specifications

Dimensions range from 70 × 70 × 15mm to 125 × 104 × 50mm, with a weight of 0.35kg-1.1kg and an IP20 protection level

3. Certification and compatibility

Certification: CE, UL, ISO 9001 international standard certification

Software compatibility: Supports mainstream PLC programming languages such as ladder diagrams and structured text, compatible with ABB industrial automation development kit

Performance characteristics

Dual core collaborative processing capability: integrating DSP and FPGA hardware acceleration units, capable of parallel processing of complex control algorithms such as PID and MPC, and improving digital signal processing efficiency by more than 40% compared to traditional CPUs.

Full scenario communication adaptation: covering multiple types of interfaces such as Ethernet, RS-485, CAN, etc., supporting protocols such as Modbus, Profibus DP, Masterbus 300, etc., achieving seamless data interaction with sensors, drivers, SCADA systems.

High reliability redundancy design: Dual Ethernet ports support communication redundancy, critical circuits have fault tolerance, and combined with hot swap hot plugging function, the system uptime can reach 99.99%.

Extreme environmental adaptability: Equipped with industrial grade reinforced casing and wide temperature components, it can withstand dust, vibration, and high and low temperature fluctuations, making it suitable for harsh scenarios such as offshore wind power and metallurgy.

Energy efficiency and cost optimization: The typical power consumption of 10W is reduced by 30% compared to similar products, supporting firmware online upgrades and refurbished parts reuse, and reducing lifecycle costs by 40%.

Working principle

DSPC172 operates based on a closed-loop control architecture of "signal acquisition algorithm processing instruction output state feedback". The core process is as follows:

Data acquisition layer: Receive digital/analog signals (such as temperature, pressure, motor speed) from sensors and transmitters through S800 I/O modules, and transmit them to the CPU core through RS-485/Ethernet interfaces.

Core layer processing: 32-bit RISC processor is responsible for logical operations, DSP unit specializes in signal filtering and mathematical modeling, FPGA implements high-speed timing control, and the three work together to execute preset control algorithms (such as motor variable frequency speed regulation logic).

Instruction execution layer: The processing results are converted into switch/analog output signals, which drive actuators (such as solenoid valves and servo motors) through I/O ports, and upload real-time data to the monitoring system.

Redundancy and diagnostic mechanism: Dual port real-time monitoring of communication links, built-in self-test program continuously verifies memory and I/O status, triggers alarms and switches to backup channels in case of faults, ensuring control continuity.

Precautions

Installation specifications:

At least 50mm of heat dissipation space should be reserved to avoid direct contact with high-power devices, and the installation torque should be controlled within the range of 0.5-0.8N · m.

The communication cable needs to use shielded twisted pair, with a distance of not less than 30cm from the power line, and Ethernet redundant links need to be equipped with independent switch ports.

Operation and maintenance:

Before the first startup, the firmware version needs to be verified through ABB configuration software to ensure compatibility with the I/O module (recommended version V5.2 and above).

Regularly backup user programs in Flash, and it is recommended to perform a comprehensive self check every 3 months to investigate interface looseness and component aging issues.

Security protection:

The power supply system needs to be equipped with a 24V DC redundant power supply, and surge protectors (SPDs) should be installed to cope with grid fluctuations, with a grounding resistance of ≤ 4 Ω.

Firmware upgrade requires disconnecting the load circuit, and module insertion and removal are prohibited while in operation. Maintenance must be carried out by ABB certified engineers.

Application scenarios

1. Energy and power industry

Battery Energy Storage System (BESS): Real time control of charging and discharging power through high-precision SOC algorithm, combined with grid dispatch signals to achieve frequency and voltage regulation, has been applied in multiple 100MWh level energy storage power stations in China.

Wind power pitch control: processes wind speed and speed signals and drives pitch motors to ensure wind turbine power generation efficiency in a low temperature environment of -20 ° C, suitable for mainstream models such as Goldwind and Mingyang Intelligent.

2. Process industry field

Chemical reaction kettle control: MPC algorithm is used to accurately adjust temperature and pressure parameters, with a response time of less than 1ms, meeting high-precision process requirements such as polymerization reactions and reducing raw material loss by more than 15%.

Petroleum refining pipeline: By connecting flow transmitters and regulating valves through Profibus DP, collaborative transportation control of multiple pipeline segments is achieved, compatible with third-party equipment such as Siemens and Henghe.

3. Intelligent manufacturing scenarios

Robot workstation: controls the motion trajectory and grasping action of the six axis robot, linked with the vision system through Ethernet, with a positioning accuracy of ± 0.1mm, suitable for automotive parts assembly lines.

Packaging production line: Coordinate the operation rhythm of conveyor belts, sealing and cutting machines and other equipment, support high-speed production of 120 packages per minute, and reduce downtime due to faults to less than 5 minutes per month.
