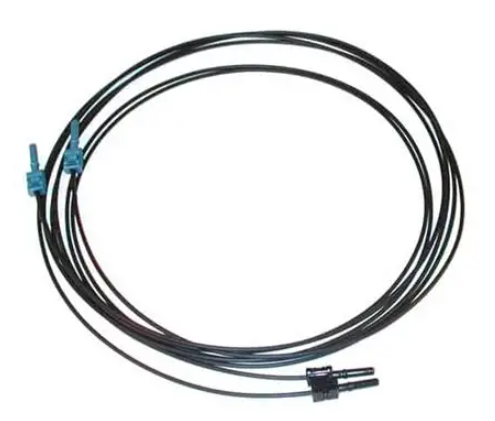

ABB NTAC-02 fiber optic cable



ABB NTAC-02 fiber optic cable

Core positioning and technical characteristics

The core positioning of NTAC-02 fiber optic cable is "industrial grade high reliability optical signal transmission medium", and its design revolves around the three core requirements of "low loss, strong anti-interference, and high adaptability". Compared with ordinary commercial fiber optic cables, it has the following outstanding technical characteristics:

1. Low loss and high fidelity transmission: High purity quartz fiber core (core diameter 9 μ m, cladding diameter 125 μ m) is used, combined with high-quality coating materials. The attenuation rates in commonly used industrial optical transmission windows such as 850nm and 1310nm are as low as 0.3dB/km and 0.1dB/km, respectively, ensuring that optical signals maintain high fidelity even after long-distance transmission (up to 2km support), without communication errors caused by signal distortion or attenuation.

2. Extremely strong electromagnetic anti-interference ability: Based on the physical characteristics of fiber optic transmission, it is completely unaffected by strong electromagnetic interference (EMI), radio frequency interference (RFI), and common mode voltage in industrial sites. Compared with copper cable transmission, it can effectively avoid the interference of electromagnetic radiation generated by frequency converters, high-power motors, high-voltage equipment, etc. on communication signals, ensuring communication stability in harsh electromagnetic environments.

3. Industrial grade structural protection: Adopting a four layer protection structure of "fiber core buffer layer armor layer outer sheath", the buffer layer is made of low elastic modulus material to absorb vibration and impact, the armor layer is made of galvanized steel wire braided structure (tensile strength ≥ 1500N), and the outer sheath is made of PVC material that is resistant to oil, acid and alkali (in accordance with UL94 V-0 flame retardant standard), which can withstand mechanical wear, chemical corrosion and flame invasion in industrial sites.

4. High adaptability connection design: ABB specific SC/LC fiber optic connectors (subdivided according to model) are standard, and the connectors use ceramic plug cores (plug-in times ≥ 1000 times), with insertion loss ≤ 0.2dB and return loss ≥ 50dB. They can directly adapt to various ABB optical communication modules (such as XVC768AE102 optical expansion interface) and industrial switches, without the need for additional adapters, reducing the risk of connection failures.

5. Wide temperature adaptability: The working temperature range covers -40 ℃~+85 ℃, and the storage temperature range is -60 ℃~+100 ℃. It can maintain structural stability and transmission performance in extreme industrial environments such as high and low temperatures, without performance degradation caused by embrittlement or softening, and is suitable for various harsh working conditions.

Core functions and application value

As the "physical transmission link core" of industrial communication systems, NTAC-02 fiber optic cable focuses on low loss transmission of optical signals, environmental protection, and system adaptation. The specific core functions and application values are as follows:

1. Long distance high bandwidth signal transmission

With low attenuation fiber core design and high bandwidth characteristics (bandwidth ≥ 1000MHz · km), it can support stable transmission of 100Mbps industrial Ethernet signals for 2km, and the transmission distance of 10Mbps signals can reach 10km. Compared with traditional copper cables (such as CAT6 network cables with a transmission distance of only 100m), it greatly improves the transmission coverage range. In large thermal power plants, long-distance communication between the boiler control system and the central control room can be achieved without the need for additional signal relay equipment, reducing system complexity and costs.

2. Communication protection in extreme environments

The four layer protective structure and special material selection enable it to have comprehensive environmental adaptability: the oil and acid alkali resistance of the outer sheath can adapt to the oil and corrosive gas environment in the petrochemical workshop; The high-strength design of the armor layer can resist mechanical collisions and vibrations in metallurgical workshops; The wide temperature characteristic can meet the communication needs of outdoor control cabinets and indoor systems in cold northern regions, ensuring uninterrupted communication links under various extreme working conditions.

3. Electromagnetic interference isolation transmission

In strong electromagnetic environments such as conventional nuclear power islands and electrolytic aluminum workshops, ordinary copper cables are susceptible to electromagnetic interference that can cause communication interruptions or data errors. However, NTAC-02 fiber optic cables completely isolate electromagnetic effects through optical signal transmission, ensuring accurate transmission of high-precision data collected by modules such as XVC768AE102 to the controller, avoiding control accuracy degradation or system misoperation caused by communication interference.

4. System security and redundancy assurance

Supporting the use of redundant communication architecture in conjunction with ABB control systems, it can serve as the core transmission medium for redundant communication links. When the main link fails, the redundant fiber optic link can switch within milliseconds to ensure uninterrupted data transmission. In large-scale hydrogenation units in the petrochemical industry, this function can avoid production shutdowns caused by communication interruptions and enhance system safety redundancy.

5. Convenient installation and long-term stability

Fiber optic cables have good flexibility (bending radius ≥ 20mm), making them easy to wire inside control cabinets and cable trays; The standard dedicated connector adopts a snap on design, which is easy to plug and unplug and firmly connected, effectively avoiding looseness caused by vibration; The high wear resistance of ceramic inserts ensures low insertion loss even after long-term use, reducing maintenance costs and fault risks.

Structural composition and key parameters

The NTAC-02 fiber optic cable adopts standardized industrial design, with clear structural hierarchy and coordinated protection of transmission performance and environmental adaptability. Its core structural composition and key technical parameters are as follows:

category

Core components/parameter items

Specifications

Functional benefits/performance advantages

structural composition

fiber core

High purity quartz, 9 μ m (single-mode)

Low loss transmission of optical signals ensures fidelity over long distances

buffer layer

Low elastic modulus polyimide, diameter 250 μ m

Absorb vibration impact and protect the fiber core from mechanical damage

armor layer

Galvanized steel wire weaving, diameter 1.6mm

Enhance tensile strength, resist mechanical wear and collision

outer sheath

Flame retardant PVC, diameter 2.2mm, UL94 V-0

Oil resistant, acid and alkali resistant, flame retardant and corrosion-resistant, suitable for industrial environments

key parameters

transmission characteristics

Single mode, working wavelength 850nm/1310nm, bandwidth ≥ 1000MHz · km

Adapt to industrial optical communication modules and support high-speed signal transmission

Loss index

850nm：≤0.3dB/km； 1310nm：≤0.1dB/km

Ensure long-distance transmission without signal attenuation and reduce bit error rate

Connector Specifications

SC/LC ceramic plug, insertion loss ≤ 0.2dB, return loss ≥ 50dB

Low insertion loss and high reliability connection, compatible with ABB optical communication equipment

environmental parameters

Working temperature -40 ℃~+85 ℃, oil resistance level IP65 (after connection)

Adapt to extreme industrial environments and ensure long-term stable operation

mechanical properties

Tensile strength ≥ 1500N, bending radius ≥ 20mm (static)

Easy to install wiring and resist mechanical stress damage

Typical application scenarios

NTAC-02 fiber optic cable, with its advantages of low loss, strong anti-interference, and wide environmental adaptability, is widely used in various industrial scenarios that require strict communication reliability, especially in environments with strong electromagnetic interference and long transmission distances. Typical applications include:

1. Communication of thermal power/nuclear power control system

As the core communication link, key parameters such as temperature, pressure, and current collected by modules such as XVC768AE102 are transmitted between the boiler DCS system and the turbine electrical control system of thermal power units, or between the equipment inside the safety shell of nuclear power units and the central control room. Its strong anti electromagnetic interference capability can resist the strong electromagnetic radiation generated by generators and transformers, and its long-distance transmission characteristics can cover the vast factory area of large power plants, ensuring real-time and reliable transmission of control signals.

2. Long distance pipeline monitoring in petrochemical industry

In the long-distance oil/gas pipeline monitoring system of petrochemical industry, it is used to connect pressure sensors, flow sensors and remote control centers along the line, transmit real-time monitoring data and control instructions. Its oil and acid resistant outer sheath design can adapt to the oil and corrosive environment along the pipeline, and its long-distance transmission capacity can avoid the need for additional relay equipment, reducing system construction and operation costs.

3. Strong electromagnetic environment communication in metallurgical industry

In the converter steelmaking workshop of the steel plant and the electrolytic cell control system of the electrolytic aluminum plant, it is used to connect the XVC768AE102 module with the controller, transmitting high-precision data such as steel temperature and electrode current. Its complete resistance to electromagnetic interference can avoid the interference of strong electromagnetic radiation generated by high-power arc furnaces and electrolytic cells on communication signals, ensuring accurate issuance of control instructions and accurate uploading of monitoring data.

4. Communication of rail transit traction system

As the core transmission medium of the optical communication link between the traction converter and the train control system in subways and high-speed trains, it transmits key data such as traction motor temperature and converter output parameters. Its high tensile strength and anti vibration characteristics can adapt to mechanical impacts during train operation, and its wide temperature characteristics can meet the temperature changes inside and outside the tunnel, ensuring stable communication of the traction system.

5. Interconnection of large-scale intelligent manufacturing workshops

In large automobile manufacturing and semiconductor production workshops, it is used to connect the control systems of automated production lines in different areas with the central MES system, transmitting information such as equipment operation status and production data. Its high bandwidth characteristics can support parallel transmission of large amounts of data, and its anti-interference ability can avoid electromagnetic interference generated by numerous robots and frequency converters in the workshop, ensuring real-time communication of production scheduling instructions.
