  • ABB UAC383AE01 HIEE3008900001 interface module
    ❤ Add to collection

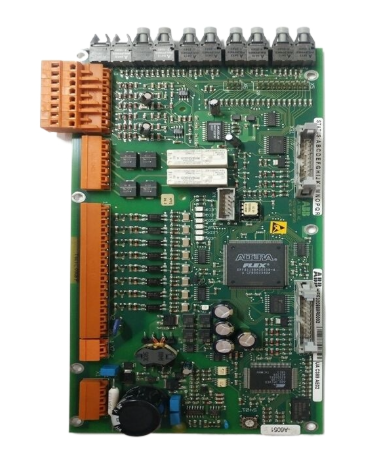

  • ABB UAC383AE01 HIEE3008900001 interface module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    ABB UAC383AE01 HIEE3008900001 is a high-performance intelligent interface module specially designed by ABB Group for the interconnection of heterogeneous equipment in industrial control systems. It belongs to the communication adaptation unit family of ABB Symphony Plus and AC 800M control systems. Its core function is to solve the "communication barriers" between different protocols and types of equipment in industrial sites, and achieve efficient data exchange between control centers, decentralized equipment, and third-party systems. This module serves as the "communication translator" of the control system, integrating multiple protocol conversion engines and high-speed data processing units. It can simultaneously connect to multiple industrial buses and Ethernet devices, complete signal format conversion, transparent data transmission, and communication link monitoring. It is a key component in building an integrated industrial control network.

    • ¥9626.00
      ¥9484.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:1.620KG
    • Quantity:
    • (Inventory: 99999)
Description

ABB UAC383AE01 HIEE3008900001 is a high-performance intelligent interface module specially designed by ABB Group for the interconnection of heterogeneous equipment in industrial control systems. It belongs to the communication adaptation unit family of ABB Symphony Plus and AC 800M control systems. Its core function is to solve the "communication barriers" between different protocols and types of equipment in industrial sites, and achieve efficient data exchange between control centers, decentralized equipment, and third-party systems. This module serves as the "communication translator" of the control system, integrating multiple protocol conversion engines and high-speed data processing units. It can simultaneously connect to multiple industrial buses and Ethernet devices, complete signal format conversion, transparent data transmission, and communication link monitoring. It is a key component in building an integrated industrial control network.




ABB UAC383AE01 HIEE3008900001 interface module

Core Overview

ABB UAC383AE01 HIEE3008900001 is a high-performance intelligent interface module specially designed by ABB Group for the interconnection of heterogeneous equipment in industrial control systems. It belongs to the communication adaptation unit family of ABB Symphony Plus and AC 800M control systems. Its core function is to solve the "communication barriers" between different protocols and types of equipment in industrial sites, and achieve efficient data exchange between control centers, decentralized equipment, and third-party systems. This module serves as the "communication translator" of the control system, integrating multiple protocol conversion engines and high-speed data processing units. It can simultaneously connect to multiple industrial buses and Ethernet devices, complete signal format conversion, transparent data transmission, and communication link monitoring. It is a key component in building an integrated industrial control network.

Compared to traditional interface modules, the UAC383AE01 module has achieved significant improvements in protocol compatibility, data processing speed, redundancy reliability, and scalability. It supports cross protocol communication from traditional industrial buses (such as PROFIBUS and Modbus RTU) to industrial Ethernet (such as PROFINET and EtherNet/IP), seamlessly connecting ABB control systems with third-party sensors, actuators, frequency converters, and monitoring systems. It is widely used in the upgrading of old systems, compatibility between new and old equipment, and cross vendor system integration scenarios in industries such as power, petrochemicals, and metallurgy, providing stable and reliable technical support for the interconnection and intercommunication of industrial control networks.

Key characteristics

2.1 Multi protocol compatibility, breaking down communication barriers

The UAC383AE01 module is equipped with a high-performance multi protocol conversion engine that supports mainstream wired communication protocols in the industrial field, enabling centralized access and interconnection of multi protocol devices. In terms of industrial bus, it supports traditional bus protocols such as PROFIBUS-DP/V1, Modbus RTU/ASCII, DeviceNet, etc., and can be directly connected to on-site frequency converters (such as ABB ACS880 series), intelligent instruments, PLCs, and other equipment; In terms of industrial Ethernet, it is compatible with protocols such as PROFINET IO, EtherNet/IP, Modbus TCP, ABB S908, etc., and can achieve high-speed communication with control system controllers (such as AC 800M, GFD233A103) and upper monitoring systems (such as ABB OCS, WinCC). The module supports dynamic configuration of protocols, and a single module can run four different protocols simultaneously, meeting the interconnection needs of heterogeneous devices in complex industrial scenarios.

2.2 High speed data processing, real-time and reliable transmission

The module is equipped with a 32-bit high-performance embedded processor and a dedicated communication coprocessor, with a main processor frequency of 400MHz. The coprocessor is responsible for protocol parsing and data forwarding, forming a "parallel processing" architecture to ensure efficient data processing and transmission. The data processing speed of the module reaches 10Mbps, supporting concurrent access of up to 256 communication nodes, with a single data transmission delay of ≤ 5ms, which can meet the transmission requirements of real-time control instructions and key process parameters in industrial control. For the scenario of large data transmission, the module has a built-in 8KB high-speed data cache area and adopts a "cache batch forwarding" mechanism to avoid data loss. At the same time, it supports data priority setting to ensure that key data such as control instructions are transmitted first.

2.3 Industrial grade redundancy design to enhance communication reliability

To ensure the continuity of industrial control network communication, the module adopts a comprehensive redundancy design to cope with link interruptions and equipment failures:

-Communication link redundancy: Supports dual Ethernet ports and dual bus interface configuration, and can build a circular redundant network (such as PROFINET MRP, EtherNet/IP DLR). When the main communication link fails, the system can automatically switch to the backup link within 10ms without data loss during the switching process, ensuring redundant backup of the communication link.

-Equipment redundancy: Supports 1:1 device hot redundancy configuration. The main and backup modules achieve real-time synchronization of configuration parameters and communication data through dedicated redundant links. When the main module fails, the backup module can seamlessly take over communication tasks, ensuring the continuity of the entire communication link.

-Power redundancy: equipped with dual independent power input interfaces, supporting a wide voltage range (24V DC ± 20%), can be connected to different power supply circuits, avoiding module shutdown caused by a single power failure, and improving the reliability of equipment operation.

2.4 Flexible Expansion and Convenient Configuration

The module adopts a modular hardware design, equipped with 2 expansion slots, supporting access to dedicated communication expansion modules (such as RS485/RS232 expansion modules, wireless communication expansion modules), and can flexibly expand the number and types of communication interfaces according to on-site communication needs, reducing system upgrade costs. In terms of configuration, the module supports three configuration methods: integrated configuration through ABB Symphony Plus Engineering and Control Builder M configuration software, seamlessly connecting with control system parameters; Local configuration is performed through a graphical web interface, which is intuitive and convenient to operate; Support remote configuration and parameter distribution through SNMP protocol for batch device management.

2.5 Comprehensive communication diagnosis and monitoring

The module has a built-in full link communication diagnostic mechanism, which can monitor the connection status, data transmission rate, packet loss rate, bit error rate and other parameters of each communication port in real time. It also supports protocol parsing log recording, which can trace abnormal information during data transmission. When communication interruption, protocol parsing error, node offline and other faults are detected, the fault status is immediately output through the module panel indicator light, and the fault information (including fault type, fault port, occurrence time) is uploaded to the controller and upper monitoring system through the communication bus, making it easy for operation and maintenance personnel to quickly locate and troubleshoot the problem. In addition, the module supports reading real-time communication status data through the upper system, providing data support for preventive maintenance.


Core technical parameters

Module Type

Multi protocol intelligent interface module

Core processor

400MHz 32-bit embedded processor+dedicated communication coprocessor

Supported Protocols

Industrial Ethernet: PROFINET IO, EtherNet/IP, Modbus TCP, S908; Industrial bus: PROFIBUS-DP/V1, Modbus RTU/ASCII, DeviceNet

communication interface

2 Gigabit Ethernet ports, 2 PROFIBUS-DP ports, 2 RS485/RS232 ports, 2 expansion slots

Data processing speed

10Mbps, Single data transmission delay ≤ 5ms

Maximum number of access nodes

256 (supporting concurrent access of multiple protocols)

data caching

8KB high-speed data cache area

Redundant configuration

Support link redundancy (ring network), 1:1 device thermal redundancy, switching time ≤ 10ms

power supply voltage

24V DC ± 20%, dual redundant input, power consumption ≤ 12W

Operating Temperature

-25℃~70℃

relative humidity

5%~95%, no condensation

Protection level

IP20 (rack mounted)

Electromagnetic compatibility standards

IEC 61000-4-2/3/4/6, ESD ± 15kV (air)/± 8kV (contact)

certification standard

IEC 61131-2,UL 508,ATEX Zone 2,SIL 2


Typical application scenarios

4.1 Upgrading and Transformation of Control Systems in the Power Industry

In the scenario of upgrading old control systems in thermal power plants and hydropower stations, a large number of traditional PROFIBUS-DP bus devices (such as pressure transmitters and actuators) need to be connected to the new ABB AC 800M control system (based on EtherNet/IP protocol), and the UAC383AE01 module can serve as the protocol conversion core. The module connects to the old equipment on site through the PROFIBUS-DP interface, converts the collected analog and digital signals into EtherNet/IP protocol data, and uploads it to the AC 800M controller through the Ethernet port; At the same time, the control instructions issued by the controller are converted into the PROFIBUS-DP protocol by the module and transmitted to the on-site actuator, achieving seamless compatibility between the new and old systems. Its redundant design ensures uninterrupted communication during the upgrade process, avoiding any impact on the normal production of the power plant.

4.2 Cross vendor equipment integration in petrochemical industry

In large-scale chemical plants, the ABB Symphony Plus DCS system needs to achieve data exchange with third-party equipment (such as Siemens S7 series PLC, Rockwell inverter), and there are significant differences in communication protocols among the devices, which poses integration challenges. The UAC383AE01 module can be centrally connected to devices from different manufacturers: connected to Siemens PLC through PROFINET IO interface, connected to Rockwell frequency converter through EtherNet/IP interface, connected to third-party intelligent instruments through Modbus RTU interface, and uniformly converted to ABB S908 protocol for data transmission to Symphony Plus DCS; At the same time, the control instructions of the DCS system are converted into corresponding protocols by modules and distributed to various devices, achieving collaborative control of cross vendor devices. The communication diagnostic function of the module can monitor the communication status of various devices in real time, ensuring the stability of the chemical production process.

4.3 Interconnection of production line equipment in the metallurgical industry

In the continuous rolling production line of the steel plant, the control system of the rolling mill (ABB AC 800M) needs to exchange data with various equipment on the production line, including tension sensors based on PROFIBUS-DP protocol, laser thickness gauges based on Modbus TCP protocol, and hydraulic valve groups based on DeviceNet protocol. The UAC383AE01 module connects various devices through corresponding interfaces, collects and converts tension, thickness, hydraulic pressure and other data into a unified protocol, and uploads it to the AC 800M controller to provide data support for precise control of the rolling mill; At the same time, the control instructions of the controller are converted by the module and sent to various devices to achieve coordinated parameter adjustment in the steel rolling process. The link redundancy design of modules can build a circular communication network, avoiding production line downtime caused by a single link failure and improving production efficiency.

4.4 Remote monitoring of municipal water supply system

In the urban water supply system, the ABB control system of the water plant needs to remotely monitor the dispersed water supply pressure station equipment (such as pump frequency converters, pressure sensors, liquid level gauges). The pressure station equipment mostly uses Modbus RTU protocol and is connected through RS485 bus. The UAC383AE01 module is deployed in various pressure stations and connected to on-site equipment through RS485 interface. It converts the collected data such as water pump operation status, pipe network pressure, and water tank level into Modbus TCP protocol and uploads it to the water plant control center through Ethernet (or combined with TB820V2 modem through 4G/5G network); At the same time, remote control commands from the control center (such as pump start stop and frequency adjustment) are converted into Modbus RTU protocol by the module and sent to on-site devices to achieve remote centralized monitoring and unmanned operation of the water supply system.


Precautions for use

-Before installing the module, it is necessary to clarify the communication protocol, interface type, and data transmission requirements of the on-site equipment, and plan the interface configuration and expansion module selection of the module reasonably; During installation, a dedicated rack should be used to secure the interface to avoid loosening due to vibration. The installation location should be away from strong electromagnetic interference sources such as frequency converters and high-power motors, and the rack should be reliably grounded (grounding resistance ≤ 4 Ω).

-When wiring, the system power supply should be disconnected, and the power line, Ethernet line, and bus line should be strictly distinguished according to the module interface definition. It is recommended to use shielded twisted pair for the bus line, and the shielding layer should be grounded at one end; Communication lines with different protocols should be wired separately to avoid cross interference, and the wiring terminals should be securely fastened to prevent poor contact from causing communication abnormalities.

-When configuring the protocol, it is necessary to accurately set the protocol type and communication parameters (such as IP address, baud rate, slave address, data bit, checksum) of each communication port through ABB configuration software or web interface to ensure consistency with the parameters of the access device; After the configuration is completed, communication link testing is required to verify the accuracy and real-time performance of data transmission and reception.

-When configuring redundancy, it is necessary to ensure that the hardware models, firmware versions, and configuration parameters of the primary and backup modules are completely consistent, and that the redundant links are firmly connected; After completing the redundant parameter configuration through the configuration software, a fault switching test is required to verify the timeliness and data continuity of the main and backup module switching, ensuring the normal functioning of the redundancy.

-In daily operation and maintenance, it is necessary to regularly check the communication status, fault logs, and data transmission status of modules through the upper monitoring system or web interface. The module panel indicator light status should be checked monthly, and the module should be cleaned and communication link tested once every quarter; Focus on checking whether the power wiring and communication cable connections are secure to avoid communication interruption caused by poor contact.

-When upgrading module firmware, it is necessary to obtain the matching firmware version through official channels and backup the current configuration parameters before upgrading; During the upgrade process, it is necessary to ensure stable power supply and prohibit power outages or module restarts to avoid firmware damage that may cause the module to malfunction.

-When used in high temperature, high humidity, or dusty environments, it is necessary to strengthen the ventilation, heat dissipation, and dust prevention measures of the control cabinet to ensure that the working temperature of the module does not exceed 70 ℃; If necessary, equip the cabinet with air conditioning or cooling fans to extend the service life of the module.
